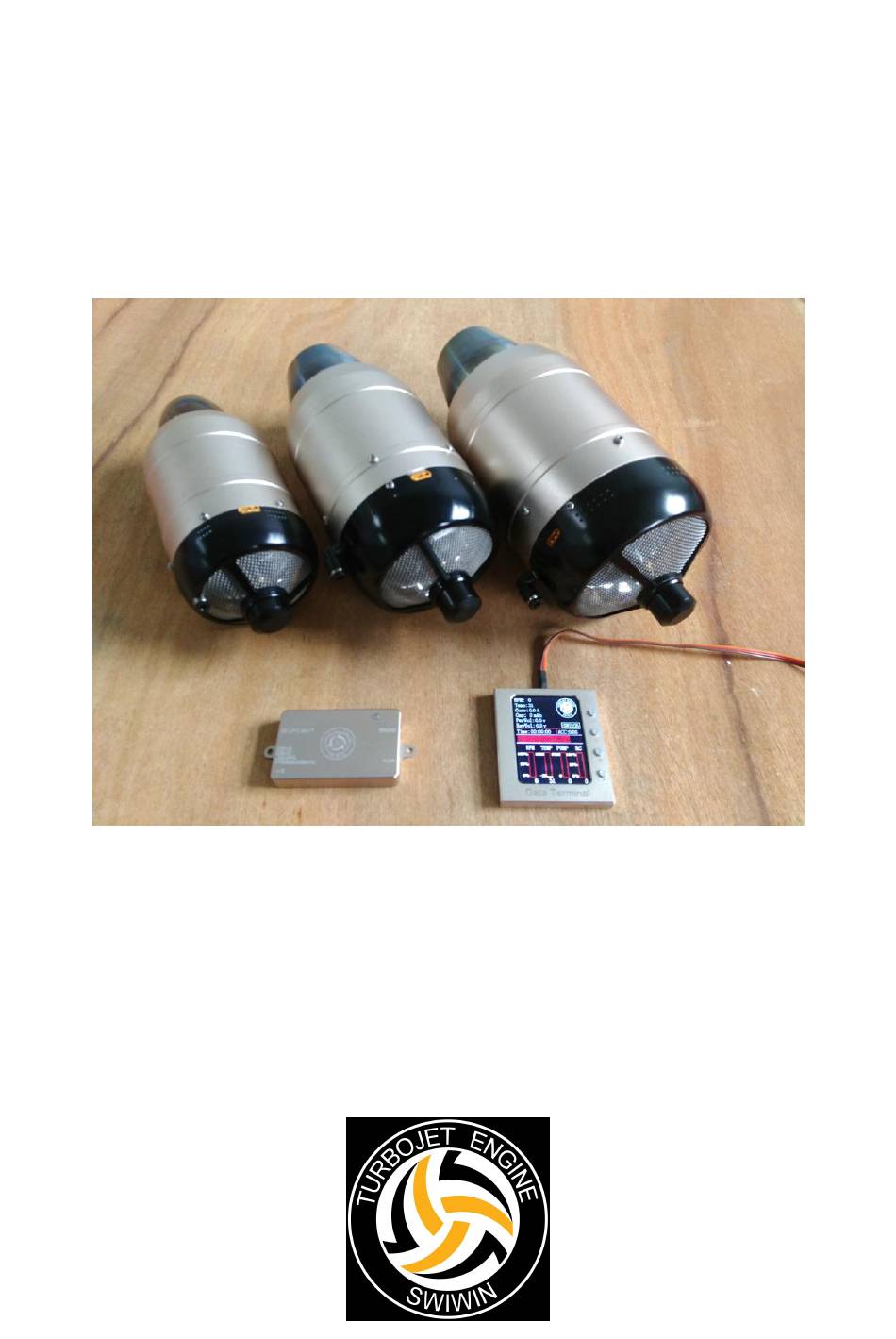

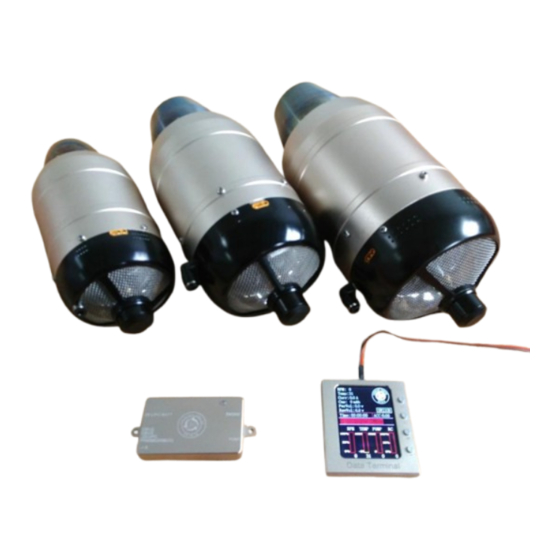

- Page 1 SWIWIN Turbines SW Brushless Series Kero Start Full Autostart with Auto-Restart Operations Manual...
-
Page 2: Safety First
SWIWIN USA advises ALL users (novice or pro) to test their motors in a test stand before mounting them in a plane. The reason for this is to familiarize yourself with SWIWIN motor operation and to ensure reliable operation before mounting the engine in the plane. - Page 3 1. The warranty is transferable to any subsequent user. There is a $50 admin fee which will be collected when ownership of the motor is transferred. Please make sure that each user registers the motor with SWIWIN at the time of transfer so that service can be maintained on the motor.
- Page 4 2. SWIWIN will cover labor charges associated with any warranty repair. 3. SWIWIN warranty coverage is limited to replacement of parts and repair of the unit and does not apply to any other losses or damages, consequential or inconsequential to the failure.
-
Page 5: Operation And Setup
7. If a problem occurs during the warranty period, please contact our service department and take the following steps: a. Contact SWIWIN in order to coordinate shipping of the turbine to the service center for evaluation and repair. b. Send the turbine to our repair center. Please include all user information including address and daytime phone number, email address, etc. -
Page 6: Motor Setup
1.Connect one end of the servo cable (provided) between the ECU port labeled “ppm/sbus/sbus2” and the other end to your receiver 2. Connect the Battery cable to ECU port labeled “3S LIPO BATT” 3. Connect the pump to the deans connector on the battery cable 4. -
Page 7: Start-Up Operation
1. Connect the motor festo fitting to a section of 4mm tubing (included). 2. Route the tubing to the filter then to the shut off as shown. 3. Connect the other end of the shutoff with 4mm tubing to the output of the supertrap pump. 4. - Page 8 5. Turn off power to the controller 6. Turn off power to your radio The SWIWIN ECU was designed from the ground up and is based on 32 bit microprocessor functionality and designed specifically for SWIWIN Turbines. The ECU offers the following benefits: Data Logging Auto start Automatic Restart ...
- Page 9 GSU Screen Button Function “OK” Invoke a change or command “C” Clear a screen “+” Increment a value “-“ Decrement a value Initial Screen RPM – Current running status of the turbine Temp – Current temperature of engine Curr – Electrical current in Cap –...
- Page 10 Start Up Screen PumpVoltage - Set pump voltage Typical value is 0.4-0.5v RPM StartUp Ramp – Set ramp profile starter , This parameter adjusts the speed of the starter increase during the “Preheat to RPM Off Starter” phase. Higher values mean a faster rpm increase. Increase this value if the engine too hot duing preheat to rpm off starter , and decrease it if flame out duing preheat to rpm of starter.
- Page 11 Learn RC This menu is to train the transmitter to the ECU. Max – Throttle up, trim up Idle – Throttle down, trim up Min – Throttle down, trim down FailSafeTime – set fail safe time in seconds [BUS] Throttle cha – setup throttle channel if use BUS Mode input [BUS] Switchcha –...
- Page 12 Other Clear Battery used – reset the value to zero. This allows the pilot to determine how much battery life is remaining. Adjust Temp – Used to calibrate the temperature reading on the engine. Unless there is an issue adjustments are not normally needed.
- Page 13 Spec...
- Page 14 SW60B SW120B SW140B SW170B SW190B Diameter 84mm 100mm 100mm 110mm 110mm Length 203mm 250mm 250mm 258mm 258mm Weight 783g 1255g 1255g 1457g 1457g RPM range 50,000-160,000 38,000-125,000 38,000-128,000 33,000-110,000 33,000-115,000 Thrust 120N 140N 170N 190N 650℃ 650℃ 650℃ 650℃ 650℃ Consumption 164g/min 310g/min...
