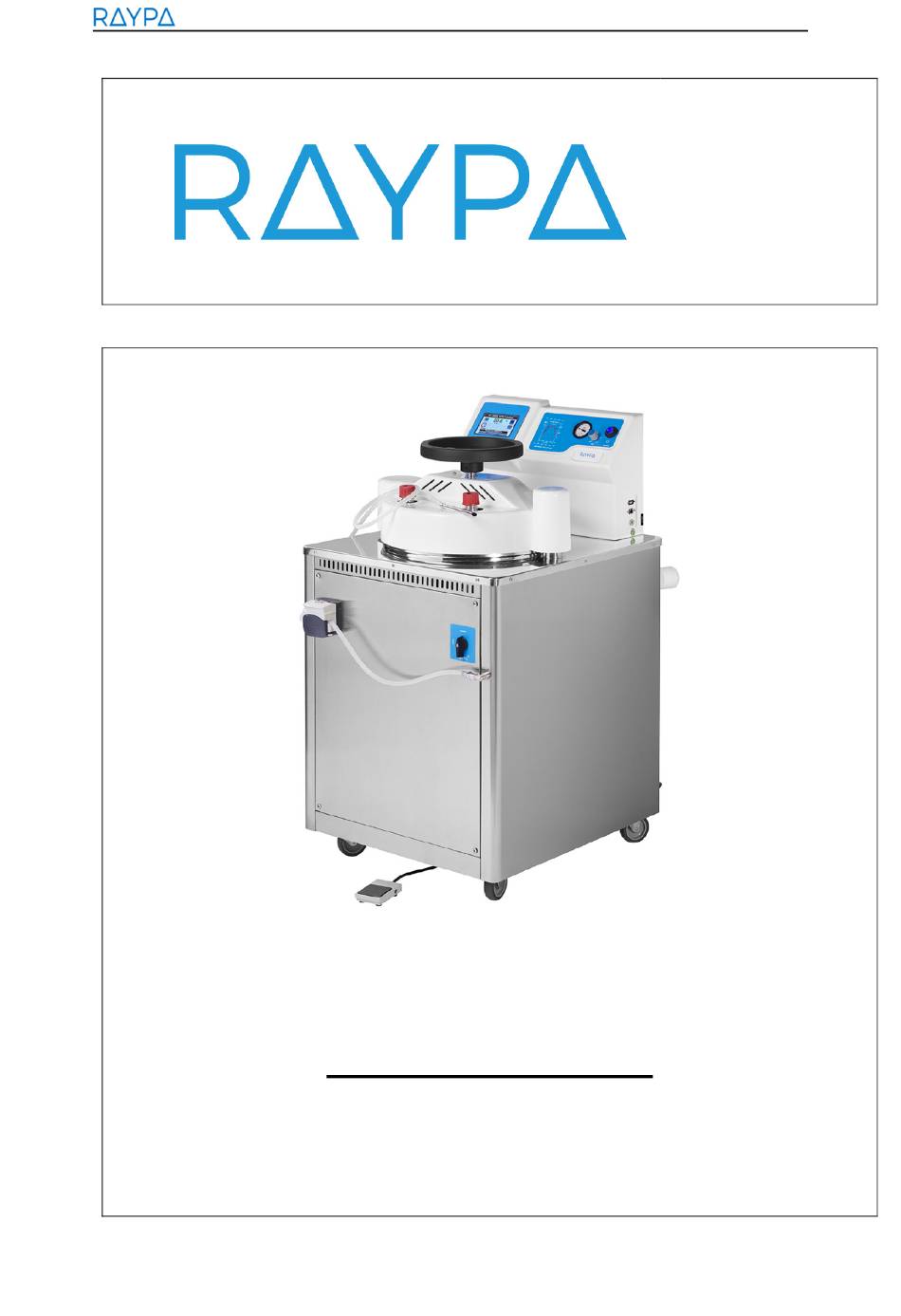

AE-MPi/13
INSTRUCTION MANUAL
FOR USE AND MAINTENANCE
MEDIA PREPARATOR
Models
:
AE-20-MP / AE-40-MP / AE-60-MP
AE-80-MP / AE-100-MP
1/60
