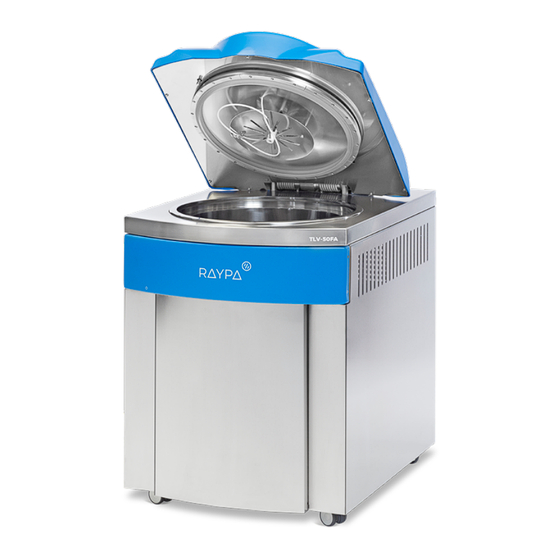

TLV-FA SERIES
- INSTALLATION GUIDE
Information to consider before installing your autoclave.
INDEX
Electrical connection (Standard) .......................................................................................................................................................................Page 2
Electrical connection (North America) .............................................................................................................................................................Page 3
Connections graph ...............................................................................................................................................................................................Page 4
Included components ..........................................................................................................................................................................................Page 5
Drainage connections ..........................................................................................................................................................................................Page 6
Water supply for cooling .....................................................................................................................................................................................Page 8
Use of WATERSOFT-TLV in combination with TLV-FA Series autoclaves ..................................................................................................Page 9
Water supply for sterilization .......................................................................................................................................................................... Page 10
Use of ECOPUR-TLV in combination with TLV-FA Series autoclaves ...................................................................................................... Page 11
Integrated basket lift system installation ...................................................................................................................................................... Page 12
Dimensions to consider ................................................................................................................................................................................... Page 15
Environmental conditions ................................................................................................................................................................................ Page 15
Recommended maintenance .......................................................................................................................................................................... Page 16
Sterilization
VERTICAL AUTOCLAVES
WITH FAST COOLING
SYSTEM
TLV-FA SERIES
TLV-FA SERIES - INSTALLATION GUIDE
1
Advertisement
Table of Contents
Related Manuals for Raypa TLV-FA Series
Summary of Contents for Raypa TLV-FA Series
-
Page 1: Table Of Contents
Use of WATERSOFT-TLV in combination with TLV-FA Series autoclaves ....................Page 9 Water supply for sterilization ..................................Page 10 Use of ECOPUR-TLV in combination with TLV-FA Series autoclaves ...................... Page 11 Integrated basket lift system installation ..............................Page 12 Dimensions to consider ....................................Page 15 Environmental conditions .................................... -
Page 2: Electrical Connection (Standard)
400 (3P+N+PE) V 16 A TLV-150FA-220T 50/60 Hz 9000 W 23 A 230 (3P+PE) V 32 A TLV-150FA-6K-220M 50/60 Hz 6000 W 26 A 230 (1P+N+PE) V 32 A 16 A 16 A 32 A 32 A TLV-FA SERIES - INSTALLATION GUIDE... -
Page 3: Electrical Connection (North America)
3600 W 30 A 120 (1P+N+PE) V NEMA 5-50P TLV-110FA-220T-US 50/60 Hz 9000 W 23 A 230 (3P+PE) V NEMA L15-30P TLV-150FA-220T-US 50/60 Hz 9000 W 23 A 230 (3P+PE) V NEMA L15-30P 5-50R L15-30R TLV-FA SERIES - INSTALLATION GUIDE... -
Page 4: Connections Graph
STERILIZATION CHAMBER DRAIN OUTLET ATTENTION! Outlets 5 and 6 must be driven to the drain separately and must be properly attached to it. See page 6. *Outlet 4 must be left unobstructed at all times. TLV-FA SERIES - INSTALLATION GUIDE... -
Page 5: Included Components
4 reinforced NBR hoses 2m long with 3/4" connection at both ends for threaded connection to the equipment and tap (gaskets included). For: 5. STEAM OUTLET 6. DIRECT DISCHARGE OUTLET 12. COOLING WATER INLET 13. STERILIZATION WATER INLET TLV-FA SERIES - INSTALLATION GUIDE... -
Page 6: Drainage Connections
DRAINAGE CONNECTIONS All models from the TLV-FA Series are equipped with two drainage outlets which serve to discharge the purge, regulate internal pressure, and expel the steam and condensates produced during each sterilization cycle. Additionally, they feature an active cooling system, which utilizes a heat exchanger with the main water supply to reduce the temperature of these gas and liquid emissions to a safe level before being discharged into the drain. - Page 7 Improperly secured hoses pose a substantial risk of detachment, which could lead to hazardous situations such as burns. CONSIDER: Height and position of drain outlets: STEAM DIRECT MODEL OUTLET DISCHARGE OUTLET TLV-50FA 170 mm 110 mm TLV-75FA 180 mm 110 mm TLV-110FA 190 mm 115 mm TLV-150FA 190 mm 110 mm TLV-FA SERIES - INSTALLATION GUIDE...
-
Page 8: Water Supply For Cooling
SYSTEM TLV-FA SERIES WATER SUPPLY FOR COOLING All models in the TLV-FA Series are equipped with two cooling systems. The primary system is a rapid cooling mechanism, utilizing a water coil that encircles the sterilization chamber, designed to expedite the temperature reduction of the load during the cooling phase. The... -
Page 9: Use Of Watersoft-Tlv In Combination With Tlv-Fa Series Autoclaves
Sterilization VERTICAL AUTOCLAVES WITH FAST COOLING SYSTEM TLV-FA SERIES USE OF WATERSOFT-TLV IN COMBINATION WITH TLV-FA SERIES AUTOCLAVES If you don’t have a soft water main available, MAIN WATER INLET we recommend using the WATERSOFT-TLV SOFT WATER OUTLET water softener. -
Page 10: Water Supply For Sterilization
AUTOMATIC SUPPLY TLV-FA Series autoclaves have automated filling of the steam generator that produces the steam during normal operation of the autoclave. Purified water must be used and supply options A, B and C are available using the STERILIZATION WATER INLET (13). -
Page 11: Use Of Ecopur-Tlv In Combination With Tlv-Fa Series Autoclaves
*Note: Take into account that distilled water that is too pure (conductivity less than 5µS/cm) is not recommended as it may cause corrosion on stainless steel in the long term and water level detection problems. USE OF ECOPUR-TLV IN COMBINATION WITH TLV-FA SERIES AUTOCLAVES If you don’t have a purified water main... -
Page 12: Integrated Basket Lift System Installation
To ensure safe handling of the baskets in larger volume autoclaves, it is recommended to use a basket lifting crane equipped with a rotating mast. For the TLV-FA Series autoclaves, the recommended model is the FIX-LIFT crane, which is capable of handling loads up to 30 kg. - Page 13 1. UPPER LIMIT OF THE MOBILE MAST 2. MOBILE MAST 4. SAFETY RING 5. CHAIN 3. VERTICAL COLUMN 6. BASKET HOLDER 7. LIFT SYSTEM CONTROL 8. MAIN SWITCH 9. ELECTRICAL PANEL 10. VERTICAL COLUMN HOUSING TLV-FA SERIES - INSTALLATION GUIDE...
- Page 14 The accessory is ready for use. To ensure safety and proper the placement of the remaining components: carabiner, chain, and maintenance, we recommend following the instructions in the basket holder. specific lift system manual carefully. TLV-FA SERIES - INSTALLATION GUIDE...
-
Page 15: Dimensions To Consider
This equipment can operate under the following connections. maximum conditions: • Ambient temperature: 30 ºC • Humidity: 75% • Altitude: 3.000 meters above sea level.* *In case of higher altitudes, contact with our technical team. TLV-FA SERIES - INSTALLATION GUIDE... -
Page 16: Recommended Maintenance
Ensure all components are dried completely after cleaning. ANNUAL MAINTENANCE Autoclaves from the TLV-FA Series are equipped with a bacteriological filter, which should be replaced either upon reaching the recommended interval or when a filter blockage is detected. - Page 17 Should you encounter any issues, have questions, or require further information regarding maintenance of the TLV-FA Series autoclave, please don’t hesitate to reach out to our technical support service using the following contact details.
