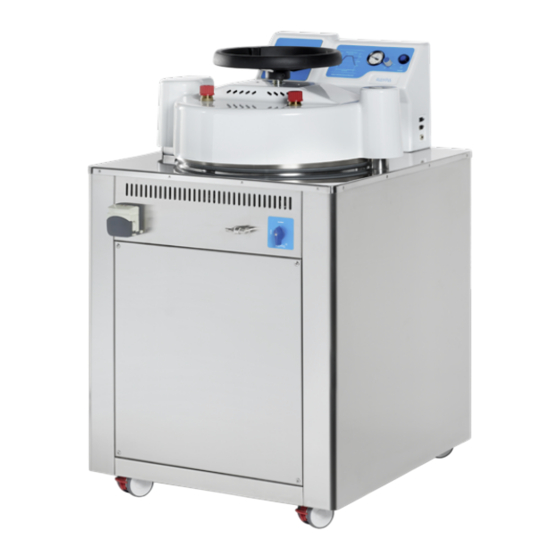

AE-MP SERIES
- INSTALLATION GUIDE
Information to consider before installing your RAYPA media preparator.
INDEX
Electrical connection (Standard) .......................................................................................................................................................................Page 2
Electrical connection (North America) .............................................................................................................................................................Page 3
Connections graph ...............................................................................................................................................................................................Page 4
Components included .........................................................................................................................................................................................Page 5
Drainage connections ..........................................................................................................................................................................................Page 7
Automatic cleaning of the dispensing lines ....................................................................................................................................................Page 8
Water supply for cooling .................................................................................................................................................................................. Page 10
Use of WATERSOFT-MP in combination with AE-MP ................................................................................................................................. Page 10
Water supply for sterilization (manual) ......................................................................................................................................................... Page 11
Water supply for sterilization (automatic) ................................................................................................................................................... Page 12
Use of ECOPUR-MP in combination with AE-MP ........................................................................................................................................ Page 13
Dimensions to consider ................................................................................................................................................................................... Page 14
Environmental conditions ................................................................................................................................................................................ Page 15
Recommended maintenance .......................................................................................................................................................................... Page 16
Sterilization
STANDARD MEDIA
PREPARATORS
AE-MP SERIES
AE-MP SERIES - INSTALLATION GUIDE
1
Advertisement
Table of Contents
Related Manuals for Raypa AE-MP Series
Summary of Contents for Raypa AE-MP Series
-
Page 1: Table Of Contents
Sterilization STANDARD MEDIA PREPARATORS AE-MP SERIES AE-MP SERIES - INSTALLATION GUIDE Information to consider before installing your RAYPA media preparator. INDEX Electrical connection (Standard) ..................................Page 2 Electrical connection (North America) ................................Page 3 Connections graph .......................................Page 4 Components included ......................................Page 5 Drainage connections ......................................Page 7... -
Page 2: Electrical Connection (Standard)
38 A 230 (3P+PE) V 63 A AE-100-MP-20K-220T 50/60 Hz 20000 W 51 A 230 (3P+PE) V 63 A 16 A 16 A 32 A 32 A 16 A 32 A 63 A 63 A AE-MP SERIES - INSTALLATION GUIDE... -
Page 3: Electrical Connection (North America)
230 (3P+PE) V NEMA 15-60P AE-80-MP-20K-220T-US 50/60 Hz 15000 W 38 A 230 (3P+PE) V NEMA 15-50P AE-100-MP-220T-US 50/60 Hz 20000 W 51 A 230 (3P+PE) V NEMA 15-60P AE-100-MP-20K-220T-US 5-30R L15-20R L15-30R 15-50R 15-60R AE-MP SERIES - INSTALLATION GUIDE... -
Page 4: Connections Graph
11. SAFET Y VALVE OUTLET 12. OPTIONAL PURGE OUTLET 17. STERILIZATION CHAMBER (available under special request) DRAIN OUTLET ATTENTION! Connections to the drainage must be fixed properly to it. *Outlet 12 must be left unobstructed at all times. AE-MP SERIES - INSTALLATION GUIDE... -
Page 5: Components Included
*AE-20-MP-10L and AE-20-MP models also include a Ø4,8 mm tube with a Ø4 mm nozzle. 1 mechanical pedal for dosage with a 1,8m long cable and a electrical connection to the media preparator. For: 15. DOSAGE PEDAL PORT AE-MP SERIES - INSTALLATION GUIDE... - Page 6 1 stand equipped with a 650mm height rod and two adjustable height clamps to hold the dispensing line. 1 media volume indicator for the internal bucket to ease the dosing of water. AE-MP SERIES - INSTALLATION GUIDE...
-
Page 7: Drainage Connections
If drains and outlets are used shortly after a sterilization cycle has finished, water may run out at a high temperature. CONSIDER: Height and position of drain outlets. MODEL STERILIZATION COOLING WATER CHAMBER DRAIN OUTLET OUTLET AE-20-MP-10L AE-20-MP AE-40-MP AE-60-MP AE-80-MP AE-100-MP AE-MP SERIES - INSTALLATION GUIDE... -
Page 8: Automatic Cleaning Of The Dispensing Lines
3. Place the metal nozzle of the 4. Select the purge option with "CLOSED" mode. not pinched by the peristaltic pump dispensing line inside of the supplied pressure support. or the external dosing station. bottle. AE-MP SERIES - INSTALLATION GUIDE... - Page 9 2. Set the dosing selector to “OPEN” 3. Activate the magnetic stirring of 4. Dispense continuously into a inner vessel. mode and ensure the dispensing line adjustable speed. container using the peristaltic pump. is pinched by the peristaltic pump. AE-MP SERIES - INSTALLATION GUIDE...
-
Page 10: Water Supply For Cooling
DRAIN (C) and SAFETY OVERFLOW OUTLET (D) must be driven to the drain. Water softener inlet and drainage hoses Read the specific water softener manual before installing must always be visible and in good this accessory. condition. AE-MP SERIES - INSTALLATION GUIDE... -
Page 11: Water Supply For Sterilization (Manual)
*Note: Take into account that distilled water that is too pure (conductivity less than 5µS/cm) is not recommended as it may cause corrosion on stainless steel in the long term and water level detection problems in some models. AE-MP SERIES - INSTALLATION GUIDE... -
Page 12: Water Supply For Sterilization (Automatic)
AUTOMATIC SUPPLY RECOMMENDED All AE-MP Series media preparators can be optionally equipped with a water pump to make the water supply to the sterilization chamber completely automatic. If you have chosen the KLL-MP automatic water filling accessory (optional, but installed in the factory), there are supply options A, B, and C using the STERILIZATION WATER INLET connection (14). -
Page 13: Use Of Ecopur-Mp In Combination With Ae-Mp
Bear in mind that the inlet and drain hoses in the purifier must always be visible and in perfect working condition. 14. STERILIZATION WATER INLET Read the water purifier manual before installing this accessory. AE-MP SERIES - INSTALLATION GUIDE... -
Page 14: Dimensions To Consider
Height and position of the drain connections to the table (included table height: 600mm). ELECTRICAL OUTLET This heights may vary in a few mm depending on the height you may wish to adjust the legs. (13,14) WATER INLETS (16,17) DRAIN AE-MP SERIES - INSTALLATION GUIDE... -
Page 15: Environmental Conditions
This media preparator can operate under the following maximum conditions: • Ambient temperature: 30 ºC • Humidity: 75% • Altitude: 3.000 meters a. s. l., in case of higher altitudes, consult with our technical team. AE-MP SERIES - INSTALLATION GUIDE... -
Page 16: Recommended Maintenance
2. Clean the sterilization chamber using a clean cotton cloth with a little of water and neutral detergent. Dry it afterwards. 3. Clean all the components, such as the magnetic stirrer, using a clean cotton cloth with a little of water and neutral detergent. Dry it afterwards. AE-MP SERIES - INSTALLATION GUIDE... - Page 17 Should you encounter any issues, have questions, or require further information regarding maintenance of the AE-MP Series media preparator, please don’t hesitate to reach out to our technical support service using the following contact details.
Need help?
Do you have a question about the AE-MP Series and is the answer not in the manual?
Questions and answers
