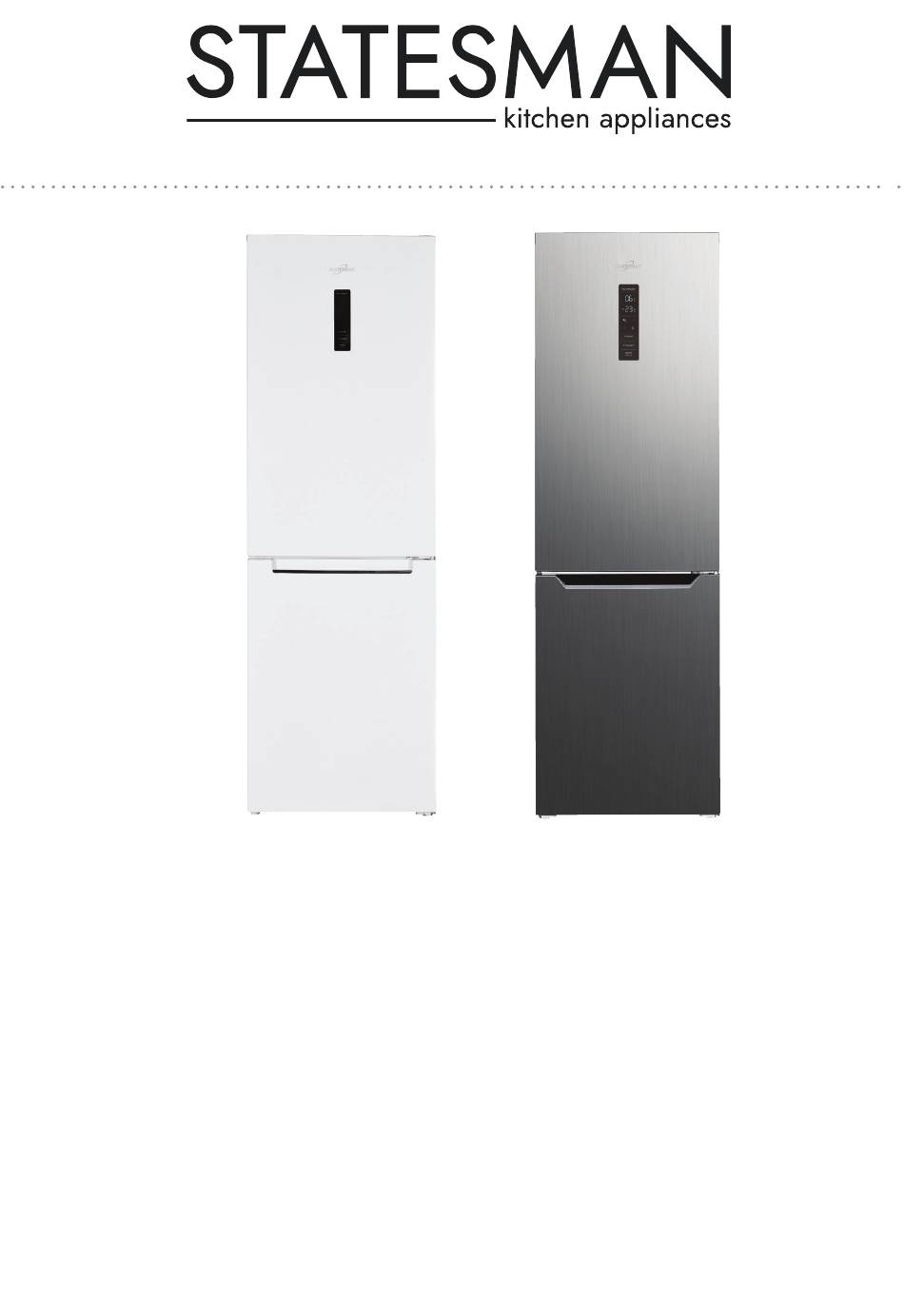

- Page 1 TNF1860WE/TNF1860XE 60CM 60/40 TOTAL NO FROST FRIDGE FREEZER WITH LED DISPLAY Instruction Manual PO Number: Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – always check for any damage that may have...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ........3-6 Specification ..............7 Appliance Overview ............8 Installation ..............9-15 Operating Instructions ..........16-22 Cleaning and Maintenance ........23-24 Trouble Shooting Guide ..........25 Fuse Replacement ............26 Disposal Information ............26 Statesman Warranty Information ........27... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This product is intended for domestic use only; to store and freeze food products only. - Page 4 • The refrigerant of this product is R600a which is flammable. Ensure when moving the appliance or during installation that the cooling system does not get damaged. • WARNING: Risk of child entrapment. Before disposal of the old appliance, make sure that any locking mechanisms have been broken off, doors have been removed but shelves have been left in so that children cannot easily climb inside.
- Page 5 • This product is intended to be used in a household and similar applications such as: - Staff kitchen areas in shops, offices and other working environments. - Farmhouses and by clients in hotels, motels and other residential type environments. - Bed and breakfast type environments.
- Page 6 - Two-star frozen food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. - One-, two- and three-star compartments are not suitable for freezing fresh food. - If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.
-
Page 7: Specification
SPECIFICATION Supplier Name/Trade Mark Statesman Model Number TNF1860WE/TNF1860XE Category Type Refrigerator - Freezer Energy Efficiency Class Annual Energy Consumption 249kWh/Annum Total Net Storage Volume (Litre) 323L Freezing Capacity 6.4kg/24 hours Fridge Net Storage Volume (Litre) 219L Freezer Net Storage Volume (Litre) -
Page 8: Appliance Overview
APPLIANCE OVERVIEW Fridge Shelves Door Shelves Salad Drawer Cover Salad Drawer Fresh Converter Drawer Freezer Drawers Leveling Feet This illustration is only for reference, for details please check your appliance. -
Page 9: Installation
INSTALLATION Important: Unpack the appliance and check if there are damages. Do not connect the appliance if it is damaged. • The appliance must stand vertically on a flat, even surface. To level the appliance, use the levelling feet by turning them until the appliance is as level as possible. -
Page 10: Reversing The Door
Reversing the Door IMPORTANT: Ensure that the unit is switched off, unplugged and empty. The appliance door can be fitted to open to either the left or the right depending on its location. The appliance will have to be tilted and supported to carry this out. - Page 11 Remove the pin using a screwdriver. Flip the hinge bracket over 180° and then refit the pin. Remove the door switch from the existing hinge cover and attach to the replacement (opposite) hinge cover. Remove the upper door cover and move the harness from one side to the opposite side. Reattach the door cover.
- Page 12 Unscrew the rectangular cover and reattach on the opposite side. Remove the upper door and remove the hinge situated between the upper and lower door using a phillips screwdriver. Then remove the lower door. Remove the hinge hole covers from one side and reattach them on the other side. WARNING! When moving the appliance, always seek assistance.
- Page 13 9. Lay down the fridge freezer and then remove the levelling feet from both sides. 10. Using a spanner, unscrew the bottom hinge pin. Flip the bracket over and then refit the pin. 11. Screw the bottom hinge pin in to the opposite side.
- Page 14 12. Remove the closing-aids from the bottom of both the upper and lower doors. Use the replacement (opposite) closing-aids and attach them to the opposite side. 13. Remove both the fridge and freezer door seals, rotate them 180° and reattach. 14.
- Page 15 15. Replace the upper door, ensuring that the door is correctly aligned. If the door is not, the seal may not seal tightly during use. Connect the door to the unit by tightly screwing in the top hinge. 16. Connect the harnesses between the door and the unit. Attach the top hinge cover ensuring that the terminals of the door switch are connected.
-
Page 16: Operating Instructions
OPERATING INSTRUCTIONS IMPORTANT: Before using the appliance for the first time, wash the interior and all the internal accessories with lukewarm water and some neutral soap to remove the typical smell of a new product, then dry thoroughly. IMPORTANT: Do not use abrasive detergents or powders, as they will dam- age the finish of the appliance. - Page 17 The panel will be lit up by any operation and the light will turn off 2 minutes after the last operation. Display during normal operation: • Temperature Display of the Fridge Compartment: Indicates the temperature of the current setting. • Temperature Display of the Freezer Compartment: Indicating the temperature of the current setting.
-
Page 18: Daily Use
Daily Use To avoid contamination of food, please follow the below instructions. • Opening the door for long periods can cause a significant increase of the temperature. • Regularly clean surfaces that can come in contact with food. • Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drips onto other food. - Page 19 Fresh Converter Drawer Temperature Control • Temperature of the fresh converter drawer can be adjusted to best suit the food stored. • Push the slider control up and the temperature in the fresh zone will gradually decrease. • When the slider control is placed at the “CRISPER” position the fresh converter drawer will function as a crisper zone and will maintain the appropriate temperature and humidity...
-
Page 20: Auto Lock Function
Temperature Control of the Freezer Compartment This button can be used in both the User Defined Mode as well as Holiday Mode. After entering the temperature control of the freezer compartment, the button will flash. By pressing this consecutively, the temperature will change in a cycle from -14°C to -22°C, after which a 5-second flashing means the temperature has been selected. -
Page 21: Holiday Mode
Holiday Mode Press the MODE button to choose the Holiday mode. After flashing for 5 seconds, the Holiday mode icon will stay illuminated meaning the Holiday mode has been confirmed. In Holiday mode, the temperature of the fridge will be set at 17°C. The “FRIDGE”... - Page 22 Important! In the event of accidental defrosting, the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooking). Please check the product specifications for the “temperature rising time” in the scenario of a power outage. Door open alarm If the fridge (upper) door is open for longer than 60 seconds, the alarm will ring periodically until it is closed.
-
Page 23: Cleaning And Maintenance
CLEANING AND MAINTENANCE IMPORTANT: Switch off the electrical supply and remove the plug from the mains socket before carrying out cleaning or maintenance. WARNING: Do not use abrasive cloths, powders, household cleaners, bleach, or wax polish to clean the appliance as these can leave a smell in the appliance and can damage the exterior. - Page 24 Door Seal Use a clean, damp soft cloth to wipe the door seal and in between the creases, take care to avoid damaging the door seal as this will affect the performance of your appliance. Drainage Channel The drainage channel must be cleaned regularly to prevent a build-up of impurities.
-
Page 25: Troubleshooting Guide
TROUBLESHOOTING GUIDE If you are having problems with your appliance, please use our troubleshooting guide below. If you are unable to resolve the issue using this guide please ring our Customer Service Department on 01473 277 508. Please have the model code and purchase information available. Fault Possible Cause Solution... -
Page 26: Fuse Replacement
FUSE REPLACEMENT (CLASS I) Fuse Cover Fuse Replacement (Class I) This appliance must be earthed. Remove the fuse cover with a small flat head screw driver. Take out the fuse and replace with a new fuse of the same Amp. Replace the fuse cover and push back into place. -
Page 27: Statesman Warranty Information
STATESMAN WARRANTY/GUARANTEE TERMS & CONDITIONS THANK YOU FOR CHOOSING STATESMAN As a valued customer we would like to offer you a FREE 2-year warranty to cover your product against any electrical or mechanical defects. This means that in the unlikely event you develop a fault or problem with your product we will happily repair or replace the item free of charge. - Page 28 EU: Castle Electrical Factors Ltd., Dundalk, A91 KA9R, IR 01473 277 508 Disclaimer: Statesman operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
