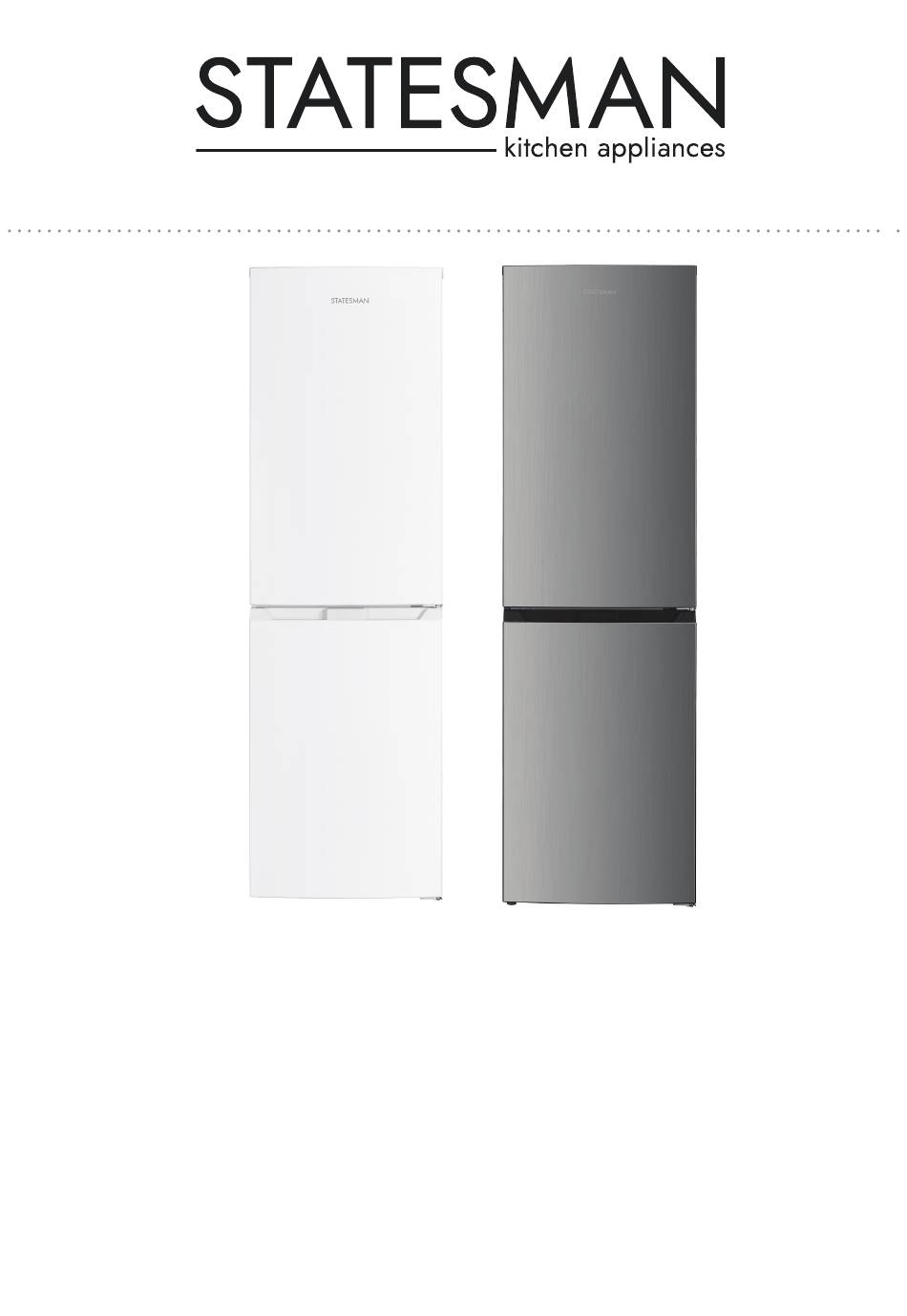

- Page 1 TNF18552W / TNF18552X 55CM 50/50 TOTAL NO FROST FRIDGE FREEZER WHITE / INOX Instruction Manual Please read these instructions carefully before use and retain for future reference. Before switching on your appliance – always check for any damage that may have been caused in transit.
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions......... 3-5 Specification..............6 Appliance Overview............7 Installation............... 8-12 Operating Instructions......... 13-15 Cleaning and Maintenance........16-17 Trouble Shooting Guide..........18 Fuse Replacement............19 Disposal Information..........20 Statesman Warranty Information......21... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important:.This.product.is.intended.for.domestic.use.only;.to.store.and.freeze.food.products.only.. When.using.electrical.appliances,.basic.safety.precautions.should.always.be.followed:. •. The.operating.voltage.of.the.appliance.is.220-240V.at.50Hz..Check.the.voltage.of.the.appliance. matches.the.household.voltage.on.the.rating.label.and.specification. •. Do.not.operate.the.appliance.with.a.damaged.cord.or.plug,.after.it.malfunctions.or.has.been. dropped.or.damaged.in.any.way..All.electrical.repairs.must.be.carried.out.by.a.qualified. electrician..Inadequate.repairs.may.result.in.a.major.source.of.danger.for.the.user.and.invalidate. - Page 4 •. During.transportation.and.installation.of.the.appliance,.make.sure.that.none.of.the.components. of.the.refrigerant.circuit.become.damaged.. -.Avoid.open.flames.and.sources.of.ignition.. -.Thoroughly.ventilate.the.room.in.which.the.appliance.is.installed. •. Do.not.modify.or.alter.the.specifications.of.the.appliance.in.any.way.as.this.could.cause.a.hazard. and.invalidate.the.warranty. •. This.product.is.intended.to.be.used.in.a.household.and.similar.applications.such.as:. -.staff.kitchen.areas.in.shops,.offices.and.other.working.environments;. -.farm.houses.and.by.clients.in.hotels,.motels.and.other.residential.type.environments;. -.bed.and.breakfast.type.environments;. -.catering.and.similar.non.retail.applications. WARNING:.Any.electrical.components.(e.g.,.plug,.power.cord,.compressor).must.be. replaced.by.a.certified.service.agent.or.qualified.electrician. WARNING:.The.light.bulb.supplied.with.this.appliance.is.a.special.use.bulb.and.is.not. suitable.for.domestic.lighting. •. The.power.cord.must.not.be.lengthened.or.altered.in.any.way. •. Make.sure.that.the.appliance.is.not.positioned.on.or.over.the.plug. •. Make.sure.that.the.power.socket.for.the.appliance.is.accessible.once.the.appliance.is.installed. •. Do.not.pull.the.power.cable,.remove.by.pulling.the.plug. •. Do.not.use.the.plug.socket.if.it.is.loose.as.there.is.a.risk.of.electric.shock. •. Do.not.operate.the.appliance.without.the.lamp. •. The.appliance.is.heavy,.take.care.when.moving.it. •. Do.not.touch.items.from.the.freezer.compartment.if.your.hands.are.damp/wet,.as.this.can.cause. freezer.burns. •. Avoid.prolonged.exposure.to.direct.sunlight. •. It.is.not.recommended.to.stand.the.appliance.on.a.carpeted.surface. •. Do.not.put.hot/warm.objects.in.the.fridge/freezer. •.
- Page 5 WARNING: Any.electrical.repairs.or.servicing.must.be.carried.out.by.a.qualified.electrician. Inadequate.repairs.may.result.in.a.major.source.of.danger.for.the.user.and.invalidate.the.warranty. The.appliance.must.be.serviced.by.an.authorised.service.centre.and.only.genuine.spare.parts.must. be.used. The.table.below.contains.general.guidelines.on.the.storage.of.food.in.refrigerated.appliances. Refrigerator location Type of Food Fridge.Door •. Foods.with.natural.preservatives.such.as.jams,.juices,.drinks.and. condiments. •. No.perishable.foods. Salad.Crisper.Drawer •. Fruits,.herbs.and.vegetables. •. No.bananas,.onions,.potatoes.or.garlic. Top.Fridge.Shelf •. Pre-cooked.foods.such.as.ready-to-eat.meals,.deli.meats.and.leftovers. Middle.Fridge.Shelf •. Dairy.products.and.eggs. Bottom.Fridge.Shelf •. Raw.meat,.poultry.and.fish.(only.for.a.short-term). Freezer.Drawers •. Foods.for.long-term.storage. •. Top.drawer.-.ice.cream,.frozen.fruit.and.frozen.baked.goods. •. Middle.drawer.-.frozen.vegetables.and.chips. •. Bottom.drawer.-.raw.meat,.poultry.and.fish.
-
Page 6: Technical Specification
TECHNICAL SPECIFICATION Supplier.Name./.Trade.Mark Statesman Model.Number TNF18552W./.TNF18552X Category.Type Fridge.Freezer Energy.Efficiency.Class. Annual.Energy.Consumption 227kWh Freezing.Capacity 3.7Kg/24h Fridge.Storage.Volume.(Litre). Freezer.Storage.Volume.(Litres). Refrigeration.System Total.No.Frost Climate.Class N,ST Noise.Emissions.(dB) Built-In.Appliance Wine.Storage.Appliance Voltage.(V) 220-240 Wattage.Power.(W) Frequency.(Hz) Ambient Room Temperature Limits Class Symbol Ambient average temperature °C Extended.temperature +10.to.+32 Temperature +16.to.+32 Subtropical +16.to.+38... -
Page 7: Appliance Overview
APPLIANCE OVERVIEW LED.Light Temperature. Control.Dial Door. Shelves Fridge. Shelves Salad.Drawer. Cover Salad.Drawer Freezer Shelves Freezer Drawers Levelling.Feet This.illustration.is.only.for.reference,.for.details.please.check.your.appliance... -
Page 8: Installation
INSTALLATION Location and Air Circulation •. The.appliance.must.stand.vertically.on.a.flat,.even.surface..To.level.the.appliance,.use.the. levelling.feet.by.turning.them.until.the.appliance.is.as.level.as.possible. •. It.is.not.recommended.to.stand.the.appliance.on.a.carpeted.surface. •. This.appliance.must.be.left.to.stand.in.an.upright.position.for.at.least.4.hours.before.being. switched.on.for.the.first.time.to.allow.the.coolant.gases.time.to.settle.after.the.appliance.is.in. place. •. The.appliance.should.not.be.placed.near.to.sources.of.heat.e.g..cookers,.radiators,.direct. sunlight.or.in.any.unheated.rooms.e.g..garages,.or.outhouses,.as.extreme.temperatures.will. affect.the.performance.of.your.appliance. •. Make.sure.the.plug.is.accessible.after.installation. •. Do.not.expose.the.appliance.to.damp.conditions,.open.air,.or.rain. •. Do.not.lift.the.appliance.by.the.pipes.or.the.door.when.moving. •. This.appliance.is.not.intended.to.be.used.as.a.built.in.appliance. •. Never.place.the.appliance.in.a.wall.recess,.fitted.cabinet.or.furniture.as.this.will.not.allow. adequate.ventilation.and.cause.a.potential.fire.hazard. •. Allow.50mm.of.space.at.the.sides.and.above.the.appliance.to.allow.for.adequate.ventilation. •. It.is.not.recommended.to.position.the.appliance.under.an.overhanging.wall.unit. •. Leave.enough.space.for.the.doors.to.be.fully.opened. WARNING:.It.must.be.possible.to.disconnect.the.appliance.from.the.mains.power.supply. The.plug.must.be.accessible.after.installation. - Page 9 Reversing the Door The.appliance.door.can.be.fitted.to.open.to.either.the.left.or.the.right.depending.on.its.location. The.appliance.will.have.to.be.tilted.and.supported.to.carry.this.out..It.is.advisable.to.get.some.help. during.this.procedure. Tools required:.Phillips.screwdriver,.flat.head.screwdriver,.hexagonal.spanner,.and.the.components. included.in.the.poly.bag: Left.Closing.Guide.on. Left.Closing.Guide.on. Left.Door.Hinge.Cover.x1 Upper.Door.x1 Lower.Door.x1 IMPORTANT:.Ensure.that.the.unit.is.switched.off,.unplugged.and.empty. 1.. Unscrew.top.hinge.cover.and.then.unscrew.the.top.hinge..Lift.the.upper.door.and.place.it.on.a. soft.surface.or.cloth.to.avoid.scratching. 2.. Remove.the.top.left.screw.cover.
- Page 10 3.. Remove.the.screws.from.the.middle.hinge.and.then.take.off.the.lower.door..Place.on.a.soft. surface.to.avoid.scratching.. 4.. Lay.down.the.refrigerator.and.remove.the.levelling.feet..Remove.the.lower.hinge.. 5.. Remove.the.hinge.pin.from.the.upper.and.lower.hinges..Turn.the.hinges.180°.and.then.replace. the.hinge.pins..The.hinges.should.now.be.assembled.in.the.opposite.direction.as.shown.below.
- Page 11 6.. Refit.the.bottom.hinge.and.replace.the.levelling.feet.. 7.. Detach.the.fridge.and.freezer.door.seals,.rotate.180º.then.re-attach. 8.. Remove.the.right.closing.guide.from.the.upper.and.lower.doors..Install.the.left.closing.guides.to. the.opposite.side. 9.. Replace.the.lower.door,.adjust.and.fix.the.middle.hinge.in.place.
- Page 12 10..Replace.the.upper.door,.ensuring.that.the.door.is.aligned.horizontally.and.vertically.so.that.the. seals.close.fully.on.all.sides,.then.tighten.the.top.hinge..Screw.the.top.hinge.onto.the.appliance. and.then.fit.the.left.hinge.cover. 11..Fix.the.top.screw.cover.on.the.right.side. Levelling the Unit Adjust.the.two.levelling.feet.at.the.front.of.the.unit. If.the.unit.is.not.level,.the.doors.and.magnetic.seal.alignments. will.not.be.covered.properly.
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS IMPORTANT:.Before.using.the.appliance.for.the.first.time,.wash.the.interior.and.all.the.internal. accessories.with.lukewarm.water.and.some.neutral.soap.to.remove.the.typical.smell.of.a.new. product,.then.dry.thoroughly. IMPORTANT:.Do.not.use.abrasive.detergents.or.powders,.as.they.will.damage.the.finish.of.the. appliance. Setting the Temperature in the Fridge •. The.internal.temperature.of.the.fridge.is.controlled.by.a. temperature.control.dial,.located.inside.the.fridge.compartment. •. There.are.four.settings:.OFF,.COLD,.COLDER.and.COLDEST.. Setting.COLD.is.the.warmest.setting.and.setting.COLDEST.is.the. coldest.setting. •. The.appliance.will.not.operate.if.this.dial.is.set.to.OFF. •. The.appliance.may.not.operate.at.the.correct.temperature.if.it.is. in.a.particularly.hot.environment.or.if.the.door.is.open.too.often. or.for.prolonged.periods. Setting the Temperature in the Freezer •. The.internal.temperature.of.the.freezer.is.controlled.by.a.slide. control.dial,.located.inside.the.freezer.compartment..This.has. three.settings:. Highest:.-12°C.to.-16°C Normal:.-16°C.to.-20°C Lowest:.-20°C.to-22°C... - Page 14 Recommended Temperature Setting Environment Temperature Freezer Compartment Fridge Compartment Summer Set.on (Above.38°) Set.on.colder~coldest Set.on Normal Set.on.colder Set.on Winter (Below.16°) Set.on.colder~coldest...
- Page 15 Using your Appliance •. When.using.for.the.first.time.or.after.a.period.of.non-use,.plug.in.and.set.the.temperature. control.dials.to.the.coldest.settings..Run.for.2.hours.to.allow.the.appliance.to.reach.an.adequate. temperature..Once.reached.the.dials.can.then.be.set.to.the.correct.temperature. •. The.freezer.compartment.is.suitable.for.freezing.fresh.food.and.storing.frozen.and.deep-frozen. food.for.a.long.time. •. Place.the.fresh.food.to.be.frozen.in.the.bottom.compartment. •. The.maximum.amount.of.food.that.can.be.frozen.in.24.hours.is.specified.on.the.rating.Label. •. The.freezing.process.lasts.for.24.hours;.during.this.period.do.not.add.any.more.food.to.be. frozen. •. Only.freeze.top.quality,.fresh.and.thoroughly.cleaned.foods. •. Prepare.food.in.small.portions.to.enable.it.to.be.rapidly.and.completely.frozen.and.to.make.it. easier.to.thaw.the.quantity.required. •. Wrap.up.the.food.in.aluminium.foil.or.polythene.and.make.sure.that.the.packages.are.airtight. •. Do.not.allow.fresh.or.unfrozen.food.to.touch.items.that.are.already.frozen..This.will.avoid.raising. the.temperature.of.frozen.items.and.avoid.thawing..It.will.also.help.fresh.food.to.freeze.quicker. •. Lean.foods.store.better.and.longer.than.fatty.ones;.salt.reduces.the.storage.life.of.food. •. Ice.cubes,.if.consumed.immediately.after.removal.from.the.freezer,.can.possibly.cause.freeze. burns.to.the.skin. •. It.is.advisable.to.show.the.freezing.date.on.each.individual.pack.to.enable.you.to.keep.tabs.of. the.storage.time. •. Make.sure.that.any.shop-bought.frozen.foods.were.adequately.stored.by.the.retailer.and.were. transferred.from.the.shop.to.the.freezer.in.the.shortest.possible.time. •. Do.not.open.the.door.frequently.or.leave.it.open.longer.than.necessary. •.
-
Page 16: Cleaning And Maintenance
CLEANING AND MAINTENANCE IMPORTANT:.Switch.off.the.electrical.supply.and.remove.the.plug.from.the.mains.socket.before. carrying.out.cleaning.or.maintenance. WARNING:.Do.not.use.abrasive.cloths,.powders,.household.cleaners,.bleach,.or.wax.polish. to.clean.the.appliance.as.these.can.leave.a.smell.in.the.appliance.and.can.damage.the. exterior. Before First Use Before.using.the.appliance.for.the.first.time,.wash.the.interior.and.all.internal.accessories.with. lukewarm.water.and.some.neutral.soap.to.remove.the.typical.smell.of.a.brand-new.product,.then. dry.thoroughly. IMPORTANT: Do.not.use.detergents.or.abrasive.powders,.as.these.will.damage.the.finish. Interior 1.. The.interior.of.the.refrigerator.should.be.cleaned.regularly.to.avoid.odour. 2.. Remove.all.food.from.the.appliance.and.cover.to.help.keep.it.cool. 3.. Remove.all.the.drawers.and.shelves.carefully.from.the.appliance.and.wash.in.warm.clean.water. with.a.soft.cloth.and.dry.thoroughly..Never.replace.the.drawers.when.still.wet. 4.. Use.a.soft.cloth.or.sponge.to.clean.the.inside.of.the.refrigerator,.with.two.tablespoons.of.baking. soda.and.a.quart.of.warm.water..Rinse.with.water.and.wipe.clean. 5.. Open.the.door.and.allow.the.interior.to.dry.naturally.before.replacing.shelves.and.the.salad. drawer..The.appliance.should.be.fully.dry.before.it.is.switched.back.on. 6.. Plug.in,.switch.on.and.allow.the.temperature.in.the.appliance.to.drop.back.to.an.adequate. temperature. 7.. Replace.the.food.in.the.appliance. Exterior Use.a.clean,.soft.cloth.dampened.in.soapy.water.to.wipe.the.exterior.surface.of.the.appliance.and. then.dry.thoroughly..Use.a.vacuum.cleaner.to.remove.dust.from.underneath.the.appliance.and.from. around.the.compressor.which.is.situated.at.the.back.of.the.appliance..Do.this.regularly.to.maintain. adequate.ventilation..Be.careful.not.to.damage.the.coolant.system. Door Seal Use.a.clean,.damp.soft.cloth.to.wipe.the.door.seal.and.in.between.the.creases,.take.care.to.avoid. - Page 17 Replace the Bulb The.internal.light.is.an.LED.type..To.replace.the.bulb,.please.contact.a.qualified.electrician. Going Away If.you.are.going.away.and.do.not.want.to.leave.the.appliance.on,.switch.off.at.the.mains.socket.and. remove.the.plug.ensuring.not.to.pull.the.cord..Remove.any.food.and.follow.the.cleaning.instructions. in.the.“Cleaning.and.Maintenance”.section. IMPORTANT: Leave.the.door.ajar.as.this.will.prevent.odours.and.mould.accumulating.in.the. appliance.and.will.allow.the.appliance.to.dry.completely. Power Cut In.the.event.of.a.power.cut.keep.the.appliance.door.closed.to.maintain.the.temperature.inside.
-
Page 18: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE If.you.are.having.problems.with.your.appliance,.please.use.our.trouble.shooting.guide.below..If.you. are.unable.to.resolve.the.issue.using.this.guide.please.ring.our.Customer.Service.Department.on. 01473.277.508..Please.have.the.model.code.and.purchase.information.available. Problem Possible Cause Solution Temperature.regulation.dial.is. Set.the.dial.to.another.setting.to.switch. set.to.‘OFF’. on.the.appliance. Mains.plug.is.not.plugged.in.or. Insert.mains.plug.correctly. Appliance.does.not. is.loose. work. Fuse.has.blown.or.is.defective. Check.fuse,.replace.if.necessary. Mains.malfunctions.are.to.be.corrected. Socket.is.defective. by.an.electrician. Temperature.is.not.properly. Refer.to.the.Temperature.Setting.section. adjusted. Door.was.open.for.an. Open.the.door.only.as.long.as. extended.period. necessary. The.food.is.too.warm. A.large.quantity.of.warm.food. Turn.the.temperature.regulation.to.a. was.placed.in.the.appliance.in. colder.setting.temporarily.and.do.not. the.last.24.hours. over.fill.with.food. The.appliance.is.near.a.heat. Please.refer.to.the.Installation.section. source. -
Page 19: Fuse Replacement
Fuse Cover FUSE REPLACEMENT (CLASS I) This.appliance.must.be.earthed..Remove.the.fuse.cover.with.a.small.flat. head.screw.driver..Take.out.the.fuse.and.replace.with.a.new.fuse.of.the. same.Amp..Replace.the.fuse.cover.and.push.back.into.place. -
Page 20: Disposal Information
DISPOSAL INFORMATION The.European.Directive.2012/19/EU.on.Waste.Electrical.and.Electronic.Equipment. (WEEE),.requires.that.old.household.electrical.appliances.must.not.be.disposed.of.in. normal.unsorted.municipal.waste.. Old.appliances.must.be.collected.separately.in.order.to.optimise.the.recovery.and. recycling.of.the.materials.they.contain.and.reduce.the.impact.on.human.health.and.the. environment.. The.crossed.out.“wheeled.bin”.symbol.on.the.product.reminds.you.of.your.obligation,. that.when.you.dispose.of.the.appliance.it.must.be.separately.collected..Consumers. should.contact.their.local.authority.or.retailer.for.information.concerning.the.correct. disposal.of.their.old.appliance. -
Page 21: Statesman Warranty Information
STATESMAN WARRANTY/GUARANTEE TERMS & CONDITIONS THANK YOU FOR CHOOSING STATESMAN As.a.valued.customer.we.would.like.to.offer.you.a.FREE 2-year warranty.to.cover.your.product. against.any.electrical.or.mechanical.defects.. This.means.that.in.the.unlikely.event.you.develop.a.fault.or.problem.with.your.product.we.will. happily.repair.or.replace.the.item.free.of.charge.. To.qualify.for.the.guarantee,.the.product.must.be.used.for.domestic.household.use.only.and.in. accordance.with.the.instructions.in.the.user.manual..Any.misuse.of.the.product.will.result.in.the. warranty.being.void.. The.guarantee.does.not.cover.accidental.damage,.misuse,.neglect,.tampering.or.incorrect. adjustment.or.installation.. The.guarantee.will.be.rendered.invalid.if.the.product.is.resold,.has.had.its.serial.number.or.rating. label.removed.(or.has.an.invalid.serial.number.or.rating.label),.or.if.an.unauthorised.person.has. carried.out.any.repairs.or.alterations.. The.warranty.does.not.cover.accessories.or.consumable.parts.that.require.replacement.under. normal.use..This.includes.shelving,.dials,.filters,.belts.and.trays.etc.. In.the.unlikely.event.of.a.breakdown.please.refer.to.the.Troubleshooting.Guide.in.your.user.manual. and.check.all.plugs,.fuses.and.the.electricity.supply.. If.you.still.require.assistance,.please.contact.our.Customer.Service.Department.on.01473 277 508.or. write.to.us.at.the.following.address:. Customer Service Department 38 Bluestem Road, Ransomes Industrial Estate, Ipswich, IP3 9RR Please.quote.the.Product.Code.and.the.PO.number.on.the.rating.label.and.give.details.of.the.exact. - Page 24 UK Address: 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR EU Address: Castle Electrical Factors Ltd., Dundalk, A91 KA9R, IR 01473 277 508 Disclaimer:.Statesman.operate.a.policy.of.continual.improvement.and.development.. We.therefore.reserve.the.right.to.change/alter.the.specification.and.appearance.of.our.appliances.without.prior.notice.. All.diagrams.and.images.shown.in.this.manual.are.for.illustration.purposes.only...
