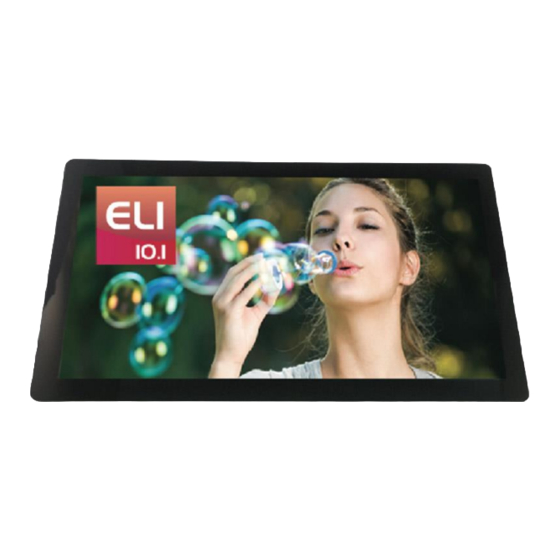

- Page 1 User’s Manual ELI101-CPW Revision 1.6 Copyright ©2018, Future Designs, Inc., All Rights Reserved...
-
Page 2: Important Legal Information
ELI101-CPW Important Legal Information Information in this document is provided solely to enable the use of Future Designs, Inc. (FDI) products. FDI assumes no liability whatsoever, including infringement of any patent or copyright. FDI reserves the right to make changes to these specifications at any time, without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Future Designs, Inc. -
Page 3: Table Of Contents
User’s Manual ELI101-CPW Important Legal Information .......................... 2 Introduction ............................4 Recommended Accessories (Purchased Separately) ................4 Touch Screen Precaution ........................5 ESD Warning ............................5 Determining the Revision of your ELI ....................5 Technical Specifications ........................6 Mechanical and Mounting Details ...................... 7 Connectors ............................ -
Page 4: Introduction
Raspberry Pi, BeagleBone Black and Windows-based units. FDI designed ELI as an embedded display option that requires minimal development time to help customers reach production quickly. Once a product is in production, FDI’s 10-15 year ELI product availability guarantee helps ensure production schedules without the risk of expensive or time consuming redesigns. -
Page 5: Touchscreen Precaution
ELI101-CPW Touchscreen Precaution When the ELI101-CPW is powering up and initializing, please refrain from touching the front of the display or lying it face down on a surface. This can interfere with proper touchscreen initialization and calibration and may cause temporary issues with the touch screen operation. If this condition occurs, please reset or power up the unit correctly and normal touchscreen operation will resume. -
Page 6: Technical Specifications
User’s Manual ELI101-CPW Technical Specifications Table 1. Technical Specifications Screen Size (inches): 10.1 Display Technology: IPS a-Si TFT LCD Resolution: 1280 x 800 (WXGA) Brightness (nits typical): Contrast Ratio (typical): 800:1 Aspect Ratio: 16:10 Interface Input Mode: HDMI/DVI Colors: 16.7M (24 bit) Horizontal Viewing Angle: 85/85°... -
Page 7: Mechanical And Mounting Details
However, it is not designed to carry the weight of the entire unit (plus stress from cable pull) when the ELI101-CPW is mounted in a flat or downward mounting configuration. It is critical that the end user provide some type of backside mounting support to carry the weight of the assembly and improve mounting stability and reliability. -
Page 8: Connectors
ELI Family. In general, any 12VDC power supply with a 2.1mm center positive plug will be acceptable if it can provide enough current to power the particular ELI unit being used. On the ELI101-CPW plug power into the (P2) connector. Copyright ©2021, 3/3/2021 Future Designs, Inc. - Page 9 J6 connector (PCB terminal block - PTSM 0,5/ 2-2,5-H SMD WH R24 – 1814634) can be found at http://tinyurl.com/1814634. To verify that the ELI101-CPW unit is correctly powered you may check the input voltage with a Fluke multi-meter or scope by probing the +12V and GND contacts shown below. Please verify that the input voltage is present, and within the +/- 5% tolerance and is free from excessive noise or AC ripple.
- Page 10 User’s Manual ELI101-CPW Ground 3.3V Figure 5. ELI101-CPW Power Test Points Copyright ©2021, 3/3/2021 Future Designs, Inc. Page 10 of 16...
-
Page 11: Extended Display Information Data (Edid)
User’s Manual ELI101-CPW Touch Activity LED ELI101-CPW units, starting with Rev 7.0, have a touchscreen activity LED (LED3) located near the USB touch connector (P1): Figure 6. ELI101-CPW – Touch Activity LED This Green LED will turn ON whenever any touchscreen input is detected, allowing for verification of the touch response even without a connected display. -
Page 12: Pwm Control Of Backlight
User’s Manual ELI101-CPW PWM Control of Backlight Figure 7. PWM Backlight Control J5 mating connector housing information: • Manufacturer: Hirose • Part Number: DF12-3S-1.25C • Digi-Key Link: https://www.digikey.com/products/en?keywords=H2180-ND • Pre-terminated wires https://www.digikey.com/products/en?PPV=1811-9-566967 ELI provides an input, so an external processor or SBC can control the backlight to vary the display brightness or to reduce power consumption (the display backlight is typically one of the larger sources of power consumption in the unit). - Page 13 User’s Manual ELI101-CPW Figure 8. ELI101-CPW Backlight Curve in Nits Figure 9. Raspberry Pi Signal and Ground The ELI backlight can be easily controlled from a Raspberry Pi. See Figure 9 for a wiring diagram. Our Copyright ©2021, 3/3/2021 Future Designs, Inc.
- Page 14 User’s Manual ELI101-CPW software is available on the website at https://www.teamfdi.com/product-details/eli101-cpw#software you may copy the code from here: /* Changes brightness of ELI backlight given a command line argument between 0 and the set range. Uses bcm2835 header file provided by Broadcom at http://www.airspayce.com/mikem/bcm2835/bcm2835-1.52.tar.gz...
- Page 15 User’s Manual ELI101-CPW bcm2835_pwm_set_range(0,RANGE); // Sets range bcm2835_pwm_set_data(0,data); // Sets data rate to argument value bcm2835_close(); return Figure 10. Backlight Control for Raspberry Pi Figure 11. Renesas Synergy S7G2 Signal and Ground The ELI backlight can also be controlled from a Renesas Synergy S7G2 wired as shown in Figure 11.
-
Page 16: Support
13.1 Where to Get Help Online technical support is available at http://www.teamfdi.com/support/ 13.2 Useful Links • Future Designs, Inc. Forums: http://www.teamfdi.com/forum • ELI101-CPW Product Page: http://www.teamfdi.com/product-details/eli101-cpw • ELI Software User’s Manual: http://www.teamfdi.com/wp-content/uploads/ELI-Software- Users-Manual.pdf • Tell us about your ELI experience: http://www.teamfdi.com/edid/#edidform...
