LK Water meter Cabinet UNI

Design

The cabinet is designed to be built into a wall with
an incoming cold water supply in the underside
of the cabinet. Minimum joist depth when mount-
ing is 120 mm. The cabinet can be supplemented
with a frame/hatch. The cabinet must be installed
in accordance with the industry regulations Säker
Vatteninstallation (safe water installation).
LK Water Meter Cabinet UNI is supplied with:
• Screws and gasket for cabinet installation,
• Brackets,
• Red plug for M8 hole in back,
• LK Sealing Plug Black,
• Knock-out holes for cables,
• Bellow sleeve for drainage,
• V2 Drainage elbow with outlet plate and screw,
• Splash protection,
• Protective bag to use during installation,
• Assembly instructions.
• Included in some models:
• LK Manifold UNI for cold water and hot water,
• LK Ball Valve 703 R, Angle,
• LK Water Meter Bracket Package,
• LK Check Valve VM,
• LK Connection Couplings AX16xG15,
• LK Connection Coupling AX20 for supply to
and from water heater,
• LK CubicSecure smart water safety unit.
The cabinet is assembled in accordance with the
below instruction The requisite number of pipe
inlets for both feed and branch pipes are pre-
assembled in certain models. LK Press Connection
AX16xG15 for branch pipes is included and is only
hand-tight in certain models.
The LK PE-X Pipe-in-Pipe system, with component
parts as stated in installation solutions NT VVS
129, is tested and approved in accordance with
NT VVS 129 and the Sintef test method for con-
www.lksystems.se/en/
duits. Read more at:
documentation/ Assembly Instructions/Universal).
Assembly Instructions | LK Water Meter Cabinet UNI

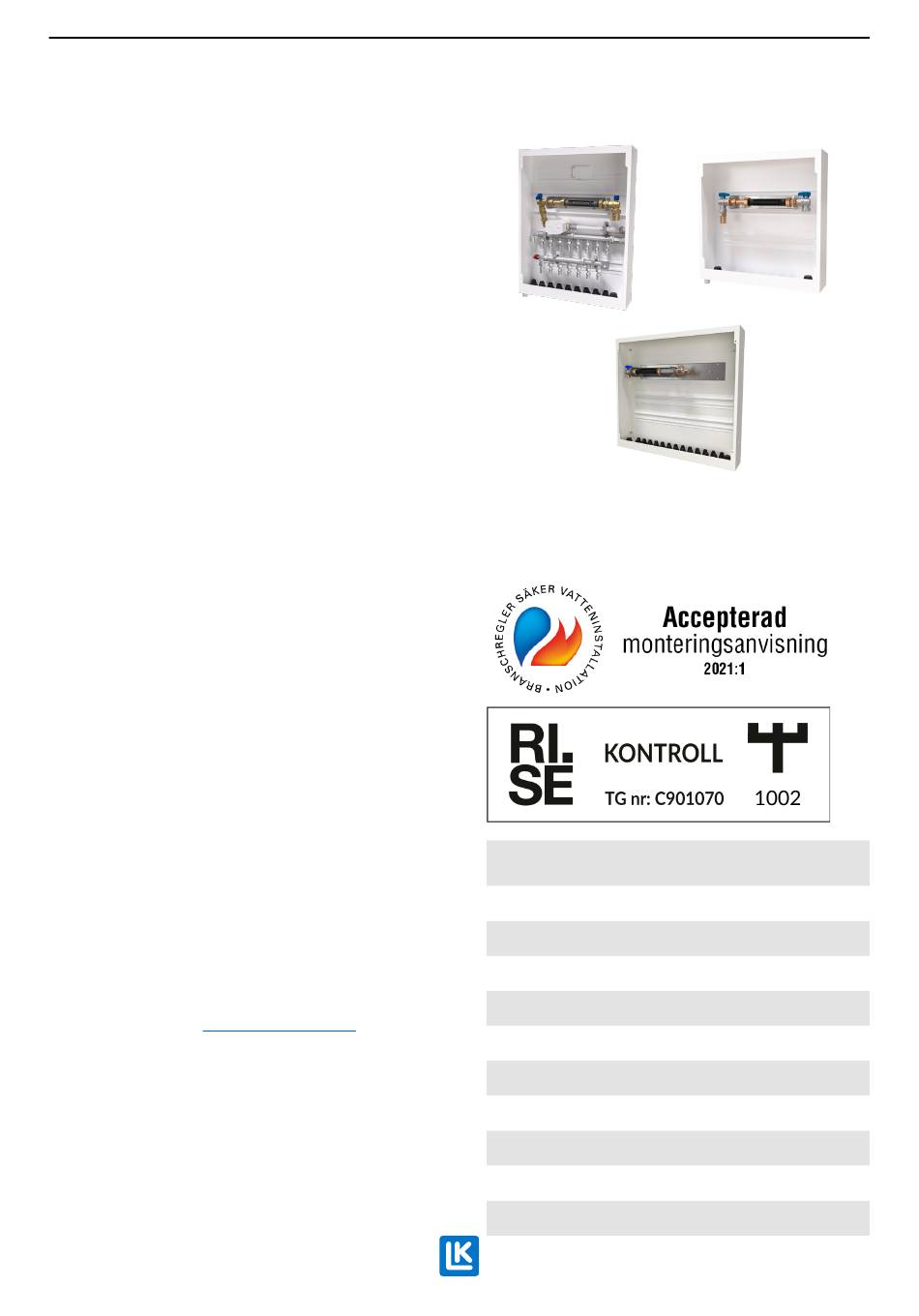

Example LK Water Meter Cabinet UNI 8/6 CS and
LK Water Meter Cabinet UNI/UNI XL.
The cabinet is tested according to SP method 5676.

TABLE OF CONTENTS

(Technical
1
2
3
3
3
4
7
8
8
8
EN.29.C.47.2025-03-10
1 (8)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cabinet UNI and is the answer not in the manual?

Questions and answers

Related Manuals for LK Cabinet UNI

Summary of Contents for LK Cabinet UNI

  • Page 1: Table Of Contents

    • Knock-out holes for cables, • Bellow sleeve for drainage, • V2 Drainage elbow with outlet plate and screw, Example LK Water Meter Cabinet UNI 8/6 CS and • Splash protection, LK Water Meter Cabinet UNI/UNI XL. • Protective bag to use during installation, •...

  • Page 2: Scope Of Delivery

    Assembly Instructions | LK Water Meter Cabinet UNI Scope of delivery Items 1 - 16 are prefitted in the cabinet with the necessary couplings, spacers, plugs, etc. Designation Quantity Art. no. Manifold Cabinet VM 1 pc. 188 23 99 Water safety Unit LK CubicSecure (incl. in some models) 1 pc.

  • Page 3: Water Meter Bracket

    When the cabinet is installed with its opening into flow. The water safety system is equipped with a a room with a wall seal layer, the LK Bathroom switch for manual shut-off in the event of power Hatch PRESEAL must be used. The front edge of failure or emergency.

  • Page 4: Working Procedure

    Assembly Instructions | LK Water Meter Cabinet UNI 1 - Prepare pipe inlets Prepare LK Pipe Inlet UNI and LK Pipe Inlet 32-50 for the supply pipes by adjusting/cutting the inlets to the correct dimensions, see the table. Reinstall them in the cabinet, ensuring careful installation so that the cabinet base remains sealed.
  • Page 5 PE-RT pipes” or according to industry regulations on “Säker vatteninstallation” (Safe water installation). NOTE! A pressure and tightness check should be carried out before the wall covering is to be installed. A fitted LK End Protection RiR article no. 481 00 00. EN.29.C.47.2025-03-10 5 (8)
  • Page 6 Use LK Drainage Kit 25 Duo. Affix the drain- Affix the drainage elbow to a wall stud in a suit- age elbow to a wall stud in a suitable position.

  • Page 7: Installation Aids

    The splash protection is what LK Cabinet Stand L2 fitted along with LK Fixing Plate RiR 25. makes the cabinet safe from water damage, and it must always be mounted.

  • Page 8: Replacement Of Pipes

    LK Flexilegs, LK Flexiguard LK Frame/ Hatch UNI WM-Cabinet Replacement of pipes Fit lock plate on the conduit just above LK Pipe Inlet 25 when replacing the pipe. LK Lock Plate is ordered separately. LK PE-X Universal Pipe X16 can only be replaced starting from the angle wall bracket.
