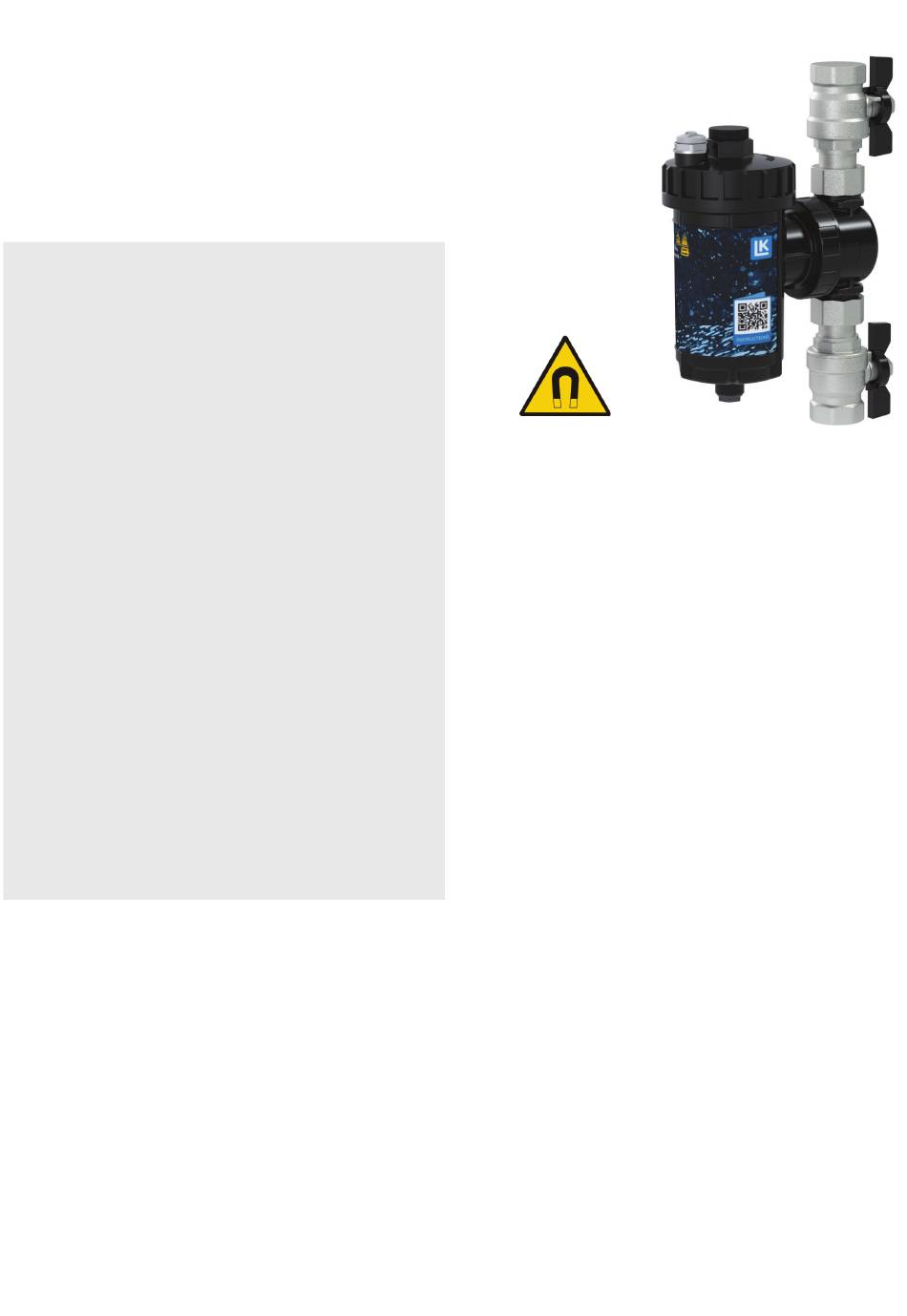

LK 360 NetMag Instruction Manual

ENG | Instruction Manual
LK 360 NetMag
TECHNICAL FEATURES
Compatible fluid
Max. operating pressure
Operating temperature
Noise induced (accordingto
EN13443 and UNI 3822)
CONSTRUCTION FEATURES
Diverter body
Cartridge body
Locking ring
Filter cap
Filtering cartridge
Hydraulic seals
Magnet
B (MaxT) / B (RoomT)* < 1%
(where MaxT = 130 °C, RoomT
= 21 °C) Tested according to
IEC 60404-5 & ASTM A977
regulations
DESCRIPTION
LK 360 NetMag represents the best solution to solve plant pro-
blems due to particle presence, especially rust and sand that are
formed due to corrosion and scale during the normal operation of
a system.
OPERATING PRINCIPLE
Through its effective and constant action, the magnetic filter
collects all the impurities present in the system, preventing them
from circulating within it, thus avoiding wear and damage of the
rest of the components making up the system, circulators and heat
exchangers in particular.
LK 360 NetMag performs as continuous protective action on the
boiler.
1
Water, water + glycol
4 Bar
0 - 90 °C
Both the specific tests (3 Bar
with 36 l/min - 5 Bar with
47 l/min) carried out at an
accredited laboratory shown
that the noise induced by
LK 360 NetMag in the piping
is 0 dB(A). As specified in
EN 13443 regulation, LK
360 NetMag belongs to the
I group, as well as all other
products having noise levels <
20 dB(A).
Polyamide PA66 + 30% FV
Polyamide PA66 + 30% FV
Polyamide PA66 + 30% FV
Polyamide PA66 + 30% FV
Stainless steel AISI 304
EPDM PEROX
Neodymium REN35 B =
11.000 Gauss
www.lkarmatur.com
USE
It is advised to install LK 360 NetMag on the return circuit, at the
inlet of the boiler, in order to protect it from any impurities in the
system, especially during the start-up phase.
It is important to follow the direction indicated by the arrow on the
body to ensure the maximum efficiency of the filtering action.
The jointed part allows installation on vertical, horizontal and
diagonal piping.
Thanks to its jointed seal and to the presence of an opening cap,
LK 360 NetMag is suitable to easily add chemicals for the treat-
ment of the system. LK 360 NetMag is characterised by a great
dosing capacity (500 ml). See paragraph "Adding treatment fluids"
for instructions.
DEGREE OF FILTRATION
LK 360 NetMag removes any magnetic and non-magnetic parti-
cles that may cause damages to the system during the first day of
operation.
The continuous passage of the fluid through the filter during the
normal operation of the system on which it is installed, gradually
removes any dirt.
WARNINGS
This filter contains a powerful magnet, and strong magnetic fields
are present within it.
We recommend the holders of pacemaker devices to keep at a
safe distance during the filter operation and / or maintenance. Pay
attention to the use of electronic equipment in the vicinity of the
magnets, so as not to affect their operation.
