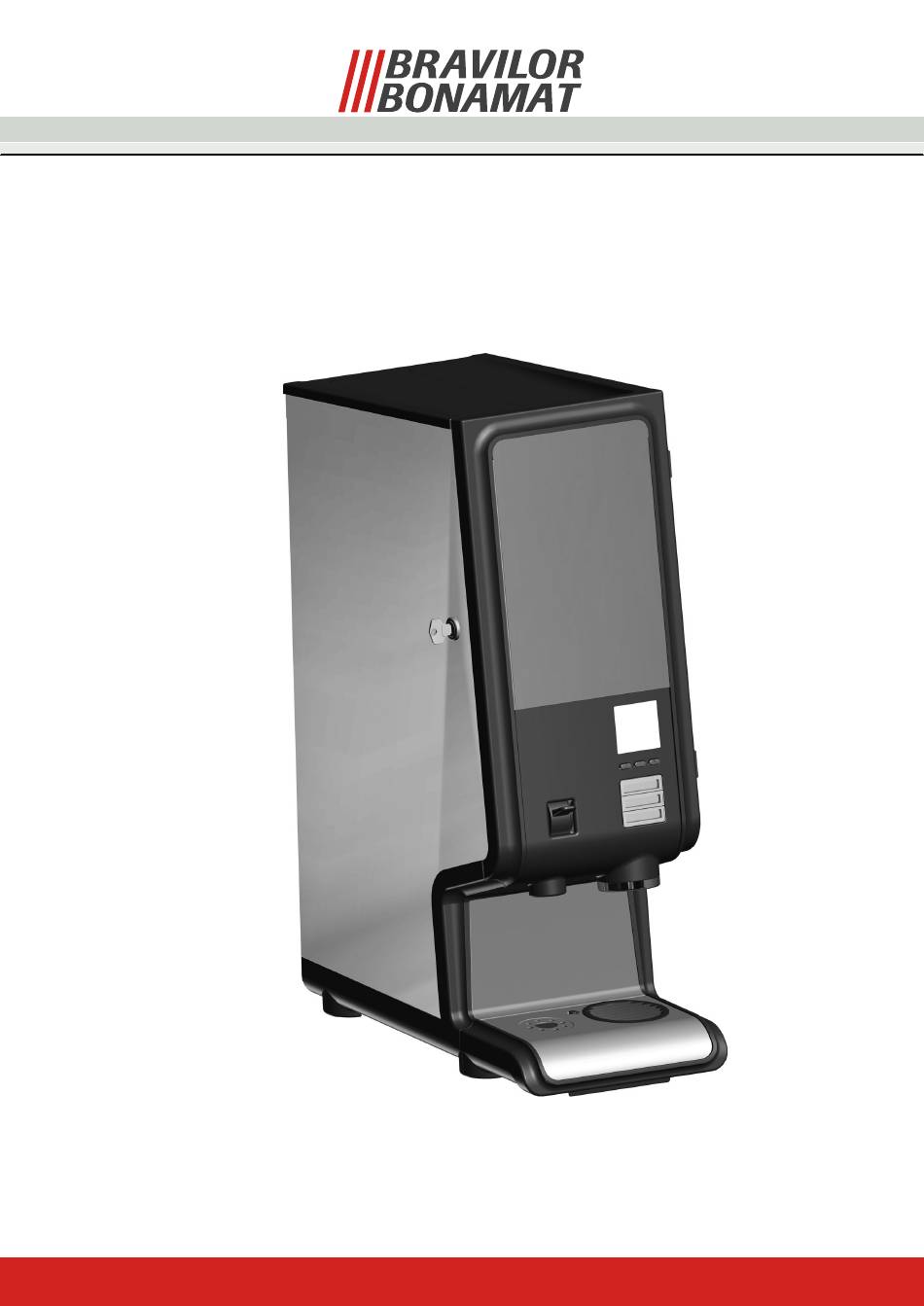

- Page 1 Bolero 1 Bolero 2 OPERATING PRINCIPLE ECopyright Bravilor Bonamat B.V.
- Page 2 Every possible care has been taken in the production of this document but the manufacturer accepts no liability for any errors in this document or for any consequences arising therefrom. ECopyright Bravilor Bonamat B.V.
-
Page 3: Table Of Contents
............ECopyright Bravilor Bonamat B.V. - Page 4 ..........ECopyright Bravilor Bonamat B.V.
-
Page 5: Operating Principle
OPERATING PRINCIPLE General operation The machine works according to a pump system developed by Bravilor Bonamat. This system has the following advantages: D The components that are responsible for the correct dosing of the water are housed in a cold water unit. -
Page 6: Water Dosing System
Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Fig. 2 Float tank, complete 3.B. 3.A. 3.C. Fig. 1 The water dosing system ECopyright Bravilor Bonamat B.V. - Page 7 1. Magnetic valve 2. Float tank, complete A. Float B. Pump motor C. Pump rotor D. Pump housing E. Encoder 3. Element complete (boiler) A. Element B. Temperature sensor high (NTC) C. Temperature sensor low (NTC) ECopyright Bravilor Bonamat B.V.
-
Page 8: Start−Up
There is a second temperature sensor on the boiler (fig.1 ,3.C.). This sensor monitors the outlet temperature of the dosed water. If this sensor measures a too low temperature, the machine is blocked. No more water is dosed. ECopyright Bravilor Bonamat B.V. -
Page 9: Dosing
D As a result, the hot water in the boiler is pushed out of the boiler. D The float and the magnetic valve ensure that the level in the float tank is maintained and that water remains in the pump chamber. ECopyright Bravilor Bonamat B.V. -
Page 10: Powder Dosing System
Depending on the type of ingredient, “beater springs” are used in the canister. These springs ensure that less tunnel formation occurs. This is the caking of ingredient against the walls. ECopyright Bravilor Bonamat B.V. -
Page 11: Mixing System
The function of this exhaust system is to ensure that vapour from the mixing chamber does not get the chance to reach the ingredient holder outlet. Fig. 8 Ventilation system Fig. 6 Exhaust hood Fig. 7 Mixing unit ECopyright Bravilor Bonamat B.V. -
Page 12: Operating System
When this circuit board is replaced, board also contains the relay for controlling the the customer−specific settings will be lost. heating element. A flat cable connects the keyboard to the main board in the machine. ECopyright Bravilor Bonamat B.V. -
Page 13: Hardware Protections
1.8.3 Overflow protection This protection is located in the cold water tank and ensures that, when the water level is too high, excess water is passed through the overflow hose at the bottom of the machine. ECopyright Bravilor Bonamat B.V. -
Page 14: Software Protection
This is present on the keyboard. Any data present can be downloaded or uploaded. If the software on this chip card does not correspond with the software in the machine, ’Error 7’ appears in the LCD display. ECopyright Bravilor Bonamat B.V. -
Page 15: Programming
9. into operation (total counter). Fig. 15 General selection screen Fig. 12 Total counter 5. Boiler temperature: − Set the maximum temperature of the water in the boiler (min. 80_C − max. 90_C). ECopyright Bravilor Bonamat B.V. - Page 16 − Customer specific settings can be copied on the chipcard, whereupon these can be downloaded to other equivalent machines. D The procedure can be found on the extranet “Special Codes”. Fig. 17 Programming key / Door closed ECopyright Bravilor Bonamat B.V.
- Page 17 © 07−2011 ECopyright Bravilor Bonamat B.V.
