49 ½"
86"

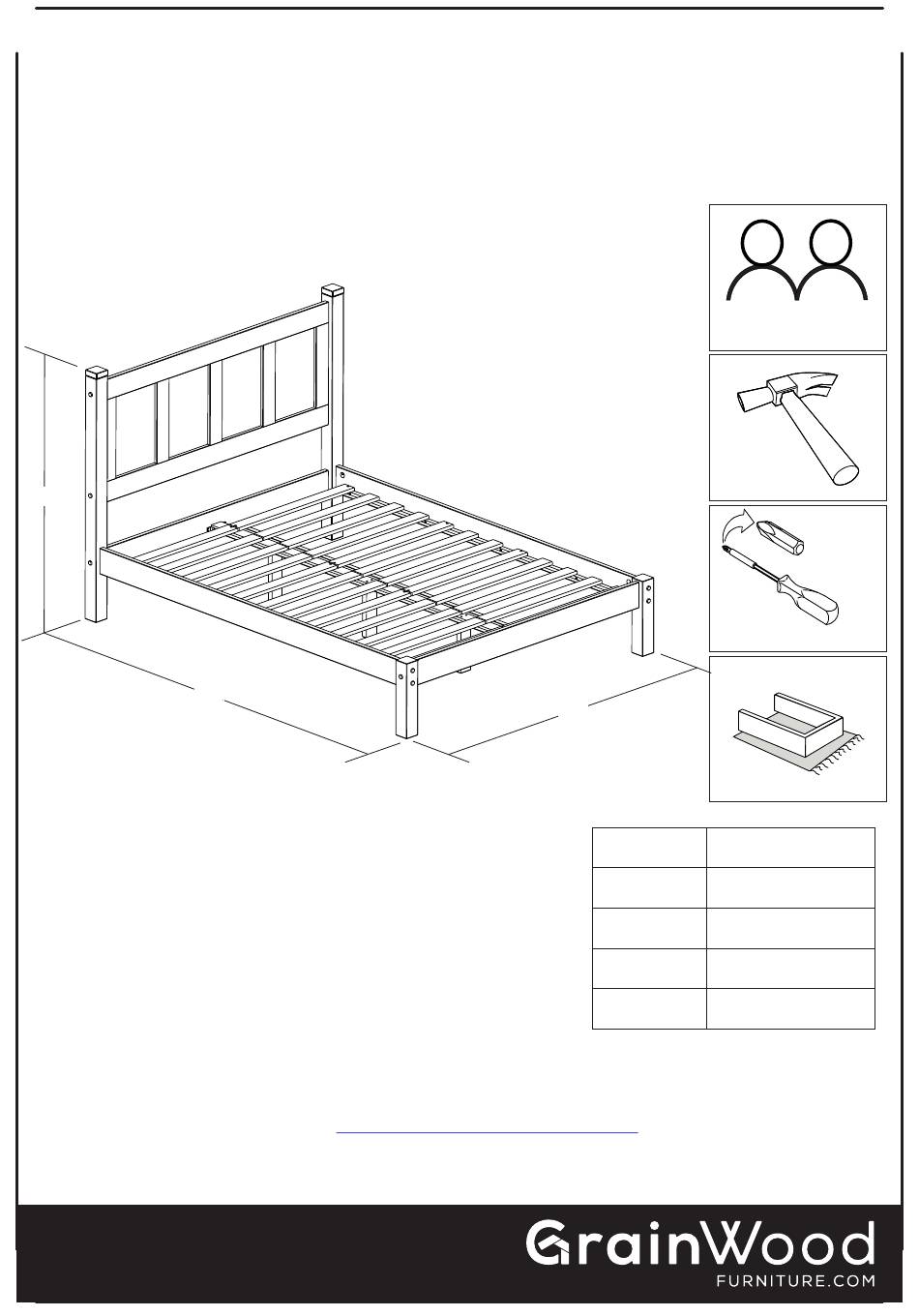

Thank you for choosing Grain Wood Furniture, it is an honor to be in your home!
If you have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or
Shaker Collection
Queen Panel Platform Bed
REV - 04/2025
Assembly Instructions
support@grainwoodfurniture.com
64"
Made in Brazil
2-person assembly
Model #
Finish
SHS0301
Cherry
Expresso
SHS0302
Walnut
SHS0304
Natural
SHS0306
PH #2
page 1/13
Advertisement
Related Manuals for GrainWood Shaker SHS0301
Summary of Contents for GrainWood Shaker SHS0301
- Page 1 Assembly Instructions 2-person assembly 49 ½” PH #2 86” 64” Model # Finish SHS0301 Cherry Expresso SHS0302 Walnut SHS0304 Natural SHS0306 Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you have any questions, feedback, or need replacement parts please contact us at: grainwoodfurniture.com/help or support@grainwoodfurniture.com Shaker Collection...
- Page 2 PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY Enlist help from a friend or family member as most items require two Ÿ people for proper assembly. Choose a spacious, open area near where the piece will be located once Ÿ assembled. It is easier to move parts than to relocate the furniture after it is fully assembled.
-
Page 3: Hardware List
HARDWARE LIST 10 + 1 4,0x30 18 + 1 3,5x16 16 + 1 3,5x35 16 + 1 1/4" 1/4"x110 7,0x70 32 + 2 10x50 30x30x3 12 + 5 ATTENTION Before starting assembly please verify the hardware set is complete. For missing hardware please contact us at grainwoodfurniture.com/help WARNING:... - Page 4 BOX A - 1 of 2 BOX B - 2 of 2 Part # Description Qty. Part # Description Qty. Right headboard post Footboard cross piece Left headboard post Headboard panel Right footboard post Headboard cross piece Left footboard post Side rail Center support Center rail...
- Page 5 Tip: Use a hammer in case dowels are hard to install by hand. C6 C6 C6 C6 10x50 page 5/13...
- Page 6 4,0x30 4,0x30 page 6/13...
- Page 7 B7+G8 THIS SIDE MADE IN BRAZIL B7+G8 B7+G8 G8+B7 G8+B7 G8+B7 1/4" Do not use a powerdrill as you 1/4"x110 could break the B5 nut. Flip the assembled headboard UPSIDE DOWN to install support D43 upper side 3,5x16 30x30 page 7/13...
- Page 8 Do not use a powerdrill as B7+G8 you could break the B5 nut. G8+B7 upper side upper side 1/4" 1/4"x110 upper side 3,5x16 30x30 page 8/13...
- Page 9 û û ü G8+B7 G8+B7 G8+B7 G8+B7 B7+G8 B7+G8 B7+G8 B7+G8 1/4" Do not use a powerdrill as you could break the B5 nut. 1/4"x110 page 9/13...
- Page 10 The part number label marks the back side. Slide panel 06 into the right-side groove. Slide panel 06 back to the left and affix with A9 screws. 3,5x16 page 10/13...
- Page 11 G8+B19 G8+B19 G8+B19 G8+B19 G8+B19 G8+B19 7,0x70 30x30 Attention: There are no predrilled holes for the A9 screws on part 09. 3,5x16 page 11/13...
- Page 12 Attention: There are no predrilled holes for the A14 screws on parts 08 and 09. 3,5x35 Attention: There are no predrilled holes for the A14 screws on parts 08 and 09. 3,5x35 page 12/13...
- Page 13 Tip - Do not install wood caps in the back of the headboard posts. Instead save these 4 caps for eventual future use. Tip - Use a rubber mallet or a piece of wood to protect the finish when hammering the wood cap page 13/13...
