Thank you for choosing Grain Wood Furniture, it is an honor to be in your home!
If you have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or
Shaker Collection

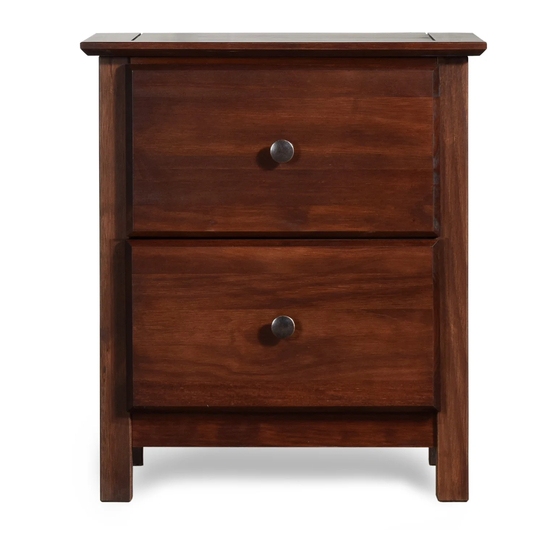

2-Drawer Nightstand
REV - 06/2021
Assembly Instructions
20"
support@grainwoodfurniture.com
16"
Made in Brazil
1-person assembly
Model #
Finish
SH0401
Cherry
Expresso
SH0402
Walnut
SH0404
PH #2
page 1/10
