32"
Thank you for choosing Grain Wood Furniture, it is an honor to be in your home!
If you have any questions, feedback, or need replacement parts please contact us at:
grainwoodfurniture.com/help or

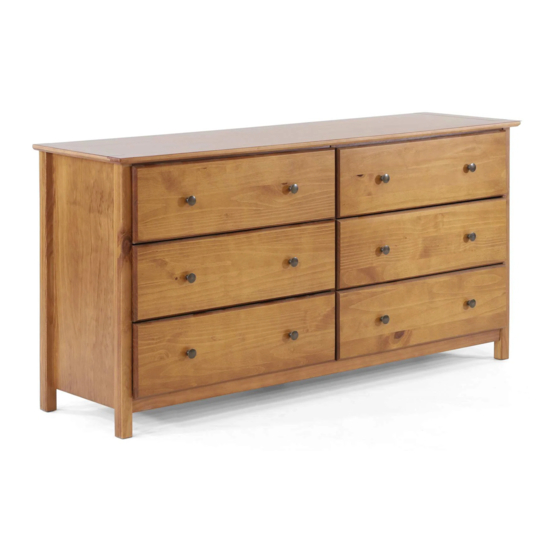

Shaker Collection
6-Drawer Dresser
REV - 06/2021
Assembly Instructions
63 ¾"
support@grainwoodfurniture.com
Made in Brazil
2-person assembly
18"
Model #
Finish
SH0501
Cherry
Expresso
SH0502
Walnut
SH0504
PH #2
page 1/14
Advertisement
Related Manuals for GrainWood Shaker SH0501
Summary of Contents for GrainWood Shaker SH0501
- Page 1 Assembly Instructions 2-person assembly 18” 63 ¾” PH #2 32” Model # Finish SH0501 Cherry Expresso SH0502 Walnut SH0504 Thank you for choosing Grain Wood Furniture, it is an honor to be in your home! If you have any questions, feedback, or need replacement parts please contact us at: grainwoodfurniture.com/help or support@grainwoodfurniture.com Shaker Collection...
- Page 2 PLEASE READ BELOW BEFORE BEGINNING ASSEMBLY Enlist help from a friend or family member as most items require two Ÿ people for proper assembly. Choose a spacious, open area near where the piece will be located once Ÿ assembled. It is easier to move parts than to relocate the furniture after it is fully assembled.
-
Page 3: Hardware List
HARDWARE LIST 69 + 2 ANTI-TIPPING RESTRAINT KIT 4,0x30 2 + 1 19 + 1 3,0x20 3,5x14 4,0x25 12 + 1 M4x25 48 + 2 6,0x10 76 + 2 8,0x25 RIGHT Side 330mm - 13" Drawer RIGHT 330mm - 13" LEFT Side 330mm - 13"... - Page 4 BOX A - 1 of 2 BOX B - 2 of 2 Part # Description Qty. Part # Description Qty. Right side Lower crosspiece Left side Back panel Upper crosspiece Rear crosspiece Drawer front Drawer right side Drawer bottom Drawer back Drawer left side Drawer bottom support Division...
- Page 5 Tip : Use a hammer in case dowels are hard to install by hand. 76 D21 8,0x25 RIGHT LEFT Side Side 12 E13 3 E14 330mm - 13" 6,0x10 330mm - 13" page 5/14...
- Page 6 180º RIGHT LEFT Side Side 12 E13 3 E14 330mm - 13" 6,0x10 330mm - 13" Attention: There are no predrilled holes for the A1 screws on parts 02 and 14. 4,0x30 page 6/14...
- Page 7 Attention: There are no predrilled holes for the A1 screws on parts 02, 03 and 14. 4,0x30 Attention: There are no predrilled holes for the A1 screws on part 01. Attention: There are no predrilled holes for the A18 screws on part 05. 11 A18 4,0x25 4,0x30...
- Page 8 Make sure back panels are perfectly aligned with side panels and top and there are NO gaps. û ü ü 10x10 û ü 10x10 page 8/14...
- Page 9 10x10 page 9/14...
- Page 10 Attention: There are no predrilled holes for the A4 screws on parts 06 and 07. 3,5x14 Attention: There are no predrilled holes for the A4 screws on parts 02, 03 and 14. 3,5x14 page 10/14...
- Page 11 Attention: There are no predrilled holes for the A1 screws on part 08. 1" 4,0x30 page 11/14...
- Page 12 Flip the assembled drawer upside down to install glides. 6,0x10 Drawer RIGHT 330mm - 13" Drawer LEFT 330mm - 13" M4x25 page 12/14...
- Page 13 Place the labeled drawer on the top position page 13/14...
- Page 14 ANTI-TIPPING RESTRAINT KIT Install against the furniture on the wall Anchors and screws are not included, choose best type based on your wall Install both parts F8 3,0x20 Tighten them together using the safety strap page 14/14...
