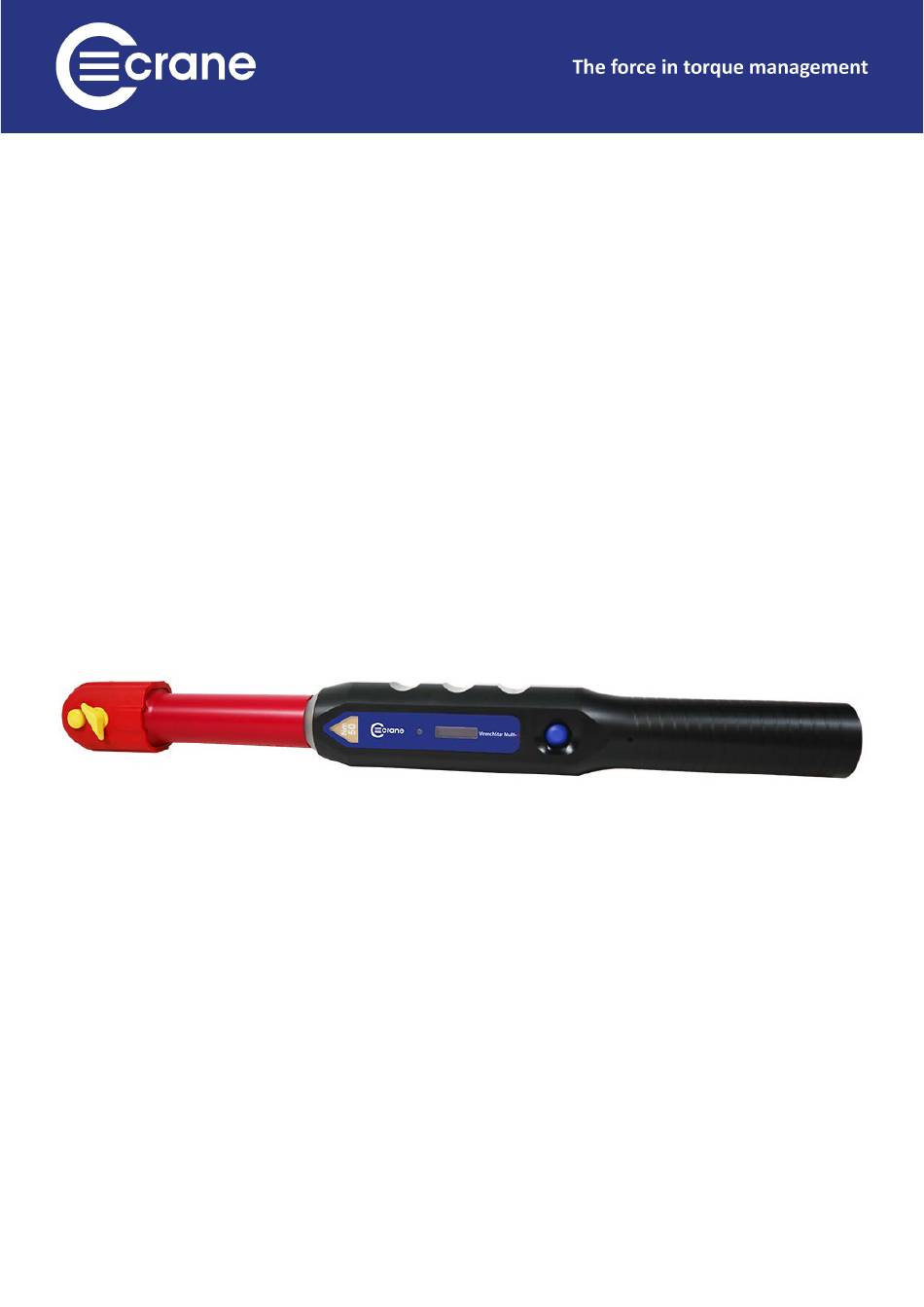

Operator's Manual
WrenchStar Multi-e
Manual 1310-01 Version 1.2
Crane Electronics Ltd
Notice
ALL RIGHTS RESERVED. Reproduction of any part of this manual in any form whatsoever,
without the prior permission in writing from Crane Electronics Ltd is forbidden.
Copyright © May 2025 by Crane Electronics Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WrenchStar Multi-e and is the answer not in the manual?

Questions and answers

Related Manuals for Crane Electronics WrenchStar Multi-e

Summary of Contents for Crane Electronics WrenchStar Multi-e

  • Page 1 Manual 1310-01 Version 1.2 Crane Electronics Ltd Notice ALL RIGHTS RESERVED. Reproduction of any part of this manual in any form whatsoever, without the prior permission in writing from Crane Electronics Ltd is forbidden. Copyright © May 2025 by Crane Electronics Ltd.

  • Page 2: Table Of Contents

    COMPLIANCE ............................3 WARNINGS AND SAFETY INFORMATION .................... 4 PRODUCT DISPOSAL ..........................5 ABOUT THIS MANUAL ......................... 5 OVERVIEW – WRENCHSTAR MULTI-e ....................6 PACKING LIST ............................6 SPARES AND ACCESSORIES ......................... 6 CARE AND STORAGE ........................... 7 WEIGHTS AND DIMENSIONS ....................... 7 SPECIFICATIONS ..........................

  • Page 3: Address

    Technical Support: sales@crane-electronics.com Sales: UKCA MARKING Crane Electronics Limited declares that the WrenchStar Multi-e has been assessed and complies with the UK regulatory requirements. CE MARKING Crane Electronics Limited declares that the WrenchStar Multi-e has been assessed and complies with the requirements of the relevant CE Directives.

  • Page 4: Warnings And Safety Information

    • Always visually inspect the WrenchStar Multi-e for any damage prior to use. Do not use the WrenchStar Multi-e if any damage is found, until the wrench has been repaired.

  • Page 5: Product Disposal

    To enable this product to be disposed of properly i.e., cradle to grave, Crane Electronics is willing to accept the return of your product (at your cost) for recycling or alternatively, for more detailed information about recycling of this product please contact your local authority or the Distributor / Company where you have purchased the product.

  • Page 6: Overview - Wrenchstar Multi-E

    10 metres*. If the WrenchStar Multi-e loses its link to the data collector, then it continues to work offline, storing up to 200 readings. It is simple to pair a WrenchStar Multi-e with a data collector or lineside controller.

  • Page 7: Care And Storage

    Storage Temperature Range: C to +50 Humidity: 10-75% non-condensing. IP Rating: IP40 (indoor use only – not suitable for use when wet) The WrenchStar Multi-e may be wiped clean with a soft cloth. WEIGHTS AND DIMENSIONS Sales Code Weight Length Range...
  • Page 8 Return to Contents...

  • Page 9: Specifications

    Yield: Special measurement algorithm for use with joints being taken into plastic region. The wrench supplies its torque range (span), PPR (for Angle), serial number, calibration due date. Reading Storage: The WrenchStar Multi-e can store up to 200 readings in Offline Mode. LEDs: The WrenchStar Multi-e has a: Charge LED used when charging battery pack.

  • Page 10: Features

    FEATURES BATTERY The WrenchStar Multi-e unit has a built-in battery pack that contains a Lithium-Ion battery. From fully discharged the unit will require an approximately 6 hours charge to attain maximum capacity. The full capacity of the battery is 2600mAh which yields approx. 10 hours of normal use.

  • Page 11: Wrenchstar Multi-E Button

    • back to normal RF Mode and the status LED will change to Blue. • If the WrenchStar Multi-e is ON and the Button is held for more than 5 seconds then the WrenchStar Multi-e will switch OFF. • The WrenchStar Multi-e will switch OFF after 10 minutes of no activity. It can be turned back ON with a press of the Button.

  • Page 12: Light Ring

    When a Job is complete the Light Ring will continuously cycle through the sequence Amber, Green, Red whilst data is present. POWER ON SEQUENCE The following information will be displayed when you switch ON WrenchStar Multi-e: Crane logo • •...

  • Page 13: Diagnostic Mode

    DIAGNOSTIC MODE During switch ON if the Blue Button is pressed 3 times in quick succession, the Wrench will go into Diagnostic Mode: - The following information will be shown on the display. The number of taps is the number of taps on the Blue Button that will advance the display onto the next diagnostic function.

  • Page 14: Vibration

    HI. SERVICE AND CALIBRATION To maintain precision and accuracy of the wrench, Crane Electronics recommend that customers have their wrenches calibrated every 12 months. If the wrench is used excessively, it may be that a calibration every 6 months is necessary.

  • Page 15: Contact Us

    Illinois 61264 +1 309-787-1263 salesusa@crane-electronics.com supportusa@crane-electronics.com serviceusa@crane-electronics.com www.crane-electronics.com Crane Electronics Ltd - if you are based in the UK, Europe, Asia, Africa, or Middle East Watling Drive Sketchley Meadows Hinckley LE10 3EY United Kingdom +44 (0)1455 25 14 88 sales@crane-electronics.com support@crane-electronics.com...
