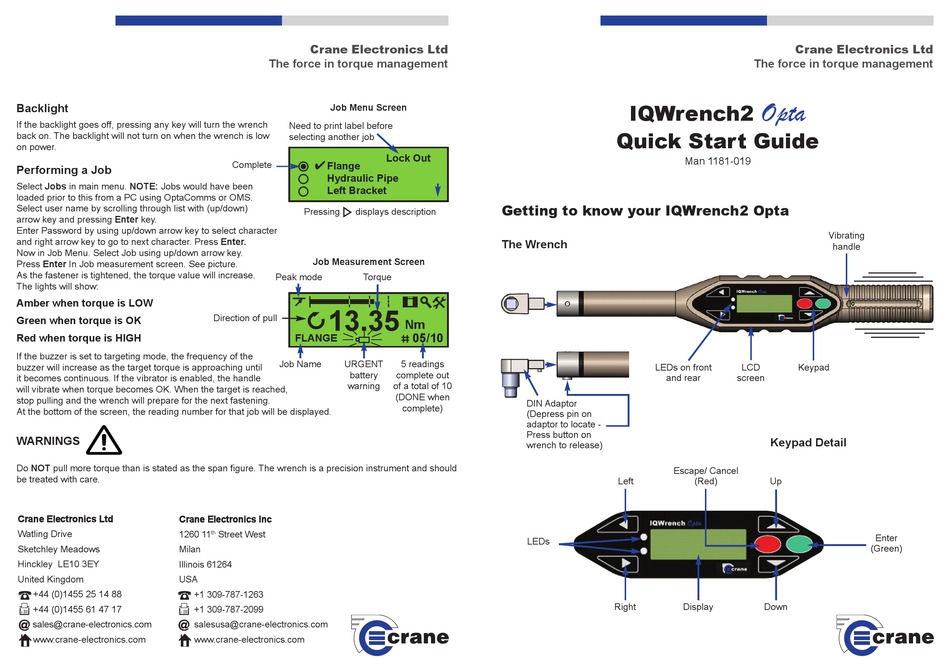

Crane Electronics QWrench2 Opta Quick Start Manual

Backlight
If the backlight goes off, pressing any key will turn the wrench
back on. The backlight will not turn on when the wrench is low
on power.

Performing a Job

Select Jobs in main menu. NOTe: Jobs would have been
loaded prior to this from a PC using OptaComms or OMS.
Select user name by scrolling through list with (up/down)
arrow key and pressing enter key.
Enter Password by using up/down arrow key to select character
and right arrow key to go to next character. Press enter.
Now in Job Menu. Select Job using up/down arrow key.
Press enter In Job measurement screen. See picture.
As the fastener is tightened, the torque value will increase.
The lights will show:
amber when torque is lOW
green when torque is OK
Red when torque is HIgH
If the buzzer is set to targeting mode, the frequency of the
buzzer will increase as the target torque is approaching until
it becomes continuous. If the vibrator is enabled, the handle
will vibrate when torque becomes OK. When the target is reached,
stop pulling and the wrench will prepare for the next fastening.
At the bottom of the screen, the reading number for that job will be displayed.

WaRNINgS

Do NOT pull more torque than is stated as the span figure. The wrench is a precision instrument and should
be treated with care.
