Crane Electronics Ltd
The force in torque management
Operators Manual

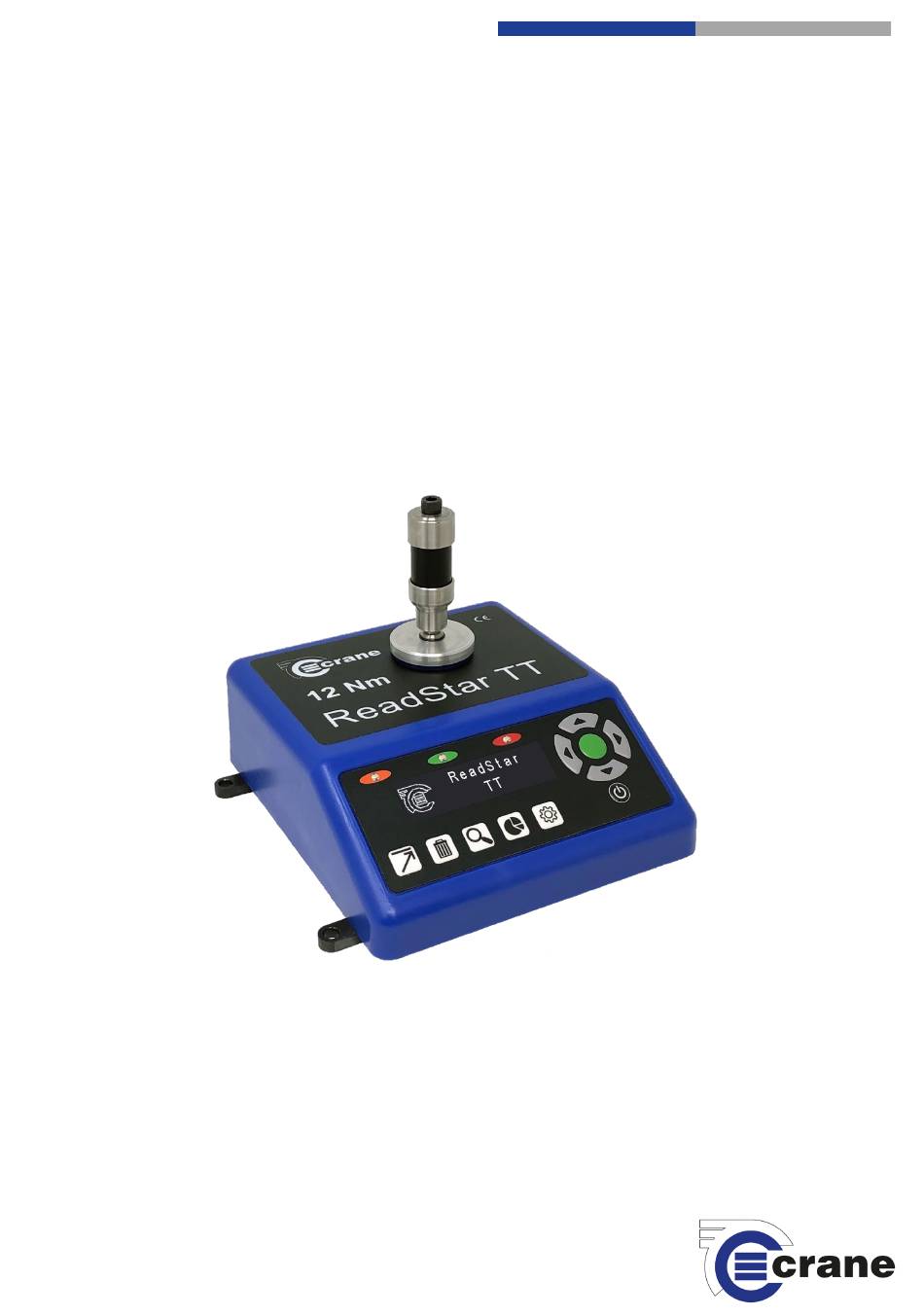

ReadStar TT Torque Tester
Manual 1298-01 Issue 1
Crane Electronics Ltd
Notice
ALL RIGHTS RESERVED. Reproduction of any part of this manual in any form whatsoever,
without the prior permission in writing from Crane Electronics Ltd is forbidden.
Copyright © June 2020 by Crane Electronics Ltd.
Crane Electronics Ltd
Watling Drive
Sketchley Meadows
1
Hinckley LE10 3EY
Tel: +44(0) 1455 25 14 88
www.crane-electronics.com
Advertisement
Table of Contents
Related Manuals for Crane Electronics ReadStar TT
Summary of Contents for Crane Electronics ReadStar TT
- Page 1 Crane Electronics Ltd Notice ALL RIGHTS RESERVED. Reproduction of any part of this manual in any form whatsoever, without the prior permission in writing from Crane Electronics Ltd is forbidden. Copyright © June 2020 by Crane Electronics Ltd. Crane Electronics Ltd...
-
Page 2: Table Of Contents
Packing list Spares & Accessories Features & Dimensions Specifications Hardware Technical Features Icons Start Up Fixed Icons Input Powering your ReadStar TT Measurement Screen Deletion Settings AutoPrint Settings Readings List Statistics Crane Electronics Ltd Watling Drive Sketchley Meadows Hinckley LE10 3EY Tel: +44(0) 1455 25 14 88 www.crane-electronics.com... -
Page 3: Ce Marking & Compliance
Tel: +44 (0)1455 25 14 88 Declares that the ReadStar TT ranges have been assessed and comply with the requirements of the relevant CE Directives. Changes or modifications to the ReadStar TT not expressly approved by Crane Electronics Ltd could void the user’s authority to operate the equipment. -
Page 4: Product Disposal & About This Manual
To enable this product to be disposed of properly i.e. cradle to grave, Crane Electronics is willing to accept the return of your product (at your cost) for recycling or alternatively, for more detailed information about recycling of this product please contact your local authority or the Distributor / Company where you have purchased the product. -
Page 5: Packing List
Crane Electronics Ltd The force in torque management PACKING LIST The following Items are supplied with the ReadStar TT dependent on model specification purchased. 1 x ReadStar TT (with standard rundown adapter) 1 x Calibration Certificate (12 months) 1 x Quick Start Guide (with QR code link to Operator’s Manual) 2 x Type ‘C’... -
Page 6: Features & Dimensions
Crane Electronics Ltd The force in torque management FEATURES AND DIMENSIONS – READSTAR TT Crane Electronics Ltd Watling Drive Sketchley Meadows Hinckley LE10 3EY Tel: +44(0) 1455 25 14 88 www.crane-electronics.com... -
Page 7: Specifications
Crane Electronics Ltd The force in torque management SPECIFICATIONS Measurement Modes: Track – Real time torque Peak – Capture of the highest torque Pulse – Special measurement algorithm for use with impulse tools, incorporating pulse count Click – Capture of peak torque before click mechanism operates to limit... -
Page 8: Hardware
Crane Electronics Ltd The force in torque management HARDWARE Construction: High strength injection moulding. Steel base with mounting bars. Display: White OLED screen - 79mm x 21mm Keypad: Easy clean keypad. 11 keys including 5 function keys, 5 directional keys and on/off key. -
Page 9: Icons
Crane Electronics Ltd The force in torque management ICONS – READSTAR TT Fixed soft-key Icons: Measurement Delete Readings Statistics Settings Modes On-screen Icons - Measurement Modes: Peak Click Track Pulse START UP Turning on your ReadStar: Turn on the ReadStar by pressing the On/Off button situated below the arrowed keypad. - Page 10 The screen will then change to: It confirms the serial number of the ReadStar TT you have and its calibration due date. TM is the latest software version of the torque module and KB represents the latest version of the keyboard.
-
Page 11: Fixed Icons
Crane Electronics Ltd The force in torque management FIXED ICONS Measurement Mode - Default mode will be peak. A second press will take you to track, a third press will take you to click, and a fourth press will take you to pulse (shown as icon in secondary parameter position). -
Page 12: Input
POWERING YOUR READSTAR TT There are three ways in which the unit can be powered: 1) Connect Micro USB on the ReadStar TT to USB on a laptop, PC or USB charger. 2) Connect the 5V DC port with a DC power supply. -
Page 13: Measurement Screen
Crane Electronics Ltd The force in torque management THE MEASUREMENT SCREEN Measurement Screen: Measurement reading. Primary measurement mode. Battery status. Reading count. Unit of measurement. Duration in seconds. Measurement direction. Pressing the measurement button will take you through the measurement modes. -
Page 14: Deletion
Crane Electronics Ltd The force in torque management A second parameter for pulse count can also be enabled. DELETION Readings are taken in order, so the first is 1 the last reading would be 999. One press of the delete icon will allow you to delete the last reading only. -
Page 15: Settings
Crane Electronics Ltd The force in torque management SETTINGS Settings can be accessed by pressing the Settings Icon and using the up and down arrow keys and changing the formats by using the right and left arrow keys: TQ = Torque... -
Page 16: Autoprint Settings
Crane Electronics Ltd The force in torque management A second press of the settings icon will take you to Setup System Settings. Power Off: Set the duration of the length of time before the torque tester turns off. 0 – 200... -
Page 17: Readings List
Crane Electronics Ltd The force in torque management Example: AutoPrint takes place when each reading cycle end is complete. AutoPrint does not work in Track mode as there is no cycle end and no reading stored. READINGS LIST One press of the Readings icon will take you to the first reading screen where you can see all of your current readings. -
Page 18: Statistics
Crane Electronics Ltd The force in torque management STATISTICS Pressing the fixed Statistics icon takes you to two screens which display simple statistics relating to the current collected readings data. The first screen displays X =Mean average n = Sample count and o = Sigma (Standard deviation).
