ReadStar TT - Quick Start Guide
Getting started with your ReadStar TT torque tester.

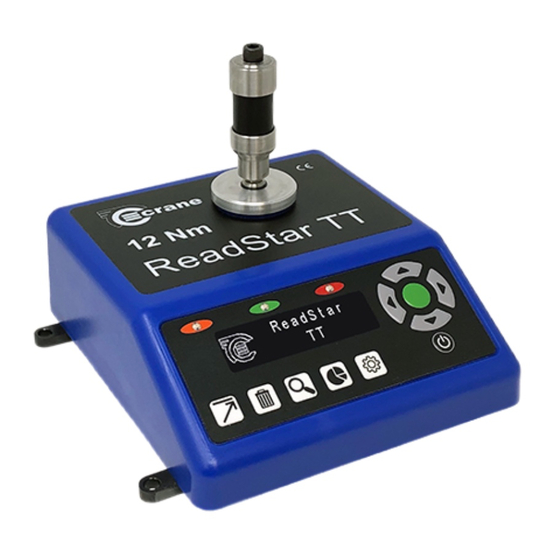

Front
Joint Kit /
Rundown Adapter
Socket
LEDs
Function
Soft Keys
Please note. To avoid over-torquing, ensure the ReadStar TT has the correct torque range for the tool before beginning.
Switching On
1
Turn on your ReadStar TT by pressing the on/off
button situated below the arrow keys. Pressing this
button whilst the ReadStar is on will turn it off.
Measurement Screen
3
The last measurement mode used (Peak, Click, Track or Pulse) will be automatically selected first. This can be changed by
pressing the 'Measurement Mode' function key.
Toggle the measurement modes by pressing the function key until you get to the mode you require, then you are ready to
start measuring torque with the ReadStar TT.
Click mode
Peak mode
White OLED
Display Screen
Directional
Arrow Keys
On/Off Button
Green 'Accept' Key
Track mode
Pulse mode
Port
Micro USB 5V DC Power Port
Standard rundown
adapter
Starting the ReadStar TT
2
The first screens you will see are the splash screen
which then changes to show the ReadStar's serial
number and calibration due date. The software
version and keyboard version are also both indicated
by TM and KB respectively.
Crane Electronics Ltd
The force in torque management
Back
2 x 'C' Cell Battery
Compartment
Premium joint kit
(sold separately)
