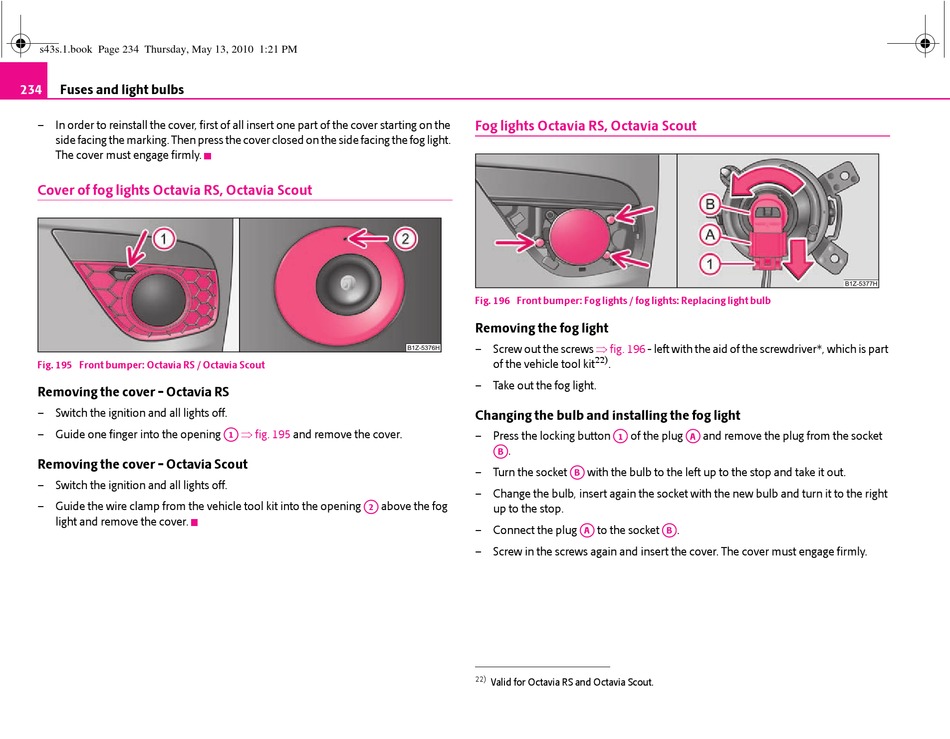

234 Fuses and light bulbs
– In order to reinstall the cover, first of all insert one part of the cover starting on the
side facing the marking. Then press the cover closed on the side facing the fog light.
The cover must engage firmly.
Cover of fog lights Octavia RS, Octavia Scout
Fig. 195 Front bumper: Octavia RS / Octavia Scout
Removing the cover - Octavia RS
– Switch the ignition and all lights off.
– Guide one finger into the opening
Removing the cover - Octavia Scout
– Switch the ignition and all lights off.
– Guide the wire clamp from the vehicle tool kit into the opening
light and remove the cover.
A  fig. 195
and remove the cover.
1
A
above the fog
2
Fog lights Octavia RS, Octavia Scout
Fig. 196 Front bumper: Fog lights / fog lights: Replacing light bulb
Removing the fog light
 fig. 196
– Screw out the screws - left with the aid of the screwdriver*, which is part
22)
of the vehicle tool kit .
– Take out the fog light.
Changing the bulb and installing the fog light
A
– Press the locking button of the plug
1
A
.
B
A
– Turn the socket with the bulb to the left up to the stop and take it out.
B
– Change the bulb, insert again the socket with the new bulb and turn it to the right
up to the stop.
A
– Connect the plug to the socket
A
– Screw in the screws again and insert the cover. The cover must engage firmly.
22)
Valid for Octavia RS and Octavia Scout.
A
and remove the plug from the socket
A
A
.
B
