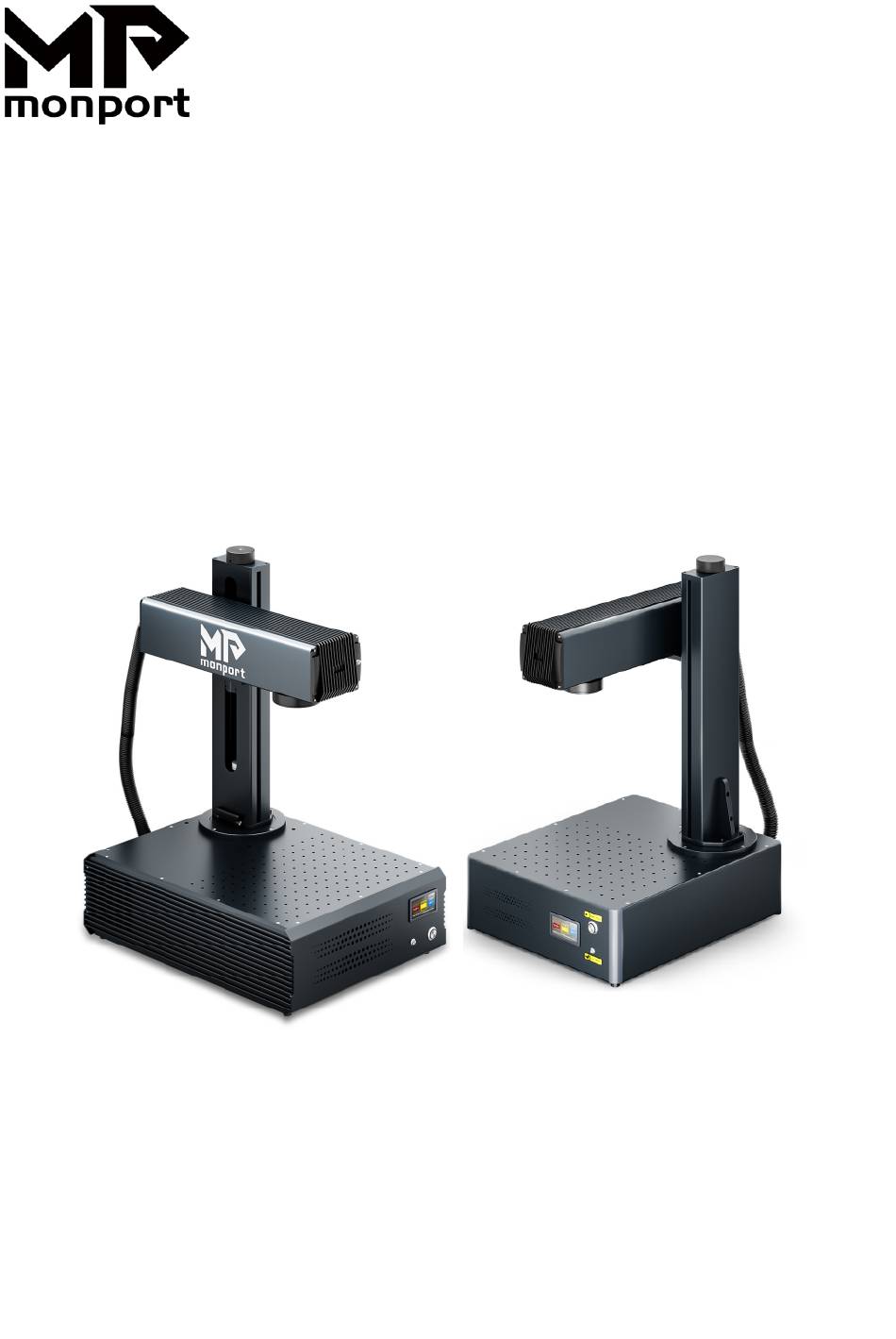

- Page 1 Fiber Laser Marking Machine User Manual Please Read Carefully Before Use and Keep It for Future Reference...
- Page 2 This fiber laser marking machine is intended for both personal and professional use. Monport is committed to providing the highest level of customer satisfaction and support. To ensure a favorable customer experience, we kindly suggest that you thoroughly read the User Manual provided with your equipment before operation.
-
Page 3: Table Of Contents
CONTENTS 1. Introduction ......................2 1.1 General Information ......................2 1.2 Symbols Guide ........................ 2 1.3 Designated Use ........................3 1.4 Technical Specifications ....................4 1.5 Components ........................6 1.6 Package List ........................9 2. Safety Information .......................10 2.1 Disclaimer ........................10 2.2 General Safety Instructions ..................... 2.3 Laser Safety Instructions ....................10 2.4 Electrical Safety Instructions ...................11... -
Page 4: Introduction
1. Introduction 1.1 General Information This is the designated user guide for the installation, setup, safe operation, and maintenance of your fiber laser marking machine. It is divided into six chapters, covering: General Information, Safety Instructions, Installation Steps, Operation Instructions, Maintenance Instructions, Contact Information. All personnel involved in the installation, setup, operation, maintenance, and repair of this machine should read and understand this manual, particularly its safety instructions. -
Page 5: Designated Use
1.3 Designated Use This machine is intended for engraving signs and other consumer products on applicable substrates. It can process a wide variety of metals, including steel, aluminum, titanium, brass, copper, tungsten, carbide, and chrome. It can also be used with stone and some hard plastics such as acrylic. Use of this system for non-designated purposes or materials is NOT permitted. -
Page 6: Technical Specifications
1.4 Technical Specifications GA Series Type Product Name GA20 GA30 GA50 the United States and Canada regions：110-120V 60Hz Voltage Europe, UK, and Australia regions：220-240V 50Hz Overall Rated Power 600W 600W 600W 4.3x4.3 in. 5.9x5.9 in. 7.9x7.9 in. Field Lens Specification 110×110 mm... - Page 7 GA Series Type Product Name GA30 MOPA GA60 MOPA GA100 MOPA the United States and Canada regions：110-120V 60Hz Voltage Europe, UK, and Australia regions：220-240V 50Hz Overall Rated Power 600W 600W 600W 6.9x6.9 in. Field Lens Specification 175×175 mm Marking Accuracy 0.01mm...
-
Page 8: Components
1.5 Components 1.5.1 Main Parts 1: Focus Adjustment Wheel Manually rotate the adjustment wheel to move the laser arm up and down to achieve the correct focal length. 2: Support Column The support column fixes the laser arm, providing stability and support for the machine's moving parts. 3: F-theta Lens The F-theta lens marks a consistent and precise light spot at any position within the corresponding range. - Page 9 1.5.2 Buttons 1. Laser Power Switch 2. Start Engraving Button 3. Auto Focus Panel: ① Laser Arm Down ② Laser Arm Up ③ Auto Focus 4. Dual Red Light Switch...
- Page 10 1.5.3 Interfaces 1. USB Interface Connects the marking machine to a computer device. 2. Rotary Axis Socket Connects the rotary axis port (compatible with the corresponding rotary axis). 3. Power Cord Socket Connects the machine to the power supply using a standard 3-pin power cord. 4.
-
Page 11: Package List
1.6 Package List TYPE Accessory Quantity Power Cable USB Cable Flash Disk Wrench Position Plant Screws M6*12 Hand tighten screws Goggles Testing Card USB-TypeC Intructions Ruler... -
Page 12: Safety Information
2. Safety Information 2.1 Disclaimer Your engraver may differ somewhat from those shown in this manual due to options, updates, etc. Please contact us if your marking machine comes with an outdated manual or if you have any other questions. 2.2 General Safety Instructions Use this laser marking device ONLY in accordance with all applicable local and national laws and ... -
Page 13: Electrical Safety Instructions
NEVER attempt to view the laser directly without protective eyewear. ALWAYS wear safety goggles or glasses designed to filter the specific wavelength of your engraver's laser with an optical density (OD) of 5+. As even seemingly matte materials can produce harmful reflected beams, care should be taken to keep anyone without protective eyewear from observing the machine during operation. -
Page 14: Material Safety Instructions
2.5 Material Safety Instructions Users of this fiber marking machine are responsible for confirming that the materials to be processed can withstand the heat of the laser and will not produce any emissions or by-products harmful to people nearby or in violation of any local or national laws or regulations. In particular, DO NOT use this device to process polyvinyl chloride (PVC), Teflon, or other halogen-containing materials under any circumstances. -
Page 15: Installation
3. Installation 3.1 Overview A complete working system consists of the following parts: Fiber laser source Laser arm with the galvanometer lens Computer (not included) with BslAppSimple software All applicable connection cables Support column Working platform ... -
Page 16: Electrical Grounding
The manufacturer and/or seller(s) do not bear responsibility or liability for any damage, accidents, or injuries resulting from improper grounding connections 3.4 Step-by-Step Assembly If you buy a GA series product. Prepare the two screws for securing the bracket. -
Page 17: Operation
4. Operation 4.1 Operation Overview Operate this laser marking machine only in accordance with all the instructions provided in this manual. Failure to follow the guidelines detailed here can result in property damage and personal injury. This section addresses only some of the options and features provided by the operation software. Before using the machine, ensure you have read this entire manual (particularly the Safety Information section), the separate software manual, and any warnings provided on the machine itself. - Page 18 ②Click Next; ③Click “ I Agree ”;...
- Page 19 ④Click Next;...
- Page 20 ⑤Click “ Finish ” to complete the drive installation; Software installation This software is a green software that can be used directly or copied to a designated location on the computer after inserting a USB drive. ⑥ After inserting the USB flash drive into the computer, the file list shown in the following figure will be displayed;...
- Page 21 ⑧After entering the folder, double-click “ BslAppSimple ” pointed by the arrow; ⑨After entering the software, the operation interface as shown below is displayed; ⑩ Set device parameters (device parameters are already set at the factory, if parameter errors occur due to misoperation, you can refer to the following steps for correction);...
- Page 22 ⑪Each device will have a separate parameter nameplate, as shown in the following figure； Area part：...
- Page 23 Red light indication part: If you purchase GA MOPA or G Pro series products, you will also add the following settings:...
- Page 24 4.2.3 Installing LightBurn Download and install LightBurn software from the website. Note: It is not compatible with our machine if your LightBurn version is lower than V1.7.00. Please download the latest version and reinstall. LightBurn is a paid software with a 1-month free trial; you need to purchase the license key for the Pro version.
- Page 25 Click “ Next ”; Click “ add Device ”;...
- Page 26 Display the following interface and continue to click “ Next ”; After the following interface is displayed, according to the actual processing range of the equipment, modify the parameters according to the positions 1 and 2 shown.The processing range of the equipment shown in the figure is 175*175.
- Page 27 Click “ Finish ”and it will appear in the device list;...
- Page 28 Click “ BSLFiber ”; Click on the set icon;...
- Page 29 Enter the icon screen and modify parameters; Click on the icon position.
- Page 30 Modify the device parameters according to the device nameplate (left in the picture).
- Page 31 Modify the parameters and click the icon position. Red Dot :Click to change to 0;Check "Red Dot alvays on". Click OK to complete the setup and start using the device.
- Page 32 If you purchase GA MOPA series products, you will also add the following settings: Click on "Fiber Type" and select "IPG _YLPM". Frequency (KHz) adjustment range "1~3000", in order to ensure that you can enjoy the best engraving results, we recommend the frequency(KHz) adjustment range of "1~1000", of course, if you have your own use needs, please make sure that your lightburn software version is in the latest version.
-
Page 33: Instructions For Specific Materials
4.3 Instructions for Specific Materials When engraving a new material, it can be helpful to engrave a test matrix of small boxes produced with various speed, power, and frequency settings to determine the exact effect you are looking for. Here are some general guidelines for commonly engraved materials. -
Page 34: Maintenance
5. Maintenance 5.1 Maintenance Overview Unless otherwise specified, perform adjustment and maintenance of this device only when the power is turned off and the power supply has been disconnected. Only trained and skilled professionals should modify or disassemble this device. 5.2 Regular Maintenance Procedures ... -
Page 35: Disposal Instructions
If you encounter any problems with this engraver, please contact us with your order ID. Monport Laser Customer Support email: support@monportlaser.com. Amazon/eBay Customer Support email: support@monportlaser.com. Our customer service team will respond within 24 hours.
