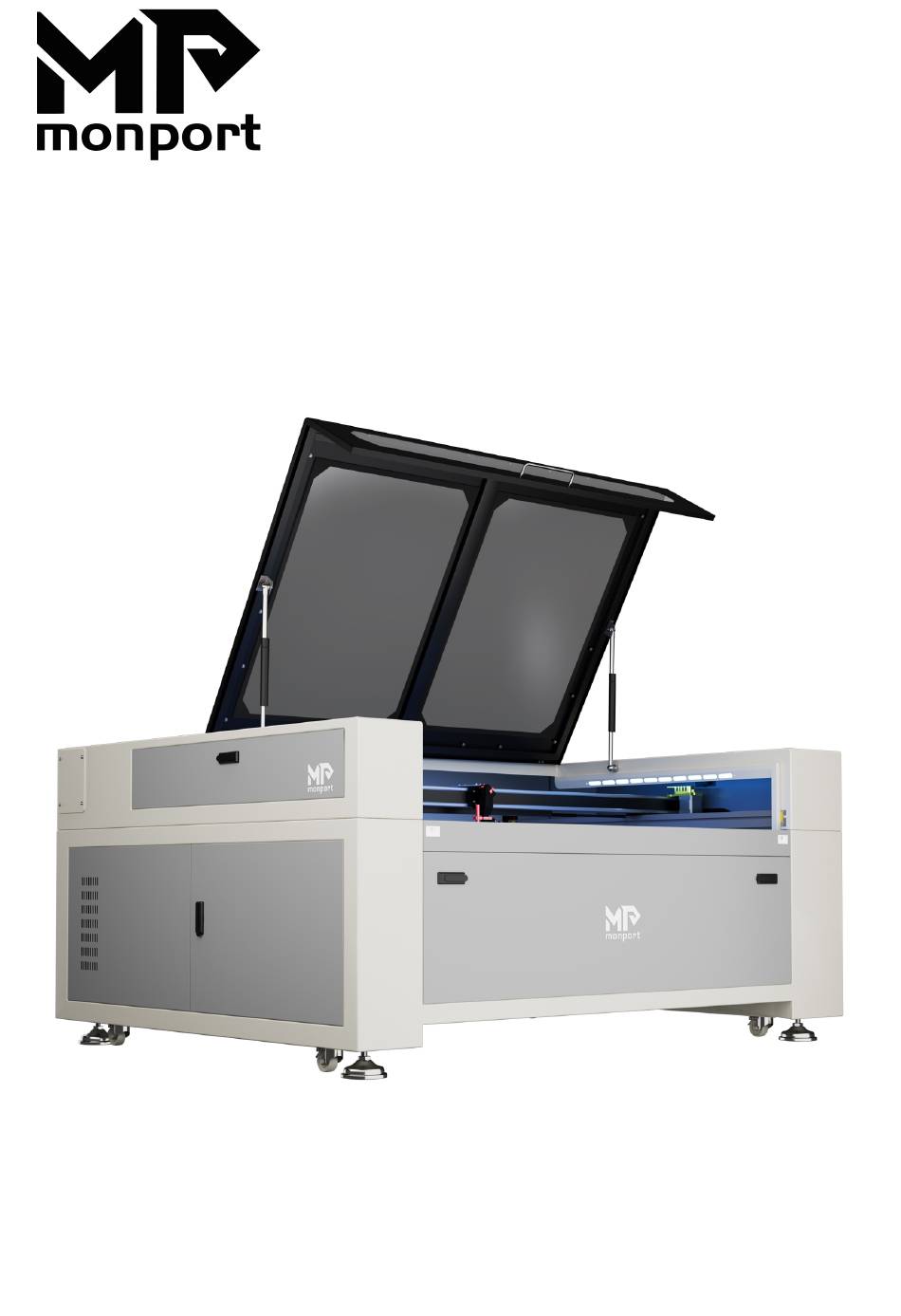

- Page 1 V20241224 Cabinet Laser Engraver User Manual Read Carefully Before Use Keep for Future Reference...
- Page 2 PREFACE Thank you for choosing our laser equipment. Your CO₂ laser engraving machine is intended for personal and professional use. It comprises a Class 4 laser system but some components remain EXTREMELY dangerous. Never disable the preinstalled safety devices and always use your laser safely and responsibly.
-
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........................1 1.1 General Information.......................1 1.2 Symbol Guide ........................2 1.3 Designated Use ........................2 1.4 Technical Specifications ......................3 1.5 Components...........................4 2. Safety Information........................8 2.1 Disclaimer..........................8 2.2 General Safety ........................8 2.3 Laser Safety...........................8 2.4 Electrical Safety........................9 2.5 Material Safety ........................9 3. - Page 4 5.3 Cleaning..........................18 5.3.1 Water System ......................18 5.3.2 Main Bay & Engraver....................19 5.3.3 Focus Lens .........................19 5.3.4 Mirrors ........................19 5.4 Laser Path Alignment......................20 5.4.1 Laser Tube .........................20 5.4.2 First Mirror .........................20 5.4.3 Second Mirror......................21 5.4.4 Third Mirror........................21 5.5 Lubrication Instructions .......................21 5.6 Parts Replacement ........................21 5.7 Disposal ..........................22 Contact Information........................22...
-
Page 5: Introduction
1 Introduction 1.1 General Information This manual is the designated user guide for the installation, setup, safe operation, and maintenance of your cabinet laser engraver. It is divided into six chapters covering general information, safety instructions, installation steps, operation instructions, maintenance procedures, and contact information. ALL personnel involved in the installation, setup, operation, maintenance, and repair of this machine should read and understand this manual, particularly its safety instructions. -
Page 6: Symbol Guide
1.2 Symbol Guide The following symbols are used on this machine’s labeling or in this manual: These items present a risk of serious property damage or personal injury. These items address similarly serious concerns with regard to the laser beam. These items address similarly serious concerns with regard to electrical components. -
Page 7: Technical Specifications
1.4 Technical Specifications Product Name Effi9S Effi10S Effi13S Effi16S Diameter 2.36 in.(60mm) 2.76 in.(70mm) 3.15 in.(80mm) Laser Tube 48.82 in. 56.69 in. 64.96 in. 72.83 in. Length (1240mm) (1440mm) (1650mm) (1850mm) Diameter 0.8 in. (20mm) Focus Lens Thickness 0.08 in. (2mm) Focal Length 2.5 in. -
Page 8: Components
1.5 Components... -
Page 9: Main Parts
Main Parts A. Cover—The cover provides access to the main bay for placing and retrieving materials, as well as fixing the laser path alignment and other maintenance. Power to the laser is automatically cut when the cover is opened. B. Viewing Window—The polycarbonate window is shielded to protect you and others from the laser and its reflection, allowing monitoring of the engraving process. -
Page 10: Laser Head
Laser Path A. Laser Tube—This long glass tube is filled with helium, D. 3rd Mirror—This adjustable-angle mirror moves nitrogen, and CO₂ gas and water cooled to safely produce with the laser head to allow the laser beam to travel your engraving laser. Its connection to the laser power supply along the X axis. - Page 11 Connection Inputs A. USB Line Port—This port connects to your control computer and its engraving software using any of its USB ports. B. USB Port—This port allows you to load and save designs and parameters directly onto the engraver. C. Ethernet Port—This port connects to your control computer and its software either directly or via the internet.
-
Page 12: Safety Information
2. Safety Information 2.1 Disclaimer Your engraver may differ somewhat from those shown in this manual due to options, updates, etc. Please contact us if your engraving machine came with an outdated manual or if you have any other questions. 2.2 General Safety Instructions •... -
Page 13: Electrical Safety
• ONLY use this engraver if its automatic shutoffs are working properly. When you first get this engraver and if you subsequently notice any problems, test them (see below) before undertaking any other work. Do not continue use if the shutoffs do not occur. Turn off the device and contact customer service or your repair service. - Page 14 • Users of this laser engraver are responsible for ensuring that every person present during operation has sufficient PPE to avoid the injury from the emissions and byproducts of the materials being processed. In addition to the protective laser eyewear described above, this may require goggles, masks or respirators, gloves, and other protective outer clothing.
-
Page 15: Installation
3. Installation 3.1 Installation Overview A complete working system consists of the laser engraving cabinet, its vents, an industrial water chiller, all applicable connection cables, and the laser and access keys. The cabinet can use designs provided by the enclosed engraving software by direct or internet connection with your computer;... -
Page 16: Electrical Grounding
Step 3. Check that you have received all of the following: a power cord, a ground wire, USB and Ethernet cables, a USB flash drive with engraving software included, an exhaust pipe with a hose clamp, a set of hex wrenches, an acrylic focusing tool, keys, and this manual. -
Page 17: Exhaust System
3.6 Exhaust System Install the provided exhaust pipes directly to the Exhaust vent. The pipes can be expanded to a full length of about 5 feet (1.5 m). The other end should be connected to the 550W exhaust system and ultimately discharged outdoors (if the smoke is not dangerous and meets local and national air safety standards).NEVER operate the laser if the vents are not purifying or removing the fumes produced by the target material. -
Page 18: Security
As such, it is recommended that you perform an optical alignment test as part of setting up your machine. You can consult Monport technical support for relevant guidelines. - Page 19 Step 3. Turn on your fume extractor or ventilation system, if any. Step 4. Pull up the emergency stop button and turn on the engraver's control panel using its switch on the side of the cabinet. Load your chosen design directly from a USB flash disk or through your computer's connection with the engraver.
-
Page 20: Instructions For Specific Materials
4.3 Instructions for Specific Materials The following instructions are suggestions to help speed safe work with a range of materials. The user should research the specific safety and engraving requirements of their specific material to avoid the risk of fire, hazardous dust, corrosive and poisonous fumes, and other potential problems. -
Page 21: Control Console
Stone When engraving various kinds of stone, generally use moderate power and moderate to fast speed. As with ceramics and glass, be mindful of the dust created (especially for repetitive industrial applications) and take similar measures to ensure the safety of users and others in the work area. Textiles When engraving textiles like cloth and fleece, generally use low power and fast speed. -
Page 22: Maintenance
5. Maintenance 5.1 Maintenance Overview The use of procedures other than those specified herein may result in hazardous laser radiation exposure. Before any cleaning or maintenance work, always switch off the device and disconnect it from its power supply. Always keep the system clean, as flammable debris in the working and exhaust areas constitutes a fire hazard. ONLY allow trained and skilled professionals to modify or disassemble this device. -
Page 23: Main Bay & Engraver
Carefully insert the lens into the lens holder, ensuring that its rounded convex side is facing upwards. Put the O-ring on top of the lens. Carefully reassemble the lens and laser head attachments in reverse order. For detailed instructions, please contact Monport technical support and we will provide you with instructional videos. 5.3.4 Cleaning the Mirrors The mirrors should be similarly cleaned if there is any debris or haze on their surface to improve performance and avoid permanent damage. -
Page 24: Laser Path Alignment
The semitransparent mirror at the end of the laser tube should only be cleaned when the engraver is fully disconnected from power and the tube is fully cooled. Clean all four mirrors with lens-cleaning tissue or with cotton wetted with lens-cleaning liquid or isopropyl alcohol. -
Page 25: Second Mirror
If you change to a different laser power supply, please consult with Monport technical support. For detailed instructions, please contact Monport technical support and we will... -
Page 26: Disposal
If you encounter any problems with this engraver, please contact us with your order ID. Monport Laser Customer Support email: support@monportlaser.com. Amazon/eBay Customer Support email: support@monportlaser.com. Our customer service team will respond within 24 hours.
