Taichuan TC-5000 Series Admin Manual

2/4houses villa intercom
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

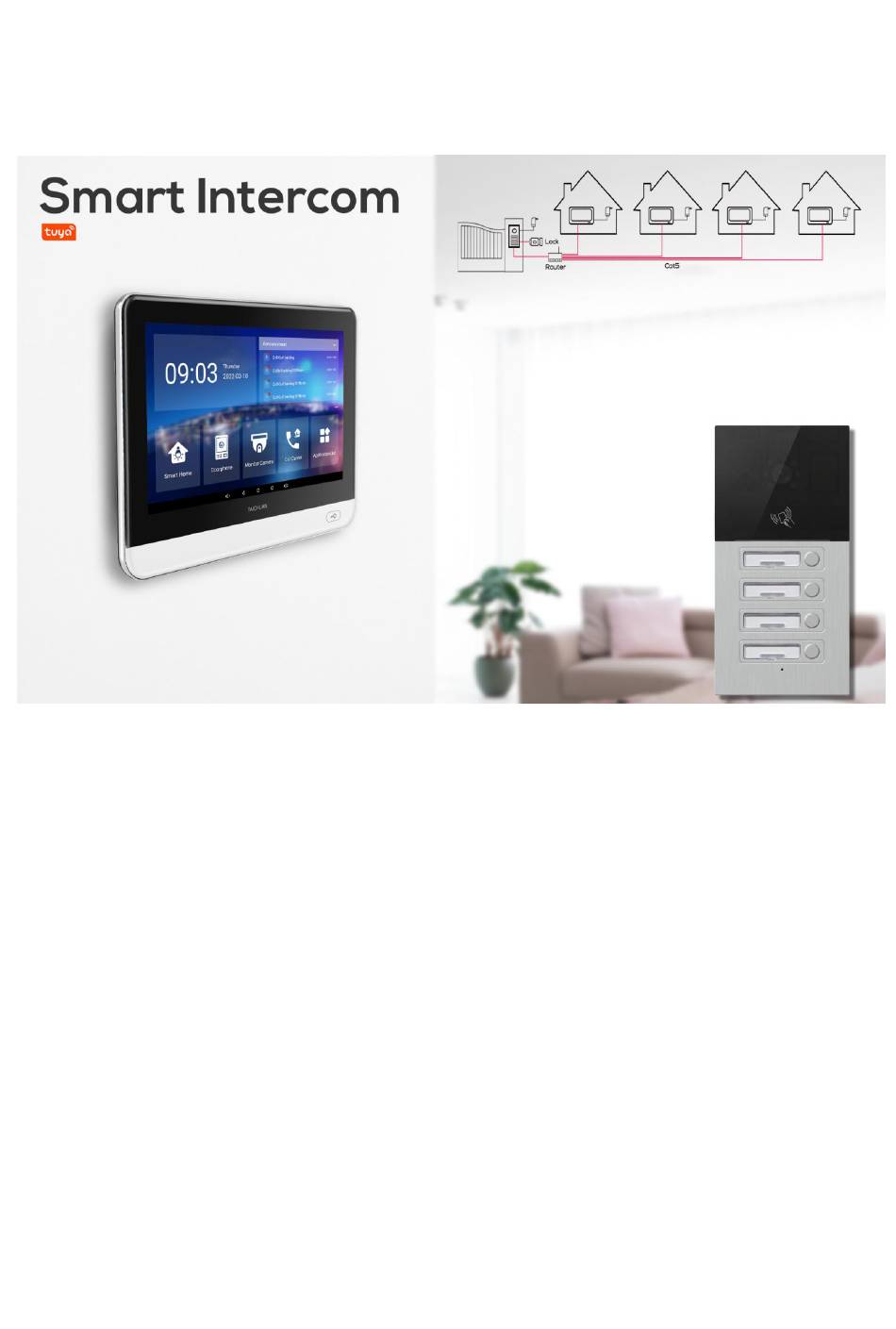

2/4 HOUSES
VILLA INTERCOM
ADMIN GUIDE
Applicable Models: 2 keys and 4 keys villa intercom
Version: 1.0 | Date: July.2022
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC-5000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Taichuan TC-5000 Series

Summary of Contents for Taichuan TC-5000 Series

  • Page 1 2/4 HOUSES VILLA INTERCOM ADMIN GUIDE Applicable Models: 2 keys and 4 keys villa intercom Version: 1.0 | Date: July.2022...

  • Page 2: Product Overview

    1.Product Overview TC-5000 collections are an Android based with a smooth touch-screen indoor monitor. It can be connected with Taichuan outdoor unit for audio/video communication, unlocking, and monitoring. Residents can communicate with visitors via audio/video call, and it supports unlocking the door remotely. It is more convenient and safer for residents to check the visitor's identity through its video preview function.
  • Page 3 2.Model Difference Model TC-5000MH-20H TC-5000MH-18B TC-3000DA-2K TC-3000DA-4K Image Housing Alu.+ABS Alu. Alu. Material Android 6.0 Android 6.0 Alu. Alu. 7 Inch IPS LCD 10 Inch IPS LCD Display Resolution 1280*800 1280*800 IEEE802.11 b/g/n IEEE802.11 b/g/n Wi-Fi 1xRJ45, 1xRJ45, 1xRJ45, 1xRJ45, 10/100Mbps 10/100Mbps 10/100Mbps...
  • Page 4 ___________________________________________________________________________ 3.Interface For indoor monitor TC-5000MH-20H and TC-5000MH-18B For outdoor unit TC-3000DA-2K/TC-3000DA-4K...
  • Page 5 ___________________________________________________________________________ 4.System Network Diagram Smart Life Click Add Device Click scan button Scan code on monitor Note: Every indoor monitor has a unique tuya code.

  • Page 6: Access The Device

    5.Access the Device When you plug on power the device will boot up automatically . 6.Basic Settings You can access the device's basic setting where you can configure different types of functions as needed. To access the device basic setting by pressing Setting icon.

  • Page 7: Wifi Network Setting

    6.1. WiFi Network Setting Taichuan indoor monitor can connect to WiFi network for mobile app remote control, cloud talk and home automation.To access WiFi connection,open WLAN switch,choose available WiFi network,enter password and access. 6.2. Ethernet Setting Ethernet is for intercom network only.When you access to Ethernet,the IP data will show here.
  • Page 8 6.3. Safety Password Setting. You can modify outdoor panel disarm password on safety setting.The default password is 1234.
  • Page 9 6.4. Volume and Ringtone Setting Taichuan indoor monitors provide you with various types of ringtone and volume configuration ranging from ring volume,media volume and call volume. Parameter Set-up: Ring Volume: adjust the incoming call ringtone volume.  Media Volume: adjust the media volume.
  • Page 10 6.5. QR Code App: scan to download Tuya Smart Life App.  Blinding: to bind the device to Tuya app for cloud talk and remote control.  Device: is the code for the device. ...
  • Page 11 6.6. Dormant Setting You can set the sleep time from 15 seconds to 30 minutes or never sleep . 6.7. Language Setting You can set or change the language for screen display from Basic Settings > Language set.

  • Page 12: Equipment Information

    6.8. Equipment Information Find out more equipment information on About equipment. 7.System Settings To access system settings of Android OS, go to Application List > Settings. Here is the universal settings of Android tablet,not means all the functions can work on the device.For the setting of intercom,please go to Basic Settings.

  • Page 13: Engineering Settings

    8.Engineering Settings You can access to advanced settings for more configuration of video intercom settings, smart home settings and other settings on device Settings > About equipment, quick tap Kernel version 3 times, enter password, the default password is 123456.

  • Page 14: Intercom Settings

    9.Intercom Settings To configure the Villa VDP Kit, please connect monitor with outdoor panel via Cat5 cable (for more devices please use switch for connection). 9.1. Intercom Configuration super admin mode For the first monitor, you will need to access to for the configuration, to access to super admin mode on device Settings >...
  • Page 15 __________________________________________________________________________ On outdoor unit, long press the call button for 8s, the light will flicker and you will hear BeeBee then it will go to pairing mode. Note: If you already bound the button to other device, you may need to reset the button, to reset the button, double press the button, you will hear BeeBeeBee, you will go to new pairing mode.
  • Page 16 9.2. Add Card To add card for unlocking door, access to Engineer settings, find Video Intercom > Outdoor Settings, tap SEARCH ONLINE DOOR PHONE, the connected outdoor panel will list on screen. Find the right outdoor, tap edit icon, you will have 120S for operation to read the card on outdoor panel.

  • Page 18: Volume Setting

    9.3. Volume Setting To set door phone ring & call volume, access to Engineer settings, find Video Intercom > Outdoor Settings,choose the right outdoor, tap volume icon for setting. Note: for better intercom, the volume is recommended to be set between 80-95.
  • Page 19 9.4. Call Room Taichuan Villa VDP Kit supports up to 4 monitors, you can call extension monitors for audio/video communication on device Call a room, choose the wanted extension to call, for video call, please tap Transfer Video. The call will end after 3 minutes.
  • Page 20 9.5. Monitor Door Phone To monitor outdoor panel on device Monitor door phone, choose the wanted door phone to monitor. 9.6. Video Record You can record call video by pressing RECROD VIDEO. Note: the record button works only when answer the call.
  • Page 21 9.7. Call Records and Messages To view call record & message and security records, please go to Announcement. Parameter : Security records: shows the relevant security events.  Call records: shows the call records and messages. When press call button, after 30s with no ...

  • Page 22: Smart Home

    10. Smart Home Taichuan monitors inbuilt Tuya smart home app to manage your smart home devices. The Smart Home icon can be customized to your own app.

  • Page 23: Add Camera

    __________________________________________________________________________ 11. Add Camera Taichuan monitors support third-party cameras, to add camera on device Home Monitoring, find ADD CAMERA, choose HK、DH (Hik,Dahua), input relative information and save.
  • Page 24 __________________________________________________________________________ 12. Add Environmental Monitor Equipment To add environmental monitor equipment, tap the area below the time, follow steps to configure.

  • Page 25: Scenario Setting

    13. Scenario Setting Taichuan monitors support smart home leakage, you can set different scenarios per your need. Parameter : Back home: when trigger back home mode, the preset devices will open.  Out home: when trigger out home mode, the preset devices will close.

  • Page 26: Application List

    14. Application List The apps you installed will show on Application List. 15. Do Not Disturb Set Do Not Disturb on the moon icon from desktop.

  • Page 27: Contact Setting

    16. Contact Setting You can configure the contacts list in terms of adding and modifying contacts on the device Application List > Contacts>Create a new contact.

  • Page 28: Time And Date Setting

    17. Time and Date Setting To set up time setting on the device System Settings > System> Date & time...

  • Page 29: Firmware Upgrade

    18. Firmware Upgrade To upgrade firmware, download software “PhoenixCard” to your PC, insert empty SD card, unpack the firmware package, choose the firmware image and burn, when the loading bar turns green, means burn card successfully. After you burn the card, open the back cover of the device,insert the card,when power in it will automatically upgrade, when the loading bar turns green, it's successfully upgraded, after all the process must take out the card or it will upgrade again next time you turn on the device.
  • Page 30 __________________________________________________________________________ 19. Reboot If you want to reboot the device, you can operate it directly on the device setting. To reboot to the system setting on device Basics Settings >Restart. 20. Reset If you want to reset the whole device system to the factory setting, you can operate it directly on the device, go to Engineering Settings >...
  • Page 31 __________________________________________________________________________ 21. Abbreviations ACS: Auto Configuration Server Auto: Automatically AEC: Configurable Acoustic and Line Echo Cancelers ACD: Automatic Call Distribution Autop: Automatical Provisioning AES: Advanced Encryption Standard BLF: Busy Lamp Field COM: Common CPE: Customer Premise Equipment CWMR: CPE WAN Management Protocol DTMF: Dual Tone Multi-Frequency DHCP: Dynamic Host Configuration Protocol DNS: Domain Name System...
  • Page 32 A6:No, but you can connect electrical lock to outdoor panel, Taichuan outdoor panels have relay component. Q7:Can I communicate other indoor monitor with indoor monitor? A7:Taichuan device can communicate with each other, no matter it is indoor monitor or door phone. Of course indoor monitor can call to other indoor monitor.

This manual is also suitable for:

Tc-5000mh-20hTc-5000mh-18bTc-3000da-2kTc-3000da-4k
