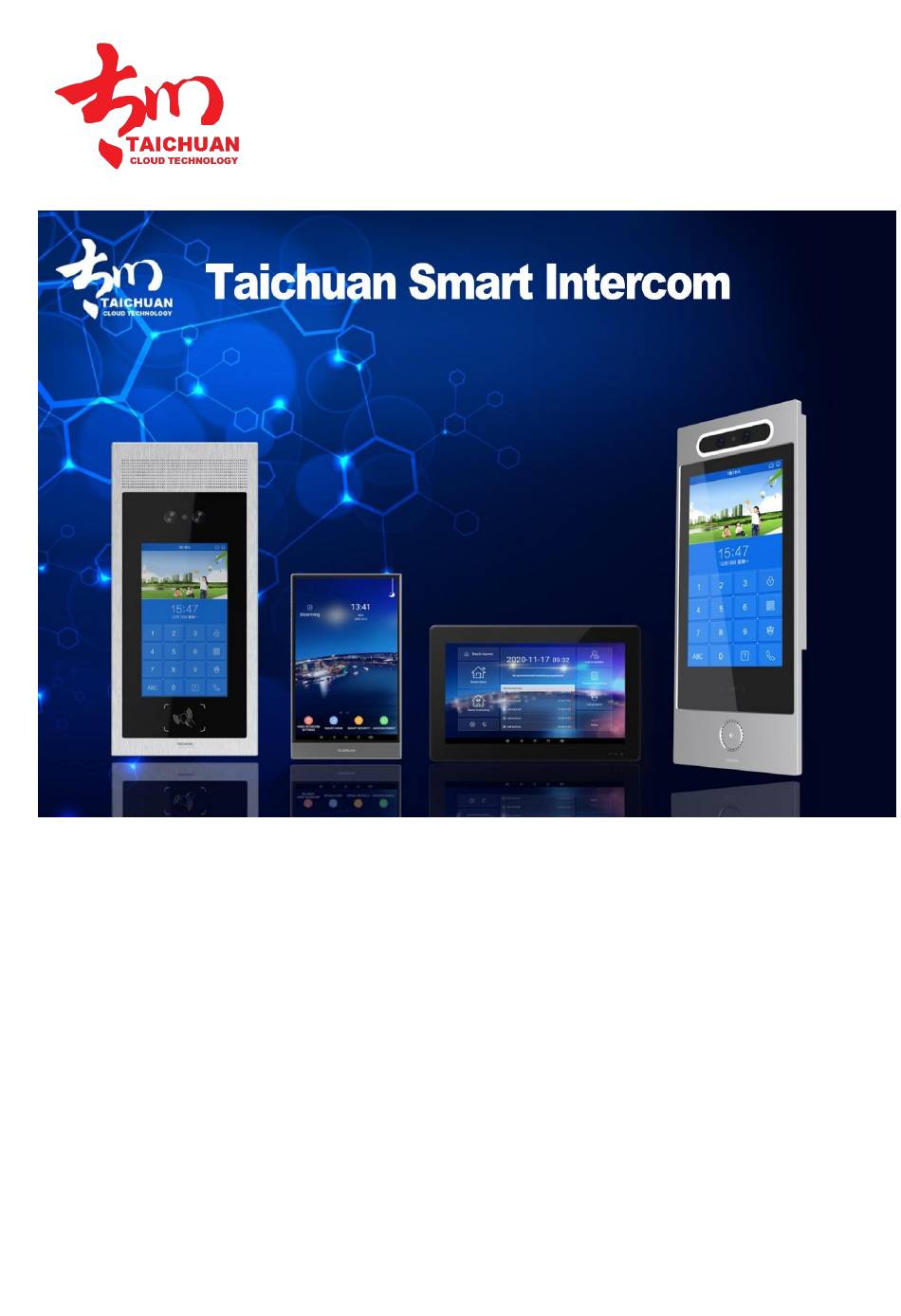

- Page 1 WWW.TAICHUAN.COM OUTDOOR PANEL ADMIN GUIDE Applicable Models: TC-5000d-XL4, TC-5000D-XL5,TC-5000D-20B,TC-5000D-20F Version: 1.0 | Date: Jan.2022...
-
Page 2: About This Manual
TC-5000D-20F outdoor panel. This manual is intended for the administrators who need to properly configure the outdoor panel. This manual provides all the configurations functions features TC-5000d-XL4, TC-5000D-XL5,TC-5000D-20B,TC-5000D-20F outdoor panel. Please visit the Taichuan website or consult technical support for any new information or the latest firmware. -
Page 3: Related Documentation
Related Documentation You are advised to refer to the related documents for more technical information via the link below: http://Support-Zhuhai Taichuan Cloud Technology Co., LTD. -
Page 4: Table Of Contents
Table of Contents 1. Product Overview....................5 2. Model Difference....................6 3. Interface........................7 4. Engineer Settings....................8 4.1. IP address Setting..................8 4.2. Account Login....................9 4.3. Intercom Setting..................10 Setting Indoor..................10 4.3.1. Central Machine Settings..............11 4.3.2. Local Settings..................11 4.3.3. Language Setting................12 4.3.4. -
Page 5: Product Overview

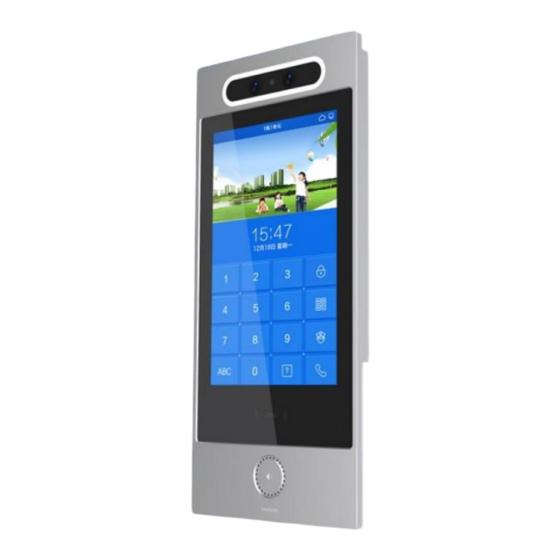

1. Product Overview TC-5000d-XL4, TC-5000D-XL5,TC-5000D-20B,TC-5000D-20F are an Android based with a smooth touch-screen outdoor panels. It can be connected with Taichuan indoor monitor for audio/video communication, unlocking, and monitoring. Residents can communicate with visitors via audio/video call, and it supports unlocking the door remotely. It is more convenient and safer for residents to check the visitor's identity through its video preview function. -
Page 6: Model Difference
___________________________________________________________________________ 2. Model Difference Model TC-5000D-XL4 TC-5000D-XL5 TC-5000D-20B TC-5000D-20F Image Housing Aluminum Aluminum Aluminum Aluminum Material Android 7.1 Android 7.1 Android 7.1 Android 7.1 2Cortex-A72 2Cortex-A72 2Cortex-A72 2Cortex-A72 +4Cortex-A53 +4Cortex-A53 +4Cortex-A53 +4Cortex-A53 8 Inch IPS LCD 8 Inch IPS LCD... -
Page 7: Interface
__________________________________________________________________________ 3. Interface Tamper interface RJ45 SD card slot RS485 Power and Door unlock Open button and unlock detection... -
Page 8: Engineer Settings
__________________________________________________________________________ 4. Engineer Settings You can access the engineer mode where you can configure different types of functions as needed. To access the engineer mode by pressing 159357. 4.1. IP address Setting Ethernet is for intercom network only. To set IP address on device Intercom settings>Local setting> Advanced configuration. -
Page 9: Account Login
__________________________________________________________________________ 4.2. Account Login To communicate with TC-5000 indoor monitor, you need to download the data from Web Management Center. To download the data, please login on device. The account and password is what you set on Web Management Center. -
Page 10: Intercom Setting
__________________________________________________________________________ 4.3. Intercom Settings 4.3.1 Setting Indoor To setting indoor on device Intercom settings>setting indoor Note: Please note that this setting is for local setting only, after you login, the data will be covered by the data set on Web Management Center. -
Page 11: Central Machine Settings
__________________________________________________________________________ 4.3.2 Central Machine Settings You don’t need to set this. 4.3.3 Local settings To set IP address on device Intercom settings>Local setting>Advanced configuration. -
Page 12: Language Setting
__________________________________________________________________________ 4.3.4 Language Setting To change language on device Intercom settings>Language setting. To close the menu, wipe the screen left edge to right, click Settings Home, click the under button CLOSE. -
Page 13: Access Control Settings
__________________________________________________________________________ 4.4. Access control settings 4.4.1 Access Card Management To access card management on device Access control settings>Access card management. Note: Please note that this setting is for local setting only, after you login, the data will be covered by the data set on Web Management Center. -
Page 14: Access Password Management
__________________________________________________________________________ 4.4.2 Access Password Management To access password management on device Access control settings>Access password management. Password is set on Web Management Center Equipment manage>Outdoor panel>More>Edit> Other setting>Public unlock password. You can activate password unlock function by check Whether to enable the password access control function. -
Page 15: Face Access Control
__________________________________________________________________________ 4.4.3 Face Access Control To Face access password on device Access control settings>Face access control 4.4.3.1 Face Management View the building residents info under the device. -
Page 16: Add Face
__________________________________________________________________________ 4.4.3.2 Add Face To add face on device Access control settings> face. Face access control> Note: Please note that this setting is for local setting only, after you login, the data will be covered by the data set on Web Management Center. 4.4.3.3 Add Face from SD Card For local setting(testing) only, after you login, the data will be covered by the data set on Web Management Center. -
Page 17: Parameter Settings
__________________________________________________________________________ 4.5. Parameter Settings 4.5.1 Door Closed Timeout Alarm The Door closed timeout alarm is activated by default. Time range is from 1 to 255 seconds. Note: when you first receive the sample and do the testing, it might trigger the alarm, you can disarm by closing the door closed timeout alarm. -
Page 18: Auto Face Recognition Unlock
__________________________________________________________________________ 4.5.2 Auto Face Recognition Unlock The automatic face recognition unlock is activated by default. You can inactivate it by closing Infrared sensor turns on the face. After inactivated, you can trigger the face recognition by pressing face icon on the keyboard. 4.5.3 Volume To set the volume of the System and intercom. -
Page 19: About Device
__________________________________________________________________________ 5. About Device You can check all the relative information about the device at About Divice. Note: the testing menu is for engineer testing only. -
Page 20: Elevator Linkage
__________________________________________________________________________ 6. Elevator Linkage To set elevator linkage on device Setting>elevator linkage. Note: please contact Taichuan for support about this setting. -
Page 21: Abbreviations
__________________________________________________________________________ 7. Abbreviations ACS: Auto Configuration Server AEC: Configurable Acoustic and Line Echo Cancelers ACD: Automatic Call Distribution Autop: Automatical Provisioning AES: Advanced Encryption Standard BLF: Busy Lamp Field COM: Common CPE: Customer Premise Equipment CWMR: CPE WAN Management Protocol DTMF: Dual Tone Multi-Frequency DHCP: Dynamic Host Configuration Protocol DNS: Domain Name System... -
Page 22: Faq
Q4:Can I connect electrical lock to outdoor panels? A4:Yes.Taichuan outdoor panels have relay component to the electrical lock. 9. Contact US For more information about the product, please visit us at www.taichuan.com or feel free to contact us Sales email: globalmarket@taichuan.com Technical support email: globalmarket@taichuan.com...
