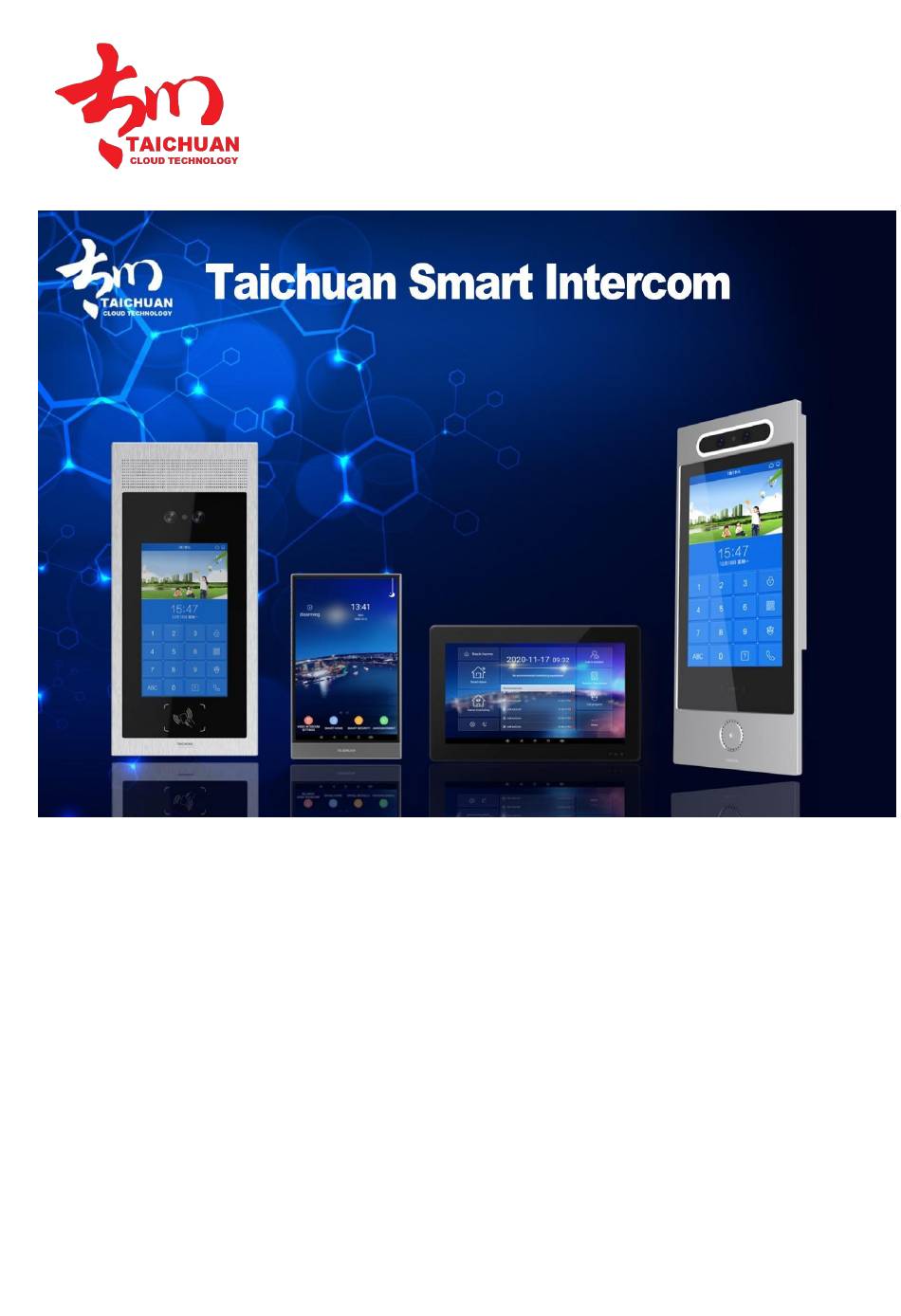

- Page 1 WWW.TAICHUAN.COM OUTDOOR PANEL ADMIN GUIDE Applicable Models: TC-5000d-XL4, TC-5000D-XL5,TC-5000D-20B,TC-5000D-20F Version: 2.0 | Date: June.2022...
-
Page 2: About This Manual
TC-5000D-20F outdoor panel. This manual is intended for the administrators who need to properly configure the outdoor panel. This manual provides all the configurations functions features TC-5000d-XL4, TC-5000D-XL5,TC-5000D-20B,TC-5000D-20F outdoor panel. Please visit the Taichuan website or consult technical support for any new information or the latest firmware. -
Page 3: Related Documentation
Related Documentation You are advised to refer to the related documents for more technical information via the link below: http://Support-Zhuhai Taichuan Cloud Technology Co., LTD. -
Page 4: Table Of Contents
Table of Contents 1. Product Overview ....................5 2. Model Difference ....................6 3. Interface ......................... 7 4. Data Center ......................8 4.1. Account Settings ..................9 4.2. Add Door Machine ..................10 4.3. Add New User ....................11 4.4. Add IC Card ....................12 4.5. -
Page 5: Product Overview
1. Product Overview TC-5000d-XL4, TC-5000D-XL5,TC-5000D-20B,TC-5000D-20F are an Android based with a smooth touch-screen outdoor panels. It can be connected with Taichuan indoor monitor for audio/video communication, unlocking, and monitoring. Residents can communicate with visitors via audio/video call, and it supports unlocking the door remotely. It is more convenient and safer for residents to check the visitor's identity through its video preview function. -
Page 6: Model Difference
___________________________________________________________________________ 2. Model Difference Model TC-5000D-XL4 TC-5000D-XL5 TC-5000D-20B TC-5000D-20F Image Housing Aluminum Aluminum Aluminum Aluminum Material Android 7.1 Android 7.1 Android 7.1 Android 7.1 2Cortex-A72 2Cortex-A72 2Cortex-A72 2Cortex-A72 +4Cortex-A53 +4Cortex-A53 +4Cortex-A53 +4Cortex-A53 8 Inch IPS LCD 8 Inch IPS LCD... -
Page 7: Interface
__________________________________________________________________________ 3. Interface RJ45 Power and SD card slot Door unlock Heating Power Supply RS485 Open button and unlock detection... -
Page 8: Data Center
__________________________________________________________________________ 4. Data Center Data Center is the software which to install on your PC for the management of SIP account and user data. Note: you need to finish all the settings to go to the main menu of the device. -
Page 9: Account Settings
__________________________________________________________________________ 4.1. Account Settings Use the template(excel file) to input all the user data: SIP account, password, port and IP. Import the template to the Data Center. -
Page 10: Add Door Machine
__________________________________________________________________________ 4.2. Add Door Machine Add outdoor panel,name the outdoor panel, select the assigned SIP account for this device. -
Page 11: Add New User
__________________________________________________________________________ 4.3. Add New User Add user for the outdoor panel. User name Password for unlock User address User phone number Admin no need to assign SIP account, Admin can unlock all the outdoor panels. -
Page 12: Add Ic Card
__________________________________________________________________________ 4.4. Add IC Card Add IC card to unlock the door. 1. You need a card reader connecting to the PC to get the card number. 2. If you don’t set the date, the card won’t expire. 3. Must bind a user for each card. 4.5. -
Page 13: Control Function
__________________________________________________________________________ 4.6. Control Function You can remote reboot or unlock the door on Data Center(must be at the same network) 4.7. Publish Advertisement To publish advertisement on outdoor panel, on Data Center, choose the outdoor panel, select image and click publish. The image should be horizontal by 16:9. 4.8. -
Page 14: Setting On Device
__________________________________________________________________________ 5. Setting on Device After you set all the data on Data Center, you can do the configuration on outdoor panel. The device will search for the center server automatically after power on, and the server address will display at the bottom. Note: if the server address is not displayed, please try to close the firewall on your PC. -
Page 15: Abbreviations
__________________________________________________________________________ 6. Abbreviations ACS: Auto Configuration Server AEC: Configurable Acoustic and Line Echo Cancelers ACD: Automatic Call Distribution Autop: Automatical Provisioning AES: Advanced Encryption Standard BLF: Busy Lamp Field COM: Common CPE: Customer Premise Equipment CWMR: CPE WAN Management Protocol DTMF: Dual Tone Multi-Frequency DHCP: Dynamic Host Configuration Protocol DNS: Domain Name System... -
Page 16: Faq
Q4:Can I connect electrical lock to outdoor panels? A4:Yes.Taichuan outdoor panels have relay component to the electrical lock. 8. Contact US For more information about the product, please visit us at www.taichuan.com or feel free to contact us Sales email: globalmarket@taichuan.com... - Page 17 __________________________________________________________________________ Technical support email: globalmarket@taichuan.com Telephone: +86-756-8665853 We highly appreciate your feedback about our products...
