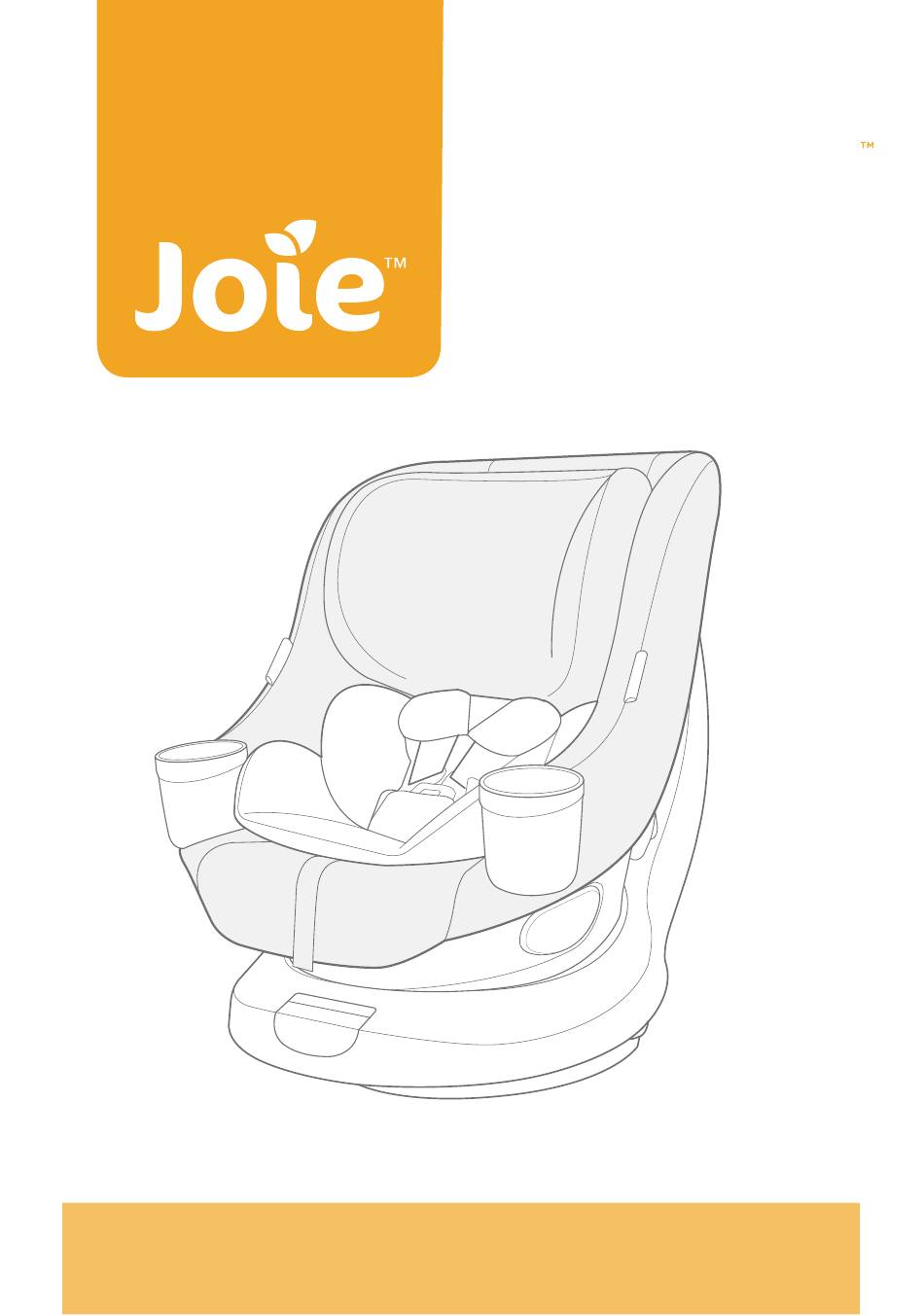

Asset Spin
Type A2/B
Convertible Seat
MODEL C2323 series
Instruction Manual
IMPORTANT: KEEP THIS BOOKLET IN THE PLACE
PROVIDED ON THE CHILD RESTRAINT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Asset Spin C2323 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Jole Asset Spin C2323 Series

Summary of Contents for Jole Asset Spin C2323 Series

  • Page 1 Asset Spin Type A2/B Convertible Seat MODEL C2323 series Instruction Manual IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT...

  • Page 2: Table Of Contents

    Contents IMPORTANT: Before installation and use of this child restraint check that it is suitable for the size of your child. QUICK REFERENCE Shoulder Height Labels ................4 - 5 Refer to the shoulder height label information on pages 4 and 5 Base Installation ....................

  • Page 3: Quick Reference Shoulder Height Labels

    Forward Facing Quick Reference Rear Facing Quick Reference Shoulder Height Labels Shoulder Height Labels Task Scan to see QR CODE Your child’s Check this restraint is the the video. shoulders must be correct type for your child. below the upper Refer to the shoulder height dotted line.

  • Page 4: Base Installation

    Quick Reference - Quick Reference - Base Installation Base Installation Task NOTE: the seat belt path is the same for Checklist See more information on pages 24 & 25 both rear and forward facing Install the base. BELT PULLED FIRM Step 1 Step 3 PLACE BELT ON BELT...

  • Page 5: Top Tether

    Quick Reference - Top Tether Quick Reference - Top Tether Task Checklist See more information on pages 26 - 29 Attach the top tether Step 1 LENGTHEN STRAP Step 3 PULL STRAP TIGHT NO TWISTS A Press button A Press button B Pull strap out B Pull strap tight PULL TIGHT...

  • Page 6: Rear Facing

    Quick Reference Rear Facing Quick Reference Rear Facing Step 4 Task Step 3 PLACE CHILD IN SECURE HARNESS RESTRAINT Adjust recline angle See more information page 21 USE POSITIONS 1, 2 OR 3 ONLY “CLICK” Task See more information on pages 35 - 39 Harness baby Step 5...

  • Page 7: Forward Facing Use

    Quick Reference Forward Facing Rear Facing Quick Reference Checklist Task Adjust recline angle See more information CORRECT SHOULDER page 22 STRAP HEIGHT USE ANY POSITION Task Harness child Step 1 Step 2 OPEN HARNESS LOOSEN HARNESS NO TWISTS 2. PULL TWIST 1.
  • Page 8 Forward Facing Quick Reference Forward Facing Quick Reference Checklist Step 4 Step 3 PLACE CHILD IN SECURE HARNESS RESTRAINT CORRECT SHOULDER STRAP HEIGHT “CLICK” Step 5 CHECK SHOULDER STRAP HEIGHT NO TWISTS TWIST BELTS PULLED FIRM LOOSE “CLICK” Suitable clothing - child’s clothing must allow the harness to HARNESS BUCKLE...

  • Page 9: Features

    Features WARNINGS • TO BE USED WITH A LAP-SASH SEAT BELT IN THE BACK OF MOST Headrest CARS WITH FORWARD FACING SEATS. Harness Covers • DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR. Harness Strap • To ensure that infant’s back is evenly supported, do not put more than Harness Buckle one nappy on the baby and make sure the nappy is not folded thickly at the back.

  • Page 10: Important Information

    IMPORTANT INFORMATION IMPORTANT INFORMATION • This Child Restraint is: To be used only in a rearward-facing position When installed rearward facing this restraint is 630 mm long, 460 mm until the infant’s shoulders reach the lower shoulder height marker wide and 440 mm high. Check the measurement between the front (approximately 12 months of age).

  • Page 11: Adjustments

    Adjustments Adjustments - Recline Angle Headrest Height IMPORTANT: A correct recline angle is essential for your See pages 33 and 41 for information baby’s safety. on the correct headrest heights. Make sure the vehicle is on a 1 - Locate the Headrest Adjustment flat and LEVEL surface.
  • Page 12 Adjustments - Recline Angle Installation - Seating Location 4 - The level indicator on the The safest position for this child child restraint window must show restraint is in the centre rear of the FULLY BLUE. back seat provided it is fitted with a lap/sash seat belt and a tether anchorage.

  • Page 13: Installation - Base

    Installation - Base Installation - Base 5 - Once the lap-sash belt is tight, IMPORTANT: Only install using a lap-sash belt. DO NOT use ISOFIX connectors. close the lock-off bar. Keep your hands clear of the 1 - Rotate the child restraint seat to lock-off area while closing the bar.

  • Page 14: Top Tether Strap

    Installation - Top Tether Strap Top Tether Strap This child restraint has a tether strap permanently WARNINGS - TETHER STRAP attached to the top of the base. This is an essential part of the child restraint safety system and must always be used. •...
  • Page 15 Installation - Top Tether Strap Installation - Top Tether Strap Top Tether Checklist Always connect the snap hook WARNING securely to the anchorage fitting. CHECK: NO TWISTS Always secure the loose end of the top tether strap. Do not use the child restraint where this strap may fall into a split in the seat back or off the side of the seat.
  • Page 16 Installation - Anchorage Fitting Installation - Anchorage Fitting If the car is not fitted with a child If the car is fitted with a child Attachment Attachment Bolt restraint anchorage point: restraint anchorage point: Bolt Lock Anchor For sedans only - drill a 9 mm hole in Locate the anchorage point behind Washer Fitting...
  • Page 17 USE - Shoulder Height Labels USE - Shoulder Strap Height This restraint has shoulder height Rear Facing Rear Facing Headrest adjuster level labels. handle at top of Use these labels to decide if the headrest Correct positioning of the restraint should be rearward or shoulder straps is essential for forward facing.
  • Page 18 USE - Using the Harness USE - Infant Insert Rear Facing Rear Facing The Infant Insert can be used to IMPORTANT provide a snug fit for small babies. Babies and small children need to be rear-facing for best distribution of deceleration Removing Infant Insert: forces during a sudden stop or accident.
  • Page 19 USE - Using the Harness USE - Using the Harness Rear Facing Rear Facing Place buckle tongues into the Place child in restraint in quick release buckle. seated position. IMPORTANT IMPORTANT The buckle tongues must Child must be dressed in “CLICK”...

  • Page 20: Shoulder Height Labels

    USE - Using the Harness USE - Using the Harness Rear Facing Checklist Rear Facing 8 - Tighten harness by pulling on Shoulder Height the adjuster strap at the front of Shoulder Straps - must - shoulders must the restraint. always be at correct be at or below the height and pulled tight.

  • Page 21: Shoulder Strap Height

    USE - Shoulder height Labels Use - Shoulder Strap Height Forward Facing Forward Facing Correct positioning of the Your child’s shoulders Headrest shoulder straps is essential for must be below the upper adjuster handle your child's safety. dotted line in any headrest at back of position.
  • Page 22 USE - Securing the Harness USE - Securing the Harness Forward Facing Forward Facing First check shoulder strap height 3 - Place child in restraint in and adjust if necessary. seated position firmly against both the back and bottom of the 1 - Loosen harness by pressing on restraint.
  • Page 23 USE - Securing the Harness USE - Securing the Harness Forward Facing Forward Facing 8 - Correct strap tension. 5 - Make sure there are no twists Put finger under Put a finger under each strap and in the straps. strap and pull out pull gently outwards.

  • Page 24: Checklist

    USE - Securing the Harness Cover - removing and refitting 1 - Pull the Rotate Lever and turn Forward Facing Suitable clothing - child’s the child restraint seat to the side clothing must allow the harness position. to securely grip the child. Checklist Shoulder Straps - must Shoulder Height -...
  • Page 25 Cover - removing and refitting Cover - removing and refitting 5 - Gently pull the Infant Insert 9 - Undo the two buttons located upwards, threading the Harness on either side of the seat. Buckle through the insert to remove it. 6 - On the BACK of the headrest, un-hook BOTH elastic straps of the headrest cover from the...

  • Page 26: After This Child Restraint

    Cover - removing and refitting After this Restraint This restraint is suitable for a child of average size up to approximately four years of age. When the child has outgrown this restraint, the next suitable types of restraint are a bigger harnessed seat or a booster seat.

  • Page 27: Care, Maintainance And Storage

    Care, Maintenance and Storage Accessories and Spare Parts Harness Buckle Accessories IMPORTANT: Do not use any Seat Cover DO NOT add accessories, toys, accessory with this child restraint Wash with warm water (under To clean the buckle rinse using 30°C) and mild detergent. warm water.
  • Page 28 Distributed by Nuna Baby Australia Pty Ltd ACN: 642 240 140 Unit 1, 35 Lyn Parade, Prestons, NSW Australia 2170 For after-sales & warranty service, contact: 1800 951 070 customerservice@nunababy.com.au IM-001692D...
