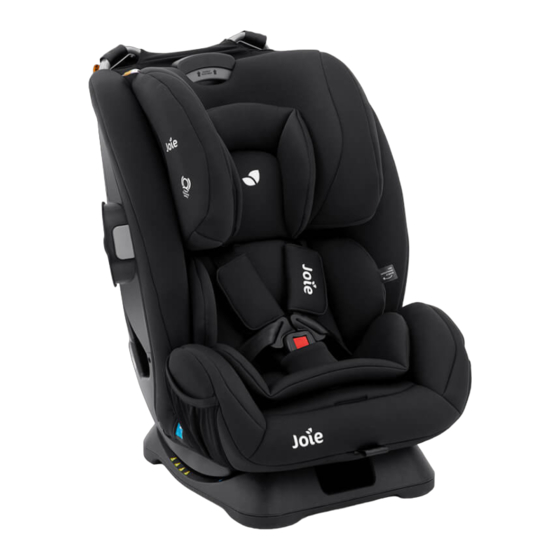

- Page 1 INSTALLATION IN A VEHICLE Armour MODEL C2005B instruction manual IMPORTANT: KEEP THIS INSTRUCTION BOOKLET IN THE PLACE PROVIDED AT THE BACK OF THE CHILD RESTRAINT...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT: Before installation and use of this child restraint check that it is suitable for the size of your child. WARNINGS ....................... 3 ADDITIONAL WARNINGS ................4 & 5 Refer to the shoulder height label information on pages 9 and 19 of the USE Instructions. -
Page 3: Warnings
WARNINGS ADDITIONAL WARNINGS GENERAL • Use the restraint exactly as shown in the instructions. TO BE USED WITH A LAP-SASH/LAP ONLY SEAT BELT IN THE BACK OF MOST WARNINGS CARS WITH FORWARD FACING SEATS. • Do not alter or modify this restraint. •... -
Page 4: Features
ADDITIONAL WARNINGS Features Only install child restraint in a forward facing Headrest height Adjustor Recline Angle Adjustment Handle Seat Cover Crotch Pad vehicle seat. Never install in a seat that faces Harness QR Buckle Shoulder Harness Strap the rear or the side of the vehicle. Harness Adjuster (under cover) Shoulder Harness Strap Cover Harness Adjuster Webbing... -
Page 5: Recline Angle
Features Recline Angle Top Tether Anchorage Instructions Storage This restraint should be installed in the rear seat. Top Tether Snap Hook Base Top Tether Tether End Storage Bag Correct Recline Angle Headrest Adjuster Seat Shell Sash Belt Lock-off Device Forward-Facing Vehicle Belt Slot When used rear facing the restraint must Extra side impact protection Rear-Facing Vehicle Belt Slot... - Page 6 Installation Installation Place the restraint on the vehicle seat rear 3. Pull the vehicle belts tight. Sash Belt facing. See page 5 for recommended positions in the vehicle. 1. Pull the vehicle lap/sash belt out and pass through the slot in the restraint. Pass the vehicle belts over the restraint seating surface and out the other side.
- Page 7 Installation Installation 6. Store end of web in bag on back of Straps must not be twisted. cover. Pull straps pulled tight. Tether Strap General Information Also refer to page 21 for more Top Tether information. Adjust the tether tension until the Always connect the snap hook securely to tether is pulled tight.
-
Page 8: Checklist
Checklist Recline Angle Correct Recline Angle Tether Strap - check tension. Ensure there are no twists in When used forward facing the restraint the webbing. End of tether in must always be correctly reclined. The storage bag white arrow on the shell must be above one of the yellow arrows on the base. - Page 9 Installation Installation See page 5 for recommended positions in FORWARD-FACING the vehicle. BELT PATH Place the restraint on the vehicle seat Look for this marking showing the cor- forward facing. rect path for the vehicle sash belts 1. Pull the vehicle lap/sash belt out and thread it through the vehicle belt slots at the back of the child restraint.
- Page 10 Installation Installation 5. Pull the vehicle belts tight. Tether Strap General Information Also refer to page 21 for more Top Tether information. Always connect the snap hook securely to the anchorage fitting. No twists in web. 6. Ensure there are no twists in the belts. Web pulled tight.
-
Page 11: Checklist
Checklist WARNINGS Tether Strap - securely attached to anchor- TOP TETHER age and pulled tight. Ensure there are no twists in the webbing. THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT UPPER End of tether in storage bag ANCHORAGE POINT IN THE CAR. REFER TO CAR OWNERS HANDBOOK FOR LOCATION OF UPPER AN- CHORAGE POINTS. -
Page 12: Top Tether Features
Top Tether - Features Tether Anchorage Installation This child restraint has a tether strap permanently attached to the back of the seat. Most cars have several threaded holes to The threaded hole for the fit the tether anchorage to. Always use this tether strap. anchorage bolt may have a Refer to the vehicle owners handbook Connect the tether strap to the built-in anchorage fitting in the vehicle, or if there is... - Page 13 Tether Anchorage Installation Tether Anchorage Installation If the car is fitted with a child restraint If the car is not fitted with a child re- Attachment Attachment straint upper anchorage point: anchorage point: Bolt Bolt For sedans only - drill a 9 mm hole in the Anchor parcel shelf on the centre line of the seat- Lock Washer...
