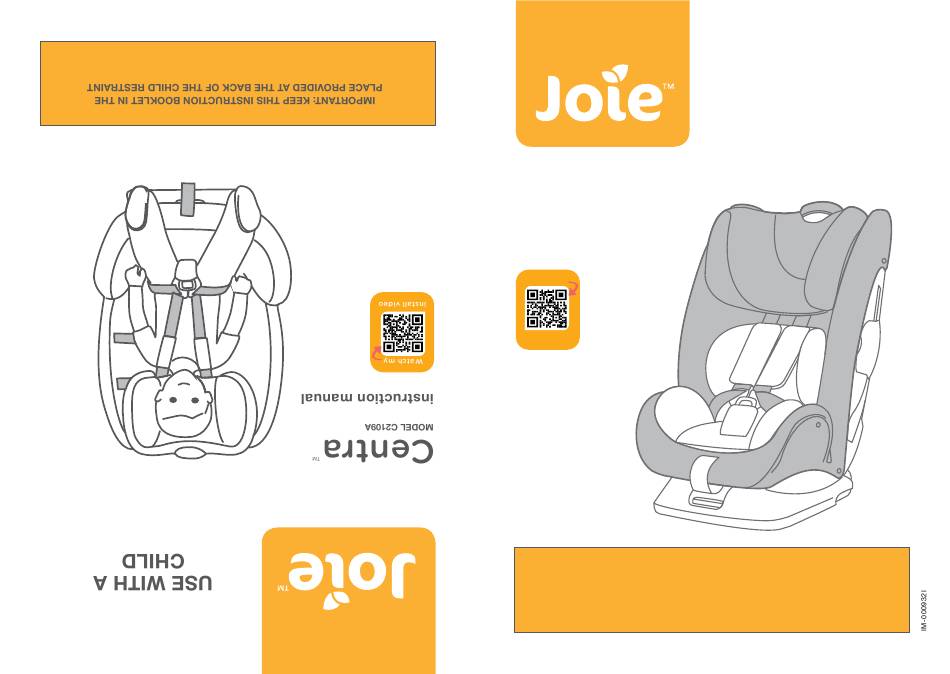

- Page 1 INSTALLATION IN A VEHICLE Centra MODEL C2109A instruction manual Watch my install video IMPORTANT: KEEP THIS INSTRUCTION BOOKLET IN THE PLACE PROVIDED AT THE BACK OF THE CHILD RESTRAINT...
-
Page 2: Table Of Contents
CONTENTS WARNINGS WARNINGS ...................... 3 • Use the restraint exactly as shown in the instructions. • Do not alter or modify this restraint. ADDITIONAL WARNINGS ................4 & 5 • Repairs must only be done by the manufacturer or agent. Features ....................... -
Page 3: Warnings
ADDITIONAL WARNINGS ADDITIONAL WARNINGS TO BE USED WITH A LAP-SASH/LAP ONLY SEAT BELT IN THE BACK OF MOST Only install this restraint on a forward facing vehicle seat. Never install in a seat that faces CARS WITH FORWARD FACING SEATS. the rear or the side of the vehicle. -
Page 4: Features
Features Features Headrest height Adjuster Positioning Bar Latch Top Tether Anchorage Extra side impact protection Seat Cover Crotch Pad Top Tether Snap Hook Instructions Storage Harness QR Buckle Shoulder Harness Strap Top Tether Positioning Bar Harness Adjuster (under cover) Shoulder Pads Headrest Height Adjuster Base Harness Adjuster Webbing... -
Page 5: Installation
Installation Installation See page 5 for recommended positions in 4. Pull the vehicle lap/sash belt out of the the vehicle. retractor. 1. Place the restraint on the vehicle seat Thread it through the vehicle belt slots at forward facing. the back of the restraint. Connect the top tether strap. - Page 6 Installation Installation 6. Press the restraint down firmly into the Pull the top tether strap tight. vehicle seat. Pull the vehicle sash belt until both lap and sash belts are tight. 11. Store end of web in bag on back of cover.
-
Page 7: Checklist
CHECKLIST WARNINGS Tether Strap: TOP TETHER • securely attached to anchorage • pulled tight. THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT UPPER • no twists in the webbing. ANCHORAGE POINT IN THE CAR. • end of tether in storage bag REFER TO CAR OWNERS HANDBOOK FOR LOCATION OF UPPER AN- CHORAGE POINTS. -
Page 8: Top Tether Features
Top Tether - Features Tether Anchorage Installation Tether Adjuster Most cars without built-in anchorages The threaded hole for the have several threaded holes to fit the anchorage bolt may have a Top Tether Strap tether anchorage to. plastic cover over it Refer to the vehicle owners handbook Top Tether Snap for information on the location of these... - Page 9 Tether Anchorage Installation Tether Anchorage Installation If the car is fitted with a child restraint If the car is not fitted with a child re- Attachment Attachment straint upper anchorage point: anchorage point: Bolt Bolt Anchor For sedans only - drill a 9 mm hole in the Lock Washer Fitting Locate the upper anchorage point behind...
