Summary of Contents for Black & Decker BRVA425B00

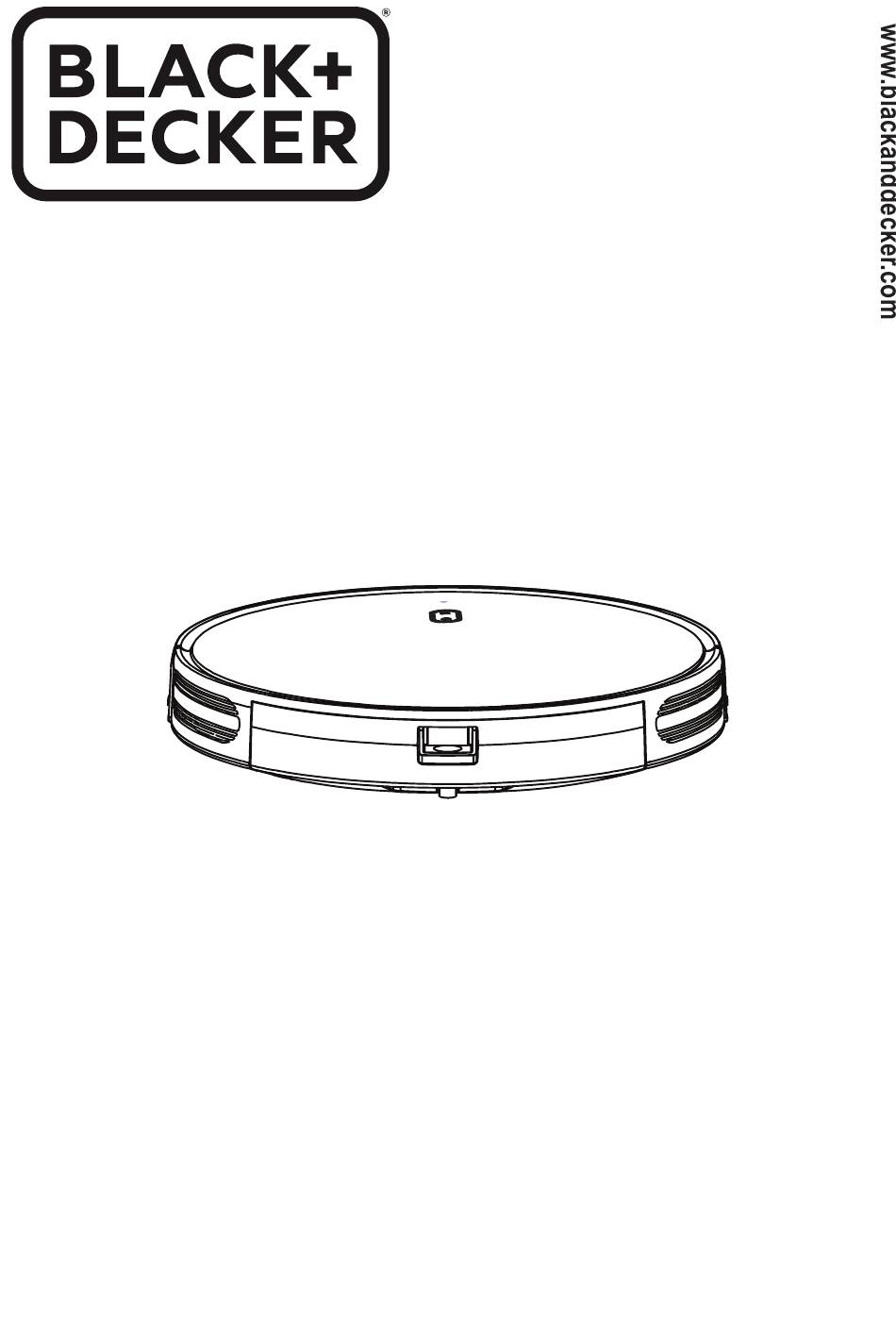

- Page 1 BRVA425B00 BRVA425B10...
- Page 2 ENGLISH (Original instructions) Control your robot vacuum from anywhere Scan this code for access to the BLACK + DECKER Connected Home app Scan this code for access to a helpful product operation video...
-
Page 3: Important Safety Instructions
(Original instructions) ENGLISH Important Safety Instructions To reduce the risk of injury or damage, keep these safety precautions in mind when setting up, using and maintaining your Robot. • Read all safety and operating instructions before operating your Robot. • Retain the safety and operating instructions for future refrence. •... -
Page 4: Battery And Charging / Information
ENGLISH (Original instructions) • If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony and ensure safe operation. • Do not place anything on top of your Robot. • Be aware that the robot moves on its own. Take care when walking in the area that the Robot is operating in to avoid stepping on it. -
Page 5: About Your Robot
(Original instructions) ENGLISH About Your Robot 1.1 Robot Bumper Dock Button To send Robot back to the Charging Dock, press on Robot or press on the Remote Control. LED Light Auto cleaning Start/Stop button Press to start or pause Cleaning. Anti-collision Sensors Bottom Anti-Drop Sensors... -
Page 6: Charging Dock
ENGLISH (Original instructions) 1.2 Accessories Cleaning Brush Charging Dock Adapter Dust Bin Water Tank Sponge Filter and High Efficiency Filter Rolling brush 4 x Side Brushes 2 x Cleaning Cloths Boundary strip 1.3 Charging Dock Signal Transmission Area Charging Indicator Charging Contact Pins... -
Page 7: Remote Control
(Original instructions) ENGLISH 1.4 Remote Control Mode and Time Display Screen Auto Cleaning Return to Charging Dock Control Cleaning Direction Start / Stop Time Setup Schedule Setup Spot Cleaning Edge Cleaning Max Sunction Random cleaning Install 2 AAA batteries before using the remote control for the first time. Make sure the positive and negative ends are facing the correct polarity direction as marked in the battery compartment. -
Page 8: Using Your Robot
ENGLISH (Original instructions) Using Your Robot 2.1 Quick Start Plug in the Charging Dock, and tuck the rest of the wire into the bottom of Charging Dock. Note: this must be done to prevent the unit from becoming stuck. Charging Dock Position 1. - Page 9 (Original instructions) ENGLISH Activate the Robot Place robot onto the Charging Dock, making sure the metal charging contacts on the Charging Dock match up with those underneath the Robot. If successful you will hear a series of tones. once the Power button illuminates robot is ready for use.
-
Page 10: Cleaning Schedule
ENGLISH (Original instructions) Spot Cleaning When you select Spot Cleaning, Robot intensely cleans a localized area by spiraling outward about 3 feet(1 meter) in diameter and then spiraling inward to where it started. When Spot Cleaning, Robot boosts is vacuum power to provide the best cleaning possible where you need it. - Page 11 (Original instructions) ENGLISH Setting Cleaning Schedule Press button on Remote Control, and Press button to select the desired And then press the button. the Robot then the hour section begins to Hash in the figures. Press the button to select will "BEEP"...
-
Page 12: Regular Robot Care
ENGLISH (Original instructions) Apply adhesive tape to lay the Boundary Strip flat on the floor. Make sure the strip is placed FLAT on the floor. Regular Robot Care To keep Robot running at peak performance, perform the following care procedures. If the robot's cleaning performance worsens, make sure to empty the bin, clean the filter and roller brush. - Page 13 (Original instructions) ENGLISH 3.2 Cleaning Robot 's Filter Remove filter by grasping the white tab. Shake off debris by tapping the filter against your trash container. 3.3 Cleaning Robot 's Rolling Brush,Side Brush, Swivel Wheel and Sensors. Take out the rolling brush,clean the vacuuming aisle by a cloth. Remove the side brush,use a cloth to remove Clean the rolling brush.
-
Page 14: Troubleshooting
ENGLISH (Original instructions) Troubleshooting light indicator Any error that occurs during operation will be indicated by the robot through light status and beeps. Beeps and red light flashing： Beeps Error Solution Keep the robot at a stable place to 01 01 Gyroscope error restart and do not move the machine Check the bumper and remove any... -
Page 15: Frequently Asked Questions
(Original instructions) ENGLISH Frequently asked questions Problems Solutions • Make sure the main power switch is in the ON position. • Make sure the battery is fully charged. • Replace the batteries (2 AAA) in the Remote Control. Robot cannot be activated. •... - Page 16 NA213321 06/2022...
