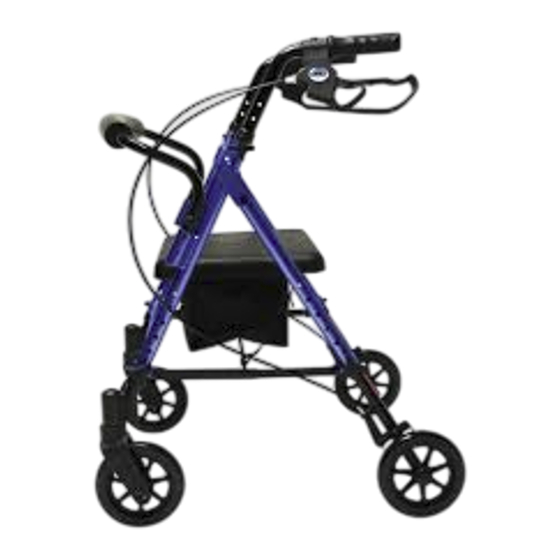

Graham Field LUMEX RJ4700 Assembly And Operation Instructions Manual

Set n'go four-wheel rollator / set n' go wide four-wheel rollator

Hide thumbs

Available languages

Quick Links

Download this manual

CONTENTS

INTENDED USE ............................................................. 1

SAFETY GUIDELINES-READ BEFORE USE ............. 1

UNPACKING .................................................................. 2

ASSEMBLY .................................................................... 3

INTENDED USE

The intended use of the RJ4700 / RJ4718 Set N'Go Four-Wheel Rollator is as a Rollator, a walking

aid with wheels, manipulated by both arms.

WARNING: This product has a maximum weight capacity of:

RJ4700: 300 lb (136 kg), EVENLY DISTRIBUTED.

RJ4718: 350 lb (158 kg), EVENLY DISTRIBUTED.

WARNING: DO NOT use this rollator as a wheelchair or transport device. Rollators ARE

NOT intended to be propelled while seated.

SAFETY GUIDELINES-READ BEFORE USE

Note the following special statements, used throughout this manual, and their significance:

WARNING: Indicates a potential hazard situation or unsafe practice that, if not avoided,

could result in death or serious personal injury.

CAUTION: Indicates a potential hazard or unsafe practice that, if not avoided, could result

in minor personal injury.

s NOTICE: Indicates a potential hazard or unsafe practice that, if not avoided, could result in

product/property damage.

Info: Provides application recommendations or other useful information to ensure that you get

the most from your product.

WARNING: Important! Read and understand these instructions before assembling or using

the Set N'Go Rollator. Ensure that the Rollator is assembled as described in this document

before use. If the Rollator is not properly assembled and adjusted, personal injury and/or

damage to the Rollator could result.

WARNING: DO NOT use this product without proper instruction from a healthcare

professional.

WARNING: If components are damaged or missing, contact your Graham-Field

distributor immediately. DO NOT use substitute parts.

WARNING: GF Health Products, Inc. ("GF") assumes no responsibility for any damage or

injury caused by improper assembly or use of this product.

WARNING: To ensure the Rollator is properly balanced, all wheels must be in contact with

the floor at all times during use.

WARNING: Always use caution when using the Rollator on wet or slippery surfaces. DO

NOT use the Rollator on stairs or steep inclines.

WARNING: DO NOT hang anything from the Rollator frame. Place items in the pouch.

LX_RJ4700-INS-LAB-RevD24

RJ4700: SET N'GO FOUR-WHEEL ROLLATOR / RJ418: SET N' GO WIDE

FOUR-WHEEL ROLLATOR - ASSEMBLY AND OPERATION INSTRUCTIONS

PARA INSTRUCCIONES EN ESPAÑOL, CONSULTE LA PAGINA 9

SAVE THESE INSTRUCTIONS FOR FUTURE USE

www.grahamfield.com

OPERATION .................................................................. 5

CLEANING AND MAINTENANCE ................................ 6

SPECIFICATIONS .......................................................... 7

LIMITED WARRANTY ................................................... 8

authorized

Need help?

Do you have a question about the LUMEX RJ4700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Graham Field LUMEX RJ4700

Page 1: Table Of Contents
RJ4700: SET N’GO FOUR-WHEEL ROLLATOR / RJ418: SET N’ GO WIDE FOUR-WHEEL ROLLATOR - ASSEMBLY AND OPERATION INSTRUCTIONS PARA INSTRUCCIONES EN ESPAÑOL, CONSULTE LA PAGINA 9 SAVE THESE INSTRUCTIONS FOR FUTURE USE CONTENTS INTENDED USE ............. 1 OPERATION ..............5 SAFETY GUIDELINES—READ BEFORE USE .....
Page 2: Unpacking
UNPACKING rear leg and wheel, quadrangular knob handle and brake cable back bar (2 each) (2 each) (1 each) triangular knob (4 each) front leg and wheel (2 each) seat, seat frame, and pouch (1 each) fig. 1 RJ4700 / RJ4718 components Unless the Rollator is to be used immediately, retain box and packaging materials for storage until use is required.
Page 3: Assembly
ASSEMBLY Refer to pictures at right during assembly. Info: As shown in fig. 2, each frame leg tube has a number corresponding to one of the four legs. Match each number at upper end of leg to each number on frame tube.
Page 4 Install the Handles handle Install both handles in frame handle receptacles as shown in fig. 4. frame handle handle height receptacle Adjust the Handle Height adjustment Info: Consult your healthcare professional to quadrangular locking knob determine proper handle height adjustment. 1.
Page 5: Operation
handgrip OPERATION WARNING: BEFORE EACH USE, ensure all locking buttons protrude fully from holes, all knobs are tight, rest the pouch is securely attached, and all attaching seat hardware is securely tightened. locking hand brake WARNING: Ensure that hand brakes stop Rollator and lock in place appropriately when operating or sitting on the Rollator.
Page 6: Cleaning And Maintenance
Folding the Rollator for Transport or Storage 1. Remove accessories, if any. 2. Lift the seat, move the pouch out of the way, and pull up on the folding pull strap attached to crossbar underneath seat. 3. Rollator is ready for transport and storage after folding. You may elect to remove handles before storage.
Page 7: Specifications
SPECIFICATIONS Model 4700 Set N’Go 4718 Set N’Go Wide Dimensions Width Inside Handgrips 16.3" (414 mm) 19" (483 mm) Overall 24.5" (622 mm) 27" (686 mm) Depth At Minimum Seat Height 25" (635 mm) 27.5" (699 mm) At Maximum Seat Height 29"...
Page 8: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance.
Page 9: Uso Entendido
RJ4700: RODADOR SET N’GO / RJ4718: RODADOR SET N’GO ANCHO INSTRUCCIONES DE INSTALACIÓN GUARDE ESTAS INSTRUCCIONES PARA USO FUTURO CONTENIDOS USO ENTENDIDO ............9 OPERACIÓN ..............13 DIRECTRIZ DE SEGURIDAD – LEA ANTES DE USO . 9 LIMPIANDO Y MANTENIMIENTO ......14 DESEMPACAR ............
Page 10: Desempacar
DESEMPACAR perilla pierna y rueda trasera, cuadrangular (2) barra mango, y cable de freno (2) posterior (1) perilla triangular (4) pierna y rueda delantera (2) asiento, marco del asiento, y bolsa (1) fig. 1 RJ4700 / RJ4718 componentes A menos que el Rodador se utiliza inmediatamente, guarde la caja y materiales de almacenaje para almacenaje hasta que uso es requerido.
Page 11: Ensamblaje
ENSAMBLAJE Refiérase a las fotografías a la derecha durante el ensamblaje. Info: Como se muestra en la fig. 2, cada tubo de la pata del marco tiene un número que corresponde a una de las cuatro patas. Empareje el número en el extremo superior de cada pata a cada número en el número de tubo del marco.
Page 12 Instalación de las Manijas manija Instale ambas manijas en los receptáculos del marco como se muestra en la fig. 4. receptáculo rango de ajuste de manija de la altura de la Ajuste la Altura de las Manijas manija Info: Consulte a su profesional de la salud para perilla cuadrangular de cerradura determinar el ajuste correcto de altura de las manijas.
Page 13: Operación
OPERACIÓN asiento de mango descanso ADVERTENCIA: ANTES DE CADA USO, asegúrese de que todos los botones de cerradura sobresalen completamente de los huecos, todas las perillas estén seguras, la bolsa esté bien conectado, y toda la ferretería freno esté bien apretados. de mano ADVERTENCIA: Asegúrese de que los frenos de mano paran el Rodador y encajan en lugar adecuado para...
Page 14: Limpiando Y Mantenimiento
Doblando el Rodador para Transporte o Almacenaje 1. Quite los accesorios, en su caso. 2. Levante el asiento, retire la bolsa, y jale la tira ajuntada al travesaño subasiento. 3. El Rodador está listo para el transporte y almacenaje después de doblar. Usted puede elegir quitar las manijas antes de su almacenamiento.
Page 15: Especificaciones
ESPECIFICACIONES Modelo 4700 Set N’Go 4718 Set N’Go Ancho Dimensiones Anchura Dentro de Mangos 16.3" (414 mm) 19" (483 mm) Total 24.5" (622 mm) 27" (686 mm) Profundidad A la Altura Mínima del Asiento 25" (635 mm) 27.5" (699 mm) A la Altura Máxima del Asiento 29"...
Page 16: Garantía Limitada
GARANTÍA LIMITADA AMBITO DE GARANTÍA GF Health Products, Inc. (“GF”) garantía al comprador original o arrendatario (cual quiera es el “Cliente”) solamente, que va reemplazar o reparar componentes, a la decisión solo de GF, cuales son defectos en material o calidad utilizado normalmente y con servicio. Todas garantias son condicionales por el uso apropiado de los productos en aquerdo con practicas de buen negotio y applicable con los instrucciones y manuales de GF, incluyendo uso apropiado.
