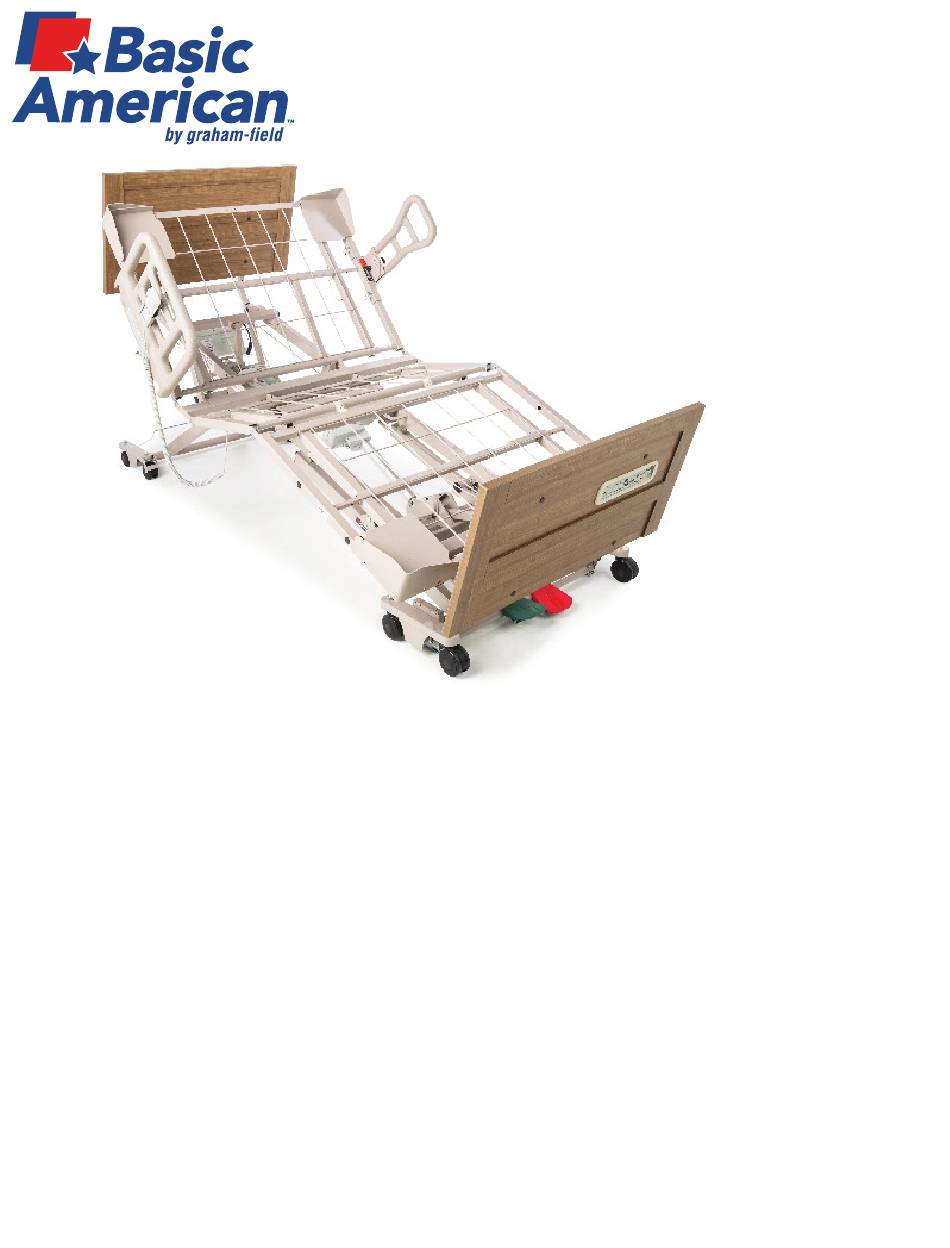

Z E NITH 92 0 0 S E RI ES S HOW N
W I TH P EDAL LOC K A ND A DVA NCED
P OS ITIO NING ( A P S) F E ATU R ES
OPERATING MANUAL
SAVE THIS MANUAL FOR FUTURE USE.
FDA Recognized Standard:
ANSI/AAMI STD ES60601-1
Health Canada Recognized Standard:
CAN/CSA C22.2 No. 60601-1 (IEC 60601-1:20 12-Ed.3.1)
Includes International Standards:
IEC 60601-1, IEC 60601-1-2, IEC 60601-2-52
EMC Standard:
IEC 60601-1-2 Ed. 4.0
BA_999-0958-190-INS-RevA23
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Graham Field Basic American ZENITH 9200 Series
Summary of Contents for Graham Field Basic American ZENITH 9200 Series
- Page 1 Z E NITH 92 0 0 S E RI ES S HOW N W I TH P EDAL LOC K A ND A DVA NCED P OS ITIO NING ( A P S) F E ATU R ES OPERATING MANUAL SAVE THIS MANUAL FOR FUTURE USE.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY AND WARNING INFORMATION ................3 IMPORTANT SAFETY AND WARNING INFORMATION ..............4 ELECTROMAGNETIC COMPATIBILITY (EMC) INFORMATION ............4 ENTRAPMENT AND COMPLIANCE INFORMATION ................. 5 RECOMMENDED MAINTENANCE ........................ 6 RECOMMENDED CLEANING AND DISINFECTION ..................7 MECHANICAL AND ELECTRICAL INFORMATION ..................8 OPERATING CONDITIONS ........................ -
Page 3: Important Safety And Warning Information
IMPORTANT SAFETY AND WARNING INFORMATION This product is a variable height, adjustable mattress platform. The expected service life of this product is fifteen years. Beds manufactured by Basic American Medical Products are designed for use within an institutional healthcare environment (i.e. assisted living, skilled nursing, transitional care, rehabilitation care, Environment (3), as defined in IEC60601-2-52 Safety Standard.). -
Page 4: Electromagnetic Compatibility (Emc) Information
IMPORTANT SAFETY AND WARNING INFORMATION Body weight should be evenly distributed over the sleeping surface of the bed. DO NOT allow the patient to lie, sit, or lean in such a way that their entire body weight is placed only on the raised head or foot section of the bed. -
Page 5: Important Safety And Warning Information
ENTRAPMENT AND COMPLIANCE INFORMATION On April 10, 2006, the FDA (U.S. Food and Drug Administration) released long-awaited guidelines for reducing the risk of bed entrapment: “Hospital Bed System Dimensional and Assessment Guidance to Reduce Entrapment”. The new Guidance identifies potential entrapment areas and those body parts most at risk for entrapment; provides design criteria for manufacturers of new hospital/convalescent beds;... -
Page 6: Recommended Maintenance
RECOMMENDED MAINTENANCE Regular maintenance of the Long Term Bed is necessary to ensure continuing proper and safe operation. Read and observe the following recommended maintenance schedule. An additional Maintenance Log page is available at the end of these instructions. RECOMMENDED MAINTENANCE INSPECTION PERIODS ITEM... -
Page 7: Recommended Cleaning And Disinfection
RECOMMENDED CLEANING AND DISINFECTION WARNING: Unplug the bed from the electrical outlet before servicing or cleaning. Do not steam clean or pressure wash any part of bed. Do not use corrosive or powdered cleansers to clean any part of bed. Do not immerse or soak any part of bed. - Page 8 MECHANICAL AND ELECTRICAL INFORMATION ZENITH 9200 SERIES-MECHANICAL Note: All Dimensions are ± 0.25 inches Specification 9200 35" 9200 with Slide-Wide Overall Bed Length (with boards and wall saver) 80" Deck 87" 87" 84" Deck 91" 91" Sleep Deck Width 35" 35"...
-
Page 9: Mechanical And Electrical Information
TYPICAL ZENITH SERIES BED IDENTIFICATION LABELS with Grounded Electrical Cable Bed labels are an important part of identifying the bed’s make and model when ordering replacement parts. The Serial Number is essential if you are claiming parts or service under warranty. These helpful labels can be located on the main frame rails, immediately below the sleep decks on either side of the bed. -
Page 10: Operating Conditions
The following warning labels have been placed on the bed to help protect you and the bed from damage. Do not remove any labels from the bed. WARNING! CAUTION WARNING: DO NOT LOWER BED WHEN OBJECTS ARE THIS BED IS SUITABLE FOR USE ONLY WITH Incompatible mattresses can create hazards. -
Page 11: Bed Setup And Operation Instructions
BED SETUP AND OPERATION INSTRUCTIONS NOTE: UNPACKING THE BED DISCARD END OF POWER CABLE 1. Large Block IS COILED FOR SHIPPING • Ensure all parts/components are included. 2. Notched 2 x 4 Board AND TIED, WITH CABLE 3. Honeycombed Block TIE, TO GRID WIRE WITH •... -
Page 12: Headboard And Footboard Assembly / Installation
HEADBOARD ASSEMBLY / INSTALLATION HEADBOARD INSTALLATION 1. The headboard has four pre-installed inserts on the inside surface. 2. Position two mounting tubes on the outside of the headboard with “L” facing inward toward center of bed. Align the mounting tube top holes with the headboard top holes. 3. -
Page 13: Slide-W-I-D-E Headboard And Footboard Positions Using The Quick-Release Detent Pins
FOOTBOARD ASSEMBLY / INSTALLATION FOOTBOARD INSTALLATION 1. The footboard has four pre-installed inserts on the outside surface. 2. Position two mounting tubes on the inside of the footboard with “L” facing inward toward center of bed. Align the mounting tube top holes with the footboard top holes. 3. -
Page 14: Standard Mattress Retainer Installation
STANDARD MATTRESS RETAINER INSTALLATION (USING 2 MATTRESS RETAINERS) 1. Determine if you need to position your bed in an 84" or 4. On the head end, carefully squeeze the Mattress Retainer 80” configuration (84" outside holes; 80" inside holes - see ends inward, toward the center of the retainer, and insert Details A and B). -
Page 15: Mattress Retainer Installation For Optional Slide-W-I-D-E Deck
MATTRESS RETAINER INSTALLATION FOR OPTIONAL SLIDE-W-I-D-E DECK 1. The Slide-W-I-D-E Expandable/R+etractable Sleep Deck features two sets of Mattress Retainers that are positioned at bed head and foot corners. 2. To install, position the mattress retainers above the sleep deck corners with ends perpendicular to the sleep deck surface and long crooked bent ends on outside as shown below. -
Page 16: Standard Wire Form Wallsaver Installation
STANDARD WIRE FORM WALLSAVER INSTALLATION WALLSAVER ASSEMBLY 1. Position the Wire form Wallsaver with bent end facing upward and tab ends facing inward as shown above. 2. Determine the position desired (see WALLSAVER POSITIONS below). 3. Gently squeeze the wallsaver tab ends inward toward the center of the wallsaver and, holding the tabs parallel with the caster base slots, slide the tabs into the slots while letting the wallsaver gently expand outward. -
Page 17: Operating The Optional Caster Pedal Lock Mechanism
OPERATING THE OPTIONAL CASTER PEDAL LOCK MECHANISM LOCKED POSITION To lock the foot end casters, step on the red pedal until the caster lock engages. UNLOCKED POSITION To unlock the foot end casters, step on the green release pedal until the caster lock disengages. FOOT END RED DOWN = LOCKED GREEN DOWN = ROLL... -
Page 18: Zenith Series Optional Accessories
ZENITH 9200 OPTIONAL ACCESSORIES Pivot Assist Bar Fixed Assist Bar ZA94700 ZA94900 Counter-Rotating Assist (set of 2) Board-Mounted Hand Control Pendant Holster ZA91300 ZA79151 Bed Length Extension Kit Bed WIDTH Extension Kit (extends 35”to 42”) 84”to 88” Length Extension Kit: ZA95792 ZA95600 www.grahamfield.com BA_999-0958-190-INS-RevA23... - Page 19 Left Intentionally Blank Left Intentionally Blank XXXXXXX XXXXXX Long (Trendelenburg) WallSaver Side-WallSaver Bumper (set of 2) ZA90070 ZA86200 (35") ZA89200 (42") Plastic Pan Deck Kit Backup Battery & Battery Charger ZA87500 Backup Battery: ZA96100 Battery Charger: ZA96200 www.grahamfi eld.com BA_999-0958-190-INS-RevA23...
- Page 20 USB Phone Charger-Power Supply Kit Under-Bed-Light Kit ZA96300 ZA90011 Advanced Positioning Hand Control with Standard Function Advanced Positioning Trendelenburg / Reverse Trendelenburg Hand Control Pendant Hand Control Pendant with Standard Positioning with Chair Position Only ZA831306 999-0914-301SP 999-0914-305SP MATRIX SERIES WITH ADVANCED POSITIONING 1-Person Bed Transport Dolly (set) Board-Mounted IV Socket Kit...
-
Page 21: Operation Of Optional Slide-W-I-D-E 35" - 39" - 42" Expandable / Retractable Sleep Deck
OPERATION OF OPTIONAL SLIDE-W-I-D-E 35" - 39" - 42" EXPANDABLE / RETRACTABLE SLEEP DECK IMPORTANT SAFETY AND WARNING INFORMATION WARNING: Read and follow all instructions. Care must be taken when adjusting your Slide-W-I-D-E Expandable/Retractable Sleep Deck. To avoid possible injury, keep hands clear of deck ends when expanding or retracting, especially near the headboard or footboard. -
Page 22: Slide-W-I-D-E Sleep Deck Positioning
SLIDE-W-I-D-E SLEEP DECK POSITIONING 1. The Slide-W-I-D-E Expandable/Retractable Sleep Deck can be set to one of three widths: Fully Retracted = 35"; Partly Expanded = 39"; and Fully Expanded = 42". 2. To adjust the deck position, first remove all four quick-release detent pins from the underside of both Head and Foot Decks by pulling out the pins by the small rings. -
Page 23: Bed Operation
BED OPERATION ZENITH SERIES HAND CONTROL PENDANT OPERATION OPTIONAL ZENITH SERIES WITH ZENITH SERIES WITH OPTIONAL ACCESSORY: STANDARD POSITIONING ADVANCED POSITIONING ZENITH SERIES WITH HAND CONTROL PENDANT HAND CONTROL PENDANT TRENDELENBURG / REVERSE TRENDELENBURG HAND CONTROL PENDANT BUTTON FUNCTION BUTTON FUNCTION HEAD DECK ANGLE UP SET TO CHAIR POSITION... -
Page 24: Bed Operation - Optional Staff Control Panel
BED OPERATION - OPTIONAL STAFF CONTROL PANEL * * Staff Control with Advanced Positioning functions is shown above. Staff Control with Standard Positioning functions is shown at left; all standard functions operate the same as those defined above. www.grahamfield.com BA_999-0958-190-INS-RevA23... -
Page 25: Bed Operation - Chair Position
BED OPERATION - CHAIR POSITION 1. Ensure the Chair position on the Staff Control panel is not locked out (orange lock icon). To unlock, press Lock icon button #1 and Chair icon button #2 (or “All Locked” button #3) simultaneously. 2. -
Page 26: Bed Operation - Trendelenburg / Reverse Trendelenburg Position
BED OPERATION - TRENDELENBURG / REVERSE TRENDELENBURG POSITION 1. Ensure the Staff Control HI/LO function is not locked out (orange lock icon). To unlock, simultaneously press Key 1 and HI/LO Locked button 2. 2. To move the bed to Trendelenburg position (foot end up), press button 3. - Page 27 ZENITH SERIES ELECTRICAL CABLING www.grahamfi eld.com BA_999-0958-190-INS-RevA23...
-
Page 28: Troubleshooting
TROUBLESHOOTING NOTHING WORKS — NO POWER 1. Verify the outlet is supplying power. known good operating Pendant. If the bed works, replace the Hand Control Pendant. 2. Ensure the power cord is not pinched, frayed, or damaged in any way. Replace 7. -
Page 29: Knee Doesn't Lower, Audible Solid Beep Warning
KNEE DOESN’T LOWER, AUDIBLE SOLID BEEP WARNING NOTE: As a result of the bed’s programmed If the solid beep is present when trying to capability to achieve APS positioning, lower the knee: the Knee Motor will not lower if the 1. -
Page 30: General Troubleshooting Quick Reference
GENERAL TROUBLESHOOTING QUICK REFERENCE NOTE: Advanced Service Troubleshooting Procedures, Flow Charts and Service Components can be found at www.grahamfield.com. Motor Cables Motor cables are interchangeable. Test a motor cable by attaching it to a known good motor and known good Control Box port and operating it. -
Page 31: Obtaining Warranty Service
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. - Page 32 Manufactured By: GF Health Products, Inc. One Graham-Field Way, Atlanta, GA 30340 Made in USA +1 770.368.4700 © 2023, GF Health Products, Inc. All Rights Reserved. Information contained herein is subject to change without notice. Basic American Medical Products is a trademark The most current and complete product information can be found on our website.
