Graham Field LUMEX 603900A Installation Instructions

WARNING: Important! Read and understand these instructions before installing or using
the Lumex Walker Tray. If you do not understand any part of these warnings or instructions,
contact a healthcare professional for direction in the use of this product. If the Walker Tray
is not properly installed, personal injury and damage to the Walker Tray could result.
WARNING: If components are damaged or missing, contact your GF distributor
immediately. DO NOT use substitute parts. Use only Lumex replacement parts.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury
caused by improper assembly, installation or use of this product.
INSTALLATION (REFER TO PICTURE)
WARNING: Before installing the Walker Tray, ensure the walker is completely unfolded and
locked in open position.
1. With the Walker Tray in a collapsed position
between the brackets, face the front of the
walker. Grasp the Walker Tray by the sides
and clamp the brackets onto the walker's
front frame, positioning the lower clamps on
top of the walker's lower cross brace.
2. Ensure the Walker Tray's lower clamps are
resting on the walker's lower cross brace and
all four clamps are securely attached.
3. Pull the Walker Tray out with your thumb and
the tips of your fingers; rotate it upward and
lock it into place, as shown at right.
WARNING: Ensure the Walker Tray is
securely installed as instructed before use.
4. When the Walker Tray is no longer in use,
lift it up, push in on the tops of both support
arms while pushing the tray forward, and
rotate the tray down.
OPERATION
WARNING: Pinch point—do not place your hand or fingers between the tray and the
bracket.
MAINTENANCE / CLEANING
To remove dust and dirt, wipe the Walker Tray gently with a clean, soft, damp cloth. To clean it,
use a clean, soft cloth and a mild soap and water solution, rinse with clear water, then dry with a
soft cloth.
s NOTICE: DO NOT use solvents, abrasive cleaners, or scouring pads to clean this product.
LX_603900A-INS-LAB-RevD23
603900A: WALKER TRAY INSTALLATION INSTRUCTIONS
PARA INSTRUCCIONES EN ESPAÑOL, CONSULTE LA PAGINA 3
SAVE THESE INSTRUCTIONS FOR FUTURE USE
www.grahamfield.com
support tray
arm
clamp
bracket
lower cross brace

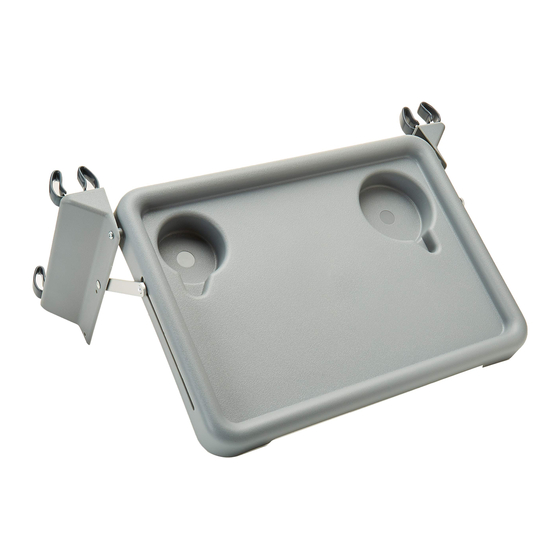

603900A Walker Tray
walker
bracket
1
