Series FR565G

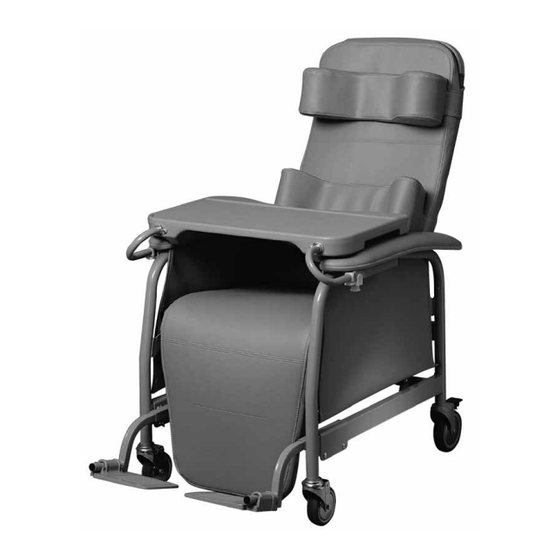

Preferred Care Recliner
Assembly and Operating Instructions
IMPORTANT: READ THIS MANUAL BEFORE OPERATING THE LUMEX FR565G PREFERRED CARE
RECLINER.
SAVE THIS MANUAL FOR FUTURE USE.
THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT
www.grahamfield.com.
LX_FR565G-INS-LAB-RevD21
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graham Field Lumex FR565G Series
Summary of Contents for Graham Field Lumex FR565G Series
- Page 1 Series FR565G Preferred Care Recliner Assembly and Operating Instructions IMPORTANT: READ THIS MANUAL BEFORE OPERATING THE LUMEX FR565G PREFERRED CARE RECLINER. SAVE THIS MANUAL FOR FUTURE USE. THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT www.grahamfield.com. LX_FR565G-INS-LAB-RevD21...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ........................... 3 INTENDED USE ..........................3 IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE ........3 WARNINGS ..........................3 FEATURES ............................4 ASSEMBLY ............................5 UNPACKING INSTRUCTIONS ......................5 UPHOLSTERED BACK ASSEMBLY ....................6 OPERATION ............................7 CASTERS ............................7 LOCK CASTER (REAR CASTERS ONLY) ................ -
Page 3: Introduction
INTRODUCTION This manual contains assembly, operation, and maintenance instructions for Lumex Preferred Care Recliners Series FR565G. Read the entire manual carefully before using your recliner, and refer to it during use if you have questions. If you have further questions, please call Graham-Field / Lumex Technical Support at 1.770.368.4700. -
Page 4: Features
WARNING: Unauthorized modification of your recliner or the use of non-Lumex replacement parts may change the structure of the recliner and could create a hazardous condition, which may result in serious injury and will void the warranty. WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer and birth defects or other reproductive harm. -
Page 5: Assembly
ASSEMBLY UNPACKING INSTRUCTIONS 1. Refer to illustration below. 2. Unpack and inspect contents for shipping damage or missing parts. If parts are damaged or missing, contact your Graham-Field distributor immediately. The contents of this package should be: a. One Recliner frame with upholstered seat b. -
Page 6: Upholstered Back Assembly
UPHOLSTERED BACK ASSEMBLY upholstered back cushion elastic band Info: To facilitate assembly, DO NOT remove the wooden shipping support that is attached to the recliner’s metal back frame until after the recliner's metal back frame has been assembled to the recliner frame. 1. -
Page 7: Operation
OPERATION CASTERS WARNING: Casters must be locked at all times, except during transport. Preferred Care Recliners Series FR565G feature casters specifically designed for use in healthcare environments: two front swivel non- locking casters and two rear locking casters. Lock Caster (Rear Casters Only) Step on the back edge of the black pedal until it latches and stays down. -
Page 8: Operation Of The Position Stabilization Mechanism
Operation of the Position Stabilization Mechanism WARNING: Before engaging the position stabilization handle, lock all casters. 1. To hold the recliner in any position, rotate the position stabilization handle so that it points upward. 2. To release the position stabilization mechanism, position rotate the position stabilization handle so that it stabilization handle... -
Page 9: Upholstery Removal And Replacement
UPHOLSTERY REMOVAL AND REPLACEMENT Back Cushion key ring frame Refer to illustration at right. To Remove: Release the two rings mounted on the elastic straps from the buttons strap mounted on either side of the recliner frame which hold the back cushion to the back hook frame. -
Page 10: Care And Maintenance
CARE AND MAINTENANCE WARNING: Inspect all components periodically and replace as needed. EVERY THREE MONTHS • Check and clean casters. • Tighten bolts in each leg that secure caster into frame. • Check caster brakes. • Check and clean position stabilization mechanism. •... -
Page 11: Cdc Recommendations
CDC RECOMMENDATIONS CLEANING AND DISINFECTING STRATEGIES FOR ENVIRONMENTAL SURFACES IN PATIENT- CARE AREAS FOR VINYL UPHOLSTERY, WALL COVERINGS AND FLOORING • Select EPA-registered disinfectants, if available, and use them in accordance with the manufacturer’s instructions. • Do not use high-level disinfectants / liquid chemical sterilants for disinfection of either noncritical instruments and devices or any environmental surfaces;... -
Page 12: Disposal And Key To Symbols
DISPOSAL AND KEY TO SYMBOLS DISPOSAL Lumex Recliner equipment and accessories can be disposed of. We recommend disassembling and dividing the equipment and components into different waste groups such as: metal, cable, electronic, recoverable resource and plastic for recycling or combustion. -
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS Specification Model FR565G Overall Height 48" (121.9 cm) Overall Width 28" (71.1 cm) Overall Depth 36" (91.4 cm) Width Between Arms 19" (48.3 cm) Arm Height from Floor 26" (66.0 cm) Arm Height from Seat 8" (20.3 cm) Seat Height 20"... -
Page 14: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. -
Page 15: Index
INDEX Accessories 13 Seat-leg cushion removal and replacement 9 Arm panel removal and replacement 9 Symbol key, Lumex Recliner product labels 12 Assembly 5 Technical specifications 13 Back cushion removal and replacement 9 Unpacking instructions 5 Care and maintenance 10 Upholstered back assembly 6 Caster, lock 7 Upholstery maintenance and stain removal 10... - Page 16 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. www.grahamfield.com ©2006, GF Health Products, Inc. All Rights Reserved. Lumex is a trademark of GF Health Products, Inc. GF Health Products, Inc. is an ISO 13485:2016 / MDSAP Certified Company. Manufactured for: GF Health Products, Inc.
