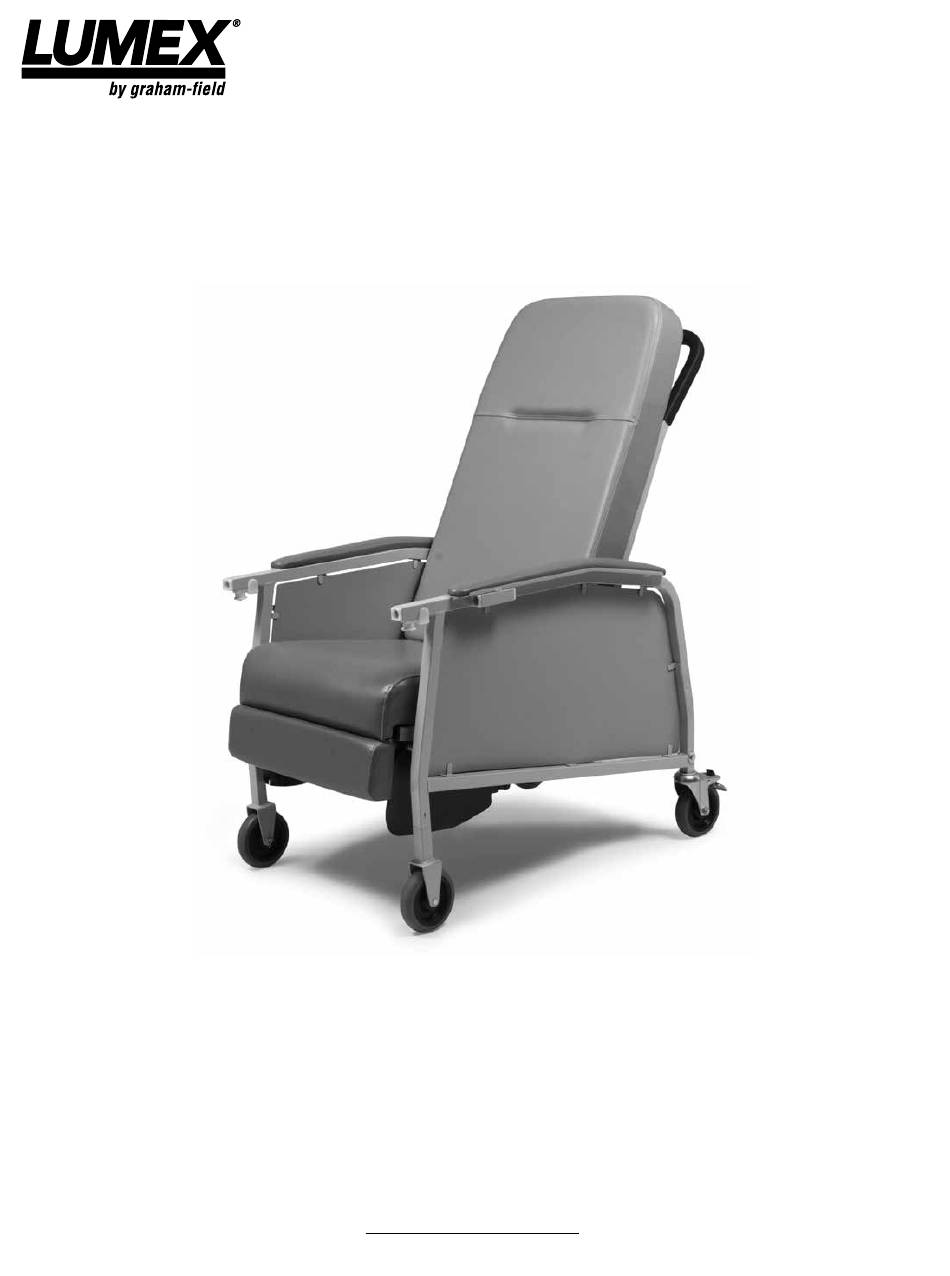

- Page 1 574G Series 3-Position Recliner Assembly and Operating Instructions IMPORTANT: READ THIS MANUAL BEFORE OPERATING THE LUMEX 574G SERIES 3-POSITION RECLINER. SAVE THIS MANUAL FOR FUTURE USE. THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT www.grahamfield.com. LX_574G-INS-LAB-RevE21...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ........................... 3 INTENDED USE ..........................3 IMPORTANT SAFETY PRECAUTIONS — READ BEFORE USE ..........3 WARNINGS ..........................3 FEATURES ............................5 ASSEMBLY ............................6 UNPACKING INSTRUCTIONS ......................6 ASSEMBLY INSTRUCTIONS ......................6 BACK TO FRAME ASSEMBLY ....................6 FRONT CASTER TO FRAME ASSEMBLY ................ -
Page 3: Introduction
INTRODUCTION This manual contains assembly, operation, and maintenance instructions for the Lumex 3-Position Recliner Series 574G. Read the entire manual carefully before using the recliner, and refer to it during use if you have questions. If you have further questions, call GF / Lumex Technical Support at 1.770.368.4700. - Page 4 WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov/furniture. WARNING: GF Health Products, Inc. specifically disclaims responsibility for any bodily injury or property damage which may occur during any use which does not comply with federal, state or local laws or ordinances.
-
Page 5: Features

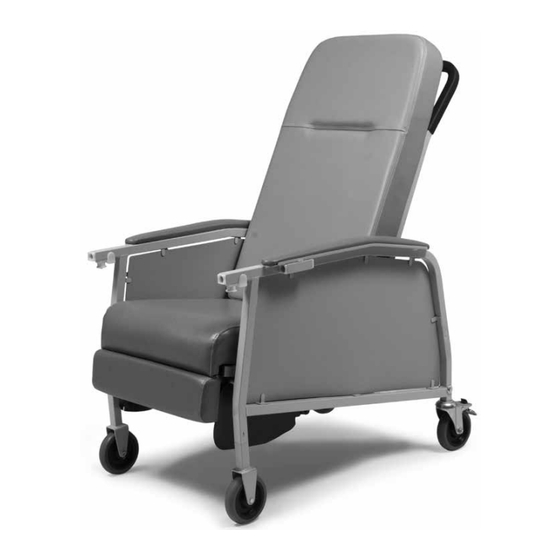

FEATURES The 574G 3-Position Recliner is shown below, with main features labeled. articulating headrest padded push handle upholstered back upholstered armrest table receiving tube side panel release button upholstered seat upholstered legrest locking rear caster (two each) non-locking front caster (two each) 3-Position Recliner Series 574G LX_574G-INS-LAB-RevE21... -
Page 6: Assembly
ASSEMBLY UNPACKING INSTRUCTIONS Unpack and inspect contents for shipping damage or missing parts. If parts are damaged or missing, contact your Lumex distributor immediately. ASSEMBLY INSTRUCTIONS Back to Frame Assembly (Refer to Picture at Right) 1. Remove the one-piece back assembly from padded back the unassembled chair and set it aside. -
Page 7: Front Caster To Frame Assembly
Front Caster to Frame Assembly front caster (Refer to Picture at Right) WARNING: Perform the following step only with assistance. Lifting the recliner alone could cause personal injury. 1. Set the recliner upside down with the frame legs spring button facing up. -
Page 8: Operation
OPERATION CASTER OPERATION WARNING: Rear casters must be locked at all times, except during transport. The Lumex 3-Position Recliner features 5" casters specifically designed for use in healthcare environments: two front non-locking fixed casters and two rear locking swivel casters. small tab large locking tab... -
Page 9: Reclining By User
Reclining by User • Recline: Place hands on armrests and push your body against recliner back to recline yourself to desired position. Legrest will automatically adjust to recline position. • Return to upright position: Place hands on armrests and pull yourself up while leaning your body forward away from the recliner back and at the same time pushing your legs down evenly on the legrest. -
Page 10: Articulating Headrest
ARTICULATING HEADREST articulating headrest molded table circular table arm lock / lockout key table storage tube lock / lockout key table receiving tube The user or caregiver may adjust the articulating headrest to the desired position by pulling forward or pushing back. MOLDED TABLE Operation Refer to picture above. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE WARNING: Inspect all components periodically and replace as needed. EVERY THREE MONTHS • Check and clean casters. • Tighten bolts in each leg that secure caster into frame. • Check caster brakes. • Check and clean position stabilization mechanism. •... -
Page 12: Cdc Recommendations
CDC RECOMMENDATIONS CLEANING AND DISINFECTING STRATEGIES FOR ENVIRONMENTAL SURFACES IN PATIENT- CARE AREAS FOR VINYL UPHOLSTERY, WALL COVERINGS AND FLOORING • Select EPA-registered disinfectants, if available, and use them in accordance with the manufacturer’s instructions. • Do not use high-level disinfectants / liquid chemical sterilants for disinfection of either noncritical instruments and devices or any environmental surfaces;... -
Page 13: Disposal And Key To Symbols
DISPOSAL AND KEY TO SYMBOLS DISPOSAL Lumex Recliner equipment and accessories can be disposed of. We recommend disassembling and dividing the equipment and components into different waste groups such as: metal, cable, electronic, recoverable resource and plastic for recycling or combustion. -
Page 14: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. -
Page 15: Index
INDEX Assembly 6 Operation 8 Back to frame assembly 6 Rear caster to frame assembly 7 Recliner operation 8 Recliner position stabilization 9 Care and maintenance 11 Reclining by caregiver 9 Caster operation 8 Reclining by user 9 Caster operation, rear swivel locking 8 Caster, rear, lock 8 Caster, rear, unlock 8 Symbol key 13... - Page 16 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. www.grahamfield.com © 2014, GF Health Products, Inc. All Rights Reserved. Lumex is a trademark of GF Health Products, Inc. GF Health Products, Inc.
Need help?
Do you have a question about the Lumex 574G Series and is the answer not in the manual?
Questions and answers

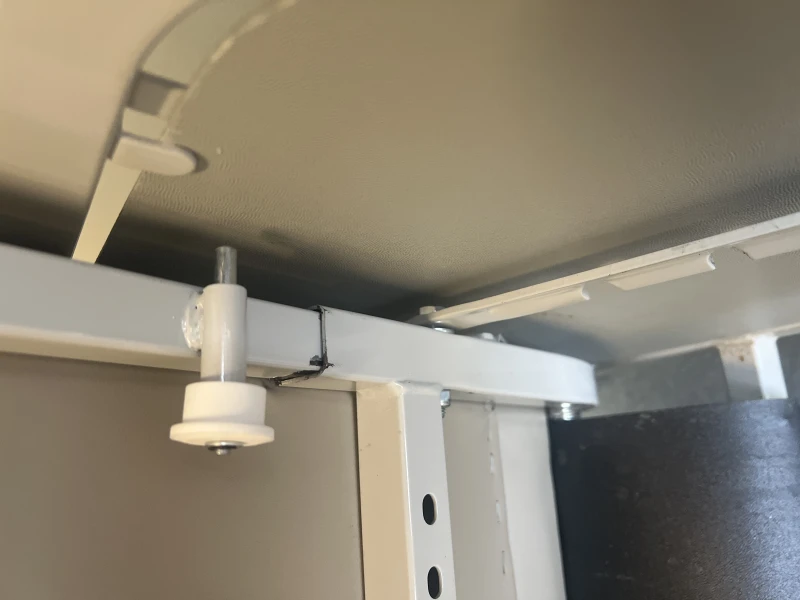

I have a lumex 574g and the lower frame assembly square tube comes completely out making the chair unsafe. There doesn’t appear to be any missing or broken parts. Is there any way to fix this? Otherwise the chair is in great condition.
To fix an issue with the lower frame assembly square tube on a Graham Field Lumex 574G Series chair, follow these steps:
1. Inspect the Frame – Ensure the lower frame assembly square tubes are not damaged or misaligned.
2. Reassemble the Back Assembly – Slide the back assembly into the lower frame assembly square tubes, aligning the holes properly.
3. Secure with Screws – Insert screws through the horizontal brace locking pin holes and tighten them with a screwdriver.
4. Check Stabilization Bar – Raise the position stabilization bar and adjust the back assembly until the lock release button engages the middle slot.
5. Verify Security – Ensure the top screw on each side of the back assembly square tubing is completely secure before use.
If the issue persists, contact your Lumex distributor for further assistance.
