Installation Instructions
Variable Speed Drive Replacement
Kit
Precedent™ and Voyager™ 2
Model Number:
Used With:
DRV03900
3 to 5 Tons 460V eFlex Precedent™ and 460V eFlex Voyager™ 2 units
DRV04059
3 to 5 Tons 460V eFlex Precedent™ and 460V eFlex Voyager™ 2 units
Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and air-conditioning equipment
can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or altered equipment by an unqualified person could result in death or
serious injury. When working on the equipment, observe all precautions in the literature and on the tags, stickers, and labels that are attached to the equipment.
March 2025
SAFETY WARNING
PART-SVN262C-EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRV03900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trane DRV03900

  • Page 1 Variable Speed Drive Replacement Precedent™ and Voyager™ 2 Model Number: Used With: DRV03900 3 to 5 Tons 460V eFlex Precedent™ and 460V eFlex Voyager™ 2 units DRV04059 3 to 5 Tons 460V eFlex Precedent™ and 460V eFlex Voyager™ 2 units SAFETY WARNING Only qualified personnel should install and service the equipment.
  • Page 2: Warnings, Cautions, And Notices

    (HCFCs). Not all refrigerants containing these compounds bump cap, fall protection, electrical PPE and arc have the same potential impact to the environment. Trane flash clothing). ALWAYS refer to appropriate advocates the responsible handling of all refrigerants.
  • Page 3: Revision History

    Added Control harness PPM-CVD (436684720110). regulations. • Updated DIM module (X13651807001) connection diagram and DIM module. Copyright This document and the information in it are the property of Trane, and may not be used or reproduced in whole or in PART-SVN262C-EN...
  • Page 4: Pre-Installation

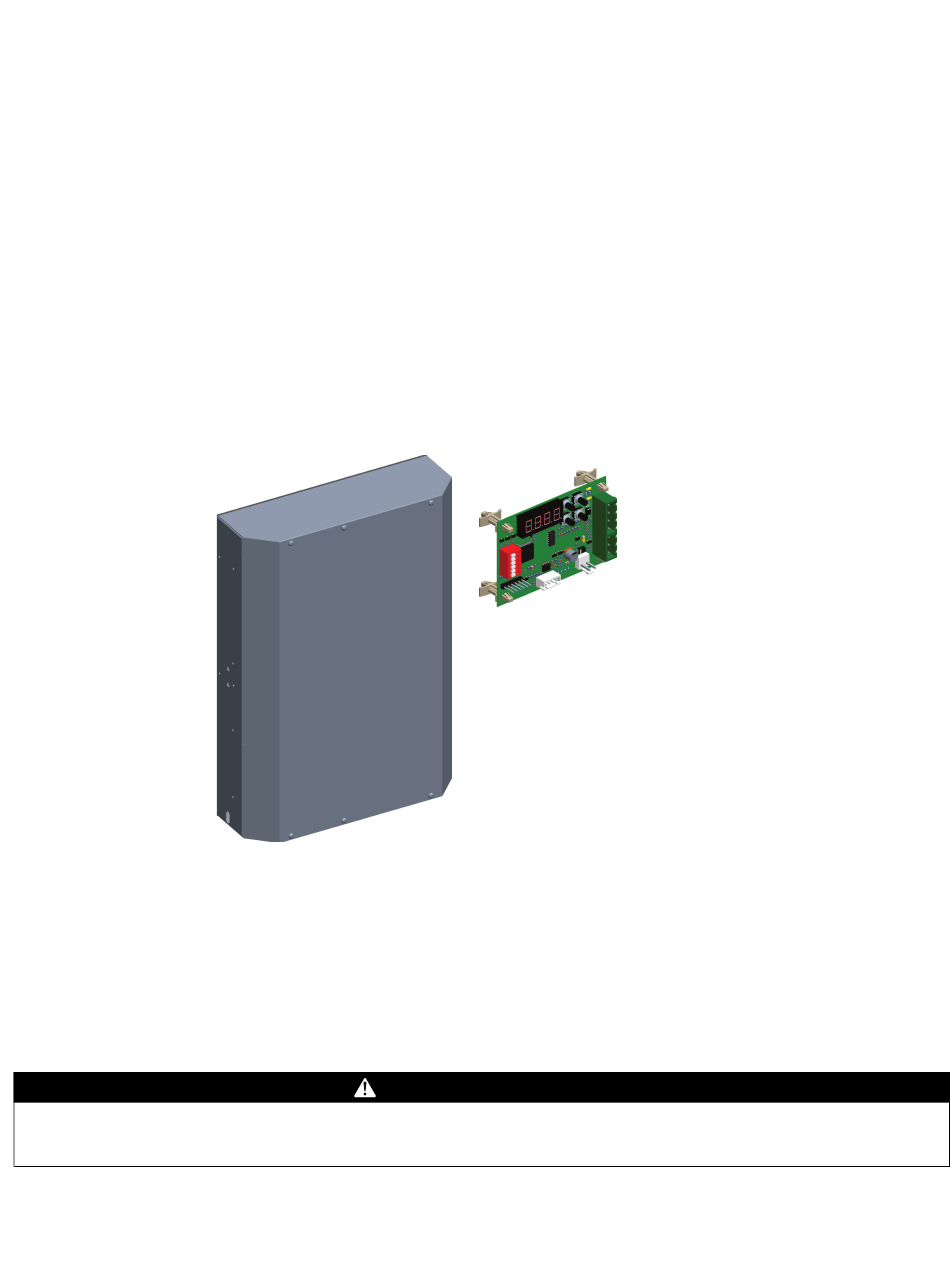

    Pre-Installation Inspection Figure 1. Variable speed drive and interface module 1. Unpack all components of the kit. 2. Check carefully for shipping damage. If any damage is found, report it immediately, and file a claim against the transportation company. Parts List Table 1.
  • Page 5: Installation

    Installation WARNING Figure 4. Manifold brazing Hazardous Voltage! Failure to disconnect power before servicing could result in death or serious injury. Disconnect all electric power, including remote disconnects before servicing. Follow proper lockout/ tagout procedures to ensure the power can not be inadvertently energized.
  • Page 6 Installation Figure 6. Support bracket removal Figure 9. Controls harness (438577730200) Figure 10. Controls harness PPM-CVD (436684720110) 7. Disconnect drives PPF-34 and PPM-36 power harnesses along with GRN (green) from units ground and 436684720110 harness PPM-CVD and 438577730200 harness PPM35 connectors from drive. Figure 7, p.
  • Page 7 Installation 9. Install the new drive (X13610009040) by performing 13. Reconnect harnesses as originally connected, with the Step 3 through Step 8 in reverse order. exception of P105, which should connect to CN105 instead of CN108. See Figure 14, p. 7 Figure 15, 10.
  • Page 8 For more information, please visit trane.com or americanstandardair.com. Trane and American Standard have a policy of continuous product and product data improvement and reserve the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.
