King Edward VISTA 25 Operating Instructions Manual

Hide thumbs Also See for VISTA 25:
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

OPERATING INSTRUCTIONS
VISTA 25 OVEN
BEDIENUNGSANLEITUNG
MODE D'EMPLOI
GEBRUIKSAANWIJZING
PLEASE READ CAREFULLY
(Rev 5; 01/06/2010)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VISTA 25 and is the answer not in the manual?

Questions and answers

Related Manuals for King Edward VISTA 25

Summary of Contents for King Edward VISTA 25

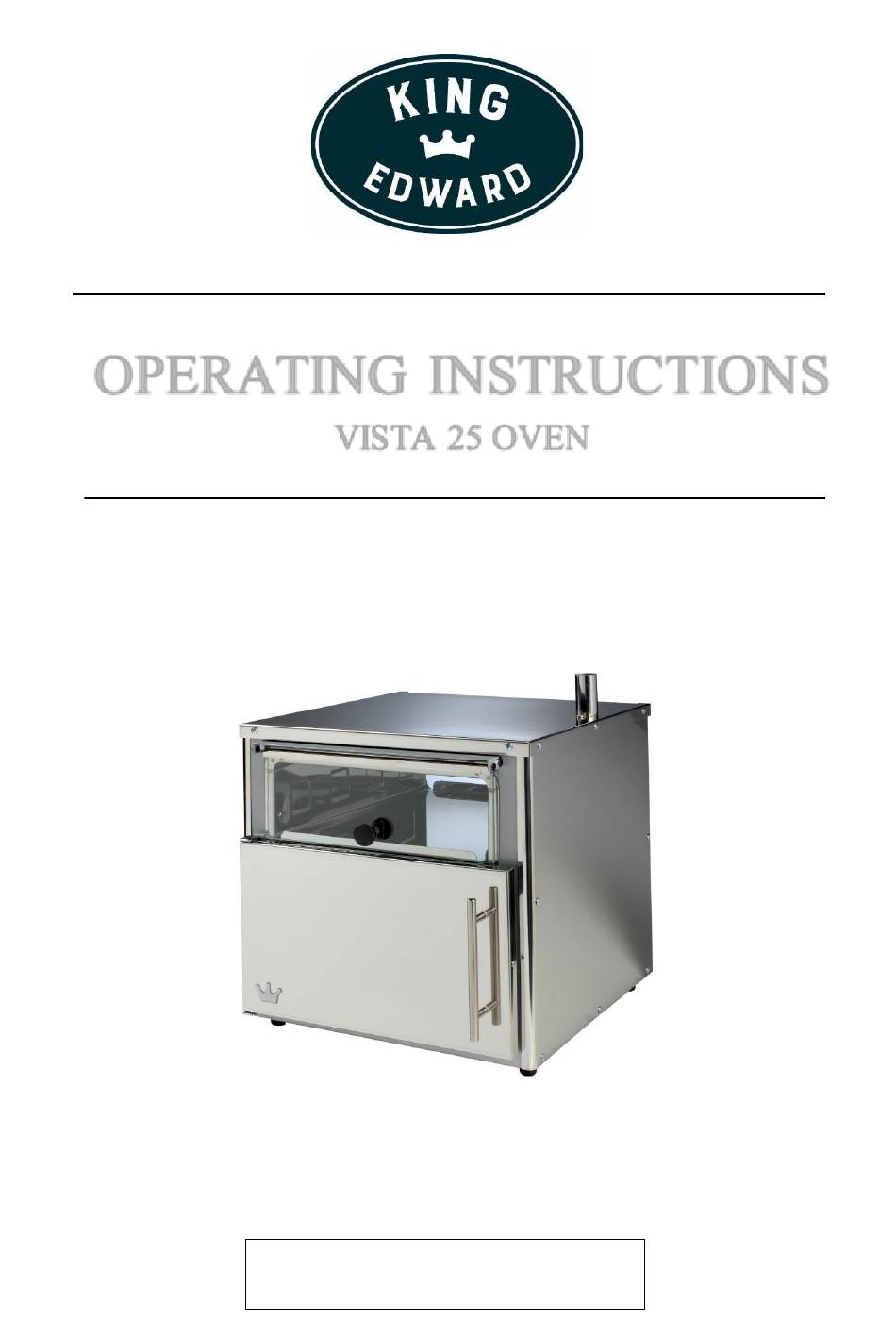

  • Page 1 OPERATING INSTRUCTIONS VISTA 25 OVEN BEDIENUNGSANLEITUNG MODE D’EMPLOI GEBRUIKSAANWIJZING PLEASE READ CAREFULLY (Rev 5; 01/06/2010)

  • Page 2: Installation Instructions

    Take out the wire trays and position the potatoes on them ready for loading. Plug the Vista 25 oven in at the socket, turn on the ‘Fan on’ rocker switch in the control panel, this will turn the fan motor on and also the display lights.

  • Page 3: Operating Recommendations

    OPERATING RECOMMENDATIONS The interior of this appliance will get very hot during operation. ALWAYS use an oven glove (preferably one which covers the wrist and lower arm as well) when operating the baker or removing potatoes from it. Take particular care when opening the oven door, the built-up steam and heat inside will escape as soon as the door is opened and could cause injury if you are standing too close.

  • Page 4: Fault Finding Guide

    FAULT FINDING GUIDE PROBLEM CHECK Nothing works Is the oven switched on at the socket? Is the fan oven switch on? Is trip on main fuse board on? Has fuse blown in plug ? *If trip/fuse continues to trip/blow after resetting /replacing, consult Service Engineer *Top oven bulb may not be working - giving the impression oven not working!
  • Page 5 WIRING DIAGRAM – VISTA 25 OVEN T op Bulb Holder Neutral = BLACK Line Main Oven Element Live = RED Line Fan Motor Earth Stud T ’Stat Mains Flex Neon Grommet Oven Switch T hermal Cut Out ELECTRICAL COMPONENT LIST...

  • Page 6: Wiring Instructions

    We recommend the use of washed and graded baking potatoes as non-baking varieties take longer to cook and don’t produce such good results, King Edward, Maris Piper or Desiree are three good baking varieties although your supplier may be able to recommend others to you.
  • Page 7 VISTA 25 - REPLACEABLE PARTS Main oven door Switch panel on LH side of oven Description Part Number Glass Menu Board C-GMB-SS Wire Tray (315mm W x 225mm D) - 2 supplied 700118v Top Door Glass V25-TDG Rubber Feet C-RF...
  • Page 8 Replacing Thermal Cut-out 5.1 Remove glass menu board 5.2 Remove fan motor access panel (2 screws) • Remove thermal cut out (2 screws) • Replace with new item • Reverse process * Important - fibre washers must be replaced between cut-out plate and oven or oven will cut out prematurely and disable cooking process.
  • Page 9 GUARANTEE All King Edward equipment is covered by a 1 year guarantee from the time of purchase; this does not effect your statutory rights. Parts and labour are guaranteed for goods within the UK Mainland. Consumables are not covered by the manufacturers guarantee: bulbs, fuses, main oven door seal, glass and damage to the mains lead.
