Page 1: Operating Instructions

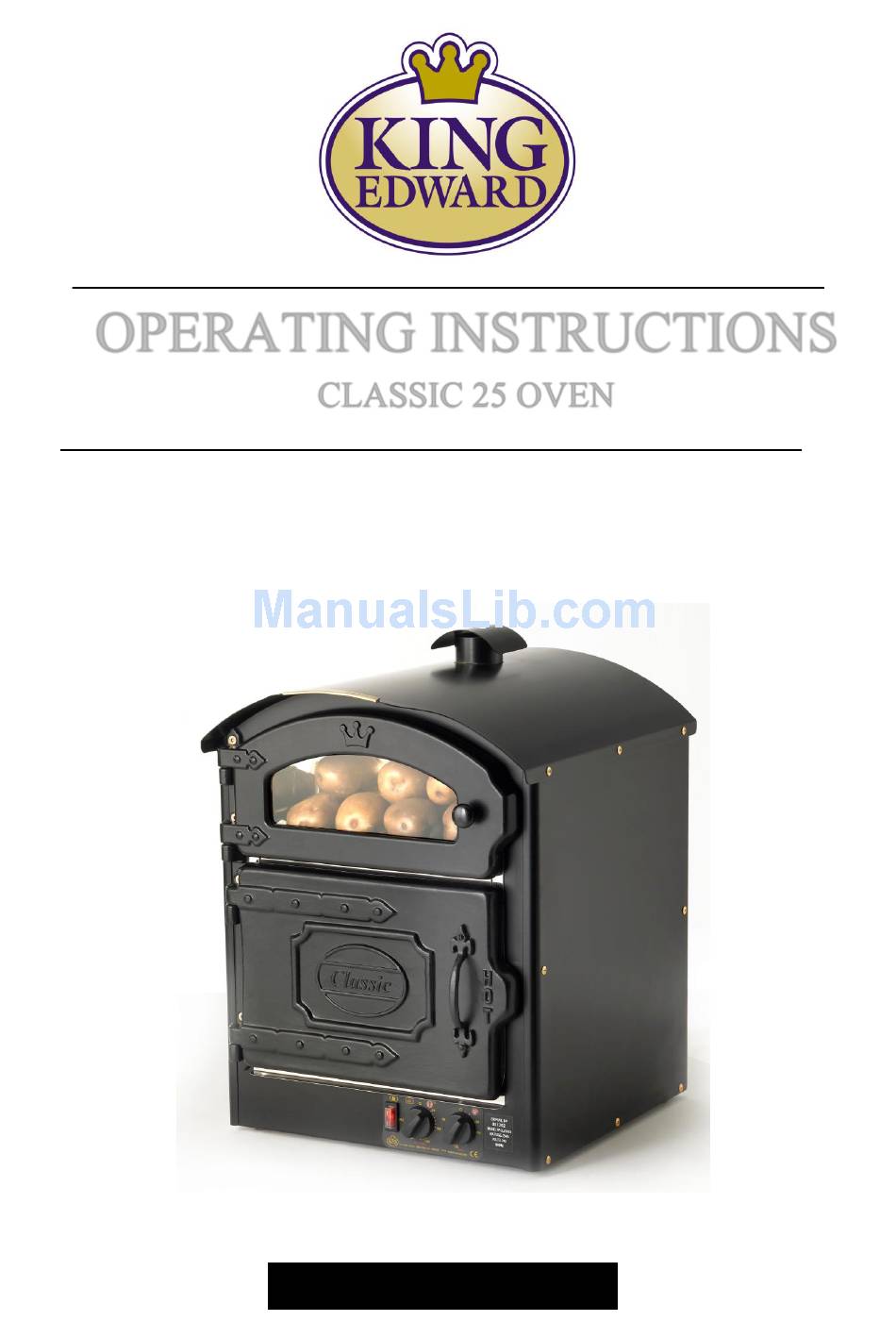

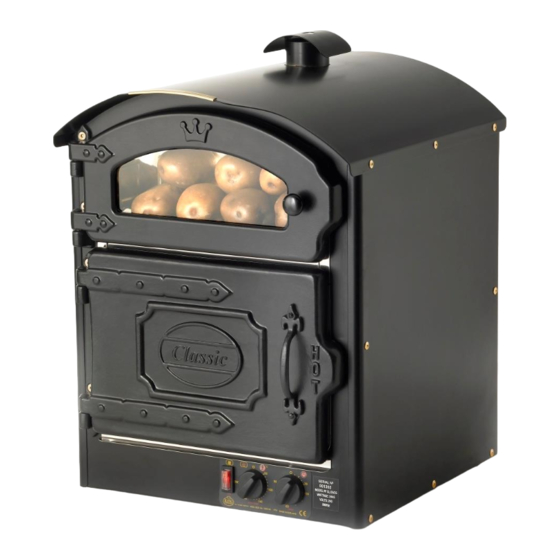

OPERATING INSTRUCTIONS CLASSIC 25 OVEN BEDIENUNGSANLEITUNG MODE D’EMPLOI GEBRUIKSAANWIJZING PLEASE READ CAREFULLY Revised 26/03/2009... -
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS We recommend that wherever possible, the baker is sited near adequate extraction / ventilation to assist with the disposal of steam. Make sure that the mains flex cannot come into contact with hot surfaces and that it is adjusted to the required length by a qualified person upon installation. -
Page 3: Service Sheet
SERVICE SHEET DISCONNECT FROM ELECTRICITY SUPPLY BEFORE COMMENCING SERVICE Replacing top oven bulb Access is gained through top oven door. Lever off glass cover, unscrew bulb - replace cover ensuring cut-out in cover is over bulb housing side. Replacing Door Seal (Main Oven) Lift door off hinges and lie flat with seal facing upwards. - Page 4 OVEN COMPONENT LIST Part Description Part Number Top Oven Crumb Tray CL/OV-25-TOCT Removable Element cover PB1-EC Wire Shelf Tray 700118V Main oven door seal 700129V Door catch & stud 500115 complete Rubber Foot C-RF Control Knobs 190304 Fan On-Off rocker switch 19001A Door hinge pins (top and bottom) 700122...
-
Page 5: Cooking Guide
We recommend the use of washed and graded baking potatoes as non-baking varieties take longer to cook and don’t produce such good results. King Edward, Maris Piper or Desiree are three good baking varieties although your supplier may be able to recommend others to you. -
Page 6: Fault Finding Guide
Replacing Thermostat 7.1 As 5.1 7.2 Carefully open slightly, 2 clips holding thermostat sensor. Move in line with hole, capillary passes through. 7.3 As 4.2 7.4 As 4.3 7.5 As 4.4 7.6 Remove control knob and 2 screws from front 7.7 Pull out thermostat and carefully transfer all connections to new item –... -
Page 7: Wiring Diagram
WIRING DIAGRAM Top Bulb Holder Neon Neutral = BLACK Line Main Oven Element Live = RED Line Timer Fan Motor Earth Stud T’Stat Mains Flex Neon Grommet Oven Switch Thermal Cut Out ELECTRICAL COMPONENT LIST Mains Flex 190201 Top Oven High Temp Bulb 400125 Wires Red CO9001... - Page 8 GUARANTEE All King Edward equipment is covered by a 1 year guarantee from the time of purchase; this does not effect your statutory rights. Depending on the contract you have entered into with your supplier, the guarantee may cover Parts Only or be full Parts &...
