INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS We recommend that wherever possible, the Classic 50 potato baker is sited near adequate extraction / ventilation to assist with the disposal of steam. The exterior of this appliance will get hot during operation. Suitable precautions must be taken.
We recommend the use of washed and graded baking potatoes as non-baking varieties take longer to cook and don’t produce such good results, King Edward, Maris Piper or Desiree are three good baking varieties although your supplier may be able to recommend others to you. Some ways you can prepare your potatoes include: Rubbing the skins in olive oil and salt.

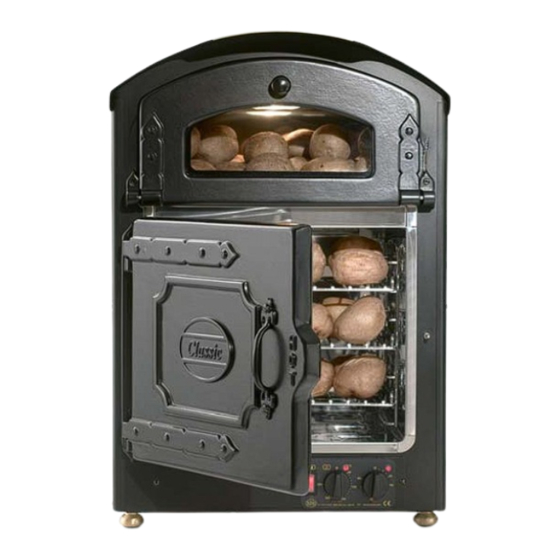

CLASSIC 50 OVEN REPLACEABLE PARTS CLASSIC 50 OVEN REPLACEABLE PARTS Fan motor & element behind removable cover Fan on/off switch Thermostat 90 min timer Description Part Number Wire Tray x 3 (300mm D x 358mm W) 700218v Brass Feet 500116...
Wiring Diagram Classic 50 Oven Wiring Diagram Classic 50 Oven Top Bulb Holder Neon Neutral = BLACK Line Main Oven Element Live = RED Line Timer Fan Motor Earth Stud T’Stat Neon Mains Flex Oven Switch Thermal Cut Out Electrical Component List...
SERVICE SHEET SERVICE SHEET DISCONNECT FROM ELECTRICITY SUPPLY BEFORE COMMENCING SERVICE Replacing top oven bulb Access is gained through top oven door. Lever off glass cover, unscrew bulb - replace cover ensuring cut-out in cover is over bulb housing side. Replacing Door Seal (Main Oven) Lift door off hinges and lie flat with seal facing upwards.
FAULT FINDING GUIDE PROBLEM CHECK NOTHING WORKS Is the oven switched on at the socket ? Is the fan oven switch on? Is trip on main fuse board on ? Has fuse blown in plug ? *If trip/fuse continues to trip/blow after resetting/replacing;...
Page 8
GUARANTEE GUARANTEE All King Edward equipment is covered by a 1 year guarantee from the time of purchase; this does not effect your statutory rights. Depending on the contract you have entered into with your supplier, the guarantee may cover Parts Only or be full Parts &...
