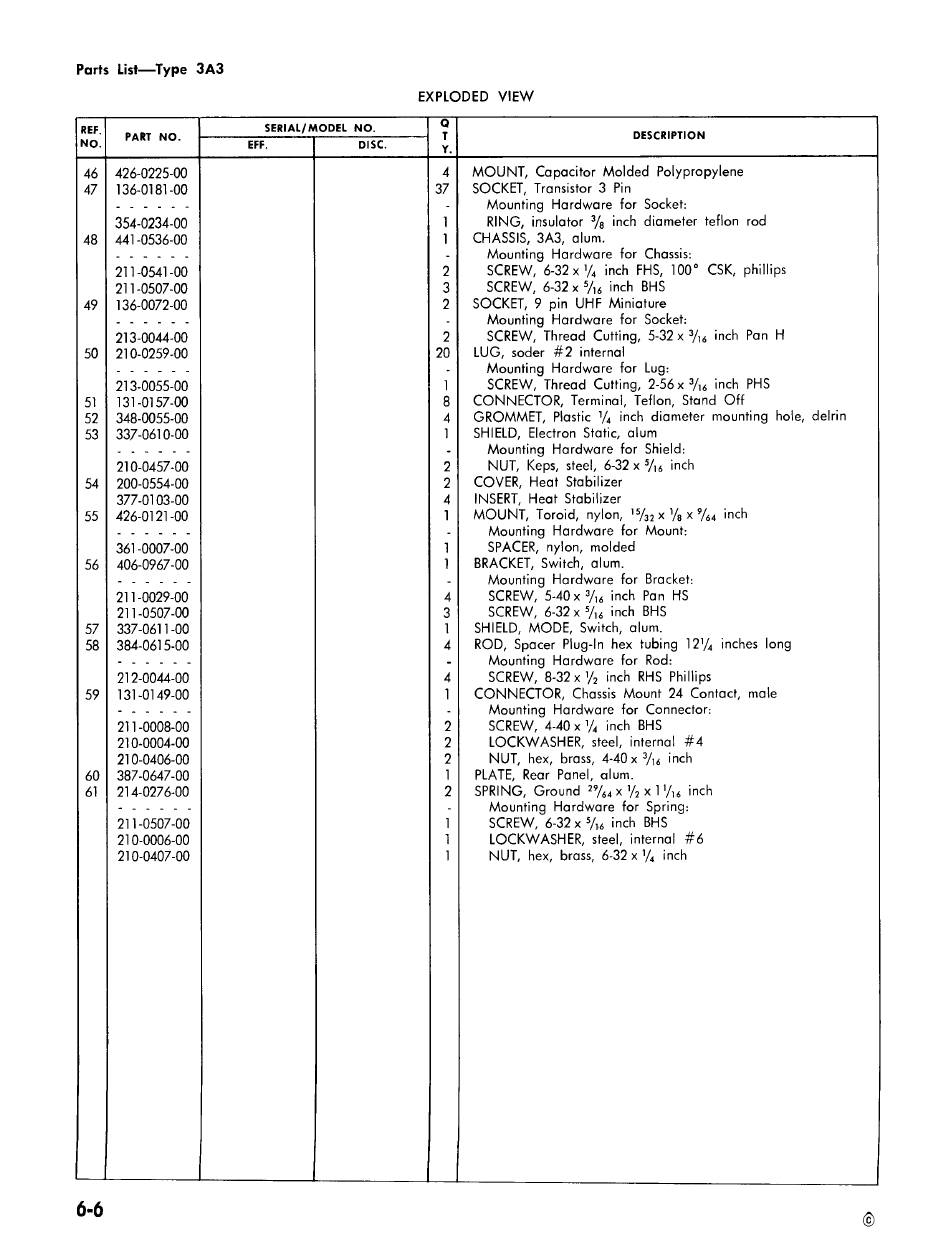

Parts List—Type 3A3
EXPLODED VIEW
Q
46 | 426-0225-00 4| MOUNT, Capacitor Molded Polypropylene
47 | 136-0181-00 37 | SOCKET, Transistor 3 Pin
- eee - Mounting Hardware for Socket:
354-0234-00 1 RING, insulator 3/, inch diameter teflon rod
48 | 441-0536-00 1] CHASSIS, 3A3, alum.
- ste ee - Mounting Hardware for Chassis:
211-0541-00 2 SCREW, 6-32 x Y% inch FHS, 100° CSK, phillips
211-0507-00 3 SCREW, 6-32 x 5/16 inch BHS
49 | 136-0072-00 2| SOCKET, 9 pin UHF Miniature
-- +e e - Mounting Hardware for Socket:
50 | 210-0259-00 20 | LUG, soder #2 internal
- eee - Mounting Hardware for Lug:
213-0055-00 ] SCREW, Thread Cutting, 2-56x 3/1, inch PHS
51 | 131-0157-00 8 | CONNECTOR, Terminal, Teflon, Stand Off
52 | 348-0055-00 4| GROMMET, Plastic 1/4 inch diameter mounting hole, delrin
53 | 337-0610-00 ] SHIELD, Electron Static, alum
- eee - Mounting Hardware for Shield:
210-0457-00 2 NUT, Keps, steel, 6-32 x 5/14 inch
54 | 200-0554-00 2| COVER, Heat Stabilizer
55 | 426-0121-00 1} MOUNT, Toroid, nylon, 15/32 x Vg x %/s4 inch
361-0007-00 1 SPACER, nylon, molded
56 | 406-0967-00 1 | BRACKET, Switch, alum.
211-0029-00 4 SCREW, 5-40 x 3/,6 inch Pan HS
211-0507-00 3 SCREW, 6-32 x 5/6 inch BHS
57 | 337-0611-00 1] SHIELD, MODE, Switch, alum.
58 | 384-0615-00 4| ROD, Spacer Plug-In hex tubing 1214 inches long
- tee - Mounting Hardware for Rod:
212-0044-00 4 SCREW, 8-32 x Y_ inch RHS Phillips
59 | 131-0149-00 ] CONNECTOR, Chassis Mount 24 Contact, male
ce - Mounting Hardware for Connector:
211-0008-00 2 SCREW, 4-40 x % inch BHS
210-0004-00 2 LOCKWASHER, steel, internal #4
210-0406-00 2 NUT, hex, brass, 4-40x 4/4 inch
60 | 387-0647-00 1 | PLATE, Rear Panel, alum.
61 | 214-0276-00 2| SPRING, Ground 2%/.4x Yo x 1g inch
ye - Mounting Hardware for Spring:
211-0507-00 ] SCREW, 6-32 x 5/4 inch BHS
210-0006-00 7 LOCKWASHER, steel, internal #6
210-0407-00 ] NUT, hex, brass, 6-32 x 4 inch
