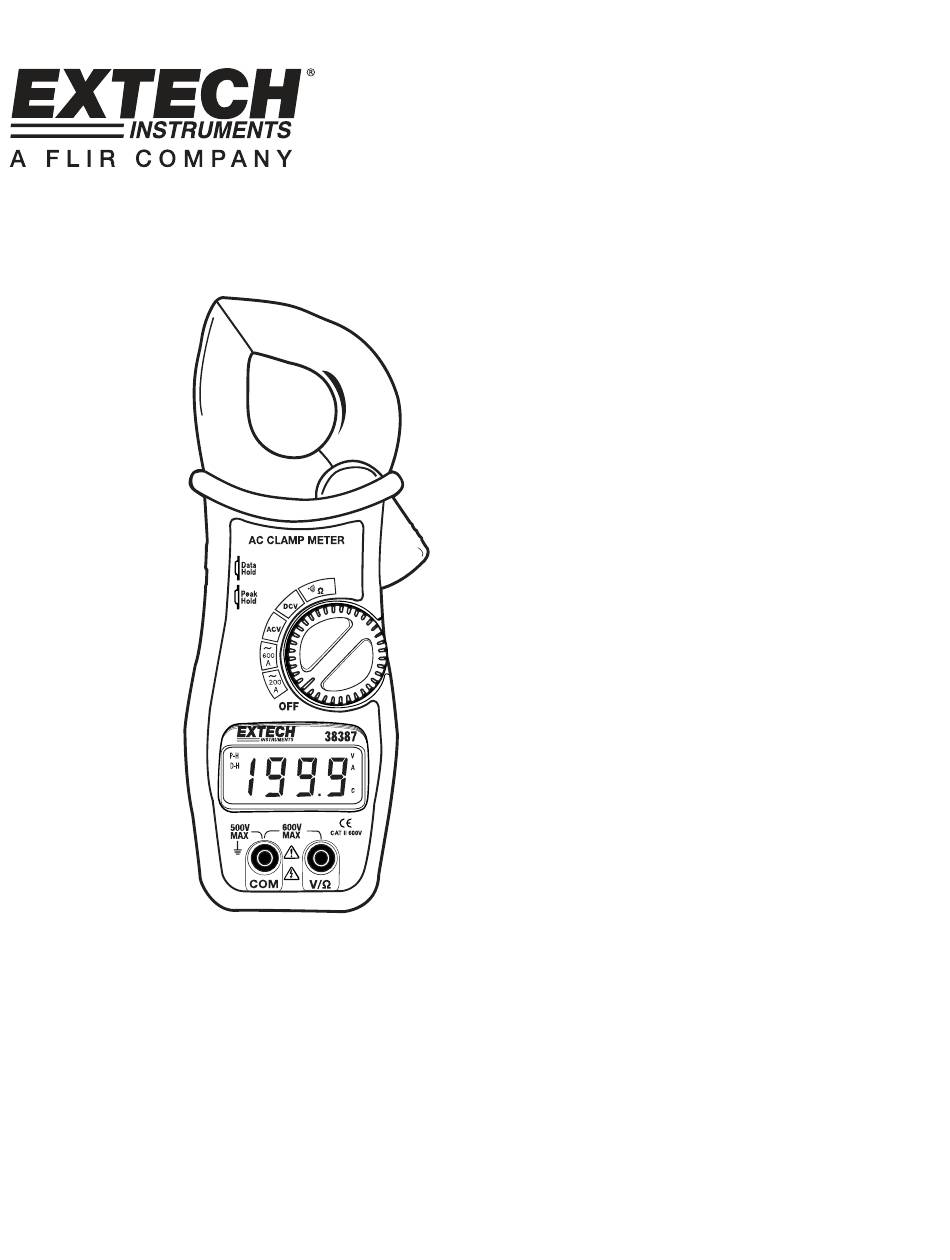

- Page 1 User’s Guide 600A AC Clamp Meter Model 38387...
- Page 2 Safety International Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information. This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present Double insulation A UL mark does not indicate that this product has been evaluated for the accuracy of its readings.
-
Page 3: Specifications
Description Transformer jaws Data Hold button Peak Hold button LCD Display COM Input Terminal Jaw opening trigger Function select switch Voltage, Resistance Input Terminal Specifications Function Range and Resolution Accuracy (of reading) AC Current 199.9 ACA ± (1.5% + 4 digits) 600 ACA @ 50/60Hz AC Voltage... -
Page 4: Operation
Operation NOTICES Read and understand all warning and precaution statements listed in the safety section of this operation manual prior to using this meter. Set the function select switch to the OFF position when the meter is not in use. AC/DC Voltage Measurements Insert the black test lead into the negative COM terminal and the red test lead into the positive V terminal. -
Page 5: Maintenance
Re-assemble the meter Warranty EXTECH INSTRUMENTS CORPORATION (A FLIR COMPANY) warrants this instrument to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department at (781) 890-7440 ext. - Page 6 38387 V1.4 6/08...
