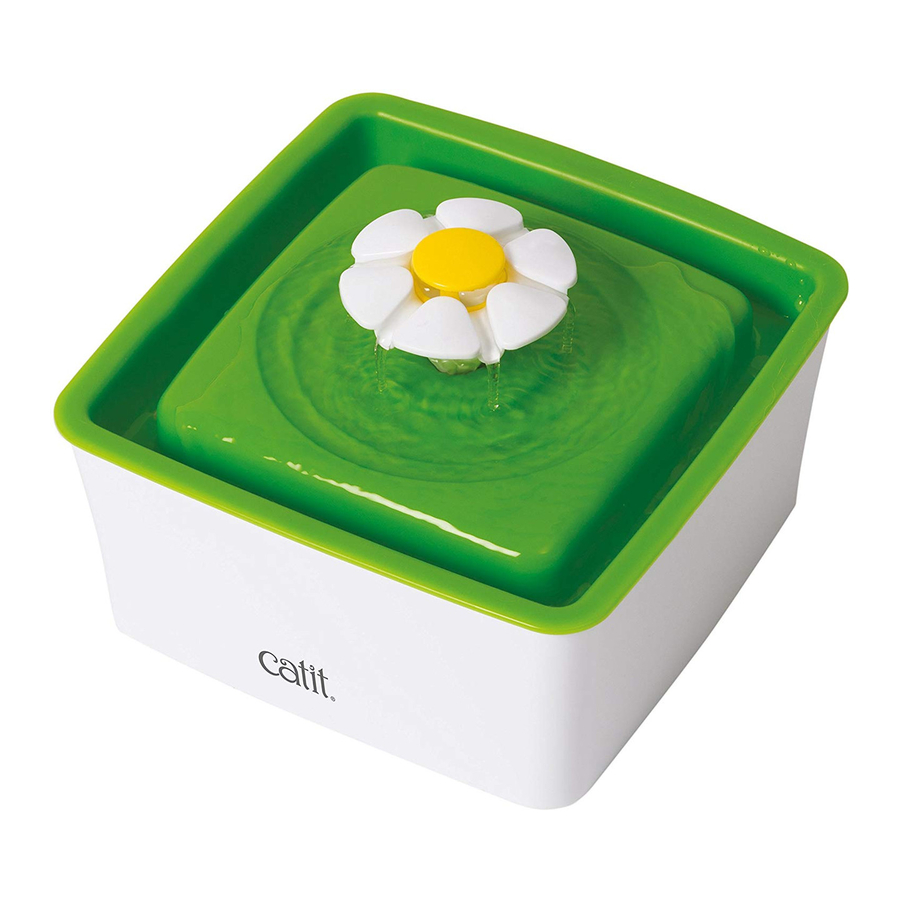

Catit FLOWER FOUNTAIN MINI 43735 Manual

Overview - Part 1
Overview - Part 2

Cap
Flower
Top
Filter
Base
Pump with electrical cord
USB Adapter

PARTS

Pump Cover
Impeller Cap
Impeller
Pump

USAGE

Cats can be picky drinkers, some prefer large water surfaces over vertical streams and vice-versa. The Catit^® Flower Fountain Mini provides your cat with a continuous indoor source of fresh, clean water and allows up to 3 different water flow settings to encourage your pet to drink more. Drinking more water helps ensure proper kidney function, helping to prevent crystal formation that can lead to urinary diseases.

The Catit^® Flower Fountain Mini allows up to 3 different water flow settings to encourage cats to drink more:

When plugged in without accessories, the Catit^® Flower Fountain Mini provides a gently flowing water surface.
Inserting the flower accessory creates long, faucet-like streams of water. The flower is easy to add to (or remove from) the fountain.
Adding the flowercap will tone down the bubbling water on top. Give this setting a try if your cat would rather play with the water than drink it.

INSTALLATION

Remove unit from box. Remove poly bag from filter and set aside.
Clean fountain before using to remove any dirt or debris. Wash the complete unit (excluding the filter) with a sponge. Do not use abrasive cleansers or materials on any part of the unit. Rinse thoroughly.
Open pump, remove impeller cap and impeller.

Rinse each part with water before carefully reassembling.

Replace the pump in its chamber.
Re-thread power cord into the notches on top of the base, making sure to create a cable loop inbetween the notches.

Pinch the wire slightly to make it curve downward before pressing it down into the top notch.
Rinse filter to remove excess dust.

Slide the filter pad into the plastic slot with the black carbon side facing the pump. If the carbon side is facing the other way, it restricts the water flow and can cause the well to drain / run dry.
Replace top of fountain.
Place fountain directly beneath faucet and fill until the water level reaches the rippled wavy opening in the back top of the fountain (1.5L / 50.7 fl oz).
The flower is easy to insert and remove from the fountainhead. Add the flowercap by pressing it down firmly onto the flower, remove it again by pushing the yellow rim upwards from below.
Allow the fountain to sit for 15 minutes before use. This allows the water to soak through the filter. Attach power cord to USB adapter, and plug in wall socket. Secure excess power cord with tie wrap and place behind unit to avoid pet chewing and entanglement.

WEEKLY MAINTENANCE

Always unplug or disconnect the pump from the electrical supply with dry hands before putting on or taking off parts and whenever the pump is being installed, maintained or handled. Wash and rinse fountain with a soft sponge and a non-abrasive cleanser. Rinse thoroughly, ensuring no soapy residue. Remove the filter from the base and rinse. Do not wash the filter with soap. If filter contains excess debris or other foreign matter, replace it (replacement filters sold separately). The filter should be replaced every 3-4 weeks or when there are visible signs that the filter is saturated with foreign matter (debris, food, hair, etc.) or if the water flow is impeded. More frequent changes may be necessary due to indoor environmental and water conditions, as well as multiple pet use. Should pump appear dirty, open pump and remove impeller cap and impeller. Remove any debris from the impeller and clean impeller well with cotton swab. Handle impeller with care. If the pump makes noise, top up the water level in the pump chamber so it is fully submerged. DO NOT ALLOW THE PUMP TO RUN DRY.

WARRANTY

The Catit^® Flower Fountain Mini offers a 2-year limited warranty from the original date of purchase. This warranty is valid only under normal operating conditions for which the unit is intended. This warranty will not apply to any unit subjected to improper use, negligence or tampering. The pump must be maintained in accordance with the instructions. The motor is factory sealed; tampering will void warranty.

For warranty service, contact your local pet product dealer or write to the Catit^® representative in your country. Please register your unique customer code online for additional access to customer service at www.catit.com/register. THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.

Canada: Rolf C. Hagen Inc., Montréal (Quebec) H9X 0A2
U.S.A.: Rolf C. Hagen (U.S.A.) Corp., Mansfield, MA 02048
U.K.: Rolf C. Hagen (U.K.) Ltd., Castleford, W. Yorkshire WF10 5QH
Germany: HAGEN Deutschland GmbH & Co. KG, 25488 Holm
Spain: Rolf C. Hagen España S.A., Av. de Beniparrell n. 11 y 13, 46460 Silla, Valencia
Malaysia: Rolf C. Hagen (SEA) Sdn Bhd 43200 Cheras, Selangor D.E.

ACCESSORIES

Triple Action Fountain Filter Mini replacement filter pads available, sold separately.

Replace monthly
FREE reminder at catit.com

SPARE PARTS

Pump with electrical cord (#50044) and USB Adapter (#50043)

Go to www.catit.com and fill in your unique code for special access to customer service, promotions and more!

SAFETY TIPS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

IMPORTANT SAFETY INSTRUCTIONS

To guard against injury, basic safety precautions should be observed, including the following:

READ AND FOLLOW ALL SAFETY INSTRUCTIONS and all the important notices on the appliance before using the pump. Failure to do so may result in damage to this appliance.
To avoid possible electrical shock, special care should be taken since water is employed in the use of this product. For each of the following situations, do not attempt repairs yourself; return the pump to an authorized service facility for service if it is still under warranty or discard the appliance.

If the pump shows any sign of abnormal water leakage, disconnect the power supply cord and remove pump from water.
Carefully examine the appliance after installation. It should not be plugged in if there is water on parts not intended to be wet.
Do not operate the appliance if it has a damaged electrical cord or plug, or if it is malfunctioning or if it is dropped or damaged in any manner. The power cord of this appliance cannot be replaced: if the cord is damaged, the appliance should be discarded. Never cut the cord.
The electrical outlet should always be above the level of the appliance. If the plug or outlet does get wet,DO NOT unplug the electrical cord. Disconnect the fuse or circuit breaker that supplies power to the appliance, then unplug and examine for presence of water in the outlet.

This appliance is not intended for use by persons (including children) with significantly impaired physical or mental capabilities, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should always be supervised to ensure that they do not play with the appliance.
To avoid injury, do not contact moving or hot parts.
Always unplug or disconnect the appliance from the outlet before putting on or taking off parts and while the equipment is being installed, maintained or handled. When inserting or removing the pump from the water, always pull out the main electrical plug. Never yank the cord to pull the plug from outlet. Grasp the plug and pull to disconnect. Always unplug an appliance from an outlet when not in use. Never lift the pump by the cord.
THIS IS A PET DRINKING FOUNTAIN PUMP.
This pump has been evaluated for use with freshwater only. Do not use this pump for other than its intended use (i.e. don't use in swimming pools, bathrooms, etc.). The use of attachments not recommended or sold by the appliance manufacturer may cause an unsafe condition.

Do not use the pump in swimming pools or other situations where people are immersed.
This pump is suitable for use in water temperatures up to 35ºC.
Do not use this pump with inflammable liquids.

Do not install or store the appliance where it will be exposed to temperatures below freezing. Shelter the pump from direct sunlight.
Ensure that the appliance is placed on a flat, even surface. Monitor the appliance regularly. Do not leave appliance unattended for extended periods. Do not allow the pump to run dry. The pump must be immersed in water completely. This pump must never operate outside of water.
If an extension cord is necessary, ensure the connection is watertight and dustproof. A cord with a proper rating should be used. A cord rated for less amperes or watts than the appliance rating may overheat. Care should be taken to arrange the cord so that it will not be tripped over or pulled.
Do not use this unit outdoors. This unit is for indoor use only.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Only the faithful observation of these installation, electrical and maintenance guidelines will ensure the safe and efficient use of this drinking fountain.
