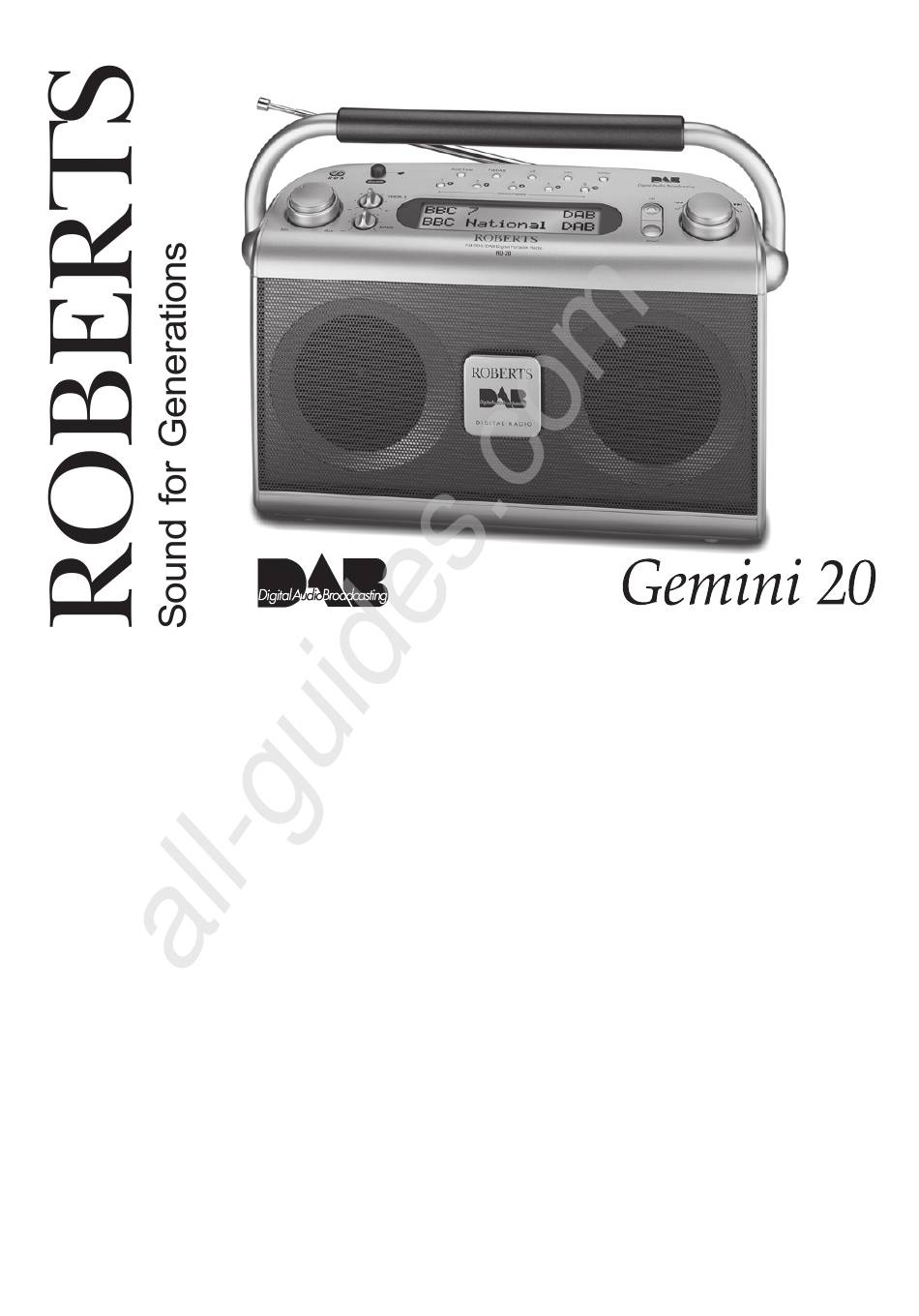

- Page 1 All manuals and user guides at all-guides.com RD-20 FM RDS/DAB digital radio Please read this manual before use RD20 Issue 2.pmd 1/25/2007, 9:53 AM...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Contents Controls ................2 Specifications ..............16 Battery operation ..............3 Circuit features ..............16 Mains operation ..............3 Mains Supply ..............17 Operating your radio - DAB ..........4 Guarantee ................18 Selecting a station - DAB .......... -
Page 3: Controls
All manuals and user guides at all-guides.com Controls (Top) 7. Line out socket (on rear) 1. Telescopic aerial (on rear) 13. Tuning up button 2. On/Off button 8. FM/DAB button 14. Tuning down button 3. Mains LED indicator 9. +5 button 15. -
Page 4: Battery Operation
All manuals and user guides at all-guides.com Battery operation 1. Remove the Battery cover on the rear of the unit by pushing the battery door in and downwards. . 2. Insert six LR20 (D size) batteries into the spaces in the compartment. Take care to ensure all batteries are inserted with the correct polarity as shown inside the battery compartment. -
Page 5: Operating Your Radio - Dab
2. Press the On/Off button to switch on your radio. The display will show "Roberts DAB digital radio" for a few seconds. 3. If this is the first time the radio is used a quick scan of the UK band III DAB channels will be carried out. -
Page 6: Selecting A Station - Dab
All manuals and user guides at all-guides.com Selecting a station - DAB 1. The top line of the display shows the name of the station currently selected. 2. Rotate the Tuning control or press the Up or Down buttons to scroll through the list of available stations. -
Page 7: Secondary Services - Dab
All manuals and user guides at all-guides.com Secondary services - DAB 1. Certain radio stations have one or more secondary services associ- ated with them. If a station has a secondary service associated with it the display will show ">" next to the station name on the station list. The secondary service will then appear immediately after the primary service as you turn the tuning control. -
Page 8: Finding New Stations - Dab
All manuals and user guides at all-guides.com Finding new stations - DAB As time passes new stations may become available. To find new stations proceed as follows:- 1. Press and release the AutoTune button, the display will show Autotune Quick scan. Your radio will perform a scan of the UK DAB frequencies. -
Page 9: Manual Tuning - Dab
All manuals and user guides at all-guides.com Manual Tuning - DAB Manual tuning allows you to tune directly to the various band III DAB channels. UK DAB stations are currently located in the range 11B to 12D. 1. Press and hold down the Select button until the display shows Manual tune. -
Page 10: Operating Your Radio - Fm
1. Carefully extend the telescopic aerial 2. Press the On/Off button to switch on your radio. The display will show "Roberts DAB digital radio" for a few seconds. 3. Press the FM/DAB button to select the FM band. 4. Press and hold down either the Up or Down buttons until the frequency in the display begins to change rapidly. -
Page 11: Manual Tuning - Fm
All manuals and user guides at all-guides.com Manual tuning - FM 1. Press the On/Off button to switch on your radio. 2. Press the FM/DAB button to select the FM band. Fully extend the Telescopic aerial . 3. Rotate the Tuning control or press the Up or Down buttons to tune to a station. -
Page 12: Display Modes - Fm
All manuals and user guides at all-guides.com Display modes - FM On FM the bottom line of the display can be set to any of the following modes:- 1. Press the Info button to cycle through the various modes. a. Scrolling text Displays scrolling text messages such as artist/ track name, phone in number etc. -
Page 13: Presetting Stations - Dab And Fm
All manuals and user guides at all-guides.com Presetting stations - DAB and FM There are 10 memory presets for each of the 2 wavebands. 1. Press the On/Off button switch on the radio. 2. Tune to the required station as previously described. 3. -
Page 14: Recalling A Preset Station - Dab And Fm
All manuals and user guides at all-guides.com Recalling a preset station - DAB and FM 1. Press the On/Off button to switch on the radio. 2. Select the required waveband by pressing the FM/DAB button. 3. Momentarily press the required Preset button, your radio will tune to the station stored in preset memory. -
Page 15: System Reset
1. Switch off your radio 2. Switch on your radio - before the screen shows Roberts DAB digital radio press and hold down the Select button until the display shows System Reset. -
Page 16: Headphone Socket
All manuals and user guides at all-guides.com Headphone socket A 3.5mm Headphone Socket located on the rear of your radio is provided for use with either headphones or an earpiece. Inserting a plug automatically mutes the internal loudspeaker. IMPORTANT: Excessive sound pressure from earphones and head- phones can cause hearing loss. -
Page 17: General
All manuals and user guides at all-guides.com General • No objects filled with liquids such as vases, shall be placed on the radio. Do not allow this radio to be exposed to water, steam or sand. Do not • It is recommended to operate the product such that there is a minimum leave your radio where excessive heat could cause damage such as in distance (10cm recommended) to adjacent objects in order to a parked car where the heat from the sun can build up even though the... -
Page 18: Mains Supply
IF IN DOUBT - CONSULT A QUALIFIED ELECTRICIAN. Replacement fuse holders are available from Roberts Radio Technical Services at the address shown on the rear of this manual. RD20 Issue 2.pmd... -
Page 19: Guarantee
In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services at the address shown on the rear of this manual. - Page 20 All manuals and user guides at all-guides.com ROBERTS RADIO TECHNICAL SERVICES 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline :- 020 8758 0338 (Mon-Fri during office hours) Website: http://www.robertsradio.co.uk Issue 2 RD20 Issue 2.pmd 1/25/2007, 9:53 AM...
