Summary of Contents for AUDAC WP225/W

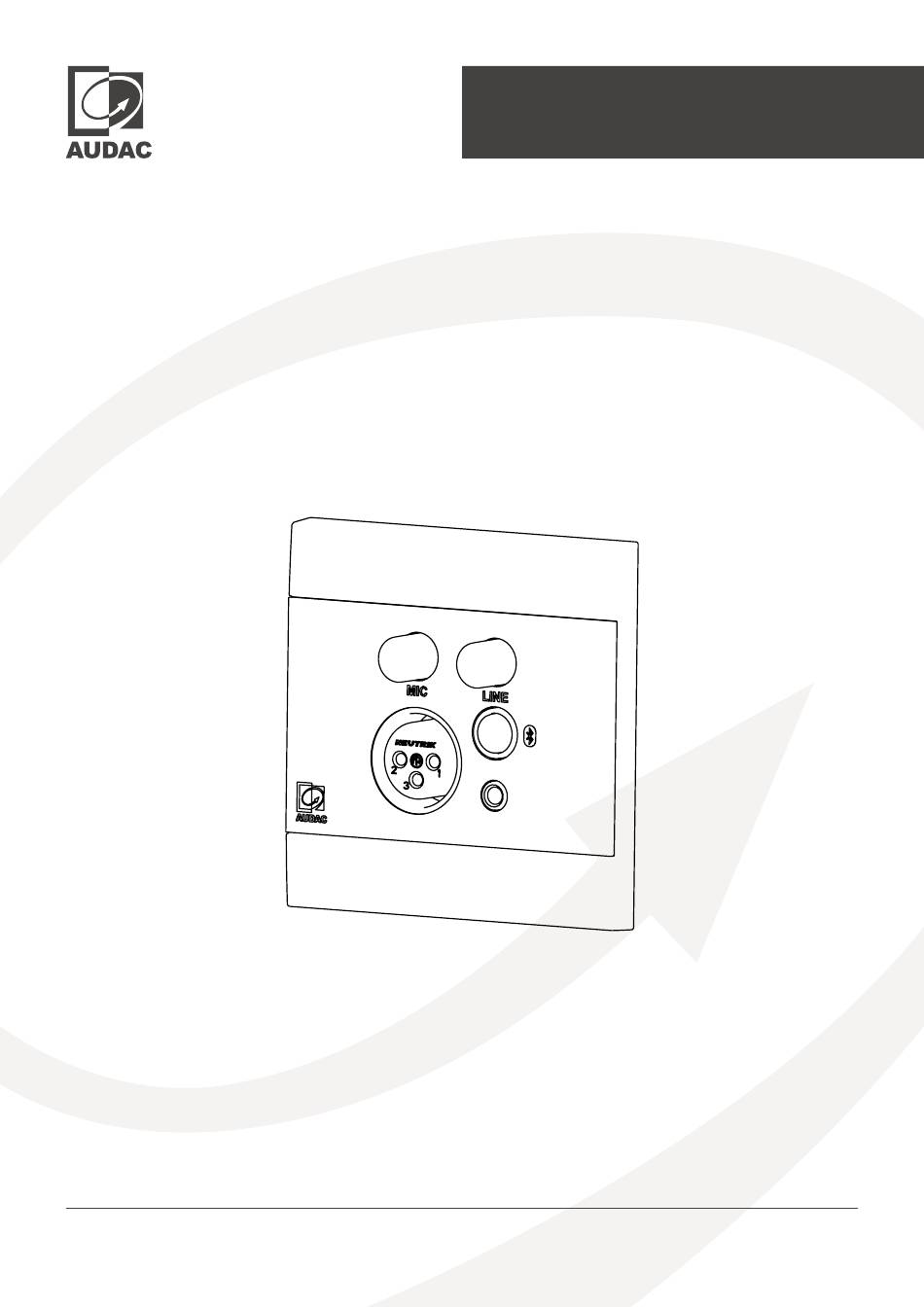

  • Page 1 User manual WP225...
  • Page 2 WP2xx - User manual...
  • Page 3: Table Of Contents

    Table of contents Introduction Universal wall panel - Microphone, line & Bluetooth receiver � � � � � � � � � � � � � � � � � � � � � � � � � � � 05 Precautions Chapter 1 Overview front panel �...
  • Page 4 WP2xx - User manual...
  • Page 5: Introduction

    Universal wall panel - Microphone, line & Bluetooth receiver The WP225 is a remote wall mixer that can be used in combination with various AUDAC devices. It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling.
  • Page 6: Precautions

    Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY ALWAYS HANDLE THIS UNIT WITH CARE HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP OF THIS DEVICE NO NAKED FLAME SOURCES, SUCH AS LIGHTED CANDLES, SHOULD BE PLACED ON THE APPARATUS DO NOT PLACE THIS UNIT IN AN ENCLOSED ENVIRONMENT SUCH AS A BOOKSHELF OR CLOSET.
  • Page 7: Overview Front Panel

    Chapter 1 Overview front panel On the front of the wall panel you will find a Bluetooth pair button with a convenient LED indicator to check if it is in pairing mode or already connected to a device. The Bluetooth pairing name can be customized as desired.
  • Page 8: Overview Rear Panel

    Overview rear panel The rear of the WP225 contains an 8-pin Terminal Block connector, which is used to connect the wall panel to the twisted pair cabling. Below the 8-pin connector is a 6-pin connector. This input connector is a duplicate of the line and mic input but for permanent connections.
  • Page 9: Quick Start Guide

    You can connect your line, microphone and Bluetooth audio sources to the wall-panel, and your sounds should be audible through the system. Connecting a remote input to a line input connection WP2xx series PRE116 PRE116 AUDAC 0 dBV output (DIP Switch) PSD241 Shielded balanced audio or CAT networking cable WP2xx - User manual...
  • Page 10: Chapter 3 010

    Chapter 3 Connections CONNECTION STANDARDS The in- and output connections for AUDAC audio equipment are performed according to international wiring standards for professional audio equipment 3.5 mm jack: For unbalanced line input connections Tip: Left Ring: Right Ground Sleeve: For balanced line input connections...
  • Page 11: Technical Specifications

    Technical specifications Integrated Bluetooth receiver Inputs Type Version BT5.0 Frequency band 2.4 GHz Type Stereo unbalanced line Connector Front: 3.5mm jack Rear: 6-pin terminal block 3.81mm Impedance 7,7 kOhm Sensitivity -6 dBV / +26 dBV THD+N <0,2% Signal / Noise 72 dB Balanced microphone Type...
