Summary of Contents for AUDAC WP210

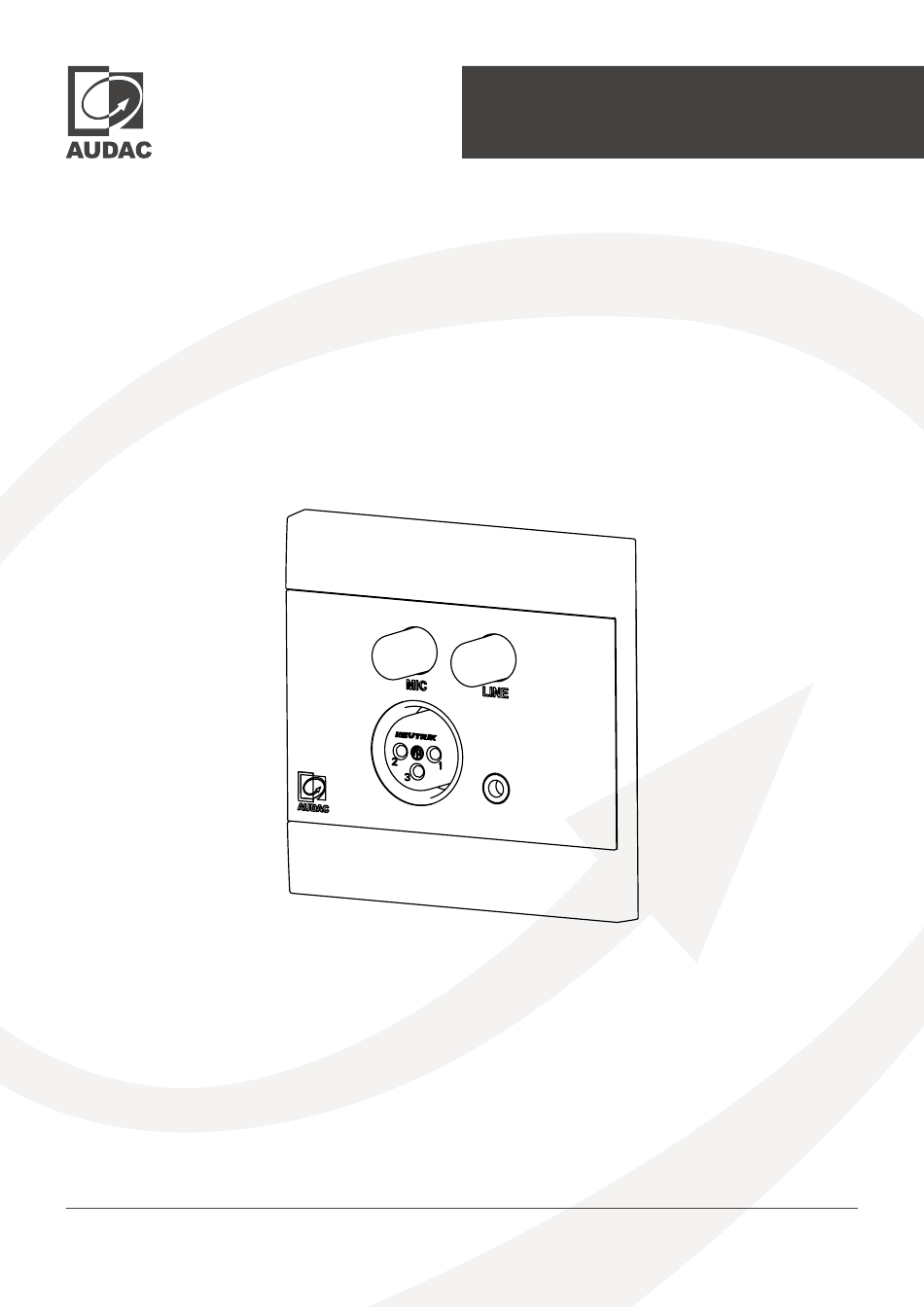

- Page 1 User manual WP205 & WP210...
- Page 2 WP2xx - User manual...
-
Page 3: Table Of Contents
Rear panel description WP210 � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �... - Page 4 WP2xx - User manual...
-
Page 5: Introduction
Wall panel - Microphone & line receiver The WP205 & WP210 are remote wall mixers. The WP210 can be used with various AUDAC devices, while the WP205 is an external wall mixer designed to be used only with the ARES5A. It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... -
Page 6: Precautions
Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY ALWAYS HANDLE THIS UNIT WITH CARE HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON TOP OF THIS DEVICE NO NAKED FLAME SOURCES, SUCH AS LIGHTED CANDLES, SHOULD BE PLACED ON THE APPARATUS DO NOT PLACE THIS UNIT IN AN ENCLOSED ENVIRONMENT SUCH AS A BOOKSHELF OR CLOSET. - Page 7 WP2xx - User manual...
-
Page 8: Overview Front Panel
Chapter 1 Overview front panel On the front side of the wall panel, there is an unbalanced 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together. -
Page 9: Overview Rear Panel Wp205
Overview rear panel WP205 The rear side of the WP205 contains an 8-pin Terminal Block connector. Below of the 8-pin connector are some DIP switches. With these switches certain functions can be switched on or off depending on the situation where the WP is in. -
Page 10: Overview Rear Panel Wp210
Overview rear panel WP210 The rear of the WP210 contains an 8-pin Terminal Block connector, which is used to connect the wall panel to the RJ45 connector. Below the 8-pin connector is a 6-pin connector. This input connector is a duplicate of the line and mic input but for permanent connections. - Page 11 DIP switches DIP switch enable / disable phantom power: The phantom power for the microphone input can be enabled or disabled. DIP switch enable / disable output level +12 dBV: When the option of +12 dBV is enabled, the wall panel is compatible with remote input devices.
-
Page 12: Connection Standards
Shielded balanced audio or CAT networking cable Chapter 3 Connections CONNECTION STANDARDS The in- and output connections for AUDAC audio equipment are performed according to international wiring standards for professional audio equipment 3.5 mm jack: For unbalanced line input connections... - Page 13 For connection to Wall Panels The 8-pin Euro-Terminal Block on the rear side of the WP205 or WP210 should be connected to twisted pair cabling. The maximum cable distance between the input unit and the speaker system can reach up to 100 meter. To ensure a proper working of the system, all 8 conductors of the twisted pair cable have to be connected according to the table below.
-
Page 14: Technical Specifications
Technical specifications Inputs Type Stereo unbalanced line Connector Front: 3.5mm jack Rear: 6-pin terminal block 3.81mm (for WP210 only) Impedance 7,7 kOhm Sensitivity -6 dBV / +26 dBV THD+N <0,2% Signal / Noise 72 dB Balanced microphone Type Connector Front: female XLR Rear: 6-pin terminal block 3.81mm... - Page 15 Notes WP2xx - User manual...
