EB-104EK

Mounting Bracket for Ingenico

Payment Device LANE/3600

Quick Installation Guide

EB-104EK Mounting Bracket for Ingenico Payment Device

LANE/3600

Make the rear side of the LANE/3600 device face to you.

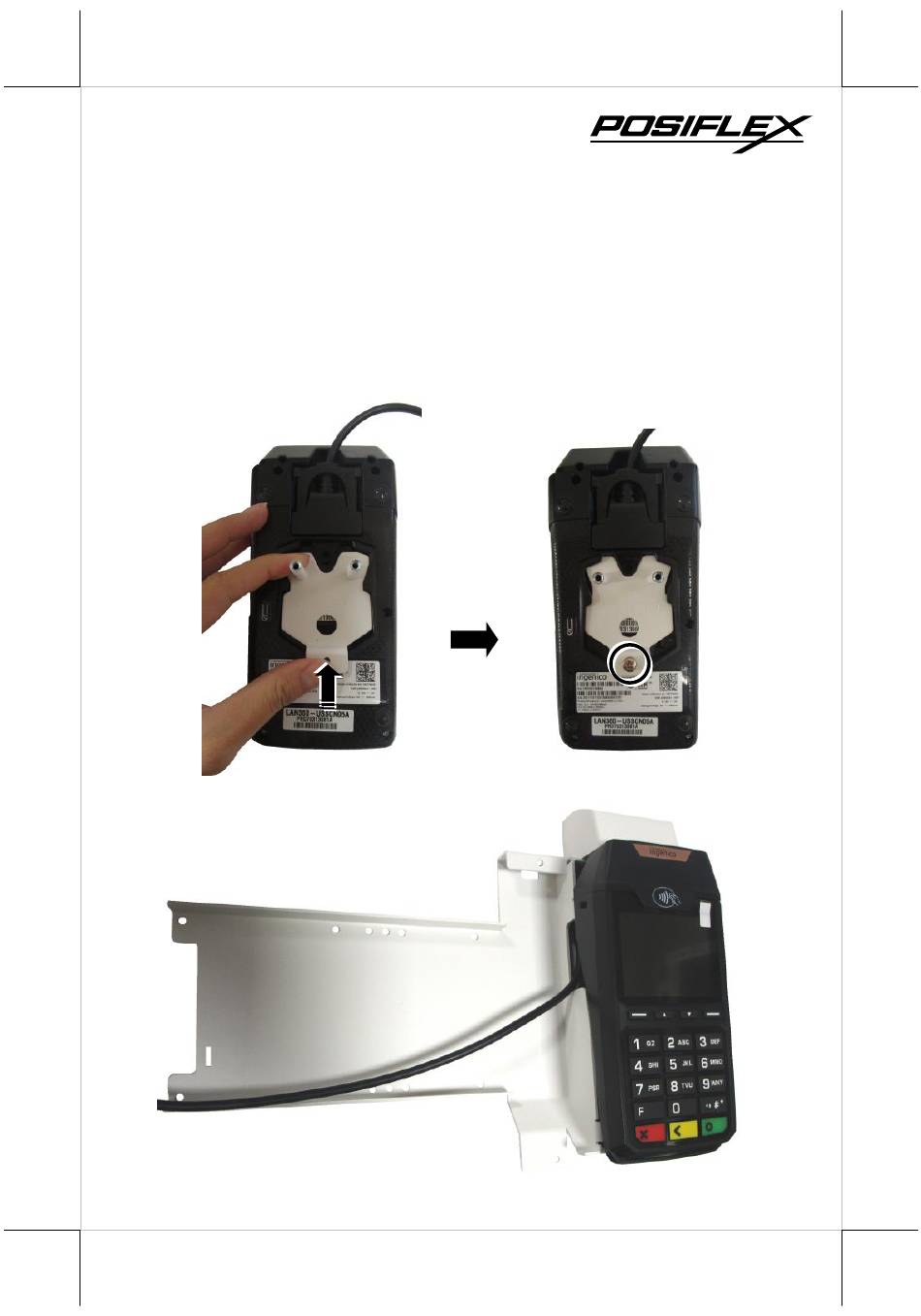

Put the support bracket onto the payment device and push it up like the

below pictures.

Then fix the support bracket with one #6/32 screw.

Put the LANE/3600 device onto the payment bracket.

Need help?

Do you have a question about the EB-104EK and is the answer not in the manual?

Page 1 Mounting Bracket for Ingenico Payment Device LANE/3600 Quick Installation Guide EB-104EK Mounting Bracket for Ingenico Payment Device LANE/3600 Make the rear side of the LANE/3600 device face to you. Put the support bracket onto the payment device and push it up like the below pictures.
Page 2 Make sure the cable pass through the cable exit like the below picture. Fix the bracket with two #6/32 screws. Unlock and open the front door. 90゜...
Page 3 1) Lift the lever on the left side of the touch monitor, and then 2) gently tilt the touch monitor up. 3) Then use the touch monitor support bracket to support the touch monitor. Please refer to the images below. 1) Lift the lever.
Page 4 3) Use the touch monitor support bracket to support the touch monitor.
Page 5 There are two hex nuts on the right side of the kiosk. Loosen the two hex nuts and then remove the side cover bracket.
Page 6 Fix the LANE/3600 device with the payment bracket onto the rear side of the touch monitor with four #6/32 screws.
Page 7 This picture is taking the 15.6” touch monitor as an example. Installation completed. ※ The product information and specifications are subject to change without prior notice. To get more detailed information of EB-104EK, please contact the service team of Posiflex.
