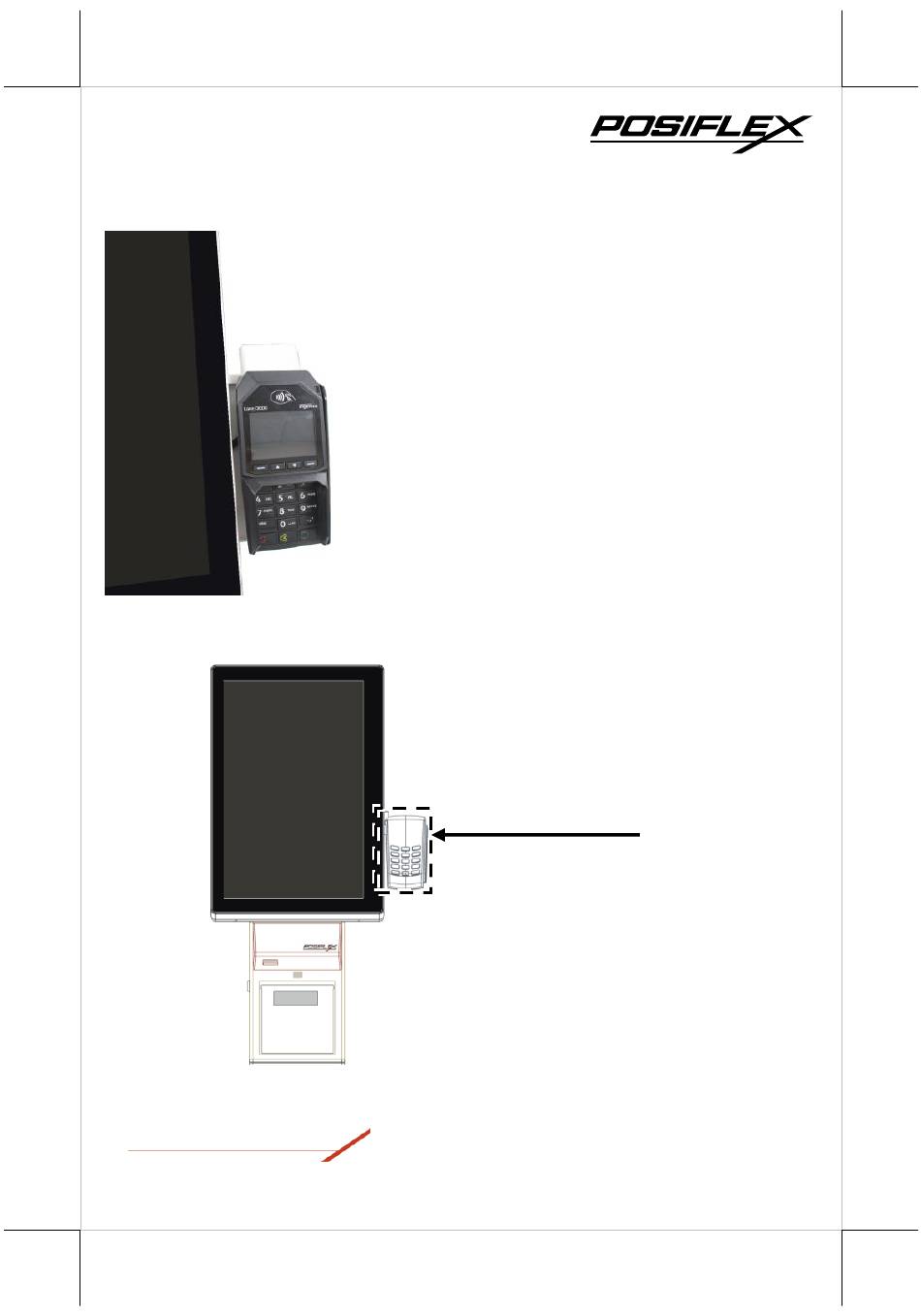

- Page 1 EB-102EK Mounting Bracket for Ingenico Payment Device Lane3000 Quick Installation Guide Package Contents EB-102EK Mounting Bracket Kits…...(x 1) Ingenico Payment Device Lane3000 (for EK Series) Ingenico Payment Device Lane3000 EB-102EK Ver. A0...
- Page 2 List of Package Contents for EB-102EK Mounting Bracket Kits Scope of Delivery Lane3000 bracket (x 1) Support bracket (x 1) #6/32 screws (x 7): one for Ingenico Lane3000 and support bracket, two for Ingenico Lane3000 and Lane3000 bracket, four...
- Page 3 EB-102EK Mounting Bracket for Ingenico Payment Device Lane3000 (for EK Series) Make the rear side of the payment device face to you, and then fix the support bracket to the payment with one #6/32 screw. Put the payment device onto the Lane3000 bracket and make the cable pass through the cable exit like the below picture.
- Page 4 To unlock the front door, turn the key counterclockwise to around 90 degrees. See the images below. 90゜ Once the front door is unlocked, the user is able to open the front door. See the images below.
- Page 5 1) Lift the lever on the left side of the touch monitor, and then 2) gently tilt the touch monitor up. 3) Then use the touch monitor support bracket to support the touch monitor. Please refer to the images below. 1) Lift the lever.
- Page 6 3) Use the touch monitor support bracket to support the touch monitor.
- Page 7 There are two hex nuts on the right side of the kiosk. Loosen the two hex nuts and then remove the side cover bracket.
- Page 8 Fix the Lane3000 bracket with Lane3000 terminal onto the rear side of the touch monitor with four #6/32 screws.
- Page 9 This picture is taking the 15.6” touch monitor as an example. Installation completed. ※ The product information and specifications are subject to change without prior notice. To get more detailed information of EB-102EK, please contact the service team of Posiflex.
