Page 2

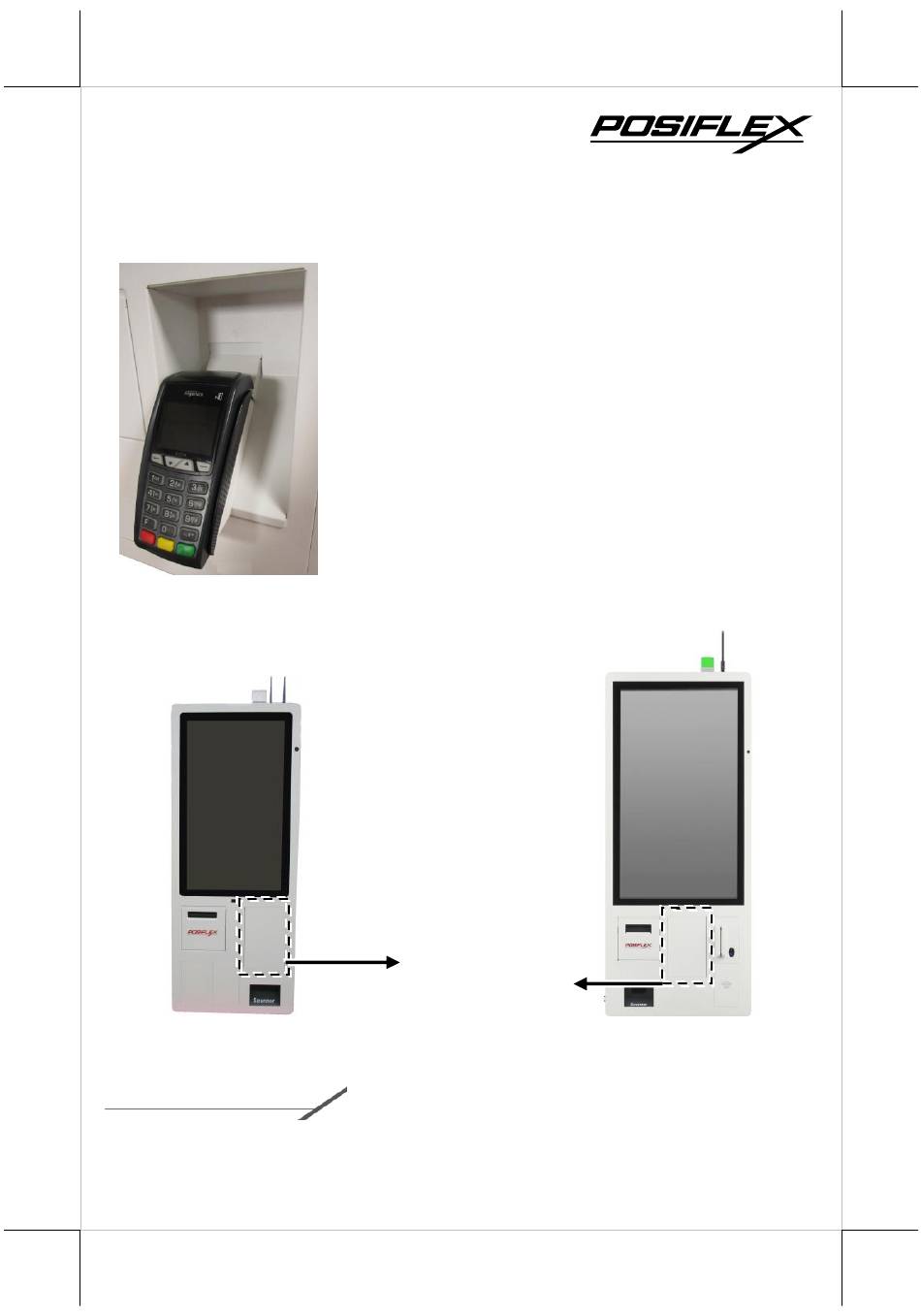

List of Package Contents Scope of Delivery Card Reader Holder (x 1) Black Velcro tape (x 2) Cable cover bracket (x 1) iCT-250 support bracket (x 1) iCT-250 base plate (x 1) hex nut (x 1), #6/32-8L screws (x 6), #6/32-12L screws (x 2) EB-100JK Mounting Bracket for Ingenico Payment Device iCT-250 1.
Page 3
2. Remove the cable cover with you thumb like the below picture.
Page 4
3. Place the iCT-250 support bracket onto the rear side of the payment like the below pictures.
Page 5
4. Fix the iCT-250 support bracket with two #6/32-12L screws. 5. Put the iCT-250 base plate onto the rear side of the payment, and then fix it with two #6/32-8L screws.
Page 6
6. Open the touch monitor. For JK-24xx/27xx, unlock the touch monitor. Then you can open the touch monitor through the direction shown in the picture below.
Page 7
For JK-32xx, unlock the touch monitor. Hold two sides of the touch monitor and then gently pull it out towards you slowly. Once the crank rod stopper drops down slowly begin to release the touch monitor until it stops. Crank Rod Stopper for Touch Monitor...
Page 8
There are four hex nuts in old version of JK series touch monitor. Remove the middle ivory metal plate of the belly system unit of the kiosk by removing four nuts. Then install the card reader holder on the empty space of the belly system unit of the kiosk with four nuts.
Page 9
Make the iCT-250 payment device cable pass through the cable exit like the below picture.
Page 10
Make sure the two protruding metal pieces put into the positioning holes. Fix the card reader holder and the base plate with four #6/32-8L screws. Positioning Holes 10. Install the cable cover bracket like the below pictures, and then fix it with one hex nut.
Page 11
11. Sort the payment device cable with the Black Velcro tape, and connect the cable with the hub. Then installation complete.
