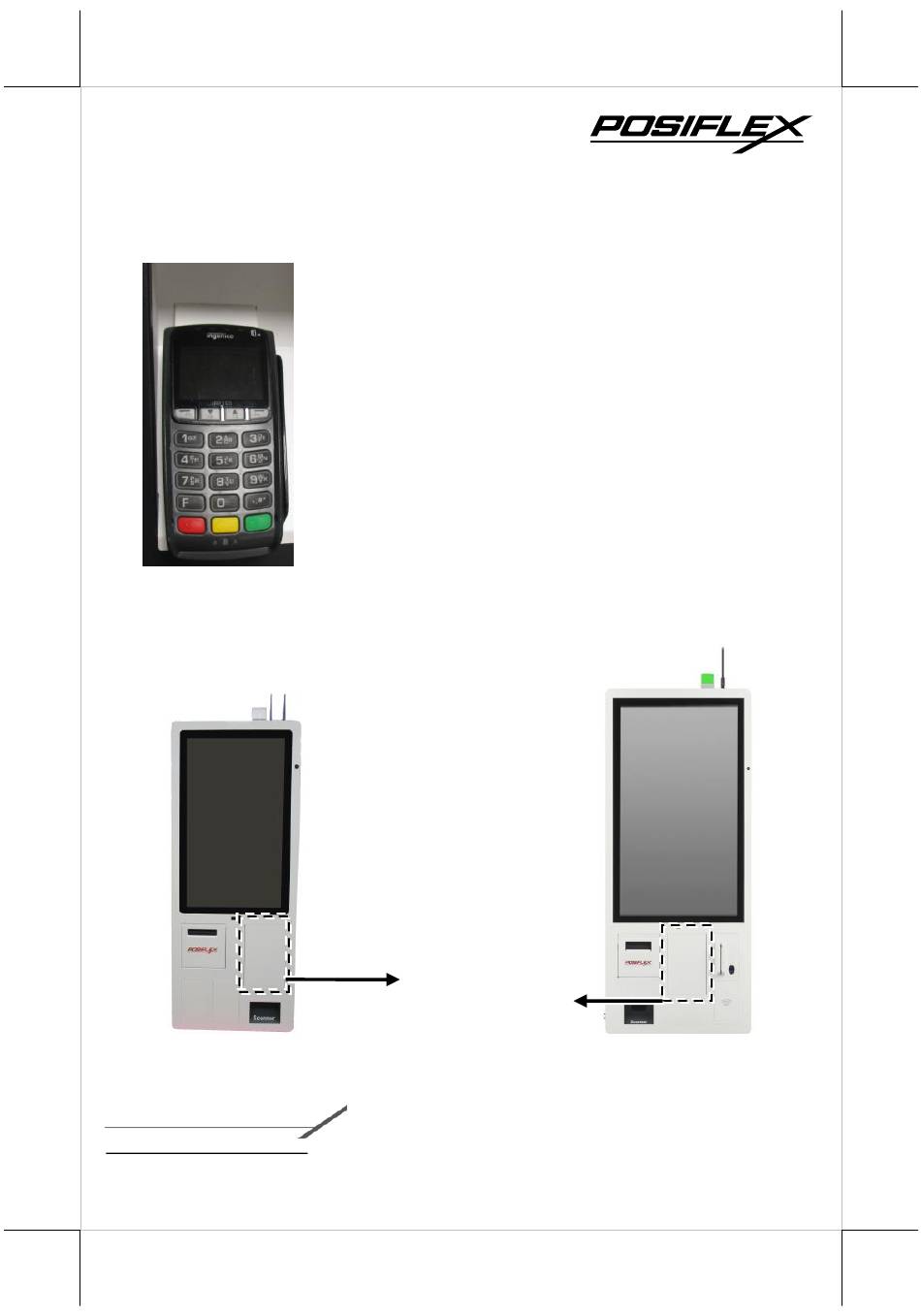

EB-100JK
Mounting Bracket for Ingenico
Payment Device IPP-350
Quick Installation Guide
Ingenico Payment Device IPP-350
EB-100JK Ver. A0
http://www.posiflex.com
Package Contents
EB-100JK Mounting Bracket Kit........(x 1)
Custom Bracket for
Ingenico Payment
Device IPP-350
1
Advertisement
Related Manuals for POSIFLEX EB-100JK
Summary of Contents for POSIFLEX EB-100JK
- Page 1 EB-100JK Mounting Bracket for Ingenico Payment Device IPP-350 Quick Installation Guide Package Contents EB-100JK Mounting Bracket Kit….….(x 1) Ingenico Payment Device IPP-350 Custom Bracket for Ingenico Payment Device IPP-350 EB-100JK Ver. A0 http://www.posiflex.com...
- Page 2 IPP3XX Cradle from Ingenico Before installing, make sure you have IPP3XX cradle. And this is not made or sold by Posiflex. Please contact your contact window in Ingenico for this IPP3XX cradle. The ordering information as shown in below table.
- Page 3 EB-100JK Mounting Bracket for Ingenico Payment Device IPP-350 Open the touch monitor. For JK-24xx/27xx, unlock the touch monitor. Then you can open the touch monitor through the direction shown in the picture below.
- Page 4 For JK-32xx, unlock the touch monitor. Hold two sides of the touch monitor and then gently pull it out towards you slowly. Once the crank rod stopper drops down slowly begin to release the touch monitor until it stops. Crank Rod Stopper for Touch Monitor...
- Page 5 There are four hex nuts in old version of JK series touch monitor. Remove the middle ivory metal plate of the belly system unit of the kiosk by removing four nuts. Then install the card reader holder on the empty space of the belly system unit of the kiosk with four nuts.
- Page 6 Fix the IPP3XX cradle to the kiosk with four M4 screws.
- Page 7 Make the IPP-350 payment device cable pass through the hole like the below picture.
- Page 8 There is a hook on the bottom side of IPP3XX cradle. Install the Ingenico payment device to the IPP3XX cradle from bottom side. Make sure the small hook of the IPP3XX cradle insert into the slot of the IPP-350 and then push the IPP-350 to the end.
- Page 9 Fix the cable cover bracket back with one hex nut. Sort the payment device cable like the below picture.
