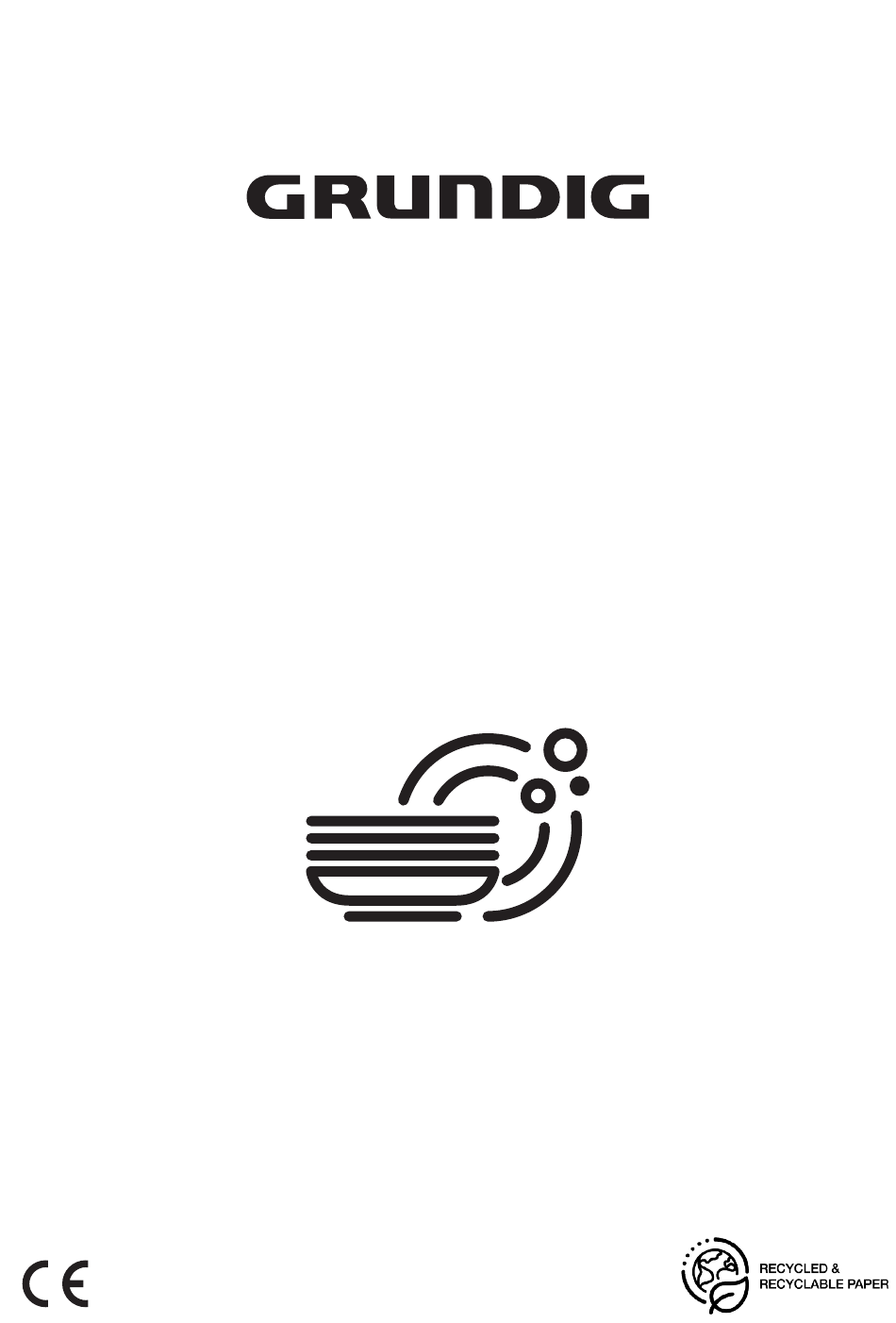

- Page 1 Dishwasher User’s Manual GSV4P865 15 7944 0100_AB_GRUNDIG_45E9_EN/ 06-09-24.(17:34)
- Page 2 Dear Customer, Please read this user manual before using the product. Thank you for choosing this Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents before using the product.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS 6 OPERATING THE PRODUCT 25 Intended Use ............. 4 Programme Selection / Programme Cancel key 25 Safety for children, vulnerable persons and pets 4 Function Keys ..........25 Electrical safety ..........5 Preparing the machine ........25 Transportation Safety ........ -
Page 4: Safety Instructions
This product must be used to Safety Instructions do the domestic type dishes • This section contains safety only. instructions that will help get This product is not suitable for protected against risks of commercial or collective use. personal injury or property damage. -
Page 5: Electrical Safety
door should not be left in the excessively, pinched or come open position since this could into contact with any heat present a tripping hazard. sources. Cleaning and user Do not use extension cords, maintenance works should multi-sockets or adapters to not be performed by children operate the product. -
Page 6: Installation Safety
NOTICE Make sure that cause hot steam to escape. the hoses do not get kinked, Otherwise, it might cause squeezed or crushed while serious burns and injuries, placing the product into its and harm your furniture. location after installation or Do not install the product cleaning procedures. -
Page 7: Operational Safety
NOTICE You must use the When you pull the upper and new hose set provided with the lower baskets out completely, product. Do not reuse the old the door of the product will hose set. Do not make extension bear all the weight of the at the hoses. -
Page 8: Maintenance And Cleaning Safety
Environmental Do not climb on the product. Instructions • Unplug the product and close the tap if you are not going to Compliance with WEEE use it for a long time. Directive and Disposing of the Waste Product Maintenance and cleaning This product complies with safety EU WEEE Directive (2012/19/... -
Page 9: Package Information
Package information Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. -
Page 10: Technical Specifications
Technical specifications Note for test institutions: Data required for performance tests shall be provided upon request. Requests can Maximum washing capacity (check the be e-mailed to the following address: energy label and Programme data and dishwasher@standardloading.com average consumption values table given Do not forget to provide the code, stock on Quick Guide. -
Page 11: Your Dishwasher
Your dishwasher Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Cutlery basket (depends on model) 5. Door 6. Rating Label 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid 12. Upper basket rail 13. -
Page 12: Installation
Installation Appropriate installation location In the area where this product is Read “Safety Instructions” section first! installed, there must not be a lockable, Installation procedures must always be sliding or hinged door that will restrict performed by the manufacturer, authorised full opening of the product’s door. -
Page 13: Waterprotect
WaterProtect+ Permitted water temperature: up to 25°C ( 60°C for products equipped (depends on the model) with WaterProtect+; please refer to The WaterProtect+ system protects against WaterProtect+ section ) water leaks that may occur at the hose The dishwasher may not be connected to inlet.Water contact with the valve box of open warm water devices or flow-through the system must be avoided to prevent... -
Page 14: Connection To The Drain
Connection to the drain Electrical connection Water discharge hose can directly be Connect the product to a grounded connected to the drain hole or sink’s outlet protected by a fuse complying drainage. See the installation manual with the values in the "Technical supplied with your machine for detailed specifications"... -
Page 15: Preparation
Preparation Read “Quick Guide - Adjusting Water Softening System” before this section! The regeneration of the water softening Read “Safety Instructions” section first! system can be done in all programmes Tips for energy saving during drying step. When regeneration occurs, duration, energy and water Following information will help you use the consumption of the programme increase. -
Page 16: Adding Salt
Adding salt Water softening system needs to be regenerated in order for the product to operate with the same performance continuously. Dishwasher salt is used for this purpose. Use only special softening salts produced particularly for the dishwashers in your machine. You can put about 2 kg of softening It is recommended to use granule- or salt into the salt reservoir. - Page 17 further questions. using detergent tablets. Do not put solvents into the detergent dispenser. There is the risk of explosion! Put the detergent into the detergent dispenser just before operating the machine as illustrated below. 1. Push the latch to right to open the detergent dispenser lid (A).
-
Page 18: Tablet Detergents
Tablet detergents 3. After the empty washing cycle, review the user manual and readjust the water In addition to the conventional tablet hardness level so as to suit the water detergents, there are also commercially supply. available detergent tablets that show water 4. -
Page 19: Items Not Suitable For Washing In The Dishwasher
Decorative prints of chinaware as well 3. Slightly press the point (B) of the as aluminium and silver items may get reservoir lid to close it. discoloured or tarnished after washing in the dishwasher just as it happens in handwashing as well. Some delicate glass types and crystals may become dull in time. - Page 20 Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket 20/EN...
-
Page 21: Cutlery Basket
Cutlery basket Cutlery basket (depends on model) (depends on model) Cutlery basket is designed to wash your Cutlery basket is designed to wash your dishes such as knife, fork, spoon, etc. in an dishes such as knife, fork, spoon, etc. in an efficient manner. -
Page 22: Collapsible Lower Basket Tines
Collapsible lower basket tines Collapsible upper basket wires (depends on model) (depends on model) Foldable tines (A) located at the lower You can use collapsible wires when you basket of the machine are designed for need a larger space for your dishes in the an easier placement of large pieces such upper basket of your machine. -
Page 23: Adjusting The Height Of The Upper Basket
Adjusting the height of the upper 1. To raise the basket, hold the wires of the basket and pull the basket upwards basket with both hands while the basket is at (depends on model) the lowermost position (B) Upper basket height adjustment 2. -
Page 24: Ceiling Cutlery Basket
Ceiling cutlery basket (depends on model) Ceiling cutlery basket is designed to wash your cutlery items such as forks, spoons and etc. by placing them between the bars on the basket. When the central tray is in the lower position, you can load long/high items such as coffee cups, ladles, etc. -
Page 25: Operating The Product
Operating the product Read “Safety Instructions” section first! 3. Make sure that the upper and lower impellers rotate freely. Read “Quick Quide” before this section. 4. Put adequate amount of detergent into ‘‘Press start before closing’’’ the detergent dispenser. On/Off Key Programme selection When you press the On/Off key, the 1. - Page 26 Some auxiliary functions cannot be TurboWash Do not attempt to remove used together. If the function you the impeller part! selected is not active even though it Express function (F) appears in the "Program information (depends on the model) and average consumption values By enabling the selected program to wash table", you can activate it after turning at higher pressure and temperature, it...
-
Page 27: Submenu Functions
Functions in Settings Menu The tablet detergent function can (depends on the model) increase the program time up to 35 Under the settings menu of your product, minutes. there are some additional functions that Doormatic Function (K) depend on the model. (Depends on the Model) To access these functions, press and hold “Doormatic”... -
Page 28: Scheduling The Washing Time
Scheduling the washing time IonFresh Function Off/On Time Delay If an economical electricity tariff is applied in your region, you can use the Time Delay function to wash your dishes during appropriate hours. You can delay the start of the selected programme until 24 hours. -
Page 29: Starting The Programme
the pieces being washed depending You can select and start a new on the step the programme you have programme following the cancellation cancelled was in. of Time Delay function. Time Delay function cannot be set after Salt indicator ( the programme starts. -
Page 30: End Of Programme
End of programme Overflowing warning When the programme you have If the machine intakes too much water or selected comes to an end, an audible there is leakage at any of the components warning signal will warn you to turn off then the machine will detect this and E:01 your machine. -
Page 31: Maintenance And Cleaning
Maintenance and Cleaning the filters cleaning Clean the filters at least once a week in order for the machine operates efficiently. Read “Safety Instructions” section first! Check if food residues are left on the filters. Unplug the product and turn off the If there are food residues on filters, take tap before attempting any cleaning them out and clean well under running... -
Page 32: Cleaning The Hose Filter
Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. Check the filter and the hose regularly and clean them if necessary. -
Page 33: Cleaning The Impellers
Cleaning the impellers Clean the impellers at least once a week in order for the machine operates efficiently. Lower impeller Do not try to rotate the impeller by Check if the holes on the lower impeller (1) holding its ends. Trying to rotate the are clogged. -
Page 34: Troubleshooting
Troubleshooting Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 35 • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine. • Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed.
- Page 36 There is a different odour in the machine A new machine has a peculiar odour. It will fade out after a couple of washes. • Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.
- Page 37 • Opening of the detergent dispenser lid is prevented during washing. >>> Place the dishes in a way that will not prevent the detergent dispenser lid from opening and the water going into the machine from impellers. • Detergent is stored under unsuitable conditions. >>> If you are using powder detergent, do not store the detergent package in humid places.
- Page 38 Foam forms in the machine. • Dishes are washed with hand-wash detergent by hand but not rinsed before placing them into the machine. >>> Hand-wash detergents do not contain antifoam. There is no need to hand-wash the dishes before placing them into the machine. Removing the coarse soil on the dishes under tap water, with a tissue paper or fork will be sufficient.
