Service instruction
EN
SAVE VSR 200/B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAVE VSR 200/B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SystemAir SAVE VSR 200/B

Summary of Contents for SystemAir SAVE VSR 200/B

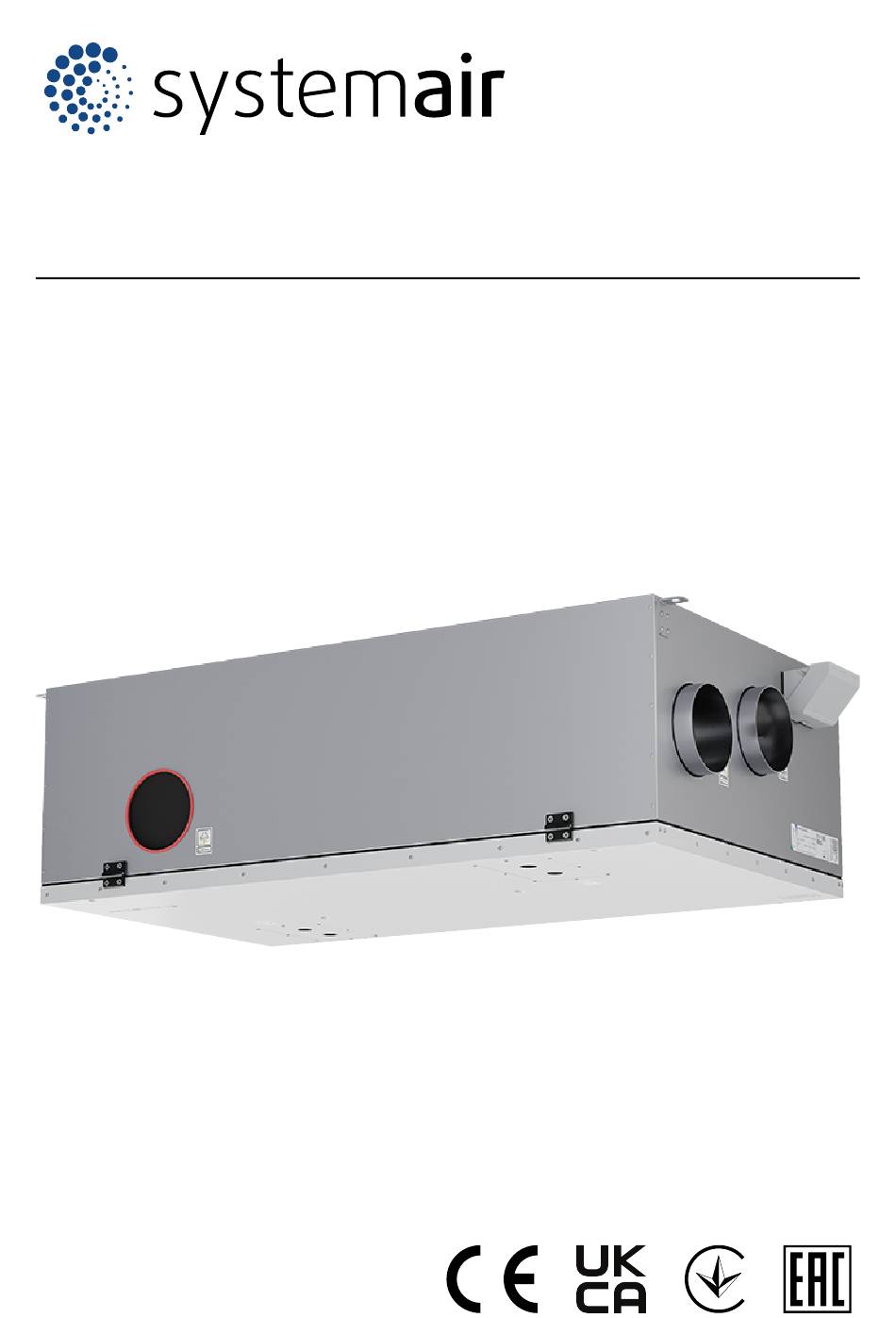

  • Page 1 Service instruction SAVE VSR 200/B...

  • Page 2: Table Of Contents

    Table of contents 1 Introduction ............1 To install the electric heater in the supply air duct (extra zone)..........20 Document description........1 To install the water heater in the supply air Product overview......... 1 duct ............20 Name plate ..........2 To install the water cooler in the supply air Product liability..........

  • Page 3: Introduction

    The proce- dures must be done by approved personnel only. Document description Speak to Systemair for more information on how to install ac- cessories that are not mentioned in this document. Product overview...

  • Page 4: Name Plate

    • Approved protective helmet • Approved hearing protection • Approved protective gloves • Approved protective shoes • Approved work clothing Use a mobile device to scan the scannable code and go to the Systemair documentation portal for more documentation and document translations.

  • Page 5: Maintenance

    The serial number is found on the name plate. • For more information about spare parts, contact technical support. • Always use spare parts from Systemair. • To find spare parts, refer to the scannable code on the name plate. To open the door...

  • Page 6: To Replace The Rotor Belt

    Disconnect the product from the power supply. Disconnect the product from the power supply. Open the door. Open the door (refer to 3.1 To open the door). Use a strip of adhesive tape to attach one end of the bro- Disconnect the heat exchanger cable and the rotation ken belt to the rotor.

  • Page 7: To Replace The Temperature Sensor

    Put the new belt on the rotor. To replace the temperature sensor 17 ± 1 mm Assemble the heat exchanger. Pull the belt on the belt pulley. Install the heat exchanger. 10. Connect the heat exchanger cable and the rotation sensor.

  • Page 8: To Reset The Manual Overheat Protection

    Operation The product can be controlled in different ways: • SAVE CONNECT – wireless control with a mobile application. • SAVE LIGHT – control panel with basic features. • SAVE TOUCH – control panel with advanced features. Overview of functions Description Icon Function...

  • Page 9: Digital Signal Functions

    Priority of functions and Supply air fan is set to High level modes and extract air fan is set to Low level to increase air pressure with- in the apartment for better dust User modes and functions such as Away, Crowded, Fire- collection through central vacuum place, Holiday, Refresh are always interrupted by manual Vacuum...

  • Page 10: Indoor Air Quality

    Values from sensors and rotation speed of fans. • Input Status 4.7.1 Overview of the alarms Note: If alarm continues, speak to Systemair technical support. Alarm Explanation Solution A class alarms: Frost protection Water temperature in the heating coil is Make sure the water circulation pump is too low.
  • Page 11 • Wait until the bypass damper func- tionality test is complete. If the alarm occurs again after approxi- mately 3 minutes, speak to Systemair technical support. Rotor motor feedback Heat exchanger rotor motor malfunction.
  • Page 12 Alarm Explanation Solution Rotor guard Heat exchanger rotor has stopped. Replace the rotor belt if it is broken. No rotation guard signal for 180 Make sure that the cable connectors seconds. are plugged firmly. Make sure that there is a gap of 5-10 mm between the rotation sensor and the magnet.

  • Page 13: Overview Of System Preferences Menu

    Alarm Explanation Solution External RH sensor Shows the external relative humidity Make sure that the sensor is connected sensor malfunction. correctly and the cable is not damaged. If the sensor is wireless, do a check of a RS485 gateway and sensor status in the control panel.

  • Page 14: Components

    Range: 0–10 V / 2–10 V / 10–0 V / 10–2 V. Configure the fault indication output Sum Alarm Heater Outdoor-/Ex- Configure the air damper control haust Air signal. • Choose the heater type. Each selection unlocks additional Damper configuration options. Default setting is based on the prod- uct type.

  • Page 15: Control Regulation

    Activation temperature (-30 °C to 0 °C). Activation temperature (15 °C to 30 °C). – Pre-cooler settings: Set-point (10 °C to 30 °C). 4.9.4 Control Regulation • Configure SATC Split for cooler (0–20%), heat exchanger (25–60%) and heater (65–100%) output settings. Range: Configure the product control.
  • Page 16 Setting Manual Manual Flow Pressure External Set K factor for – – SAF K-Factor – – supply air fan and range: 0–1000 extract air fan. De- EAF K-Factor fault settings are range: 0–1000 based on the product type. Outdoor The purpose of this function is to protect the prodcut from freezing by creating an unbalanced airflow at Compensation extreme winter temperatures, or to limit supply of cold/hot outdoor air at extreme winter/summer condi- tions with balanced ventilation.

  • Page 17: User Modes

    Set outdoor high temperature limit, default setting is 23 °C. 4.9.8 Unit Backups Set outdoor low temperature limit is 12 °C. Restore factory settings or import and export Set start and stop time. configuration file. • Go to Factory settings menu to restore factory configura- 4.9.5 User Modes tion and parameters.

  • Page 18: Accessory Overview

    Accessory overview Schematic layout of possible accessories RMK-T PTC-S PH-S CO 2 PH-E AI DO WH/WC (cooling) (heating) RL RL AO DO • ELH — electric heater 5.1.1 Explanation of symbols • PH — outdoor air duct heater • 1 — Outdoor air •...

  • Page 19: To Install The Indoor Air Quality Sensors

    • RMK-T — relay kit with a transformer List of accessories: • U — outdoor damper • Systemair-1 CO2 duct sensor — 14906 • V — exhaust damper • Systemair-E CO2 sensor — 14904 • GHT — ground heat exchanger •...

  • Page 20: To Install The Electric Heater In The Outdoor Air Duct

    To install the electric heater in To install the PTC heater in the outdoor air duct the outdoor air duct List of accessories: List of accessories: • CB 125-0,6 230V/1 Duct heater — 5289, CB 125-1,2 • PTC – DN125 – 0.8kW — 215132 230V/1 Duct heater —...

  • Page 21: To Install The Electric Heater In The Supply Air Duct

    To install the electric heater in To install the PTC heater in the supply air duct the supply air duct List of accessories: List of accessories: • CB 125-0,6 230V/1 Duct heater — 5289, CB 125-1,2 • PTC – DN125 – 0.8kW — 215132 230V/1 Duct heater —...

  • Page 22: To Install The Electric Heater In The Supply Air Duct (Extra Zone)

    To install the electric heater in To install the water heater in the supply air duct (extra the supply air duct zone) List of accessories: • VBC 125-2 Water heating battery — 5457 List of accessories: • CB 125-0,6 230V/1 Duct heater — 5289, CB 125-1,2 •...

  • Page 23: To Install The Water Cooler In The Supply Air Duct

    To configure: To install the water cooler in Go to Service menu. the supply air duct Enter the password (default 1111). List of accessories: Set the heater type Components � Heater � Water. • CWK 125-3-2,5 Duct cooler,circ — 30021 Set the actuator voltage type.

  • Page 24: To Install The Ground Heat Exchanger

    5.10 To install the ground heat 5.11 To install the heat pump with exchanger change-over valve The ground heat exchanger can be connected to an outdoor List of accessories: air duct to increase the air temperature and prevent ice on •...

  • Page 25: To Install Dampers

    To configure: 5.12 To install dampers Go to Service menu. Install dampers in the exhaust and outdoor ducts to prevent Enter the password (default 1111). cold draughts and condensation when the product is set to off. Set the heater type Components � Heater � Change- over.

  • Page 26: To Connect Cooker Hood For Save /B Product Series

    SAVE /B product series have a separate duct to extract air through a cooker hood. List of accessories: • Recommended cooker hoods can be found at www.systemair.com in the list of accessories of your product. CB UI1 CB 24 V...

  • Page 27: To Connect More Than One Control Panel

    To install: 5.15 To connect more than one Connect the control panels to the diverting plug. control panel The maximum cable length is 50 meters. Up to 10 control panels can be connected to one product. Connect the diverting plug to the connection box. •...

  • Page 28: To Connect The Presence Detector

    5.17 To connect the presence detector Any required function can be started by a presence detector when there is a movement in the room. List of accessories: • Presence detector/IR24 — 6995 To configure: Go to Service menu. Enter the password (default 1111). Go to Input �...
  • Page 30 © Copyright Systemair AB All rights reserved Systemair AB reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Document in original language...
