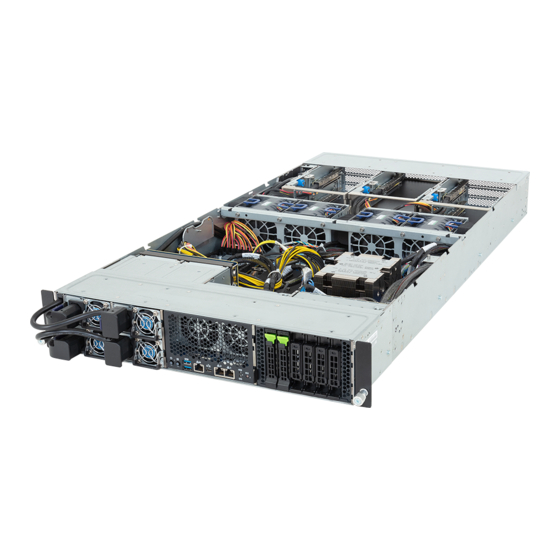

Page 1 XV23-ZU0-AAJ1 NVIDIA MGX™ Server - AMD EPYC™ 9005/9004 - 2U UP 4 x PCIe Gen5 GPUs User Manual Rev. 1.0...
Page 2 For GIGABYTE distributors and resellers, additional sales & marketing materials are available from our reseller portal: http://reseller.b2b.gigabyte.com For further technical assistance, please contact your GIGABYTE representative or visit https://esupport.gigabyte.com/ to create a new support ticket For any general sales or marketing enquiries, you may also message GIGABYTE server directly by email: server.grp@gigabyte.com...
Page 3 Conventions The following conventions are used in this user's guide: NOTE! Gives bits and pieces of additional information related to the current topic. CAUTION! Gives precautionary measures to avoid possible hardware or software problems. WARNING! Alerts you to any damage that might result from doing or not doing specific actions.
Page 4: Server Warnings And Cautions
Server Warnings and Cautions Before installing a server, be sure that you understand the following warnings and cautions. WARNING! To reduce the risk of electric shock or damage to the equipment: • Do not disable the power cord grounding plug. The grounding plug is an important safety feature. •...
Page 5: Electrostatic Discharge (Esd)
Electrostatic Discharge (ESD) CAUTION! ESD CAN DAMAGE DRIVES, BOARDS, AND OTHER PARTS. WE RECOMMEND THAT YOU PERFORM ALL PROCEDURES AT AN ESD WORKSTATION. IF ONE IS NOT AVAILABLE, PROVIDE SOME ESD PROTECTION BY WEARING AN ANTI-STATIC WRIST STRAP AT- TACHED TO CHASSIS GROUND -- ANY UNPAINTED METAL SURFACE -- ON YOUR SERVER WHEN HANDLING PARTS.
Page 6 CAUTION! Risk of explosion if battery is replaced incorrectly or with an incorrect type. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. CAUTION “Warning Stability hazard” “The slide-rail may tip over causing serious personal injury”...
Page 7: Table Of Contents
Table of Contents Chapter 1 Hardware Installation ...................10 Installation Precautions .................. 10 Product Specifications ..................11 System Block Diagram ................... 15 Chapter 2 System Appearance ..................16 Front View ...................... 16 Rear View ....................... 17 Front Panel LEDs and Buttons ............... 18 Power Supply Unit (PSU) LED ...............
Page 8 Chapter 5 BIOS Setup ....................47 The Main Menu ....................49 Advanced Menu ..................... 52 5-2-1 CPU Configuration ....................53 5-2-2 NVMe Configuration ....................54 5-2-3 SATA Configuration....................55 5-2-4 USB Configuration ....................56 5-2-5 PCI Subsystem Settings ..................58 5-2-6 AST2600 Super IO Configuration ................60 5-2-7 Serial Port Console Redirection ................62 5-2-8...
Page 9 5-6-2 View FRU Information ..................149 5-6-3 BMC VLAN Configuration ..................150 5-6-4 BMC Network Configuration .................151 5-6-5 IPv6 BMC Network Configuration .................152 Security Menu ....................153 5-7-1 Secure Boot ......................154 Boot Menu ....................156 Save & Exit Menu ..................158 5-10 BIOS Recovery .................... 159 5-11 BIOS POST Beep code (AMI standard) ............
Page 10: Chapter 1 Hardware Installation
Chapter 1 Hardware Installation Installation Precautions The motherboard/system contain numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the service guide and follow these procedures: • Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer.
Page 11: Product Specifications
Product Specifications NOTE: We reserve the right to make any changes to the product specifications and product-related information without prior notice. Dimensions Š 438mm (W) x 87mm (H) x 900mm (D) (WxHxD, mm) Š Motherboard MZU3-MG0 Š AMD EPYC™ 9005 Series Processors Š...
Page 12 RAID Require RAID add-in cards Š Expansion Slot PCIe Cable x 7: Š - 4 x FHFL x16 (Gen5 x16), for GPUs - 2 x FHFL x16 (Gen5 x16), for NICs - 1 x FHFL x16 (Gen5 x16), for DPUs The system supports 4 x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, [Note] arranged as two 2-GPU sets, each with a 2-way NVLink bridge.
Page 13 - Max 2000W/ 220-240V~ or 240Vdc Input +12.2V/ 164A +12.2Vsb/ 3A System ASPEED AST2600 Baseboard Management Controller Š ® Management GIGABYTE Management Console web interface Š Dashboard Š HTML5 KVM Š Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Š Sensor Reading History Data Š...
Page 14 Operating Operating temperature: 10°C to 35°C Š Operating humidity: 8-80% (non-condensing) Properties Š Non-operating temperature: -40°C to 60°C Š Non-operating humidity: 20%-95% (non-condensing) Š Hardware Installation - 14 -...
Page 15: System Block Diagram
System Block Diagram PCIe5.0 x8 (NVMe x2) PCIe5.0 x16 FHFL PCIe5.0 x16 slot for GPU 2-bay 2.5" Gen5 NVMe PCIe5.0 x16 FHFL PCIe5.0 x16 slot for GPU 12-Channel DDR5 RDIMM, 12 x DIMMss PCIe5.0 x16 FHFL PCIe5.0 x16 slot for GPU PCIe5.0 x16 FHFL PCIe5.0 x16 slot for GPU AMD EPYC™...
Page 16: Chapter 2 System Appearance
Chapter 2 System Appearance Front View PSU4 PSU2 PSU3 PSU1 2 3 4 Description Front Panel LEDs and Buttons USB 3.2 Gen1 Port x 2 Management LAN Port Mini-DP Data LAN Port x2 NOTE! Drives with green latches support NVMe. •...
Page 17: Rear View
Rear View SLOT 8 SLOT 9 SLOT 7 PSU2 (DPU) (GPU) (GPU) PSU4 SLOT 5 (NIC) SLOT 1 SLOT 3 PSU1 (GPU) (GPU) SLOT 2 (NIC) PSU3 Description PCIe Card Slot System Appearance - 17 -...
Page 18: Front Panel Leds And Buttons
Front Panel LEDs and Buttons No. Name Color Status Description Reset Button Press the button to reset the system. Green System is powered on Power button with LED System is not powered on or in ACPI S5 state (power off) Press the button to activate system identification ID Button (Note)
Page 19: Power Supply Unit (Psu) Led
Power Supply Unit (PSU) LED NOTE! The power supply may be vary based on the system configuration. PSU LED State Description No AC power to all power supplies 1Hz Green Blinking AC present / only standby on / Cold redundant mode 2Hz Green Blinking Power supply firmware updating mode AC cord unplugged or AC power lost;...
Page 20: Hard Disk Drive Leds
Hard Disk Drive LEDs HDD Present RAID SKU LED #1 Locate Rebuilding HDD Access Fault (No Access) Green ON(*1) BLINK (*2) Disk LED (LED on Back Panel) Amber No RAID configuration Removed HDD Green ON(*1) (via PCH, HBA) Slot (LED on Amber Back Panel) Green...
Page 21: Chapter 3 System Hardware Installation
Chapter 3 System Hardware Installation Pre-installation Instructions Computer components and electronic circuit boards can be damaged by electrostatic discharge. Working on computers that are still connected to a power supply can be extremely dangerous. Follow the simple guidelines below to avoid damage to your computer or injury to yourself. •...
Page 22: Removing Chassis Cover
Removing Chassis Cover Before you remove or install the system cover • Make sure the system is not turned on or connected to AC power. Follow these instructions to remove the chassis cover: Remove the screw securing the chassis cover. Push button to unlock the handle.
Page 23: Installing The Pcie / Gpu Card
Installing the PCIe / GPU Card • Voltages can be present within the server whenever an AC power source is connected. This voltage is present even when the main power switch is in the off position. Ensure that the system is powered-down and all power sources have been disconnected from the server prior to installing a PCI card.
Page 24 Follow these instructions for the PCI Expansion / GPU card: Remove the riser bracket from the system. Loosen and remove the screw securing the slot covers on the riser bracket then detach the slot covers. Unscrew the screws securing the PCIe Card/GPU in the Slot. Alignthe PCIe card/GPU with the riser guide slot, and gently push it in the direction of the arrow until it securely connects to the PCIe card connector.
Page 25: Installing The Hard Disk Drive
Installing the Hard Disk Drive Read the following guidelines before you begin to install the HDD: • Take note of the drive tray orientation before sliding it out. • The tray will not fit back into the bay if inserted incorrectly. •...
Page 26: Installing The Cpu And Heat Sink
Installing the CPU and Heat Sink Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
Page 27: Removing And Installing The Heat Sink
Removing and installing the Heat Sink Read the following guidelines before you begin to remove/install the heat sink: • Always turn off the computer and unplug the power cord from the power outlet before installing the heat sink to prevent hardware damage. •...
Page 28: Installing The Memory
Installing the Memory Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.
Page 29: Processor And Memory Module Matrix Table
3-6-2 Installing the Memory Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. Be sure to install DDR5 DIMMs on this motherboard. Follow these instructions to install the Memory: Insert the DIMM memory module vertically into the DIMM slot, and push it down.
Page 30: Dimm Population Table
3-6-4 DIMM Population Table EPYC Memory Speed based on DIMM Population (One DIMM per Channel) DDR5 Frequency MT/s DIMM DIMM 6400 MT/s 5600 MT/s 4800 MT/s Population Type Grade DIMM Grade DIMM Grade DIMM 1R (1 rank) 6400 5600 4800 RDIMM 2R (2 ranks) 6400...
Page 31: Installing The M.2 Device And Heat Sink
Installing the M.2 Device and Heat Sink CAUTION The position of the stand-off screw will depend on the size of the M.2 device. Refer to the size of the M.2 device and change the position of the stand-off screw accordingly. WARNING Please ensure a heatsink is attached to any M.2 device installed into the system.
Page 32: Replacing The Fan Assembly
Replacing the Fan Assembly • Voltages can be present within the server whenever an AC power source is connected. This voltage is present even when the main power switch is in the off position. Ensure that the system is powered-down and all power sources have been disconnected from the server prior to replacing a system fan.
Page 33: Removing Ans Installing The Fan Duct
Removing ans Installing the Fan Duct Follow these instructions to remove/install the fan duct: Lift up to remove the fan duct To install the fan duct, align the fan duct with the guiding groove. Push down the fan duct into chassis until its firmly seat.
Page 34: Replacing The Power Supply
3-10 Replacing the Power Supply CAUTION! • In order to reduce the risk of injury from electric shock, disconnect AC power from the power supply before removing the power supply from the system Follow these instructions to replace the power supply: Flip and then grasp the power supply handle.
Page 35: Cable Routing
3-11 Cable Routing 3-11-1 Motherboard to HDD BPB / PDB / IO Board / M2 Card Power Board (CPDXC81) HDD Backplane Board Front IO Card Power Distribu on Board (CPDXCL0) CPU0 M2 Card System Hardware Installation - 35 -...
Page 36 Signal Cable Power Cable Motherboard M2A_DASDSS Motherboard P12V_STBY M2 Card M2A_DASDSS PDB - CPDXCL0 P_12V_STBY Motherboard M2 Card JLFP_CONNECT RIS_PWR_S1 Front IO Card JLFP1 PDB - CPDXCL0 RIS_PWR_S6 Power Board Front IO Card PWR_FP SMB_CONN - CPDXC81 Motherboard FPIO_PWR1 PDB - CPDXCL0 SMB_CONN Motherboard GPU TRAY 3...
Page 37: Motherboard To Pcie Slot / Pdb
3-11-2 Motherboard to PCIe Slot / PDB P2 P1 Power Distribu on Board (CPDXCL0) SLOT 7 SLOT 9 SLOT 8 (GPU) (GPU) (DPU) SLOT 1 SLOT 3 SLOT 5 (NIC) (GPU) (GPU) SLOT 2 (NIC) System Hardware Installation - 37 -...
Page 38 Power Cable for PCIe Slot MCIO Cable for PCIe Slot P1(U2_P0_P0A) PCIe Slot Slot 1 Motherboard P2(U2_P0_P0B) PDB - CPDXCL0 RIS_PWR_S1 PCIe Slot PCIe Slot Slot 1 Slot 7 P1(U2_P0_P1A) PDB - CPDXCL0 RIS_PWR_S4 Motherboard P2(U2_P0_P1B) PCIe Slot Slot 2 PCIe Slot PDB - CPDXCL0 Slot 7...
Page 39: Chapter 4 Motherboard Components
Chapter 4 Motherboard Components Motherboard Components DIMM_P0_L0 DIMM_P0_K0 DIMM_P0_J0 DIMM_P0_I0 DIMM_P0_H0 DIMM_P0_G0 CPU0 DIMM_P0_A0 DIMM_P0_B0 DIMM_P0_C0 DIMM_P0_D0 DIMM_P0_E0 DIMM_P0_F0 Motherboard Components - 39 -...
Page 40 Code Description U2_P0_G2B MCIO Connector Slot5 (PCIe Gen5)_PB U2_P0_G2A MCIO Connector Slot5 (PCIe Gen5)_PA U2_P0_G3A MCIO Connector Slot8 (PCIe Gen5)_PA U2_P0_G3B MCIO Connector Slot8 (PCIe Gen5)_PB HDD Backplane Board Connector JLFP_CONNECT Front IO Board LED Connector U2_P0_G0A MCIO Connector Slot2 (PCIe Gen5)_PB U2_P0_G0B MCIO Connector Slot2 (PCIe Gen5)_PA U2_P0_G1B...
Page 41: Jumper Setting
Jumper Setting CDCX101 (Top ) Readiness LED (Bottom ) CSC403 DIMM_P0_L0 DIMM_P0_K0 DIMM_P0_J0 DIMM_P0_I0 DIMM_P0_H0 DIMM_P0_G0 CPU0 DIMM_P0_A0 DIMM_P0_B0 DIMM_P0_C0 DIMM_P0_D0 DIMM_P0_E0 DIMM_P0_F0 Default Enable Clear CMOS 1 2 3 CLR_CMOS Motherboard Components - 41 -...
Page 42: Backplane Board Storage Connector
Backplane Board Storage Connector 4-3-1 CBPX060 Item Description MCIO Connector (U_2_0) MCIO Connector (U_2_1) MCIO Connector (U_2_2) MCIO Connector (U_2_3) MCIO Connector (U_2_4) MCIO Connector (U_2_5) Motherboard Components - 42 -...
Page 43: Chapter 5 Bios Setup
Chapter 5 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters, loading the operating system etc. The BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.
Page 44  Main This setup page includes all the items of the standard compatible BIOS.  Advanced This setup page includes all the items of AMI BIOS special enhanced features. (ex: Auto detect fan and temperature status, automatically configure hard disk parameters.) ...
Page 45: The Main Menu
The Main Menu Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter other sub-menu. Main Menu Help The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.
Page 46 Parameter Description BIOS Information Project Name Displays the project name information. Project Version Displays version number of the BIOS setup utility. Build Date and Time Displays the date and time when the BIOS setup utility was created. BMC Information (Note1) BMC Firmware Version (Note1) Displays BMC firmware version information.
Page 47 Parameter Description Onboard LAN Information LAN1/LAN2 MAC Address Displays LAN MAC address information. (Note) System Date Sets the date following the weekday-month-day-year format. System Time Sets the system time following the hour-minute-second format. (Note) The number of LAN ports listed will depend on the motherboard / system model. BIOS Setup - 47 -...
Page 48: Advanced Menu
Advanced Menu The Advanced Menu displays submenu options for configuring the function of various hardware components. Select a submenu item, then press <Enter> to access the related submenu screen. BIOS Setup - 48 -...
Page 49: Cpu Configuration
5-2-1 CPU Configuration Description Parameter Enable/Disable the CPU Virtualization. SVM Mode Options available: Disabled, Enabled. Default setting is Enabled. Press [Enter] to view the memory information related to CPU 0. CPU 0 Information BIOS Setup - 49 -...
Page 50: Nvme Configuration
5-2-2 NVMe Configuration Parameter Description NVMe Configuration Displays the NVMe devices connected to the system. Enable/Disable NVMe LED Control. NVMe LED Control Options available: System Default, Disabled, Enabled. Default setting is System Default. BIOS Setup - 50 -...
Page 51: Sata Configuration
5-2-3 SATA Configuration Parameter Description SATA Configuration No onboard SATA in this system. BIOS Setup - 51 -...
Page 52: Usb Configuration
5-2-4 USB Configuration BIOS Setup - 52 -...
Page 53 Parameter Description USB Configuration USB Module Version Displays the USB module version information. USB Controllers Displays the supported USB controllers. USB Devices: Displays the USB devices connected to the system. Enable/Disable the Legacy USB support function. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep Legacy USB Support USB devices available only for EFI applications.
Page 54: Pci Subsystem Settings
5-2-5 PCI Subsystem Settings BIOS Setup - 54 -...
Page 55 Description Parameter Displays the PCI Bus Driver version information. PCI Bus Driver Version Change the PCIe lanes. SLOT#_Lanes Configuration Options available: Disabled, Auto, x16, x8x8, x8x4x4, x4x4x8, (Note1) x4x4x4x4. Default setting is Auto. When enabled, this setting will initialize the device expansion ROM SLOT #_I/O ROM for the related PCI-E slot.
Page 56: Ast2600 Super Io Configuration
5-2-6 AST2600 Super IO Configuration Description Parameter AST2600 Super IO Configuration Super IO Chip Displays the super IO chip information Serial Port 1 Press [Enter] for configuration of advanced items. Configuration BIOS Setup - 56 -...
Page 57: Serial Port 1 Configuration
5-2-6-1 Serial Port 1 Configuration Description Parameter Serial Port 1 Configuration Enable/Disable the Serial Port (COM). When set to Enabled allows you to configure the Serial port 1 settings. When set to Disabled, displays no Serial Port (Note) configuration for the serial port. Options available: Disabled, Enabled.
Page 58: Serial Port Console Redirection
5-2-7 Serial Port Console Redirection Parameter Description Select whether to enable console redirection for specified device. Console COM1/Serial Over LAN redirection enables the users to manage the system from a remote Console Redirection (Note) location. Options available: Enabled, Disabled. Default setting is Disabled. Press [Enter] to configure advanced items.
Page 59 Parameter Description Parity Š – A parity bit can be sent with the data bits to detect some transmission errors. – Even: parity bit is 0 if the num of 1's in the data bits is even. – Odd: parity bit is 0 if num of 1's in the data bits is odd. –...
Page 60 Parameter Description Legacy Console Redirection Press [Enter] to configure advanced items. Redirection COM Port Š – Selects a COM port for Legacy serial redirection. – Default setting is COM1/SOL. Resolution Š – Selects the number of rows and columns used in Console Redirection for legacy OS support.
Page 61 Parameter Description Flow Control Š – Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a 'stop' signal can Serial Port for Out-of-Band be sent to stop the data flow. Once the buffers are empty, a 'start' EMS Console Redirection signal can be sent to re-start the flow.
Page 62: Network Stack Configuration
5-2-8 Network Stack Configuration Parameter Description Enable/Disable the UEFI network stack. Network Stack Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable the Ipv4 PXE feature. Ipv4 PXE Support (Note) Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable the Ipv4 HTTP feature. Ipv4 HTTP Support (Note) Options available: Enabled, Disabled.
Page 63: Post Report Configuration
5-2-9 Post Report Configuration Parameter Description Post Report Configuration Error Message Report Enable/Disable the POST Error Message support. Post Error Message Options available: Enabled, Disabled. Default setting is Enabled. Halt On Options available: No Error, All Error. Default setting is No Error. BIOS Setup - 63 -...
Page 64: Trusted Computing
5-2-10 Trusted Computing Parameter Description Configuration Enable/Disable BIOS support for security device. OS will not show security device. TCG EFI protocol and INT1A interface will not be Security Device Support available. Options available: Disabled, Enabled. Default setting is Enabled. Select Enable to activate TPM support feature. SPI TPM Support Options available: Disabled, Enabled.
Page 65: Psp Firmware Versions
5-2-11 PSP Firmware Versions The PSP Firmware Versions page displays the basic PSP firmware version information. Items on this window are non-configurable. BIOS Setup - 65 -...
Page 66: S5 Rtc Wake Settings
5-2-12 S5 RTC Wake Settings Parameter Description Enable/Disable system wake on alarm event. Options available: Disabled, Fixed Time, Dynamic Time. When Fixed Time Wake System from S5 is selected, system will wake on the hr::min::sec specified. Default setting is Disabled. BIOS Setup - 66 -...
Page 67: Graphic Output Configuration
5-2-13 Graphic Output Configuration Parameter Description Selects output device type. Output Device Type Options available: First loaded Device, Onboard Device, External Device, Specific Device. Default setting is Onboard Device. BIOS Setup - 67 -...
Page 68 5-2-14 KMS Policy Configuration BIOS Setup - 68 -...
Page 69 Parameter Description Options available: KMS with KMIP, Disabled. KMS Option Default setting is KMS with KMIP. KMS KMIP Server Retry Count Define KMS KMIP Server Retry Count. BIOS Setup - 69 -...
Page 70: Amd Mem Configuration Status
5-2-15 AMD Mem Configuration Status Description Parameter Press [Enter] to view the memory configuration status related to CPU 0. CPU 0 BIOS Setup - 70 -...
Page 71: Tls Auth Configuration
5-2-16 Tls Auth Configuration Parameter Description Press [Enter] for configuration of advanced items. Enroll Cert Š – Press [Enter] to enroll a certificate • Enroll Cert Using File • Cert GUID Server CA Configuration Input digit character in 1111111-2222-3333-4444-1234567890ab format. –...
Page 72: Ram Disk Configuration
5-2-17 RAM Disk Configuration Parameter Description Specifies the type of memory to use from available memory pool in system to create a disk. Disk Memory Type Options available: Boot Service Data, Reserved. Default setting is Boot Service Data. Creates a raw RAM disk. Size (Hex) Š...
Page 73: Iscsi Configuration
5-2-18 iSCSI Configuration Parameter Description Press [Enter] and name iSCSI Initiator. Only IQN format is accepted. iSCSI Initiator Name Range: from 4 to 223 Add an Attempt Press [Enter] to configure advanced items. Delete Attempts Press [Enter] to configure advanced items. Change Attempt Order Press [Enter] to configure advanced items.
Page 74 5-2-19 Intel(R) Ethernet Controller X550 BIOS Setup - 74 -...
Page 75 Description Parameter Press [Enter] to configure advanced items. Link Speed Š – Allows for automatic link speed adjustment. – Options available: Auto Negotiated, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, 100 Mbps Full. Wake On LAN NIC Configuration Š...
Page 76: Vlan Configuration
5-2-20 VLAN Configuration BIOS Setup - 76 -...
Page 77 Parameter Description Press [Enter] to configure advanced items. Create new VLAN Š VLAN ID Š – Sets VLAN ID for a new VLAN or an existing VLAN. – Press the <+> / <-> keys to increase or decrease the desired values. –...
Page 78: Mac Ipv4 Network Configuration
5-2-21 MAC IPv4 Network Configuration Parameter Description Indicates whether network address is configured successfully or not. Configured Options available: Enabled, Disabled. Default setting is Disabled. Options available: Enabled, Disabled. Default setting is Disabled. Enable DHCP (Note) Local IP Address Press [Enter] to configure local IP address. (Note) Press [Enter] to configure local NetMask.
Page 79: Mac Ipv6 Network Configuration
5-2-22 MAC IPv6 Network Configuration Parameter Description Press [Enter] to configure advanced items. Displays the MAC Address information. Š Interface ID Š – The 64 bit alternative interface ID for the device. The string is colon separated. e.g. ff:dd:88:66:cc:1:2:3. DAD Transmit Count Š...
Page 80: Amd Cbs Menu
AMD CBS Menu AMD CBS menu displays submenu options for configuring the CPU-related information that the BIOS automatically sets. Select a submenu item, then press [Enter] to access the related submenu screen. BIOS Setup - 80 -...
Page 81 5-3-1 CPU Common Options BIOS Setup - 81 -...
Page 82: Cpu Common Options
Parameter Description CPU Common Options Performance Press [Enter] for configuration of advanced items. Allow REP-MOV/STOS to use non-caching streaming stores for large sizes. REP-MOV/STOS Streaming Options available: Disabled, Enabled. Default setting is Enabled. Prefetcher settings Press [Enter] for configuration of advanced items. Core Watchdog Press [Enter] for configuration of advanced items.
Page 83 Parameter Description Enhanced REP MOVSB/ Options available: Disabled, Enabled, Auto. Default setting is Auto. STOSB (ERSM) Enable/Disable the log Transparent errors function. Log Transparent Errors Options available: Auto, Disabled, Enabled. Default setting is Auto. Enable/Disable AVX512. AVX512 Options available: Disabled, Enabled, Auto. Default setting is Auto. Options available: Disabled, Enabled, Auto.
Page 84 5-3-1-1 Performance Parameter Description Performance Options available: Normal Operation, Customized. Default setting is Normal OC Mode (Note) Operation. Allows you to accept or decline enabling Custom Core Pstates. When Custom Core Pstates accepted, you can disable or customize core pstates. Allows you to accept or decline enabling CCDs, processor cores and threads.
Page 85 5-3-1-2 Prefetcher Settings Parameter Description Prefetcher settings Enable/Disable L1 Stream HW Prefetcher. L1 Stream HW Prefetcher Options available: Disable, Enable, Auto. Default setting is Auto. Use memory access history of individual instructions to fetch additional lines when each access is a constant distance from the previous. L1 Stride Prefetcher Enable/Disable L1 Stride Prefetcher.
Page 86 5-3-1-3 Core Watchdog Parameter Description Core Watchdog Enable/Disable CPU Watchdog Timer. Core Watchdog Timer Enable (Note) Options available: Disabled, Enabled, Auto. Default setting is Auto. Select the CPU Watchdog Timer interval. Options available: 2.681s, 1.340s, 669.41ms, 334.05ms, 166.37ms, Core Watchdog Timer Interval 82.53ms, 40.61ms, 20.970ms, 10.484ms,5.241ms, 2.620ms, 1.309ms, 654.08us, 326.4us, 162.56us, 80.64us, 39.68us, Auto.
Page 87: Df Common Options
5-3-2 DF Common Options Parameter Description DF Common Options Memory Addressing Press [Enter] for configuration of advanced items. ACPI Press [Enter] for configuration of advanced items. Link Press [Enter] for configuration of advanced items. SDCI Press [Enter] for configuration of advanced items. Probe Filter Press [Enter] for configuration of advanced items.
Page 88 Parameter Description Options available: Auto, 1 Segment, 2 Segments, 4 Segment. Number of PCI Segments Default setting is Auto. Options available: Disabled, Enabled, Auto. Default setting is Auto. CCM Throttler Clean Victim FTI Cmd Options available: Disabled, Enabled, Auto. Default setting is Auto. Balancing Options available: Disabled, Enabled, Auto.
Page 89: Memory Addressing
5-3-2-1 Memory Addressing Parameter Description Memory Addressing Specifies the number of desired NUMA nodes per socket. Options available: NPS0, NPS1, NPS2, NPS4, Auto. Default setting is Auto. NUMA nodes per socket NOTE! • Available options may vary by system configuration. •...
Page 90 5-3-2-2 ACPI Parameter Description ACPI ACPI SRAT L3 Cache As Enable/Disable report each L3 cache as a NUMA Domain to the OS. Options available: Disabled, Enabled, Auto. Default setting is Auto. NUMA Domain Determines how the SLIT distances are declared. ACPI SLIT Distance Control Options available: Manual, Auto.
Page 91 5-3-2-3 SDCI Parameter Description Options available: Disabled, Enabled, Auto. Default setting is Auto. SDCI (Note) DisRmSteer Options available: Disabled, Enabled, Auto. Default setting is Auto. (Note) Advanced items prompt when this item is defined. BIOS Setup - 91 -...
Page 92: Probe Filter
5-3-2-4 Probe Filter Parameter Description Specifies whether multiple memory/CXL channels will share probe filter Organization storage. Options available: Auto, Dedicated, Shared. Default setting is Dedicated. Controls PDR settings that may impact performance by workload and/or Periodic Directory Rinse (PDR) processor. Tuning Options available: Memory-Sensitive, Cache-Bound, Neutral, Adaptive, Auto.
Page 93: Umc Common Options
5-3-3 UMC Common Options Parameter Description UMC Common Options DDR Addressing Options Press [Enter] for configuration of advanced items. DDR Controller Configuration Press [Enter] for configuration of advanced items. DDR MBIST Options Press [Enter] for configuration of advanced items. DDR RAS Press [Enter] for configuration of advanced items.
Page 94 5-3-3-1 DDR Addressing Options Parameter Description DDR Addressing Options Interleaves memory blocks across the DRAM chip selects for node 0. Chipselect Interleaving Options available: Disabled, Auto. Default setting is Auto. Enable or disable bank addressing hashing. Address Hash Bank Options available: Disabled, Enabled, Auto. Default setting is Auto. Enable or disable CS addressing hashing.
Page 95 5-3-3-2 DDR Controller Configuration Parameter Description DDR Controller Configuration DDR Power Options Press [Enter] for configuration of advanced items. Memory Channel Disable Press [Enter] for configuration of advanced items. Refresh Management (RFM) Press [Enter] for configuration of advanced items. Memory Context Restore Options available: Disabled, Enabled, Auto.
Page 96 5-3-3-2-1 DDR Power Options Parameter Description DDR Power Options Enable or disable DDR power down mode. Power Down Enable Options available: Disabled, Enabled, Auto. Default setting is Auto. Sub Urgent Refresh Lower Specifies the stored refresh limit required to enter sub-urgent refresh mode. Bound Urgent Refresh Limit Specifies the stored refresh limit required to enter urgent refresh mode.
Page 97 5-3-3-2-2 Memory Channel Disable Parameter Description Memory Channel Disable Memory Channel Disable Float Options available: Disabled, Enabled. Default setting is Disabled. Power Good Memory Channel Disable Bitmask CPU0/1 Channel_# Press [Enter] to enable/disable specific memory channel. BIOS Setup - 97 -...
Page 98 5-3-3-2-3 Refresh Management (RFM) Parameter Description Refresh Management (RFM) Configure Refresh Management. Refresh Management Options available: Enable, Disable, Auto, Force Enable. Options available: Auto, Disable, ARFM Level A, ARFM Level B, ARFM Adaptive Refresh Management Level C. RAA Initial Management Override Rolling Accumulated ACT Initial Management Threshold.
Page 99 5-3-3-3 DDR MBIST Options Parameter Description DDR MBIST Options Enable/Disable the Memory MBIST function. MBIST Enable Options available: Disabled, Enabled, Auto. Default setting is Auto. Selects MBIST Test Mode. Interface Mode: Tests Single and Multiple CS transactions and Basic Connectivity. MBIST Test Mode (Note1) Data Eye Mode: Measures Voltage vs.
Page 100 Parameter Description Enable/Disable memory healing BIST. Memory Healing BIST Options available: Disabled, PMU Mem BIST, Self-Healing Mem BIST, PMU and Self-Healing Mem BIST. Default setting is Disabled. DDR Healing BIST Execution Options available: One Time, Every boot. Mode (Note2) Default setting is One Time. For DRAM errors found in the BIOS memory BIST select the repair type.
Page 101 5-3-3-3-1 Data Eye Parameter Description Data Eye Pattern Select Options available: PRBS, SSO, Both. Default setting is PRBS. Pattern Length Determines the pattern length. The possible options are N=3..12. This item helps read the aggressors channels. Aggressor Channel Options available: One Sub-Channel, Half Channels, All Channels. Default setting is All Channels.
Page 102 Parameter Description Target Static Lane Select This item is configurable when Target Static Lane Control is set to Upper 32 bits Enabled. Target Static Lane Select This item is configurable when Target Static Lane Control is set to Lower 32 bits Enabled.
Page 103 5-3-3-4 DDR RAS Parameter Description DDR RAS Enable/Disable the Data Poisoning function. Data Poisoning Options available: Auto, Enabled, Disabled. . DRAM Boot Time Post Package Enable/Disable the DRAM Boot Time Post Package Repair function. Options available: Enable, Disable. Repair DRAM Runtime Post Package Enable/Disable the DRAM Runtime Post Package Repair function.
Page 104 Parameter Description DRAM ECC Enable Š – Enable/Disable DRAM ECC. When set to Auto, it will set ECC to enable. – Options available: Auto, Enabled, Disabled. DRAM UECC Retry Š – Enable/Disable DRAM UECC Retry. – Options available: Auto, Enabled, Disabled. ECC Configuration Max DRAM UECC Error Replay (Note)
Page 105 Enable SMI when DRAM corrected Error Counter count exceeds the DRAM Corrected Error Counter threshold value. Interrupt Enable Options available: False, True. DRAM Corrected Counter Leak Program Rate value for DRAM Corrected Error Counter function. Default setting is 7. Rate DRAM Corrected Error Counter Program starting value for DRAM Corrected Error Counter function.
Page 106 5-3-3-5 DDR Bus Configuration Parameter Description DDR Bus Configuration Press [Enter] to configure advanced items. RTT_NOM_WR P-State 0 Š – Default setting is Auto. RTT_NOM_RD P-State 0 Š – Default setting is Auto. P-State 0 Dram ODT RTT_WR P-State 0 Š...
Page 107 Parameter Description Select the ODT impedance for all DBYTE IOs. Options available: Auto, High Impedance, 480 ohm, 240 ohm, 160 ohm, Processor ODT Pull Up 120 ohm, 96 ohm, 80 ohm, 68.6 ohm, 60 ohm, 53.3 ohm,48 ohm, 43.6 ohm, impedance 40 ohm, 36.9 ohm, 34.3 ohm, 32 ohm, 30 ohm, 28.2 ohm, 26.7 ohm, 25.3 ohm.
Page 108 5-3-3-6 Enforce POR Parameter Description Enforce POR Decline/Accept to configure the advanced items. Accept Active Memory Timing Active memory Timing Settings. Settings Options available:Auto, Enabled. (Note) Specifies the memory target speed in MT/s. Memory Target Speed Options available: Auto, DDR3600, DDR4000, DDR4400, DDR4800, DDR5200, DDR5600, DDR6000, DDR6400.
Page 109 5-3-3-7 DDR Training Options Parameter Description DDR Training Options Specify PDA enumeration mode. DRAM PDA Enumerate ID Options available: Auto, Toggling PDA enumeration mode, Legacy PDA Programming Mode enumeration mode. Press [Enter] to configure advanced items. Periodic Training Mode Š Periodic Phase Training –...
Page 110 5-3-3-8 DDR Security Parameter Description Security Enable/Disable Transparent SME. TSME Options available: Auto, Enabled, Disabled. Options available: AES-128, AES-256. Enable/Disable Data Scrambling. Data Scramble Options available: Enabled, Disabled. SME-MK Options available: Enabled, Disabled. BIOS Setup - 110 -...
Page 111 5-3-3-9 DDR PMIC Configuration Parameter Description DDR PMIC Configuration Enables support for PMIC Error Reporting. PMIC Error Reporting Options available: Auto., False, True. PMIC Operation Mode Options available: Secure Mode, Programmable Mode. Options available: Always., Never, Once. PMIC Fault Recovery Default setting is 1100.
Page 112 5-3-3-10 DDR Thermal Throttling Parameter Description DDR Thermal Throttling ODTS Thermal Throttle Control This item is Non-configurable. Default setting is Enabled. ODTS CMD Throttle Threshold Options available: Auto, > 85'C, > 90'C, > 95'C. TSOD Thermal Throttle Control Options available: Enabled, Disabled. BIOS Setup - 112 -...
Page 113: Nbio Common Options
5-3-4 NBIO Common Options Parameter Description NBIO Common Options SMU Common Options Press [Enter] for configuration of advanced items. NBIO RAS Common Press [Enter] for configuration of advanced items. Options PCIE Press [Enter] for configuration of advanced items. nBif Common Options Press [Enter] for configuration of advanced items.
Page 114 5-3-4-1 SMU Common Options Parameter Description SMU Common Options Power Policy Quick Options available: Standard, Best Performance, Energy Efficient. Setting TDP Control Options available: Manual, Auto. PPT Control Options available: Manual, Auto. Selects use the fused Determinism or set customized Determinism. Determinism Control Options available: Manual, Auto.
Page 115 Parameter Description Enable/Disable the CPPC feature. CPPC Options available: Disabled, Enabled, Auto. Enable/Disable the HSMP support. HSMP Support Options available: Disabled, Enabled, Auto. SVI3 SVC Speed Control Options available: Auto, Manual. 3D V-Cache Options available: Auto, Disable, 1 stack, 2 stack, 4 stack. Options available: Auto, Disable, Enable.
Page 116 5-3-4-2 NBIO RAS Common Options Parameter Description NBIO RAS Common Options NBIO RAS Control Options available: Disabled, MCA, Auto. The value may be used to mask SyncFlood caused by NBIO RAS options. NBIO SyncFlood Generation Options available: Enabled, Disabled, Auto. The value may be used to enable SyncFlood reporting to APML.
Page 117 5-3-4-3 PCIE BIOS Setup - 117 -...
Page 118 Parameter Description PCIE Data Object Exchange Options available: Auto, Disabled, Enabled. Options available: Auto, Disabled, Enabled. RTM Margining Support Multi Auto Speed Change On Options available: Auto, Disabled, Enabled. Last Rate Multi Upstram Auto Speed Options available: Auto, Disabled, Enabled. Change When enabled, allows the PCIe RP to enter Polling.Compliance state.
Page 119 Parameter Description Options available: Maximum speed, Gen1, Gen2, Gen3, Gen4, Gen5, PCIE Link Speed Capability Auto. Options available: Maximum Speed, GEN1, GEN2, GEN3, GEN4, GEN5, PCIE Target Link Speed Auto. ASPM Control Options available: Disable, L0s, L1, Auto. Options available: Enable, Disable, Auto. MCTP Enable Options available: Enable, Disable, Auto.
Page 120 5-3-4-4 nBif Common Options Parameter Description RCC_DEV0 ACS Rcc_Dev0 Š – Options available: Auto, Disabled, Enabled. AER Rcc_Dev0 Š – Options available: Auto, Disabled, Enabled. DlfEnableStrap1 Š – Options available: Auto, Disabled, Enabled. Phy16GTStrap1 Š – Options available: Auto, Disabled, Enabled. MarginEnStrap1 Š...
Page 121 Parameter Description P2PEgressStrap5 Š – Options available: Auto, Disabled, Enabled. Default setting is Auto. DirectTranslatedStrap5 Š – Options available: Auto, Disabled, Enabled. Default setting is Auto. SsidEnStrap5 Š – Options available: Auto, Disabled, Enabled. Default setting is Auto. PriEnPageReq Š –...
Page 122 5-3-4-5 IOMMU/Security Parameter Description Enable/Disable the SEV-SNP support. SEV-SNP Support Options available: Disable, Enable. Default setting is Disable. Enable/Disable DRTM Memory reservation. DRTM Memory Reservation Options available: Disabled, Enabled, Auto. Default setting is Auto. Enable/Disable DRTM ACPI virtual device. DRTM Virtual Device Support Options available: Disabled, Enabled, Auto.
Page 123 5-3-4-6 Enable Port Bifurcation Parameter Description Options available: Disable, Enable, Auto. Default setting is Auto. Enable Bifurcation (Note) Socket0 Slot Info Override Socket1 Slot Info Override (Note) Advanced items prompt when this item is defined. BIOS Setup - 123 -...
Page 124 5-3-4-7 Link EQ Preset Options Parameter Description Press [Enter] to configure advanced items. GEN3/4/5 Preset Search Mask Configuration Š – Options available: Custom, Auto. Default setting is Auto. BIOS Setup - 124 -...
Page 125: Fch Common Options
5-3-5 FCH Common Options Parameter Description FCH Common Options I3C/I2C Configuration Options Press [Enter] for configuration of advanced items. SATA Configuration Options Press [Enter] for configuration of advanced items. USB Configuration Options Press [Enter] for configuration of advanced items. AC Power Loss Options Press [Enter] for configuration of advanced items.
Page 126 5-3-5-1 I3C/I2C Configuration Options Parameter Description I3C/I2C Configuration Options Options available: Both Disabled, I3C Enabled, I2C Enabled, Auto. I3C/I2C 0/1/2/3 Enable Default setting is Auto. I2C 4/5 Enable Options available: Disabled, Enabled, Auto. Default setting is Auto. Release SPD Host Control Options available: Disabled, Enabled.
Page 127 5-3-5-2 SATA Configuration Options Parameter Description SATA Configuration Options Enable/Disable OnChip SATA controller. SATA Enable Options available: Disabled, Enabled, Auto. Default setting is Auto. SATA RAS Support Options available: Disabled, Enabled, Auto. Default setting is Auto. SATA Staggered Spin-up Options available: Disabled, Enabled, Auto. Default setting is Auto. SATA Disabled AHCI Prefetch Options available: Disabled, Enabled, Auto.
Page 128 5-3-5-3 USB Configuration Options Parameter Description USB Configuration Options Enable/Disable USB controller. XHCI Controller0/1 enable Options available: Enabled, Disabled, Auto. Default setting is Auto. Press [Enter] for configuration of advanced items. MCM USB enable XHCI2/ XHCI3 enable (Socket1) Š – Options available: Enabled, Disabled, Auto. Default setting is Auto. BIOS Setup - 128 -...
Page 129 5-3-5-4 AC Power Loss Options Parameter Description AC Power Loss Options Selects the AC Loss Control Method. AC Loss Control Options available: Power Off, Power On, Last State. Default setting is Last State. Enable/Disable set FCH power failed shadow by AC Loss control policy in Set FCH Power failed ABL.
Page 130 5-3-5-5 Uart Configuration Options Parameter Description Uart Configuration Options Uart 0/1/2/3 Enable Options available: Disabled, Enabled, Auto. Default setting is Auto. BIOS Setup - 130 -...
Page 131 5-3-5-6 FCH RAS Options Parameter Description FCH RAS Options Enable/Disable the ALink RAS Support. ALink RAS Support Options available: Disabled, Enabled, Auto. Default setting is Auto. Enables AB to forward downstream sync-flood message to system Reset After Sync-Flood controller. Options available: Enable, Disable, Auto. Default setting is Auto. BIOS Setup - 131 -...
Page 132: Miscellaneous Options
5-3-5-7 Miscellaneous Options Parameter Description Miscellaneous Options Select whether or not Enable the Spread Spectrum Feature. FCH Spread Spectrum Options available: Disabled, Enabled, Auto. Default setting is Disabled. Enable/Disable Boot Timer. Boot Timer Enable Options available: Disabled, Enabled, Auto. Default setting is Auto. BIOS Setup - 132 -...
Page 133: Soc Miscellaneous Control
5-3-6 SOC Miscellaneous Control Parameter Description SOC Miscellaneous Control Enable/Disable the ConsoleOut function for ABL. ABL Console Out Control (Note) Options available: Disable, Enable, Auto. Default setting is Auto. ABL Console Out Serial Options available: eSPI, SOC UART0, SOC UART1, Auto. Default setting is Auto.
Page 134 Parameter Description Options available: False, True. Default setting is False. PSP error injection support Press [Enter] for configuration of advanced items. FAR enforcement state Š – Default setting is Enabled. Firmware Anti-rollback (FAR) SPL value in the CPU Fuse Š SPL value in the SPL table Š...
Page 135: Cxl Common Options
5-3-7 CXL Common Options Parameter Description CXL Common Options Options available: Auto, Enabled, Disabled. Default setting is Auto. CXL Control Options available: Normalized address, System address, Auto. CXL Physical Addressing Default setting is Auto. CXL Memory Attribute Options available: Auto, Enabled, Disabled. Default setting is Auto. Options available: Enabled, Disabled.
Page 136 Parameter Description Press [Enter] for configuration of advanced items. CXL Protocol Error Reporting Š – Options available: Disabled, SameAsPcieAer, ForceAerFwFirstIfCxlPresent. Default setting is SameAsPcieAer. CXL Component Error Reporting Š – Options available: Allow OS First, Force FW-First, CXL RAS Debug FW-First. Default setting is Debug FW-First. CXL Root Port Isolation Š...
Page 137: Amd Pbs Menu
AMD PBS Menu AMD PBS Option menu displays submenu options for configuring the function of AMD PBS. Select a submenu item, then press [Enter] to access the related submenu screen. Parameter Description Protect some AMD specific variables for CBS, PBS and AOD. If locked, some AMD Variable Protection utilities like RU that modify variable at runtime do not work.
Page 138: Ras
5-4-1 RAS Parameter Description Enable/Disable the Periodic SMI for polling [MCA Threshold] error. RAS Periodic SMI Control Options available: Disabled, Enabled. Default setting is Enabled. SMI Threshold Configures the SMI Threshold value. SMI Scale Configures the SMI Scale value. Defines the unit of time scale. SMI Scale Unit Options available: millisecond, second, minute.
Page 139 Parameter Description PCIe Root Port UnCorr Err Initialize the PCIe AER Uncorrected Error Mask register of Root Port. Mask Reg PCIe Root Port UnCorr Err Initialize the PCIe AER Uncorrected Error Severity register of Root Port. Sev Reg PCIe Device Corr Err Mask Initialize the PCIe AER Corrected Error Mask register of PCIe device.
Page 140: Chipset Setup Menu
Chipset Setup Menu Chipset Setup menu displays submenu options for configuring the function of the North Bridge. Select a submenu item, then press <Enter> to access the related submenu screen. Parameter Description PCIe Compliance Mode Options available: Off, On. Default setting is Off. Enable/Disable program all VR on MB.
Page 141: North Bridge
5-5-1 North Bridge Parameter Description North Bridge Configuration Memory Information Total Memory Displays the total memory information. CPU 0 Information Press [Enter] to view information related to CPU 0. BIOS Setup - 141 -...
Page 142: Server Management Menu
Server Management Menu Parameter Description Enable/Disable FRB-2 timer (POST timer). FRB-2 Timer Default setting is Enabled. FRB-2 Timer Configures the FRB-2 Timer timeout. timeout Default setting is 20 minutes. Configures the FRB-2 Timer policy. FRB-2 Timer Policy Options available: Do Nothing, Reset, Power Down, Power Cycle. Default setting is Do Nothing.
Page 143 Parameter Description System Event Log Press [Enter] to configure advanced items. View FRU Press [Enter] to view the FRU information. Information BMC VLAN Press [Enter] to configure advanced items. configuration BMC network Press [Enter] to configure advanced items. configuration IPv6 BMC Network Press [Enter] to configure advanced items.
Page 144: System Event Log
5-6-1 System Event Log Parameter Description Enabling / Disabling Options Change this item to enable or disable all features of System Event SEL Components Logging during boot. Options available: Disabled, Enabled. Default setting is Enabled. Erasing Settings Choose options for erasing SEL. Erase SEL Options available: No/Yes, On next reset/Yes, On every reset.
Page 145: View Fru Information
5-6-2 View FRU Information The FRU page is a simple display page for basic system ID information, as well as System product information. Items on this window are non-configurable. (Note) The model name will vary depends on the product you purchased BIOS Setup - 145 -...
Page 146: Bmc Vlan Configuration
5-6-3 BMC VLAN Configuration Description Parameter BMC VLAN Configuration Select to configure BMC VLAN ID. The valid range is from 0 to 4094. When BMC VLAN ID set to 0, BMC VLAN ID will be disabled. Select to configure BMC VLAN Priority. The valid range is from 0 to 7. BMC VLAN Priority When BMC VLAN ID is set to 0, BMC VLAN Priority will not be selected.
Page 147: Bmc Network Configuration
5-6-4 BMC Network Configuration Parameter Description Select NCSI and Dedicated Options available: Do Nothing, Mode1 (Dedicated), Mode2 (NCSI), Mode3 (Failover). Default setting is Do Nothing. Lan Channel 1 Selects to configure LAN channel parameters statically or dynamically (DHCP). Do nothing option will not modify any BMC network parameters Configuration Address source during BIOS phase.
Page 148: Ipv6 Bmc Network Configuration
5-6-5 IPv6 BMC Network Configuration Parameter Description IPv6 BMC network configuration IPv6 BMC Lan Channel 1 Enable/Disable IPv6 BMC LAN channel function. When this item is disabled, the system will not modify any BMC network during BIOS IPv6 BMC Lan Option phase.
Page 149: Security Menu
Security Menu The Security menu allows you to safeguard and protect the system from unauthorized use by setting up access passwords. There are two types of passwords that you can set: • Administrator Password Entering this password will allow the user to access and change all settings in the Setup Utility. •...
Page 150: Secure Boot
5-7-1 Secure Boot The Secure Boot feature is applicable if supported by your Operating System. If your Operating System is not supporting Secure Boot, the system will hang when starting the Operating System. Parameter Description System Mode Displays if the system is in User mode or Setup mode. Enable/ Disable the Secure Boot function.
Page 151 Parameter Description Press [Enter] to configure advanced items. Please note that this item is configurable when Secure Boot Mode is set to Custom. Factory Key Provision Š – Allows to provision factory default Secure Boot keys when system is in Setup Mode.
Page 152: Boot Menu
Boot Menu The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error message if the legacy drive(s) specified is not bootable. Parameter Description Boot Configuration Number of seconds to wait for setup activation key. 65535 (0xFFFF) Setup Prompt Timeout means indefinite waiting.
Page 153 Parameter Description FIXED BOOT ORDER Priorities Press [Enter] to configure the boot priority. By default, the server searches for boot devices in the following sequence: Hard drive. Boot Option #1 / #2 / #3 / #4 / #5 CD-COM/DVD drive. USB device.
Page 154: Save & Exit Menu
Save & Exit Menu The Save & Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit options then press <Enter>. Parameter Description Save Options Saves changes made and closes the BIOS setup. Save Changes and Exit Options available: Yes, No.
Page 155: Bios Recovery
5-10 BIOS Recovery The system has an embedded recovery technique. In the event that the BIOS becomes corrupt the boot block can be used to restore the BIOS to a working state. To restore your BIOS, please follow the instructions listed below: Recovery Instruction: 1.
Page 156: Bios Post Beep Code (Ami Standard)
5-11 BIOS POST Beep code (AMI standard) 5-11-1 PEI Beep Codes # of Beeps Description Memory not Installed. Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available...
Page 157: Nvlink Bridge Removal
Appendix I NVLink Bridge Removal Before you remove the NVLink Bridge. • Make sure the system is not turned on or connected to AC power. WARNING! • NVLink Bridges must be removed via the NVLink Bridge Removal Tool to avoid damage to the NVLink interface.

Gigabyte XV23-ZU0-AAJ1 User Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gigabyte XV23-ZU0-AAJ1

Summary of Contents for Gigabyte XV23-ZU0-AAJ1

Table of Contents
