Gigabyte R284-S90-AAJ1 User Manual

Rack server - intel xeon 6 processors 2u dp 12+2-bay gen5 nvme/sata/sas-4
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

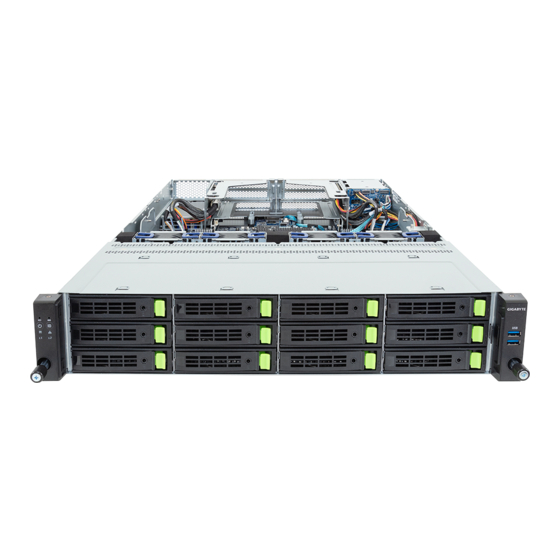

R284-S90-AAJ1
Rack Server - Intel® Xeon® 6 Processors
2U DP 12+2-Bay Gen5 NVMe/SATA/SAS-4
User Manual
Rev. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R284-S90-AAJ1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gigabyte R284-S90-AAJ1

Summary of Contents for Gigabyte R284-S90-AAJ1

  • Page 1 R284-S90-AAJ1 Rack Server - Intel® Xeon® 6 Processors 2U DP 12+2-Bay Gen5 NVMe/SATA/SAS-4 User Manual Rev. 1.0...
  • Page 2 For GIGABYTE distributors and resellers, additional sales & marketing materials are available from our reseller portal: http://reseller.b2b.gigabyte.com For further technical assistance, please contact your GIGABYTE representative or visit https://esupport.gigabyte.com/ to create a new support ticket For any general sales or marketing enquiries, you may also message GIGABYTE server directly by email: server.grp@gigabyte.com...
  • Page 3 Conventions The following conventions are used in this user's guide: NOTE! Pieces of additional information related to the current topic. CAUTION! Precautionary measures to avoid possible hardware or software problems. WARNING! Alerts to any damage that might result from doing or not doing specific actions.
  • Page 4 Server Warnings and Cautions Before installing a server, be sure that you understand the following warnings and cautions. WARNING! To reduce the risk of electric shock or damage to the equipment: • Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
  • Page 5 Electrostatic Discharge (ESD) CAUTION! ESD CAN DAMAGE DRIVES, BOARDS, AND OTHER PARTS. WE RECOMMEND THAT YOU PERFORM ALL PROCEDURES AT AN ESD WORKSTATION. IF ONE IS NOT AVAILABLE, PROVIDE SOME ESD PROTECTION BY WEARING AN ANTI-STATIC WRIST STRAP AT- TACHED TO CHASSIS GROUND -- ANY UNPAINTED METAL SURFACE -- ON YOUR SERVER WHEN HANDLING PARTS.
  • Page 6 Installing or removing jumpers: A jumper is a small plastic encased conductor that slips over two jumper pins. Some jumpers have a small tab on top that can be gripped with fin-gertips or with a pair of fine needle nosed pliers. If the jumpers do not have such a tab, take care when us- ing needle nosed pliers to remove or install a jumper;...

  • Page 7: Table Of Contents

    Table of Contents Chapter 1 Hardware Installation ...................10 Installation Precautions .................. 10 Product Specifications ..................11 System Block Diagram .................. 15 Chapter 2 System Appearance ..................16 Front View ...................... 16 Rear View ....................... 17 Front Panel LEDs and Buttons ............... 18 RoT LEDs .......................
  • Page 8 4-3-1 CBP20C7 ........................51 4-3-2 CBP2025 (Rear System Storage Board) ..............52 Chapter 5 BIOS Setup ....................53 The Main Menu ....................55 Advanced Menu ..................... 58 5-2-1 Trusted Computing ....................59 5-2-2 Serial Port Console Redirection ................60 5-2-3 SIO Configuration ....................63 5-2-4 PCI Subsystem Settings ..................64 5-2-5 USB Configuration ....................66 5-2-6...
  • Page 9 Save & Exit Menu ..................111 BIOS Recovery .................... 113 BIOS POST Beep code (AMI standard) ............114 5-9-1 PEI Beep Codes ....................114 5-9-2 DXE Beep Codes ....................114 - 9 -...

  • Page 10: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard/system contain numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the service guide and follow these procedures: • Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer.

  • Page 11: Product Specifications

    Product Specifications NOTE: We reserve the right to make any changes to the product specifications and product-related information without prior notice. System Security Server Socket Operating Properties Š 2U Dimension Š 438 (W) x 87.5 (H) x 815(D) mm System fan Power Supply Superchip Intel®...
  • Page 12 Storage Front side: Š 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4* hot-swappable bays Š (4 x NVMe from CPU_0, 8 x NVMe from CPU_1) Rear side: Š 2 x 2.5" SATA/SAS-4* hot-swappable bays Š (SATA from CPU_0, through I/O board) *Storage card is required to support SATA and SAS drives. Š...
  • Page 13 Š Max 2000W/ 220-240V~ or 240Vdc Input Š +12.2V/ 164A Š +12.2Vsb/ 3A Note: GIGABYTE provides PSUs with various energy efficiency ratings and power outputs. Please contact our sales representatives to determine the best configuration for your system. Hardware Installation...
  • Page 14 System Š Aspeed® AST2600 management controller Management Š GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Š Dashboard Š HTML5 KVM Š Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Š Sensor Reading History Data Š FRU Information Š SEL Log in Linear Storage / Circular Storage Policy Š...

  • Page 15: System Block Diagram

    System Block Diagram NVMe x8 NVMe x8 NVMe x8 32-bay E3.S Gen5 NVMe SATA/SAS * 2-bay 2.5" (rear) MCIO 8i x8 8-Channel DDR5, 16 x DIMMs 8-Channel DDR5, 16 x DIMMs PCIe5.0 x16 PCIe5.0 x16 PCIe5.0 x16 PCIe5.0 x16 RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC) RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC) MCR DIMM: Up to 8000 MT/s MCR DIMM: Up to 8000 MT/s...

  • Page 16: Chapter 2 System Appearance

    Chapter 2 System Appearance Front View HDD0 HDD3 HDD6 HDD9 HDD1 HDD4 HDD7 HDD10 HDD2 HDD5 HDD8 HDD11 Description Front Panel LEDs and Buttons USB 3.2 Gen1 Port x 2 • Refer to section 2-3 Front Panel LEDs and Buttons for a detailed description of the function of the LEDs.

  • Page 17: Rear View

    Rear View SLOT12 SLOT11 SLOT8 SLOT6 SLOT4 SLOT3 PSU2 PSU1 SLOT2 SLOT1 Description Description Mini DisplayPort Management LAN Port ID LED OCP 3.0 Slot (Option/SFF) USB 3.2 Gen1 Port x 2 PCIe Slot Data LAN Port x 2 2.5” Hard Drive Bay •...

  • Page 18: Front Panel Leds And Buttons

    Front Panel LEDs and Buttons No. Name Color Status Description Reset Button Press this button to reset the system. Press this button for the server to generate a NMI to the NMI button processor. If multiple-bit ECC errors occur, the server will effectively be halted.

  • Page 19: Rot Leds

    RoT LEDs ID LED Status LED LED on Front panel (Note5) ID LED Status LED EC Firmware (FW) Authentication fail or not exit EC FW is broken or not exit (Note1) Authenticating/Recovering BMC/BIOS Images Authenticating Images Blinks Blue Blinks Green Recovering BMC Active Flash 4 times per second 4 times per second...
  • Page 20 Active Flash Authentication (AUTH) Fail Blinks Blue Blinks Green BMC : AUTH Fail (Note2) 1 time per second 1 time per second Blinks Blue Blinks Amber BIOS : AUTH fail (Note2) 1 time per second 1 time per second Blinks Blue Blinks Green 2 times per second 2 times per second...

  • Page 21: Rear System Lan Leds

    Rear System LAN LEDs Name Color Status Description Yellow 1 Gbps data rate 1GbE Speed Green 100 Mbps data rate 10 Mbps data rate Link between system and network or no access Green 1GbE Link / Blink Data transmission or reception is occurring. Activity LED No data transmission or reception is occurring.

  • Page 22: Power Supply Unit Led

    Power Supply Unit LED NOTE! The power supply may be vary based on the system configuration. PSU LED State Description No AC power to all power supplies 1Hz Green Blinking AC present / only standby on / Cold redundant mode 2Hz Green Blinking Power supply firmware updating mode AC cord unplugged or AC power lost;...

  • Page 23: Hard Disk Drive Leds

    Hard Disk Drive LEDs LED #1 2.5” HDD LED #2 3.5” HDD LED #1 LED #2 HDD Present RAID SKU LED #1 Locate Rebuilding HDD Access Fault (No Access) Green ON(*1) BLINK (*2) Disk LED (LED on Back Panel) Amber No RAID configuration Removed HDD...

  • Page 24: Chapter 3 System Hardware Installation

    Chapter 3 System Hardware Installation Pre-installation Instructions Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous. Follow the simple guidelines below to avoid damage to your computer or injury to yourself.

  • Page 25: Removing And Installing The Chassis Cover

    Removing and Installing the Chassis Cover Before you remove or install the system cover • Make sure the system is not turned on or connected to AC power. Follow these instructions to remove the chassis cover: Remove the screw securing the chassis cover. Unlock the plastic handle and pull the grip handle to open the panel cover.

  • Page 26: Removing And Installing The Hard Disk Drive

    Removing and Installing the Hard Disk Drive Read the following guidelines before you begin to install the hard disk drive: • Take note of the HDD tray orientation before sliding it out. • The tray will not fit back into the bay if it is inserted incorrectly. •...
  • Page 27 Follow these instructions to install a 2.5" hard disk drive into 3.5" HDD Tray: Press the release button. Extend the locking lever. Pull the locking lever in the direction indicated to remove the HDD tray. Align the hard disk drive with the positioning screw on the HDD tray. Secure the hard disk drive with five screws.

  • Page 28: Removing And Installing The Fan Duct

    Removing and Installing the Fan Duct Follow these instructions to remove the fan duct: Lift up to remove the fan duct. To reinstall the fan duct, align the fan duct with the guiding groove. Push down the fan duct until it is firmly seated on the system.

  • Page 29: Removing And Installing The Heat Sink

    Removing and Installing the Heat Sink Read the following guidelines before you begin to install the heat sink: • Always turn off the computer and unplug the power cord from the power outlet before installing the heat sink to prevent hardware damage. •...

  • Page 30: Installing The Cpu And Heat Sink

    Installing the CPU and Heat Sink Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
  • Page 31 Carrier Types used for Package Types Granite Rapids-SP HCC Granite Rapids-SP LCC Package Type Granite Rapids-SP XCC Sierra Forest-SP Clearwater Forest-SP Carrier Code Shim? Integrated TIM Break Lever NOTE! • The carrier code is marked on each carrier and matches a code laser marked on to the IHS(Integrated Heat Spreader) to ensure the right parts are used together.

  • Page 32: Removing And Installing Memory

    Removing and Installing Memory Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

  • Page 33: Removing And Installing A Memory Module

    3-6-2 Removing and Installing a Memory Module Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. Be sure to install DDR5 DIMMs on to this motherboard.

  • Page 34: Dimm Population Table

    3-6-3 DIMM Population Table Intel Xeon 6700E-Series Memory Support Channel Speed (MT/s); Voltage (V); DIMM Capacity (GB) Slots per Channel (SPC) & DIMMs per Ranks Per DIMM and Channel (DPC) Type DRAM Density Data Width 16Gb 32Gb 1DPC/2SPC 2DPC/2SPC 1DPC 2DPC 1DPC 1.1V...
  • Page 35 Intel Xeon 6500P/6700P-Series Memory Support Channel Speed (MT/s); Voltage (V); DIMM Capacity (GB) Slots per Channel (SPC) & DIMMs per Ranks Per Channel Density (DPC) Type DIMM and DRAM Density Data Width 16Gb 24Gb 32Gb 1DPC/2SPC 2DPC/2SPC 1DPC 2DPC 1DPC 2DPC 2DPC 1.1V...

  • Page 36: Processor And Memory Module Matrix Table

    3-6-4 Processor and Memory Module Matrix Table Memory Q’ty CPU0 CPU1 for each CPU 1 DIMM 4 DIMM 8 DIMM 12 DIMM 16 DIMM NOTE: • Xeon 6700E/6500E-series do not support 12 DIMMs Configuration. System Hardware Installation - 36 -...

  • Page 37: Removing And Installing The Pcie Card

    Removing and Installing the PCIe Card • Voltages can be present within the server whenever an AC power source is connected. This voltage is present even when the main power switch is in the off position. Ensure that the system is powered off and all power sources have been disconnected from the server prior to installing a PCIe card.

  • Page 38: Installing The Mezzanine Card

    Installing the Mezzanine Card 3-8-1 Installing the OCP 3.0 Mezzanine Card Use of the following type of OCP 3.0 NIC is recommended: • OCP 3.0 SFF with pull tab • OCP 3.0 SFF with ejector latch Follow these instructions to install an OCP 3.0 Mezzanine card: Remove the two screws securing the OCP 3.0 card slot cover.

  • Page 39: Replacing The Fan Assembly

    Replacing the Fan Assembly • Voltages can be present within the server whenever an AC power source is connected. This voltage is present even when the main power switch is in the off position. Ensure that the system is powered-down and all power sources have been disconnected from the server prior to replacing a system fan.

  • Page 40: Removing And Installing The Power Supply

    3-10 Removing and Installing the Power Supply Follow these instructions to replace the power supply: Flip up and then grasp the power supply handle. Press the retaining clip on the right side of the power supply unit in the direction indicated. Pull out the power supply unit using the handle.

  • Page 41: Removing The Lan Cable

    3-11 Removing the LAN Cable Follow these instructions to remove the LAN cable: Press the release latch while simultaneously pulling out the LAN cable System Hardware Installation - 41 -...

  • Page 42: Cable Routing

    3-12 Cable Routing CPU0 CPU1 Motherboard: FP_1 Front IO Board: FP_1 Front Panel LEDs and Buttons Cable Front IO Board: FP_1 Motherboard: FUSB_1 Front Panel USB 3 Ports Cable System Hardware Installation - 42 -...
  • Page 43 CPU0 CPU1 Front HDD Board: ATX1 HDD Backplane Board Power Cable Motherboard: ATX1 Motherboard: ATX2 HDD Backplane Board Power Cable Rear HDD Board: BP_2X3 System Hardware Installation - 43 -...
  • Page 44 CPU0 CPU1 Front HDD Board: BP_1 HDD Backplane Board Signal Cable Motherboard: BP_1 Front HDD Board: BP_SERIES HDD Backplane Board Signal Cable Rear HDD Board: BP_1 System Hardware Installation - 44 -...
  • Page 45 M.2 type SATA card: SATA_RA4 SATA Cable Rear HDD Board: SL_SAS0 System Hardware Installation - 45 -...
  • Page 46 CPU0 CPU1 Motherboard: Motherboard: U2_P0_4CA U2_P1_5GE NVMe 0-1 NVMe 6-7 Front HDD Board: Front HDD Board: Cable Cable A1: U.2_0 D1: U.2_6 A2: U.2_1 D2: U.2_7 Motherboard: Motherboard: U2_P0_4GE U2_P1_4CA NVMe 2-3 NVMe 8-9 Front HDD Board: Front HDD Board: Cable Cable B1: U.2_2...
  • Page 47 CPU0 CPU1 PCIe Riser Bracket: Slot 6 System Rear Side PCIe Cable Motherboard: A1: U2_P0_3AC A2: U2_P0_3EG PCIe Riser Bracket: Slot 11 System Rear Side PCIe Cable Motherboard: B1: U2_P1_2AC B2: U2_P1_2EG System Hardware Installation - 47 -...

  • Page 48: Chapter 4 Motherboard Components

    Chapter 4 Motherboard Components Motherboard Components BMC2 BMC1 BIOS1 BIOS2 CPU0 CPU1 Item Description 2 x 3 Pin ATX Power Connector (ATX2) 2 x 7 Pin ATX Power Connector (ATX1) 2 x 2 P12V Backplane Power Connector (P12V_BP4) MCIO Connector (U2_P1_4GE/4CA/PCIe Gen5) 2 x 2 P12V Backplane Power Connector (P12V_BP3) 2 x 3 Pin ATX Power Connector (ATX3) MCIO Connector (U2_P1_5GE/5CA/PCIe Gen5)
  • Page 49 Item Description Power Supply Connector#1 (Primary) Riser Connector (GENZ1/PCIe Gen5) IPMB Connector OCP 3.0 Connector (OCP1/PCIe Gen5 x16) TPM Module Connector (SPI Interface) PRoT Module Connector (M.2 M-Key/only enabled on RoT SKU) BMC Readiness LED System Battey Socket IO Card Connector OCP 3.0 Connector (OCP2/PCIe Gen5 x16) M.2 Slot (PCIe Gen5 x4, NGFF-22110/Supports heatsink) M.2 Slot (PCIe Gen5 x4, NGFF-22110/Supports heatsink)

  • Page 50: Jumper Settings

    Jumper Settings Default Enable Clear CMOS CLR_CMOS J1 J2 CPU0 CPU1 S3_MASK Stop initial power on when BMC is not ready Normal [Default] BIOS_RCVR BIOS recovery mode Normal [Default] BIOS_PWD Clear supervisor password Normal [Default] RST BMC_EN ID button to enable BMC reset Normal [Default] SW.1 SW.2...

  • Page 51: Backplane Board Storage Connector

    Backplane Board Storage Connector 4-3-1 CBP20C7 Item Description MCIO 4i (SFF-TA1016/U.2_0) MCIO 4i (SFF-TA1016/U.2_1) MCIO 4i (SFF-TA1016/U.2_2) MCIO 4i (SFF-TA1016/U.2_3) MCIO 4i (SFF-TA1016/U.2_4) MCIO 4i (SFF-TA1016/U.2_5) MCIO 4i (SFF-TA1016/U.2_6) MCIO 4i (SFF-TA1016/U.2_7) MCIO 4i (SFF-TA1016/U.2_8) MCIO 4i (SFF-TA1016/U.2_9) MCIO 4i (SFF-TA1016/U.2_10) MCIO 4i (SFF-TA1016/U.2_11) SlimSAS 4i Connector (SFF-8654/SAS_SAS0)

  • Page 52: Cbp2025 (Rear System Storage Board)

    4-3-2 CBP2025 (Rear System Storage Board) Item Description MCIO 4i (SFF-TA1016/U_2_0) MCIO 4i (SFF-TA1016/U_2_1) limSAS Connector (SFF-8654/SL_SAS0 Motherboard Components - 52 -...

  • Page 53: Chapter 5 Bios Setup

    Chapter 5 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters, loading the operating system etc. The BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.
  • Page 54  Main This setup page includes all the items of the standard compatible BIOS.  Advanced This setup page includes all the items of AMI BIOS special enhanced features. (ex: Auto detect fan and temperature status, automatically configure hard disk parameters.) ...

  • Page 55: The Main Menu

    The Main Menu Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter other sub-menu. Main Menu Help The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.
  • Page 56 Parameter Description Project Name Displays the project name information. Project Version Displays version number of the BIOS setup utility. Build Date and Time Displays the date and time when the BIOS setup utility was created. BMC Information BMC Firmware Version Displays BMC firmware version information.
  • Page 57 Parameter Description System Date Sets the date following the weekday-month-day-year format. System Time Sets the system time following the hour-minute-second format. BIOS Setup - 57 -...

  • Page 58: Advanced Menu

    Advanced Menu The Advanced Menu displays submenu options for configuring the function of various hardware components. Select a submenu item, then press <Enter> to access the related submenu screen. BIOS Setup - 58 -...

  • Page 59: Trusted Computing

    5-2-1 Trusted Computing Parameter Description Configuration Enable/Disable BIOS support for security device. OS will not show security device. TCG EFI protocol and INT1A interface will not be TPM v1.2 Support available. Options available: Disable, Enable. Default setting is Enable. BIOS Setup - 59 -...

  • Page 60: Serial Port Console Redirection

    5-2-2 Serial Port Console Redirection Parameter Description Console redirection enables the users to manage the system from a COM1 Console remote location. Redirection (Note) Options available: Enabled, Disabled. Default setting is Disabled. Press [Enter] to configure advanced items. Please note that this item is configurable when COM1 Console Redirection is set to Enabled.
  • Page 61 Parameter Description Parity Š – A parity bit can be sent with the data bits to detect some transmission errors. – Even: parity bit is 0 if the num of 1's in the data bits is even. – Odd: parity bit is 0 if num of 1's in the data bits is odd. –...
  • Page 62 Parameter Description Serial Port for Out-of-Band Management / Windows EMS console redirection allows the user to configure Console Redirection Emergency Management Settings to support Out-of-Band Serial Port management. Services (EMS) Console Options available: Enabled, Disabled. Default setting is Disabled. Redirection (Note) Press [Enter] to configure advanced items.

  • Page 63: Sio Configuration

    5-2-3 SIO Configuration Description Parameter Displays the AMI SIO driver version information. AMI SIO Driver Version Super IO Chip Logical Device(s) Configuration Press [Enter] to configure advanced items. Use This Device Š – When set to Enabled allows you to configure the serial port settings. When set to Disabled, displays no configuration for the serial port.

  • Page 64: Pci Subsystem Settings

    5-2-4 PCI Subsystem Settings BIOS Setup - 64 -...
  • Page 65 Parameter Description PCI Bus Driver Version Displays the PCI Bus Driver version information. When enabled, this setting will initialize the device expansion SLOT_# I/O ROM ROM for the related PCI-E slot. (Note1) Options available: Enabled, Disabled. Default setting is Enabled. SLOT_# Lanes Change the PCIe lanes.

  • Page 66: Usb Configuration

    5-2-5 USB Configuration Parameter Description USB Configuration USB Devices: Displays the USB devices connected to the system. Enable/Disable the XHCI (USB 3.0) Hand-off support. XHCI Hand-off Options available: Enabled, Disabled. Default setting is Enabled. USB Mass Storage Driver Enable/Disable the USB Mass Storage Driver Support. Support Options available: Enabled, Disabled.

  • Page 67: Network Stack Configuration

    5-2-6 Network Stack Configuration Parameter Description Enable/Disable the UEFI network stack. Network Stack Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable the Ipv4 PXE feature. Ipv4 PXE Support Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable the Ipv4 HTTP feature. Ipv4 HTTP Support Options available: Enabled, Disabled.

  • Page 68: Post Report Configuration

    5-2-7 Post Report Configuration Parameter Description Post Report Configuration Error Message Report Enable/Disable the POST Error Message support. Post Error Message Options available: Enabled, Disabled. Default setting is Enabled. Halt On Options available: No Error, All Error. Default setting is No Error. BIOS Setup - 68 -...

  • Page 69: Kmip Server Configuration

    5-2-8 KMIP Server Configuration Parameter Description KMIP Server IP address KMIP TCP Port Number Enter the correct timem zone for this server. Time Zone Default setting is GMT+8. Use User and password credentials to authenticate the Client. Client Credentials Options available: Enabled, Disabled, Clear. Default setting is Enabled.

  • Page 70: Nvme Configuration

    5-2-9 NVMe Configuration Parameter Description NVMe Configuration Displays the NVMe devices connected to the system. BIOS Setup - 70 -...

  • Page 71: Chipset Configuration

    5-2-10 Chipset Configuration Parameter Description Defines the power state to resume to after a system shutdown that is due to an interruption in AC power. When set to Last State, the system will return to the active power state prior to shutdown. When set to Restore on AC Power Loss (Note) Power Off, the system remains off after power shutdown.

  • Page 72: Tls Auth Configuration

    5-2-11 Tls Auth Configuration Parameter Description Press [Enter] for configuration of advanced items. Enroll Cert Š – Press [Enter] to enroll a certificate • Enroll Cert Using File • Cert GUID Server CA Configuration Input digit character in 1111111-2222-3333-4444-1234567890ab format. –...

  • Page 73: Iscsi Configuration

    5-2-12 iSCSI Configuration Parameter Description Press [Enter] to configure advanced items. iSCSI Initiator Name Š – Only IQN format is accepted. Range: from 4 to 223 Host iSCSI Configuration Add an Attempt Š Delete Attempts Š Change Attempt Order Š BIOS Setup - 73 -...

  • Page 74: Intel(R) I350 Gigabit Network Connection

    5-2-13 Intel(R) i350 Gigabit Network Connection BIOS Setup - 74 -...
  • Page 75 Description Parameter Press [Enter] to configure advanced items. Link Speed Š – Allows for automatic link speed adjustment. – Options available: Auto Negotiated, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, 100 Mbps Full. Default setting is Auto Negotiated. Wake On LAN NIC Configuration Š...

  • Page 76: Vlan Configuration

    5-2-14 VLAN Configuration Parameter Description Press [Enter] to configure advanced items. Create new VLAN Š VLAN ID Š – Sets VLAN ID for a new VLAN or an existing VLAN. – Press the <+> / <-> keys to increase or decrease the desired values. –...

  • Page 77: Mac Ipv6 Network Configuration

    5-2-15 MAC IPv6 Network Configuration Parameter Description Press [Enter] to configure advanced items. Displays the MAC Address information. Š Interface ID Š – The 64 bit alternative interface ID for the device. The string is colon separated. e.g. ff:dd:88:66:cc:1:2:3. DAD Transmit Count Š...

  • Page 78: Mac Ipv4 Network Configuration

    5-2-16 MAC IPv4 Network Configuration Parameter Description Indicates whether network address is configured successfully or not. Configured Options available: Enabled, Disabled. Default setting is Disabled. Options available: Enabled, Disabled. Default setting is Disabled. Enable DHCP (Note) Local IP Address Press [Enter] to configure local IP address. (Note) Press [Enter] to configure local NetMask.

  • Page 79: Driver Health

    5-2-17 Driver Health Parameter Description Driver Health Displays driver health status of the devices/controllers if installed BIOS Setup - 79 -...

  • Page 80: Chipset Menu

    Chipset Menu Chipset Setup menu displays submenu options for configuring the function of Platform Controller Hub(PCH). Select a submenu item, then press <Enter> to access the related submenu screen. BIOS Setup - 80 -...
  • Page 81 5-3-1 Processor Configuration BIOS Setup - 81 -...

  • Page 82: Processor Configuration

    Description Parameter Processor Configuration Press [Enter] to configure advanced items. CPU Socket 0/1 Configuration Š – Core Disable Bitmap(Hex) • Number of Cores to enable. 0 means all cores. FFFFFFF Pre-Socket Configuration means to disable all cores. The maximum value depends on the number of CPUs available.
  • Page 83 Options available: Enabled, Disabled. Default setting is Disabled. Memory integrity Options available: Enabled, Disabled. Default setting is Disabled. Trust Domain Extension (TDX) Shows hexadecimal SGX internal error code. SGX error code [HEX] Perform SGX Factory Reset, on subsequent boot: delete all registration data, if SGX enabled will force Initial Platform Establishment flow.

  • Page 84: Common Refcode Configuration

    5-3-2 Common RefCode Configuration Parameter Description Common RefCode Configuration Divide physical NUMA nodes into evenly sized virtual NUMA nodes in ACPI table. This may improve Windows performance on CPUs Virtual Numa with more than 64 logical processors. Options available: Enable, Disable. Default setting is Disable. The numbber of virtual NUMA nodes per physical NUMA nodes.

  • Page 85: Upi Configuration

    5-3-3 UPI Configuration BIOS Setup - 85 -...
  • Page 86 Description Parameter Press [Enter] to configure advanced items. Uncore Status Š – Press [Enter] to view the Uncore status. Link Frequency Select Š – Selects the UPI link frequency. – Options available: 12.8GT/s, 14.4GT/s, 16.0GT/s, Auto, Use Per Link Setting. Default setting is Auto. Š...

  • Page 87: Memory Configuration

    5-3-4 Memory Configuration Description Parameter Integrated Memory Controller (iMC) When set to Enable, the system enforces Plan Of Record restrictions for DDR frequency programming. Enforce DDR Memory Frequency POR Options available: POR, Disable. Default setting is POR. Maximum Host DDR Memory Frequency Selecttions in MT/s. If the AUTO option has been selected, a frequency is chosen automatically based on the minimum tCK given by the SPD.
  • Page 88 Description Parameter Press [Enter] to view memory topology with DIMM population Memory Topology information. Press [Enter] to configure advanced items. Intel(R) Flat Memory Mode Support. Š – Options available: Enabled, Disabled. Default setting is Disabled. Memory Map DDR CXL Heterogeneous Interleave support. Š...
  • Page 89 Description Parameter ADDDC Sparing (Note) Š – Enable/Disable ADDDC Sparing. – Options available: Disabled, Enabled. Default setting is Disabled. Enable ADDDC Error Injection Š – Options available: Disabled, Enabled. Default setting is Enabled. Patrol Scrub Memory RAS Configuration Š – Options available: Disabled, Enable at End of POST. Default (continued) setting is Enable at End of POST.

  • Page 90: Iio Configuration

    5-3-5 IIO Configuration Description Parameter IIO Configuration Enable/Disable Intel VMD technology. Intel VMD Configuration Options available: Enable, Disable. Default setting is Disable. Press [Enter] to configure advanced items. DMA Control Opt-In Flag Š – Enable/Disable DMA_CTRL_PLATFORM_OPT_IN_FLAG in DMAR table in ACPI. Not compatible with Direct Device Assignment (DDA).

  • Page 91: Advanced Power Management Configuration

    5-3-6 Advanced Power Management Configuration Description Parameter Press [Enter] to configure advanced items. Intel SST-PP Š – Intel SST-PP Select allows user to choose level. – Options available: Auto, Level 0, Level 1. Default setting is Auto. SpeedStep (Pstates) Š –...
  • Page 92 Description Parameter Press [Enter] to configure advanced items. Hardware P-States Š – When this item is disabled, the processor hardware chooses a P-state based on OS Request (Legacy P-States). – In Native mode, the processor hardware chooses a P-state based Hardware PM State Control on OS guidance.

  • Page 93: Miscellaneous Configuration

    5-3-7 Miscellaneous Configuration Description Parameter Miscellaneous Configuration Press [Enter] to configure advanced items. – SSC1 Enable – Options available: Enable, Disable. Default setting is Enable. ISCLK Configuration – SSC2 Enable – Options available: Enable, Disable. Default setting is Enable. Selects the active video type. Options available: Auto, Onboard Device, PCIE Device, Specific PCIE Active Video Device.

  • Page 94: Runtime Error Logging Settings

    5-3-8 Runtime Error Logging Settings Description Parameter Runtime Error Logging Enable/Disable system error logging function. System Errors Options available: Enable, Disable. Default setting is Enable. Press [Enter] to configure advanced items. WHEA (Windows Hardware Error Architecture) Support Š Whea Settings –...
  • Page 95 Description Parameter Press [Enter] to configure advanced items. Corrected Error Š – Enables and escalates correctable Errors to error pins. – Options available: Enable, Disable. Default setting is Disable. Uncorrected Error Š – Enables and escalates Uncorrectable/Recoverable Errors to error pins. –...

  • Page 96: Power Policy

    5-3-9 Power Policy Description Parameter Selects a Power Policy Quick Setting. Options available: Standard, Best Performance, Energy Efficient. Default Power Policy Quick Settings setting is Standard. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor SpeedStep (Pstates) load.
  • Page 97 Description Parameter Options available: Enable, Disable. Default setting is Enable. Hardware Prefetcher Options available: Enable, Disable. Default setting is Enable. Adjacent Cache Prefetch Options available: Enable, Disable. Default setting is Enable. DCU Streamer Prefetcher Options available: Enable, Disable. Default setting is Enable. L1 Next page Prefetcher Options available: Disable, Native mode, Out of Band mode, Native Mode Hardware P-States...

  • Page 98: Server Management Menu

    Server Management Menu Parameter Description Enable/Disable FRB-2 timer (POST timer). FRB-2 Timer Options available: Enabled, Disabled. Default setting is Enabled. FRB-2 Timer Configures the FRB2 Timer timeout. The value is between 1 to 30 minutes. (Note1) timeout Default setting is 6 minutes. Configures the FRB2 Timer policy.
  • Page 99 Parameter Description System Event Log Press [Enter] to configure advanced items. View FRU Press [Enter] to view the FRU information. Information BMC VLAN Press [Enter] to configure advanced items. Configuration BMC network Press [Enter] to configure advanced items. Configuration IPv6 BMC Network Press [Enter] to configure advanced items.

  • Page 100: System Event Log

    5-4-1 System Event Log Parameter Description Enabling / Disabling Options Change this item to enable or disable all features of System Event SEL Components Logging during boot. Options available: Enabled, Disabled. Default setting is Enabled. Erasing Settings Choose options for erasing SEL. Options available: No, Erase SEL Yes, On next reset,...

  • Page 101: View Fru Information

    5-4-2 View FRU Information The FRU page is a simple display page for basic system ID information, as well as System product information. Items on this window are non-configurable. (Note) The model name will vary depends on the product you purchased BIOS Setup - 101 -...

  • Page 102: Bmc Vlan Configuration

    5-4-3 BMC VLAN Configuration Description Parameter BMC VLAN Configuration Select to configure BMC VLAN ID. The valid range is from 0 to 4094. When BMC VLAN ID set to 0, BMC VLAN ID will be disabled. Select to configure BMC VLAN Priority. The valid range is from 0 to 7. BMC VLAN Priority When BMC VLAN ID is set to 0, BMC VLAN Priority will not be selected.

  • Page 103: Bmc Network Configuration

    5-4-4 BMC Network Configuration Parameter Description BMC network configuration Select NCSI and Dedicated Options available: Do Nothing, Model1(Dedicated), Model2(NCSI), Mode3(Failover). Default setting is Do Nothing. Lan Channel 1 Selects to configure LAN channel parameters statically or dynamically (DHCP). Configuration Address source Options available: Unspecified, Static, DynamicBmcDhcp.

  • Page 104: Ipv6 Bmc Network Configuration

    5-4-5 IPv6 BMC Network Configuration Parameter Description IPv6 BMC network configuration IPv6 BMC Lan Channel 1 Enable/Disable IPv6 BMC LAN channel function. When this item is disabled, the system will not modify any BMC network during BIOS IPv6 BMC Lan Option phase.

  • Page 105: Security Menu

    Security Menu The Security menu allows you to safeguard and protect the system from unauthorized use by setting up access passwords. There are two types of passwords that you can set: • Administrator Password Entering this password will allow the user to access and change all settings in the Setup Utility. •...

  • Page 106: Secure Boot

    5-5-1 Secure Boot The Secure Boot feature is applicable if supported by your Operating System. If your Operating System is not supporting Secure Boot, the system will hang when starting the Operating System. Parameter Description System Mode Displays if the system is in User mode or Setup mode. Enable/ Disable the Secure Boot function.
  • Page 107 Parameter Description Press [Enter] to configure advanced items. Please note that this item is configurable when Secure Boot Mode is set to Custom. Factory Key Provision Š – Allows to provision factory default Secure Boot keys when system is in Setup Mode.
  • Page 108 Parameter Description Authorized TimeStamps (DBT) Š – Displays the current status of the Authorized TimeStamps Database. – Press [Enter] to configure a new DBT or load additional DBT from storage devices. Key Management – Options available: Update, Append. (continued) OsRecovery Signatures Š...

  • Page 109: Boot Menu

    Boot Menu The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error message if the legacy drive(s) specified is not bootable. BIOS Setup - 109 -...
  • Page 110 Parameter Description Boot Configuration Number of seconds to wait for setup activation key. 65535 (0xFFFF) Setup Prompt Timeout means indefinite waiting. Press the numeric keys to input the desired values. Enable/Disable the Bootup NumLock function. Bootup NumLock State Options available: On, Off. Default setting is On. Enable/Disable showing the logo during POST.

  • Page 111: Save & Exit Menu

    Save & Exit Menu The Save & Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit options then press <Enter>. Parameter Description Save Options Saves changes made and closes the BIOS setup. Save and Exit Options available: Yes, No.
  • Page 112 Parameter Description Loads the default settings for all BIOS setup parameters. Setup Defaults are quite demanding in terms of resources consumption. If you are using low-speed memory chips or other kinds of low-performance components Restore Defaults and you choose to load these settings, the system might not function properly.

  • Page 113: Bios Recovery

    BIOS Recovery The system has an embedded recovery technique. In the event that the BIOS becomes corrupt the boot block can be used to restore the BIOS to a working state. To restore your BIOS, please follow the instructions listed below: Recovery Instruction: 1.

  • Page 114: Bios Post Beep Code (Ami Standard)

    BIOS POST Beep code (AMI standard) 5-9-1 PEI Beep Codes # of Beeps Description Memory not Installed. Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available...
